This class is designed to manage and store system matrix elements associated to a vEvent. More...

#include <oProjectionLine.hh>

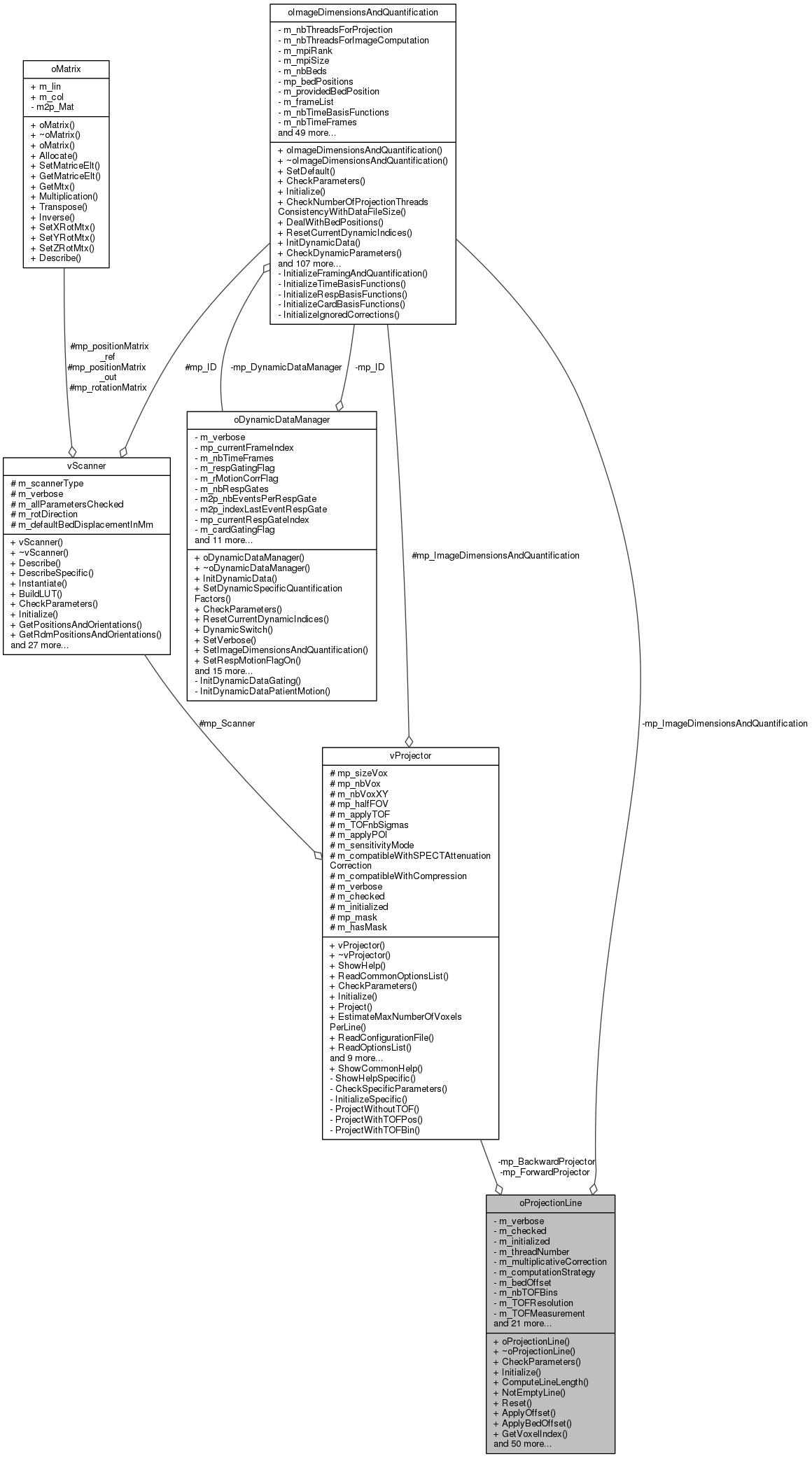

Collaboration diagram for oProjectionLine:

Public Member Functions
	oProjectionLine ()
	The constructor of oProjectionLine. More...

	~oProjectionLine ()
	The destructor of oProjectionLine. More...

int	CheckParameters ()
	A function used to check the parameters settings. More...

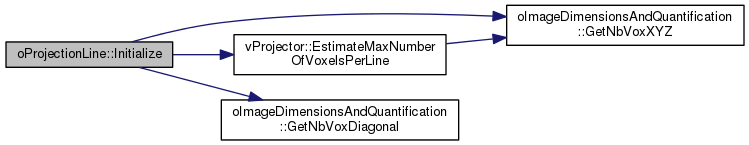

int	Initialize ()
	A function used to initialize a bunch of stuff after parameters have been checked. More...

void	ComputeLineLength ()
	Simply compute and update the m_length using the associated mp_position1 and mp_position2. More...

bool	NotEmptyLine ()
	This function is used to know if the line contains any voxel contribution. More...

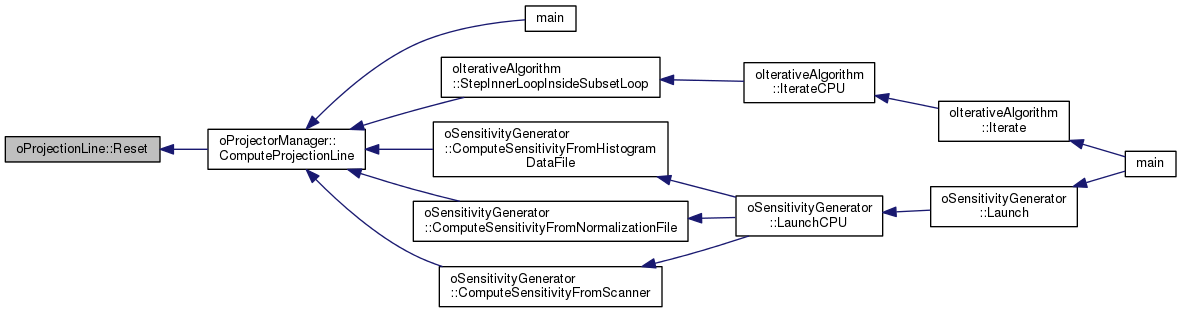

void	Reset ()
	Reset length and all the voxel indices and weights tabs. More...

void	ApplyOffset ()
	Apply the offset of oImageDimensionsAndQuantification to the mp_position1 and mp_position2. More...

void	ApplyBedOffset ()
	Apply the bed offset of m_bedOffset to the mp_position1 and mp_position2. More...

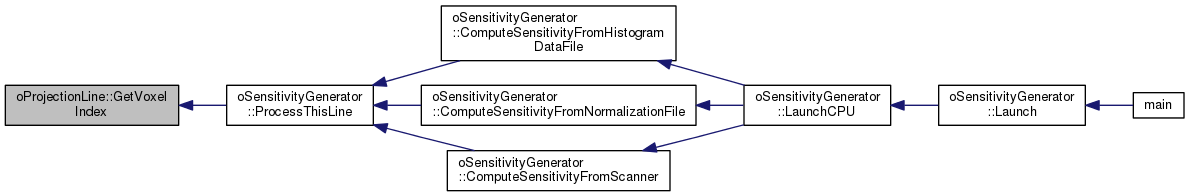

INTNB	GetVoxelIndex (int a_direction, int a_TOFBin, INTNB a_voxelInLine)
	This function is used to get the contributing voxel index of the provided direction, TOF bin and voxel rank. More...

void	AddVoxelInTOFBin (int a_direction, int a_TOFBin, INTNB a_voxelIndice, FLTNB a_voxelWeight)
	This function is used to add a voxel contribution to the line and provided TOF bin. More...

void	AddVoxelAllTOFBins (int a_direction, INTNB a_voxelIndex, FLTNB a_voxelWeight, HPFLTNB *a_tofWeights, INTNB a_tofBinFirst, INTNB a_tofBinLast)
	Add a voxel contribution to the line for all relevant TOF bins. More...

void	AddVoxel (int a_direction, INTNB a_voxelIndice, FLTNB a_voxelWeight)
	This function is used to add a voxel contribution to the line, assuming TOF bin 0 (i.e. no TOF). More...

FLTNB	ForwardProject (FLTNB *ap_image=NULL)
	Simply forward projects the provided image if not null, or else 1, for the current TOF bin. More...

FLTNB	ForwardProjectWithSPECTAttenuation (FLTNB ap_attenuation, FLTNB ap_image=NULL)
	Forward projects the provided image for the current TOF bin with an inner loop on the attenuation (for SPECT). More...

void	BackwardProject (FLTNB *ap_image, FLTNB a_value)
	Simply backward projects the provided value inside the provided image, for the current TOF bin. More...

void	BackwardProjectWithSPECTAttenuation (FLTNB ap_attenuation, FLTNB ap_image, FLTNB a_value)
	Backward project the provided value inside the provided image with an inner loop on the attenuation (for SPECT). More...

FLTNB	ComputeLineIntegral (int a_direction)
	It simply computes the sum of all voxels contributions following the provided direction. More...

FLTNB	GetVoxelWeights (int a_direction, int a_TOFBin, INTNB a_voxelInLine)
	This function is used to get the contributing voxel weight of the provided direction, TOF bin and voxel rank. More...

INTNB	GetCurrentNbVoxels (int a_direction, int a_TOFBin)
	This function is used to get the current number of contributing voxels to the line. More...

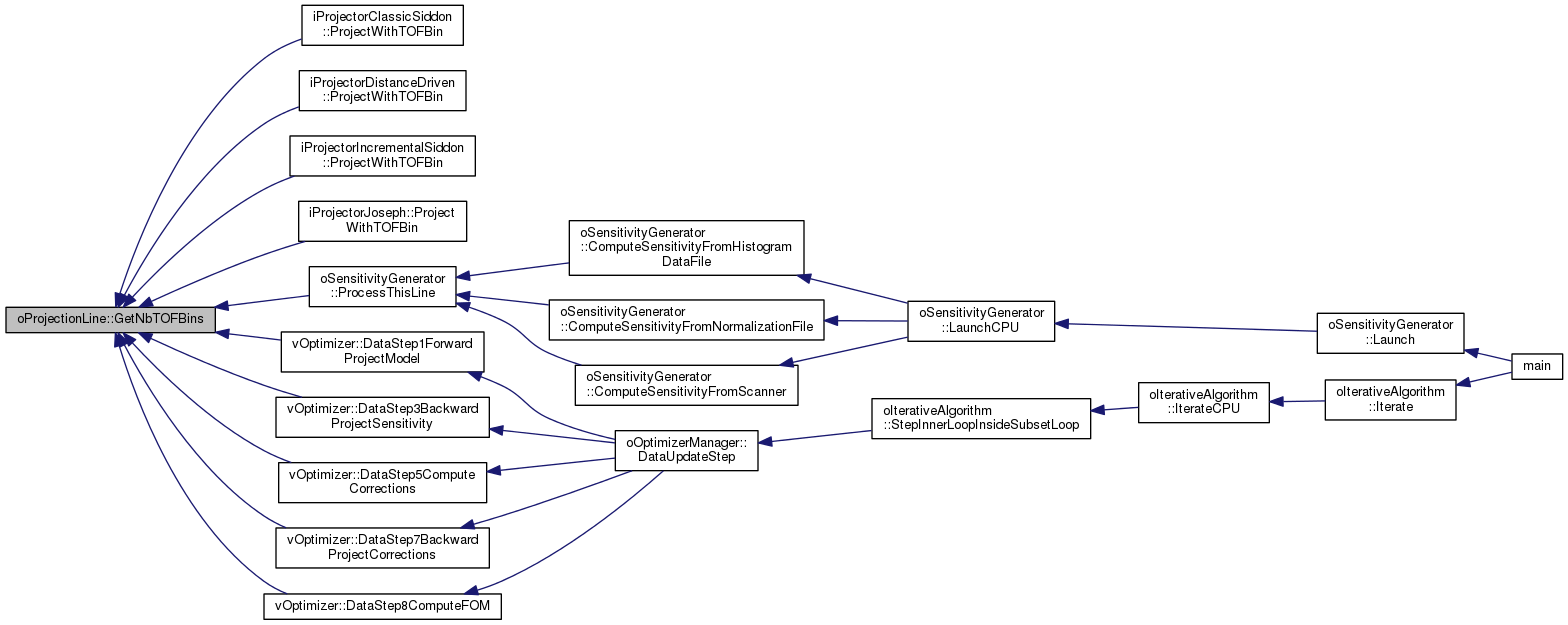

int	GetNbTOFBins ()
	This function is used to get the number of TOF bins in use. More...

FLTNB	GetLength ()
	This function is used to get the length of the line. More...

int	GetComputationStrategy ()
	This function is used to get the computation strategy. More...

FLTNB *	GetPosition1 ()
	This function is used to get the pointer to the mp_position1 (3-values tab). More...

FLTNB *	GetPosition2 ()
	This function is used to get the pointer to the mp_position2 (3-values tab). More...

FLTNB *	GetBufferPosition1 ()
	This function is used to get the pointer to the mp_bufferPosition1 (3-values tab). More...

FLTNB *	GetBufferPosition2 ()
	This function is used to get the pointer to the mp_bufferPosition2 (3-values tab). More...

FLTNB *	GetOrientation1 ()
	This function is used to get the pointer to the mp_orientation1 (3-values tab). More...

FLTNB *	GetOrientation2 ()
	This function is used to get the pointer to the mp_orientation2 (3-values tab). More...

FLTNB *	GetBufferOrientation1 ()
	This function is used to get the pointer to the mp_bufferOrientation1 (3-values tab). More...

FLTNB *	GetBufferOrientation2 ()
	This function is used to get the pointer to the mp_bufferOrientation2 (3-values tab). More...

FLTNB *	GetPOI1 ()
	This function is used to get the pointer to POI of point 1 (3-values tab). More...

FLTNB *	GetPOI2 ()
	This function is used to get the pointer to POI of point 2 (3-values tab). More...

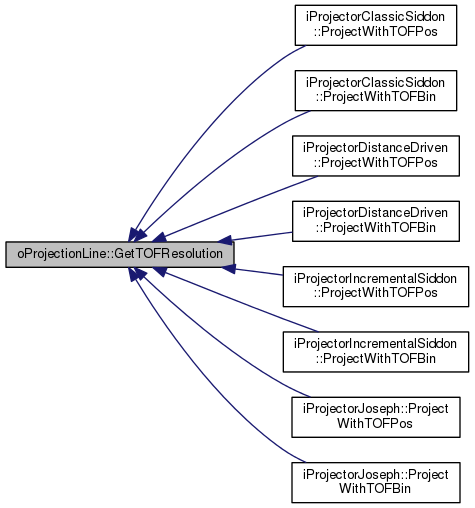

FLTNB	GetTOFResolution ()
	This function is used to get the TOF resolution. More...

FLTNB	GetTOFMeasurement ()
	This function is used to get the TOF measurement. More...

FLTNB	GetTOFBinSize ()
	This function is used to get the size in ps of a TOF bin. More...

int	GetIndex1 ()
	This function is used to get the index associated to point 1. More...

int	GetIndex2 ()
	This function is used to get the index associated to point 2. More...

int	GetThreadNumber ()
	This function is used to get the thread number associated to this line. More...

FLTNB	GetBedOffset ()
	This function is used to get the axial bed offset associated to this line. More...

void	SetLength (FLTNB a_length)
	This function is used to set the length of the line. More...

void	SetPOI1 (FLTNB *ap_POI1)
	This function is used to set the POI of point 1. More...

void	SetPOI2 (FLTNB *ap_POI2)
	This function is used to set the POI of point 2. More...

void	SetTOFMeasurement (FLTNB a_TOFMeasurement)
	This function is used to set the TOF measurement associated to the line. More...

void	SetTOFBinSize (FLTNB a_TOFBinSize)
	This function is used to set the size of a TOF bin in ps. More...

void	SetIndex1 (int a_index1)
	This function is used to set the index m_index1 of point 1. More...

void	SetIndex2 (int a_index2)
	This function is used to set the index m_index1 of point 2. More...

void	SetNbTOFBins (int a_nbTOFBins)
	This function is used to set the number of TOF bins in use. More...

void	SetCurrentTOFBin (int a_TOFBin)
	This function is used to set the current TOF bin that is used. More...

void	SetMatchedProjectors (bool a_UseMatchedProjectors)
	This function is used to set the boolean that says if we use matched projectors. More...

void	SetTOFResolution (FLTNB a_TOFResolution)
	This function is used to set the TOF resolution in use. More...

void	SetPOIResolution (FLTNB *ap_POIResolution)
	This function is used to set the POI resolution along the 3 axes. More...

void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	This function is used to set the pointer to the oImageDimensionsAndQuantification in use. More...

void	SetComputationStrategy (int a_computationStrategy)
	This function is used to set the computation strategy in use. More...

void	SetForwardProjector (vProjector *ap_Projector)
	This function is used to set the pointer to the forward projector. More...

void	SetBackwardProjector (vProjector *ap_Projector)
	This function is used to set the pointer to the backward projector. More...

void	SetThreadNumber (int a_threadNumber)
	This function is used to set the thread number of this particular line. More...

void	SetMultiplicativeCorrection (FLTNB a_multiplicativeCorrection)
	This function is used to set the multiplicative correction to be applied during forward and backward projections. More...

void	SetVerbose (int a_verbose)
	This function is used to set the verbose level. More...

void	SetBedOffset (FLTNB a_bedOffset)
	This function is used to set the bed offset. More...

Private Attributes
int	m_verbose

bool	m_checked

bool	m_initialized

int	m_threadNumber

FLTNB	m_multiplicativeCorrection

oImageDimensionsAndQuantification *	mp_ImageDimensionsAndQuantification

int	m_computationStrategy

FLTNB	m_bedOffset

int	m_nbTOFBins

FLTNB	m_TOFResolution

FLTNB	m_TOFMeasurement

int	m_currentTOFBin

FLTNB	m_TOFBinSize

FLTNB *	mp_POI1

FLTNB *	mp_POI2

FLTNB *	mp_POIResolution

FLTNB	m_length

FLTNB *	mp_position1

FLTNB *	mp_position2

FLTNB *	mp_bufferPosition1

FLTNB *	mp_bufferPosition2

FLTNB *	mp_orientation1

FLTNB *	mp_orientation2

FLTNB *	mp_bufferOrientation1

FLTNB *	mp_bufferOrientation2

int	m_index1

int	m_index2

bool	m_useMatchedProjectors

vProjector *	mp_ForwardProjector

vProjector *	mp_BackwardProjector

INTNB **	m2p_allocatedNbVoxels

INTNB **	m2p_currentNbVoxels

INTNB ***	m3p_voxelIndices

FLTNB ***	m3p_voxelWeights

Detailed Description

This class is designed to manage and store system matrix elements associated to a vEvent.

This class is basically a container for system matrix elements associated to a vEvent. It can use different storage and computation strategies for this role. It contains the voxel contributions to the LOR associated to a vEvent. It manages TOF bins.

Definition at line 92 of file oProjectionLine.hh.

Constructor & Destructor Documentation

oProjectionLine::oProjectionLine ( )

The constructor of oProjectionLine.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 40 of file oProjectionLine.cc.

oProjectionLine::~oProjectionLine ( )

The destructor of oProjectionLine.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were built by this class.

Definition at line 83 of file oProjectionLine.cc.

Member Function Documentation

void oProjectionLine::AddVoxel	(	int	a_direction,
		INTNB	a_voxelIndice,
		FLTNB	a_voxelWeight
	)

This function is used to add a voxel contribution to the line, assuming TOF bin 0 (i.e. no TOF).

Parameters

int	a_direction
INTNB	a_voxelIndice
FLTNB	a_voxelWeight

Definition at line 687 of file oProjectionLine.cc.

Here is the call graph for this function:

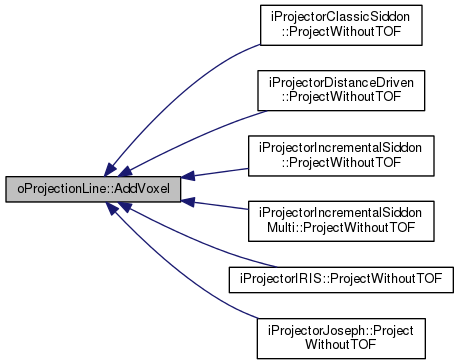

Here is the caller graph for this function:

void oProjectionLine::AddVoxelAllTOFBins	(	int	a_direction,
		INTNB	a_voxelIndex,
		FLTNB	a_voxelWeight,
		HPFLTNB *	a_tofWeights,
		INTNB	a_tofBinFirst,
		INTNB	a_tofBinLast
	)

Add a voxel contribution to the line for all relevant TOF bins.

Parameters

int	a_direction
INTNB	a_voxelIndex
FLTNB	a_voxelWeight
HPFLTNB*	a_tofWeights : TOF weightings for all TOF bins for this voxel
INTNB	a_tofBinFirst : first relevant TOF bin for this voxel
INTNB	a_tofBinLast : last relevant TOF bin for this voxel

Definition at line 622 of file oProjectionLine.cc.

Here is the call graph for this function:

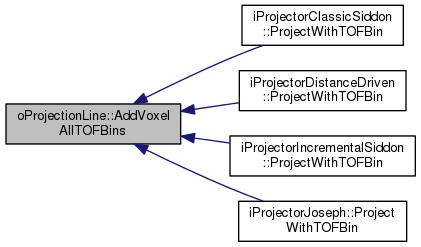

Here is the caller graph for this function:

void oProjectionLine::AddVoxelInTOFBin	(	int	a_direction,
		int	a_TOFBin,
		INTNB	a_voxelIndice,
		FLTNB	a_voxelWeight
	)

This function is used to add a voxel contribution to the line and provided TOF bin.

Parameters

int	a_direction
int	a_TOFBin
INTNB	a_voxelIndex
FLTNB	a_voxelWeight

Definition at line 566 of file oProjectionLine.cc.

Here is the call graph for this function:

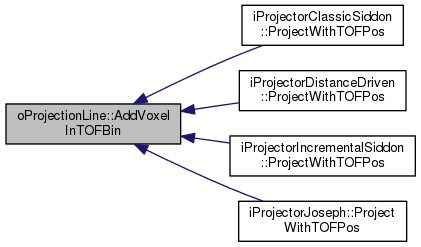

Here is the caller graph for this function:

void oProjectionLine::ApplyBedOffset ( )

Apply the bed offset of m_bedOffset to the mp_position1 and mp_position2.

Definition at line 508 of file oProjectionLine.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oProjectionLine::ApplyOffset ( )

Apply the offset of oImageDimensionsAndQuantification to the mp_position1 and mp_position2.

Definition at line 479 of file oProjectionLine.cc.

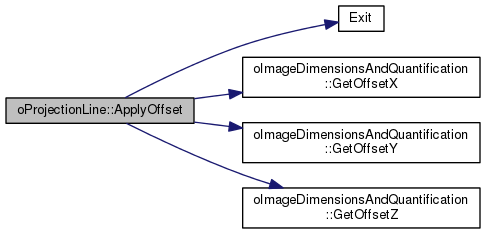

Here is the call graph for this function:

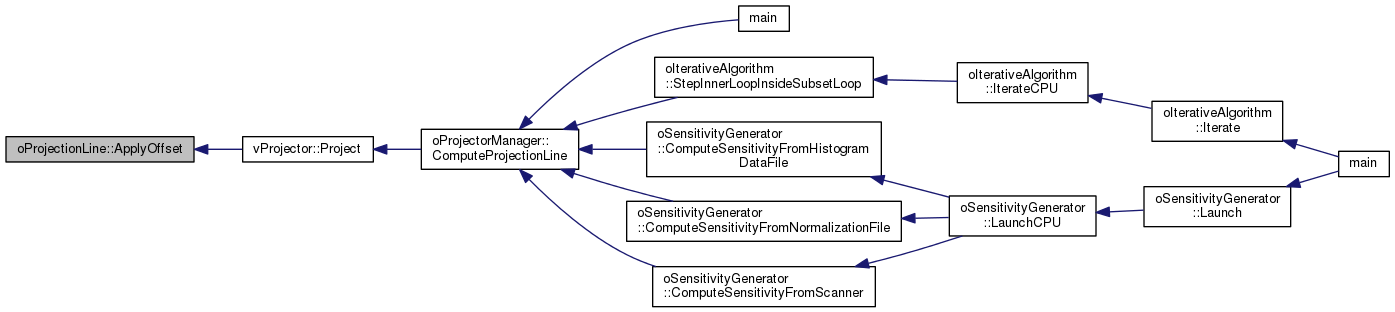

Here is the caller graph for this function:

void oProjectionLine::BackwardProject	(	FLTNB *	ap_image,
		FLTNB	a_value
	)

Simply backward projects the provided value inside the provided image, for the current TOF bin.

Parameters

FLTNB*	ap_image
FLTNB	a_value

It backward projects for the current TOF bin the provided value inside the provided image. It also applies the inverse of the multiplicative correction term before the backward projection, and assumes it is not zero.

Definition at line 877 of file oProjectionLine.cc.

Here is the call graph for this function:

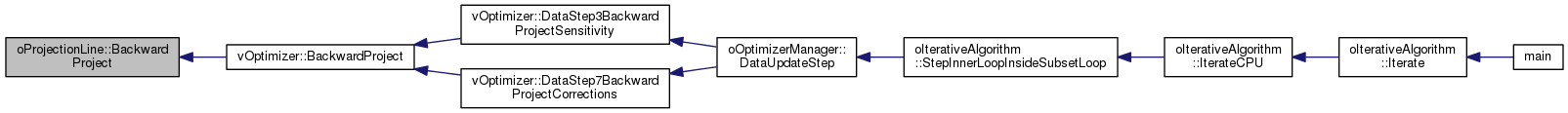

Here is the caller graph for this function:

void oProjectionLine::BackwardProjectWithSPECTAttenuation	(	FLTNB *	ap_attenuation,
		FLTNB *	ap_image,
		FLTNB	a_value
	)

Backward project the provided value inside the provided image with an inner loop on the attenuation (for SPECT).

Parameters

FLTNB*	ap_attenuation
FLTNB*	ap_image
FLTNB	a_value

It backward projects the provided into the provided image. It does it for the current TOF bin (for genericity purpose) even if this function should only be called for SPECT. The order of the voxels contributions is assumed to be from the outside to the detector, so it only works with the list computation strategy. It also applies the inverse of the multiplicative correction term before the backward projection, and assumes it is not zero.

Definition at line 902 of file oProjectionLine.cc.

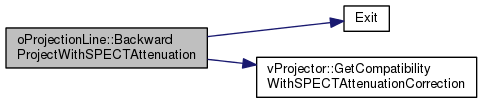

Here is the call graph for this function:

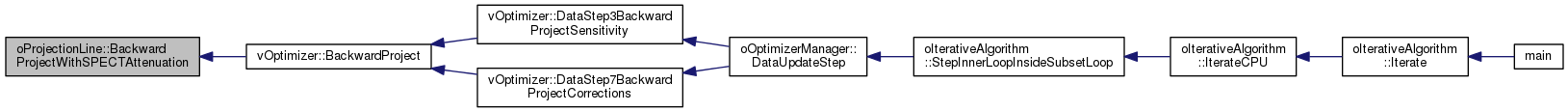

Here is the caller graph for this function:

int oProjectionLine::CheckParameters ( )

A function used to check the parameters settings.

This function does not take any parameter and is used to check that all mandatory members were correctly parameterized.

Returns: An integer reflecting the check status; 0 if no problem, another value otherwise.

Definition at line 138 of file oProjectionLine.cc.

Here is the call graph for this function:

FLTNB oProjectionLine::ComputeLineIntegral ( int a_direction )

It simply computes the sum of all voxels contributions following the provided direction.

Parameters

int	a_direction

Returns: The sum of all voxels contributions

Definition at line 956 of file oProjectionLine.cc.

void oProjectionLine::ComputeLineLength ( )

Simply compute and update the m_length using the associated mp_position1 and mp_position2.

Definition at line 383 of file oProjectionLine.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

FLTNB oProjectionLine::ForwardProject ( FLTNB * ap_image = NULL )

Simply forward projects the provided image if not null, or else 1, for the current TOF bin.

Parameters

FLTNB* ap_image = NULL

It forward projects for the current TOF bin the provided image if not NULL, or else it assumes a uniform image of 1. It also applies the inverse of the multiplicative correction term, and assumes it is not zero.

Returns: The value of the forward projection

Definition at line 746 of file oProjectionLine.cc.

Here is the call graph for this function:

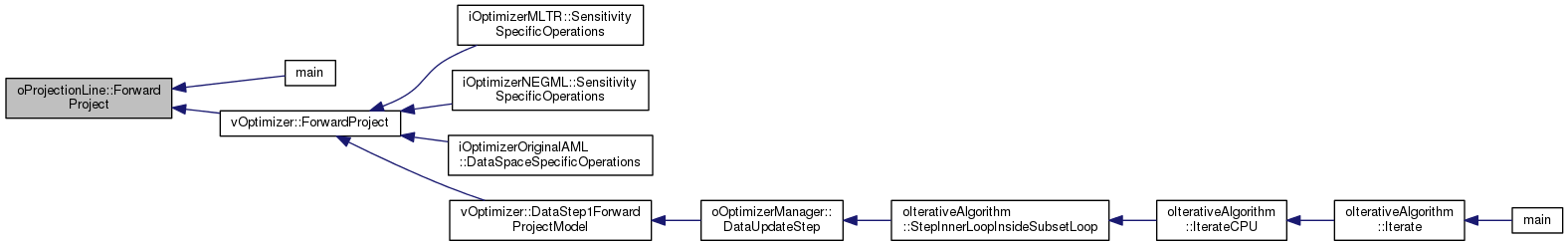

Here is the caller graph for this function:

FLTNB oProjectionLine::ForwardProjectWithSPECTAttenuation	(	FLTNB *	ap_attenuation,
		FLTNB *	ap_image = `NULL`
	)

Forward projects the provided image for the current TOF bin with an inner loop on the attenuation (for SPECT).

Parameters

FLTNB*	ap_attenuation
FLTNB*	ap_image = NULL

It forward projects the provided image if not null, or else it assumes a uniform image of 1. It does it for the current TOF bin (for genericity purpose) even if this function should only be called for SPECT. The order of the voxels contributions is assumed to be from the outside to the detector, so it only works with the list computation strategy. It also applies the inverse of the multiplicative correction term, and assumes it is not zero.

Returns: The value of the forward projection

Definition at line 785 of file oProjectionLine.cc.

Here is the call graph for this function:

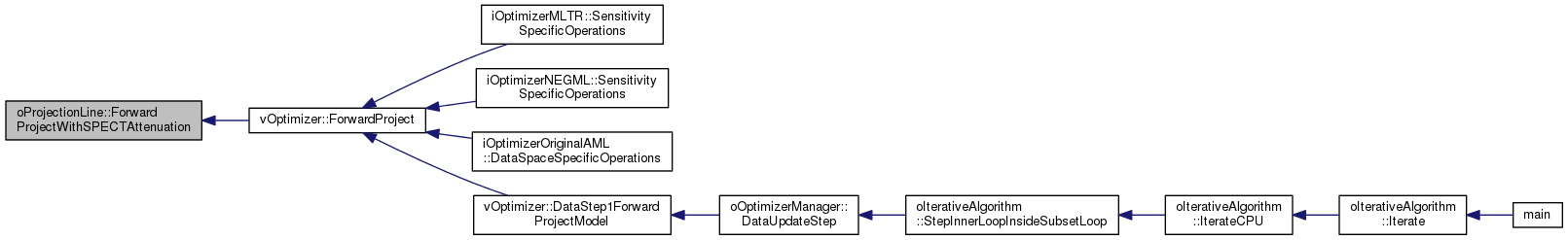

Here is the caller graph for this function:

public inline FLTNB oProjectionLine::GetBedOffset ( )

inline

This function is used to get the axial bed offset associated to this line.

Returns: The associated bed offset

Definition at line 404 of file oProjectionLine.hh.

public inline FLTNB * oProjectionLine::GetBufferOrientation1 ( )

inline

This function is used to get the pointer to the mp_bufferOrientation1 (3-values tab).

Returns: The buffer orientation of point 1.

Definition at line 334 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline FLTNB * oProjectionLine::GetBufferOrientation2 ( )

inline

This function is used to get the pointer to the mp_bufferOrientation2 (3-values tab).

Returns: The buffer orientation of point 2.

Definition at line 341 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline FLTNB * oProjectionLine::GetBufferPosition1 ( )

inline

This function is used to get the pointer to the mp_bufferPosition1 (3-values tab).

Returns: The buffer position of point 1.

Definition at line 306 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline FLTNB * oProjectionLine::GetBufferPosition2 ( )

inline

This function is used to get the pointer to the mp_bufferPosition2 (3-values tab).

Returns: The buffer position of point 2.

Definition at line 313 of file oProjectionLine.hh.

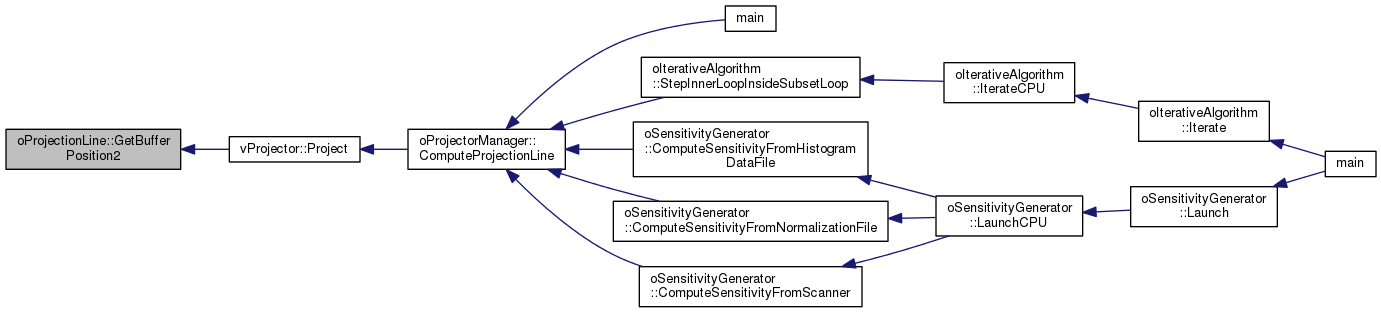

Here is the caller graph for this function:

public inline int oProjectionLine::GetComputationStrategy ( )

inline

This function is used to get the computation strategy.

Returns: The computation strategy.

Definition at line 285 of file oProjectionLine.hh.

public inline INTNB oProjectionLine::GetCurrentNbVoxels	(	int	a_direction,
		int	a_TOFBin
	)

inline

This function is used to get the current number of contributing voxels to the line.

Parameters

int	a_direction
int	a_TOFBin

Returns: The current number of contributing voxels.

Definition at line 264 of file oProjectionLine.hh.

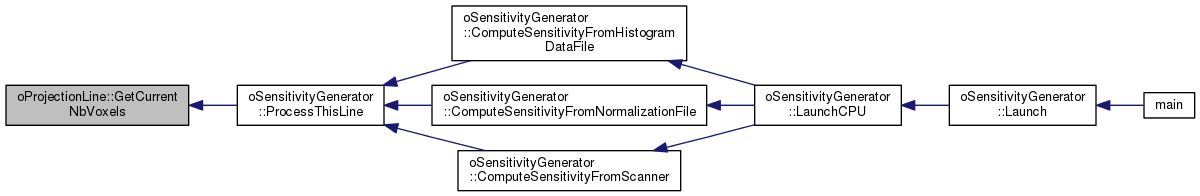

Here is the caller graph for this function:

public inline int oProjectionLine::GetIndex1 ( )

inline

This function is used to get the index associated to point 1.

Returns: Index of point 1.

Definition at line 383 of file oProjectionLine.hh.

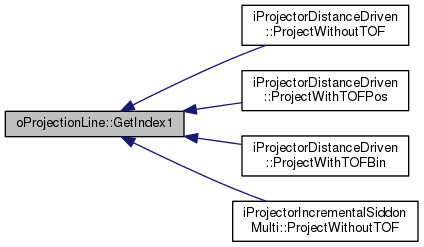

Here is the caller graph for this function:

public inline int oProjectionLine::GetIndex2 ( )

inline

This function is used to get the index associated to point 2.

Returns: Index of point 2.

Definition at line 390 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline FLTNB oProjectionLine::GetLength ( )

inline

This function is used to get the length of the line.

Returns: The length.

Definition at line 278 of file oProjectionLine.hh.

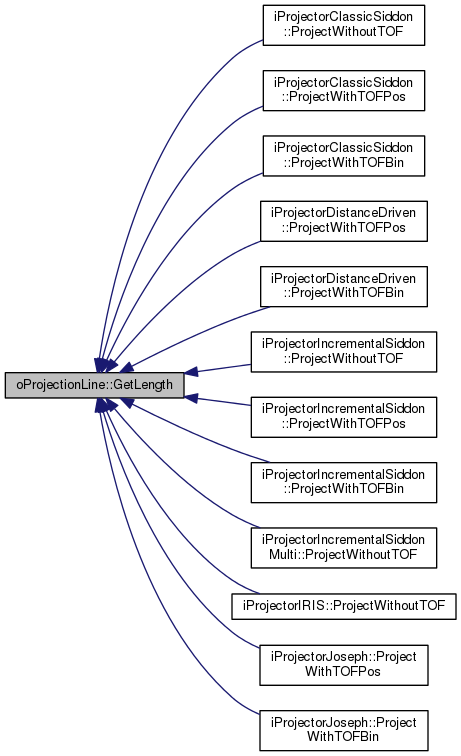

Here is the caller graph for this function:

public inline int oProjectionLine::GetNbTOFBins ( )

inline

This function is used to get the number of TOF bins in use.

Returns: The number of TOF bins.

Definition at line 271 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline FLTNB * oProjectionLine::GetOrientation1 ( )

inline

This function is used to get the pointer to the mp_orientation1 (3-values tab).

Returns: The orientation of point 1.

Definition at line 320 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline FLTNB * oProjectionLine::GetOrientation2 ( )

inline

This function is used to get the pointer to the mp_orientation2 (3-values tab).

Returns: The orientation of point 2.

Definition at line 327 of file oProjectionLine.hh.

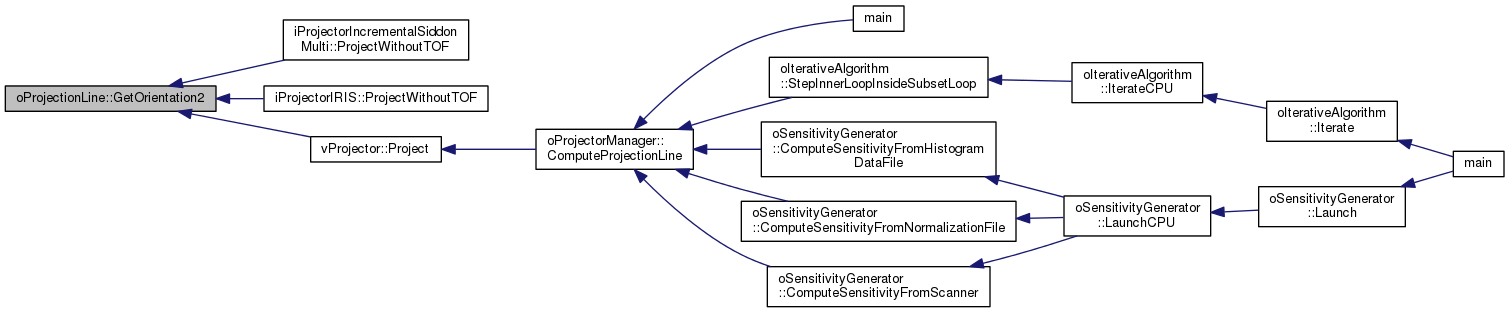

Here is the caller graph for this function:

public inline FLTNB * oProjectionLine::GetPOI1 ( )

inline

This function is used to get the pointer to POI of point 1 (3-values tab).

Returns: POI of point 1.

Definition at line 348 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline FLTNB * oProjectionLine::GetPOI2 ( )

inline

This function is used to get the pointer to POI of point 2 (3-values tab).

Returns: POI of point 2 mp_POI2

Definition at line 355 of file oProjectionLine.hh.

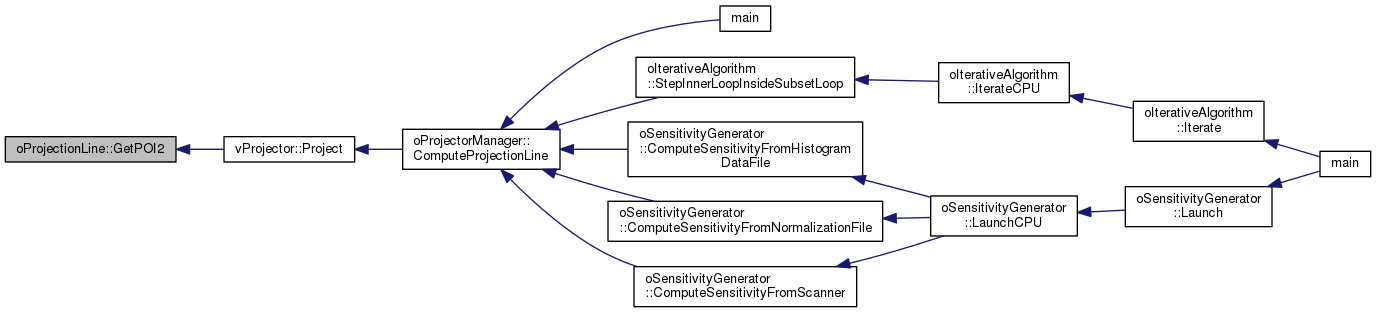

Here is the caller graph for this function:

public inline FLTNB * oProjectionLine::GetPosition1 ( )

inline

This function is used to get the pointer to the mp_position1 (3-values tab).

Returns: The position of point 1.

Definition at line 292 of file oProjectionLine.hh.

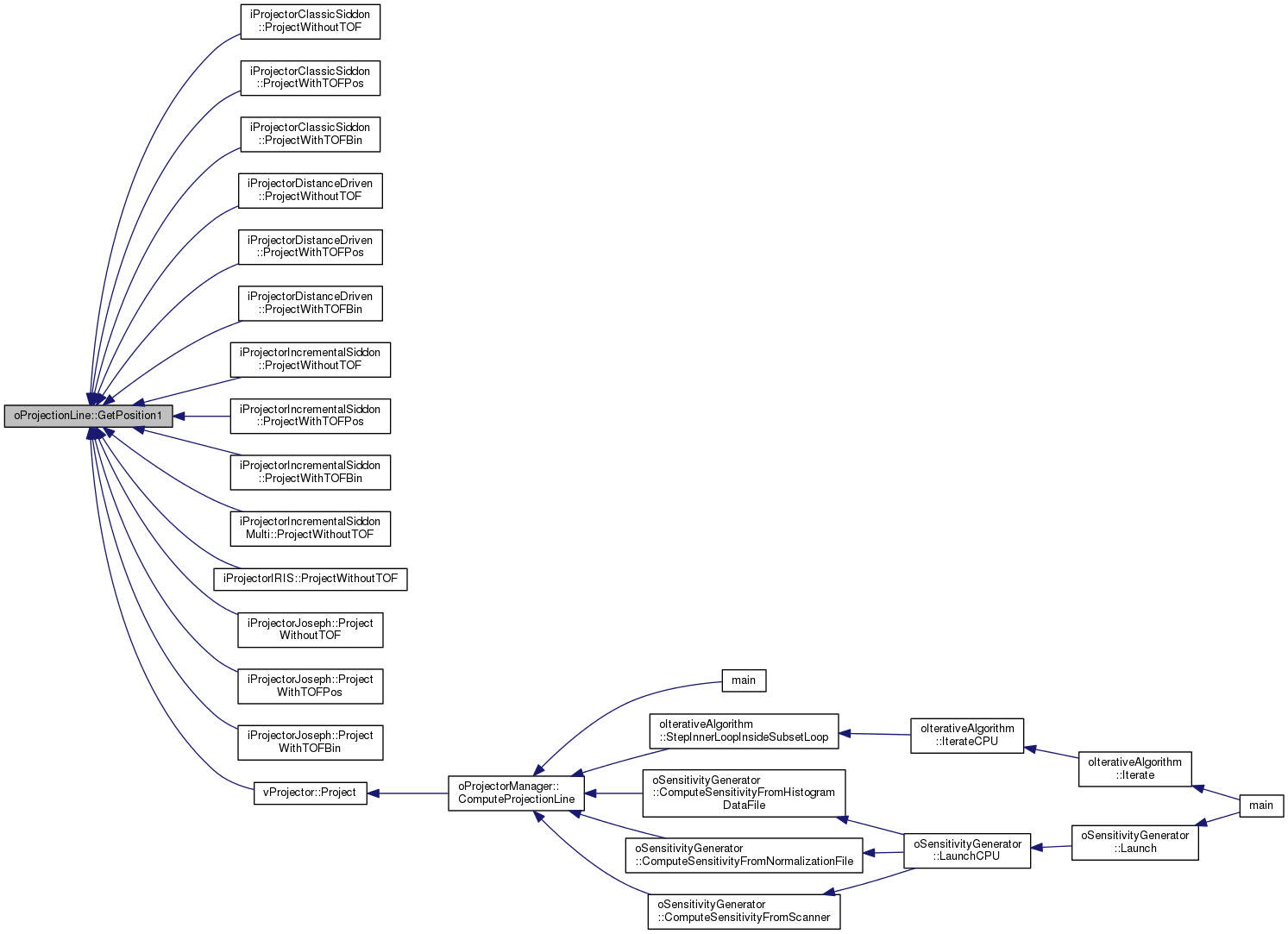

Here is the caller graph for this function:

public inline FLTNB * oProjectionLine::GetPosition2 ( )

inline

This function is used to get the pointer to the mp_position2 (3-values tab).

Returns: The position of point 2.

Definition at line 299 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline int oProjectionLine::GetThreadNumber ( )

inline

This function is used to get the thread number associated to this line.

Returns: The associated thread number.

Definition at line 397 of file oProjectionLine.hh.

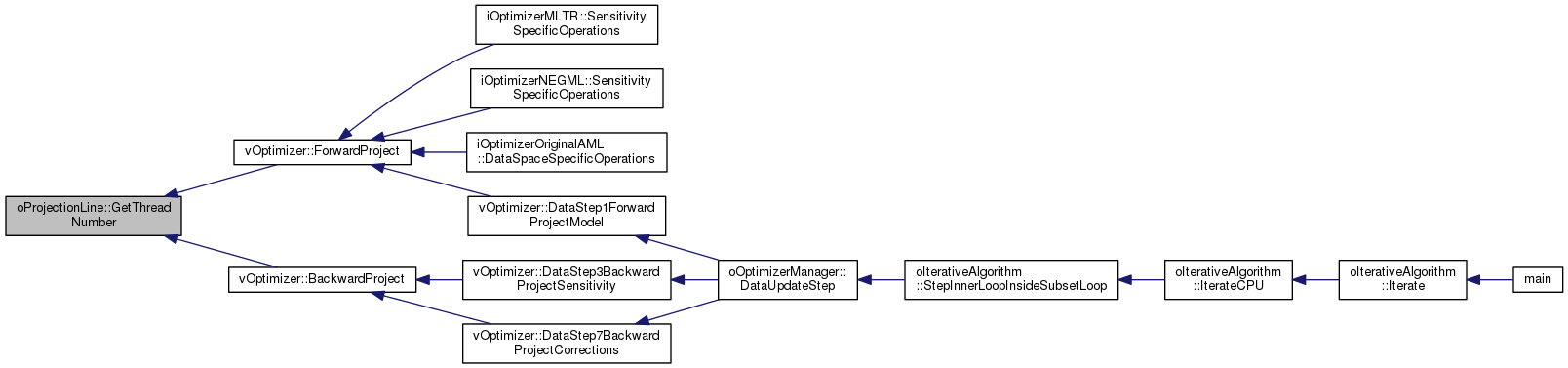

Here is the caller graph for this function:

public inline int oProjectionLine::GetTOFBinSize ( )

inline

This function is used to get the size in ps of a TOF bin.

Returns: TOF bin size in ps.

Definition at line 376 of file oProjectionLine.hh.

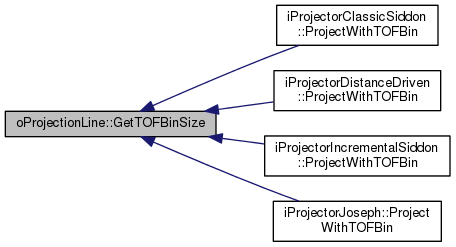

Here is the caller graph for this function:

public inline int oProjectionLine::GetTOFMeasurement ( )

inline

This function is used to get the TOF measurement.

Returns: TOF measurement.

Definition at line 369 of file oProjectionLine.hh.

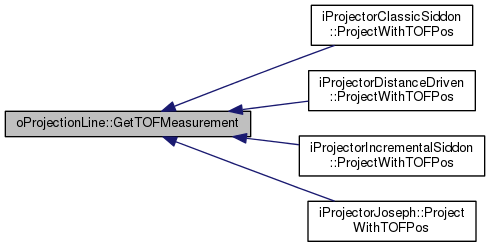

Here is the caller graph for this function:

public inline int oProjectionLine::GetTOFResolution ( )

inline

This function is used to get the TOF resolution.

Returns: TOF resolution.

Definition at line 362 of file oProjectionLine.hh.

Here is the caller graph for this function:

INTNB oProjectionLine::GetVoxelIndex	(	int	a_direction,
		int	a_TOFBin,
		INTNB	a_voxelInLine
	)

This function is used to get the contributing voxel index of the provided direction, TOF bin and voxel rank.

Parameters

int	a_direction
int	a_TOFBin
INTNB	a_voxelInLine

Returns: The voxel index.

Definition at line 533 of file oProjectionLine.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline FLTNB oProjectionLine::GetVoxelWeights	(	int	a_direction,
		int	a_TOFBin,
		INTNB	a_voxelInLine
	)

inline

This function is used to get the contributing voxel weight of the provided direction, TOF bin and voxel rank.

Parameters

int	a_direction
int	a_TOFBin
INTNB	a_voxelInLine

Returns: The voxel weight.

Definition at line 255 of file oProjectionLine.hh.

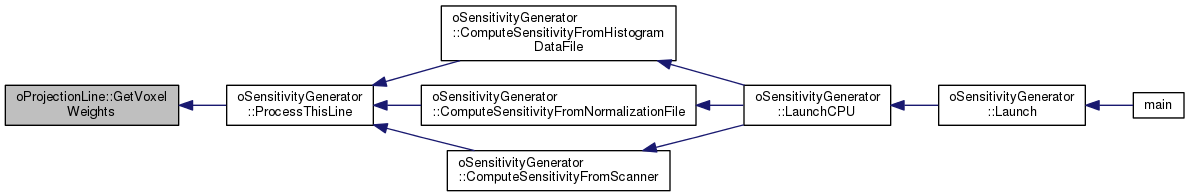

Here is the caller graph for this function:

int oProjectionLine::Initialize ( )

A function used to initialize a bunch of stuff after parameters have been checked.

It allocates all tables depending on the computation strategy.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 176 of file oProjectionLine.cc.

Here is the call graph for this function:

bool oProjectionLine::NotEmptyLine ( )

This function is used to know if the line contains any voxel contribution.

Returns: True if any voxel contribution, false if empty.

Definition at line 407 of file oProjectionLine.cc.

Here is the call graph for this function:

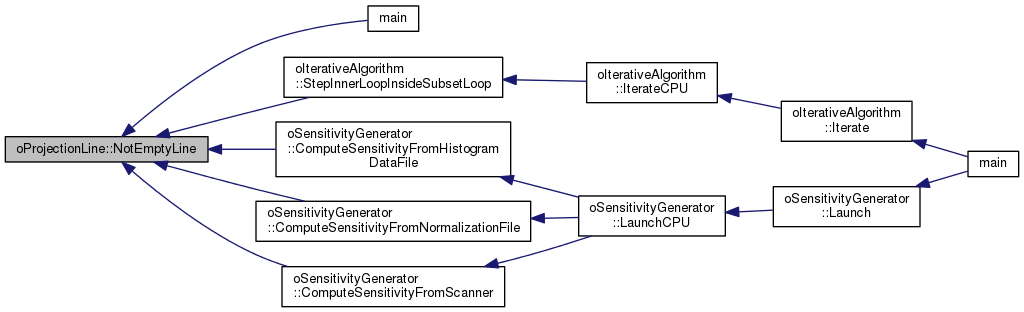

Here is the caller graph for this function:

void oProjectionLine::Reset ( )

Reset length and all the voxel indices and weights tabs.

Definition at line 431 of file oProjectionLine.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline void oProjectionLine::SetBackwardProjector ( vProjector * ap_Projector )

inline

This function is used to set the pointer to the backward projector.

Parameters

vProjector* ap_Projector

Definition at line 521 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetBedOffset ( FLTNB a_bedOffset )

inline

This function is used to set the bed offset.

Parameters

FLTNB a_bedOffset

Definition at line 549 of file oProjectionLine.hh.

public inline void oProjectionLine::SetComputationStrategy ( int a_computationStrategy )

inline

This function is used to set the computation strategy in use.

Parameters

int	a_computationStrategy

Definition at line 507 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetCurrentTOFBin ( int a_TOFBin )

inline

This function is used to set the current TOF bin that is used.

Parameters

int a_TOFBin

Definition at line 472 of file oProjectionLine.hh.

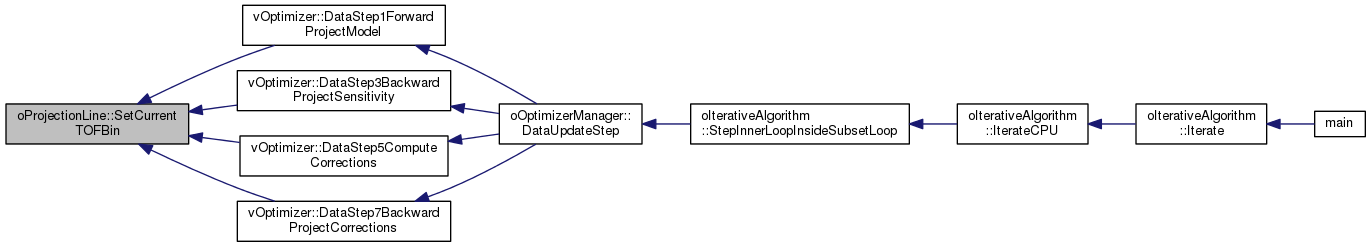

Here is the caller graph for this function:

public inline void oProjectionLine::SetForwardProjector ( vProjector * ap_Projector )

inline

This function is used to set the pointer to the forward projector.

Parameters

vProjector* ap_Projector

Definition at line 514 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification )

inline

This function is used to set the pointer to the oImageDimensionsAndQuantification in use.

Parameters

oImageDimensionsAndQuantification* ap_ImageDimensionsAndQuantification

Definition at line 500 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetIndex1 ( int a_index1 )

inline

This function is used to set the index m_index1 of point 1.

Parameters

int a_index1

Definition at line 451 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetIndex2 ( int a_index2 )

inline

This function is used to set the index m_index1 of point 2.

Parameters

int a_index2

Definition at line 458 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetLength ( FLTNB a_length )

inline

This function is used to set the length of the line.

Parameters

FLTNB a_length

Definition at line 416 of file oProjectionLine.hh.

public inline void oProjectionLine::SetMatchedProjectors ( bool a_UseMatchedProjectors )

inline

This function is used to set the boolean that says if we use matched projectors.

Parameters

bool	a_UseMatchedProjectors

Definition at line 479 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetMultiplicativeCorrection ( FLTNB a_multiplicativeCorrection )

inline

This function is used to set the multiplicative correction to be applied during forward and backward projections.

Parameters

FLTNB a_multiplicativeCorrection

Definition at line 535 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetNbTOFBins ( int a_nbTOFBins )

inline

This function is used to set the number of TOF bins in use.

Parameters

int	a_nbTOFBins

Definition at line 465 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetPOI1 ( FLTNB * ap_POI1 )

inline

This function is used to set the POI of point 1.

Parameters

FLTNB* ap_POI1

Definition at line 423 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetPOI2 ( FLTNB * ap_POI2 )

inline

This function is used to set the POI of point 2.

Parameters

FLTNB* ap_POI2

Definition at line 430 of file oProjectionLine.hh.

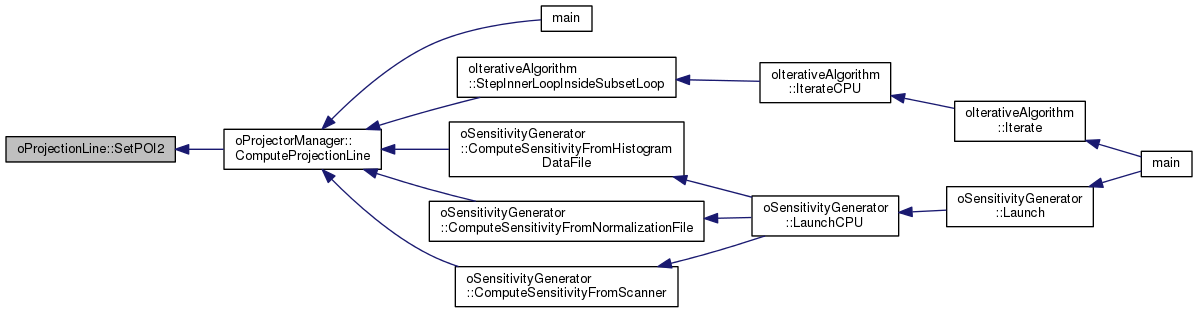

Here is the caller graph for this function:

public inline void oProjectionLine::SetPOIResolution ( FLTNB * ap_POIResolution )

inline

This function is used to set the POI resolution along the 3 axes.

Parameters

FLTNB* ap_POIResolution

Definition at line 493 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetThreadNumber ( int a_threadNumber )

inline

This function is used to set the thread number of this particular line.

Parameters

int	a_threadNumber

Definition at line 528 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetTOFBinSize ( FLTNB a_TOFBinSize )

inline

This function is used to set the size of a TOF bin in ps.

Parameters

FLTNB a_TOFBinSize

Definition at line 444 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetTOFMeasurement ( FLTNB a_TOFMeasurement )

inline

This function is used to set the TOF measurement associated to the line.

Parameters

FLTNB a_TOFMeasurement

Definition at line 437 of file oProjectionLine.hh.

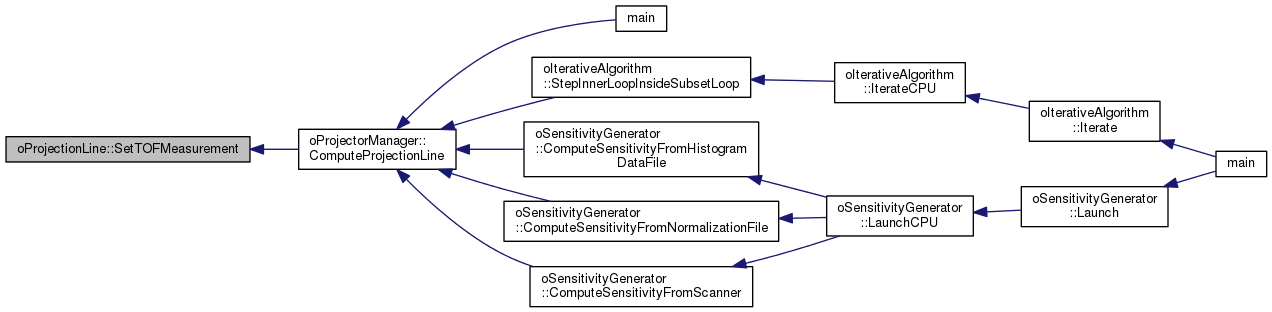

Here is the caller graph for this function:

public inline void oProjectionLine::SetTOFResolution ( FLTNB a_TOFResolution )

inline

This function is used to set the TOF resolution in use.

Parameters

FLTNB a_TOFResolution

Definition at line 486 of file oProjectionLine.hh.

Here is the caller graph for this function:

public inline void oProjectionLine::SetVerbose ( int a_verbose )

inline

This function is used to set the verbose level.

Parameters

int a_verbose

Definition at line 542 of file oProjectionLine.hh.

Here is the caller graph for this function:

Member Data Documentation

INTNB** oProjectionLine::m2p_allocatedNbVoxels

private

Number of allocated voxels for each direction and each TOF bin

Definition at line 619 of file oProjectionLine.hh.

INTNB** oProjectionLine::m2p_currentNbVoxels

private

Current number of voxels for each direction and each TOF bin

Definition at line 620 of file oProjectionLine.hh.

INTNB*** oProjectionLine::m3p_voxelIndices

private

List of contributing voxel indices for each direction and each TOF bin

Definition at line 622 of file oProjectionLine.hh.

FLTNB*** oProjectionLine::m3p_voxelWeights

private

List of contributing voxel weights for each direction and each TOF bin

Definition at line 624 of file oProjectionLine.hh.

FLTNB oProjectionLine::m_bedOffset

private

Bed axial offset when reconstructing multiple bed positions at once, in mm

Definition at line 578 of file oProjectionLine.hh.

bool oProjectionLine::m_checked

private

Boolean that says if the parameters were checked or not

Definition at line 560 of file oProjectionLine.hh.

int oProjectionLine::m_computationStrategy

private

Integer defining the computation/storage strategy of the contributing voxels

Definition at line 576 of file oProjectionLine.hh.

int oProjectionLine::m_currentTOFBin

private

The current TOF bin in use, can be used for simple to calls to forward or backward projections

Definition at line 583 of file oProjectionLine.hh.

int oProjectionLine::m_index1

private

The current index of point 1 (associated to the vScanner in use)

Definition at line 601 of file oProjectionLine.hh.

int oProjectionLine::m_index2

private

The current index of point 2 (associated to the vScanner in use)

Definition at line 602 of file oProjectionLine.hh.

bool oProjectionLine::m_initialized

private

Boolean that says if the manager was initialized or not

Definition at line 562 of file oProjectionLine.hh.

FLTNB oProjectionLine::m_length

private

The current length of the line

Definition at line 590 of file oProjectionLine.hh.

FLTNB oProjectionLine::m_multiplicativeCorrection

private

Multiplicative correction factor that will be applied during forward and backward projections

Definition at line 571 of file oProjectionLine.hh.

int oProjectionLine::m_nbTOFBins

private

The number of TOF bins in use

Definition at line 580 of file oProjectionLine.hh.

int oProjectionLine::m_threadNumber

private

Thread number associated to this projection line

Definition at line 569 of file oProjectionLine.hh.

FLTNB oProjectionLine::m_TOFBinSize

private

The size in ps of a single TOF bin

Definition at line 584 of file oProjectionLine.hh.

FLTNB oProjectionLine::m_TOFMeasurement

private

The current TOF measurement of the event

Definition at line 582 of file oProjectionLine.hh.

FLTNB oProjectionLine::m_TOFResolution

private

The TOF resolution in use

Definition at line 581 of file oProjectionLine.hh.

bool oProjectionLine::m_useMatchedProjectors

private

Boolean that says if we use matched projectors (forward = backward)

Definition at line 606 of file oProjectionLine.hh.

int oProjectionLine::m_verbose

private

The verbose level

Definition at line 558 of file oProjectionLine.hh.

vProjector* oProjectionLine::mp_BackwardProjector

private

Pointer to the backward projector in use

Definition at line 608 of file oProjectionLine.hh.

FLTNB* oProjectionLine::mp_bufferOrientation1

private

A buffer for orientation of point 1 (used when compression)

Definition at line 598 of file oProjectionLine.hh.

FLTNB* oProjectionLine::mp_bufferOrientation2

private

A buffer for orientation of point 2 (used when compression)

Definition at line 599 of file oProjectionLine.hh.

FLTNB* oProjectionLine::mp_bufferPosition1

private

A buffer for position of point 1 (used when compression)

Definition at line 594 of file oProjectionLine.hh.

FLTNB* oProjectionLine::mp_bufferPosition2

private

A buffer for position of point 2 (used when compression)

Definition at line 595 of file oProjectionLine.hh.

vProjector* oProjectionLine::mp_ForwardProjector

private

Pointer to the forward projector in use

Definition at line 607 of file oProjectionLine.hh.

oImageDimensionsAndQuantification* oProjectionLine::mp_ImageDimensionsAndQuantification

private

Pointer to the oImageDimensionsAndQuantification object in use

Definition at line 574 of file oProjectionLine.hh.

FLTNB* oProjectionLine::mp_orientation1

private

The current orientation of point 1 (along the 3 axes)

Definition at line 596 of file oProjectionLine.hh.

FLTNB* oProjectionLine::mp_orientation2

private

The current orientation of point 2 (along the 3 axes)

Definition at line 597 of file oProjectionLine.hh.

FLTNB* oProjectionLine::mp_POI1

private

The current POI of point 1 of the event (along the 3 axes)

Definition at line 586 of file oProjectionLine.hh.

FLTNB* oProjectionLine::mp_POI2

private

The current POI of point 2 of the event (along the 3 axes)

Definition at line 587 of file oProjectionLine.hh.

FLTNB* oProjectionLine::mp_POIResolution

private

The POI resolution in use (along the 3 axes)

Definition at line 588 of file oProjectionLine.hh.

FLTNB* oProjectionLine::mp_position1

private

The current position of point 1 (along the 3 axes)

Definition at line 592 of file oProjectionLine.hh.

FLTNB* oProjectionLine::mp_position2

private

The current position of point 2 (along the 3 axes)

Definition at line 593 of file oProjectionLine.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
