This class is designed to manage the optimization part of an iterative reconstruction. More...

#include <oOptimizerManager.hh>

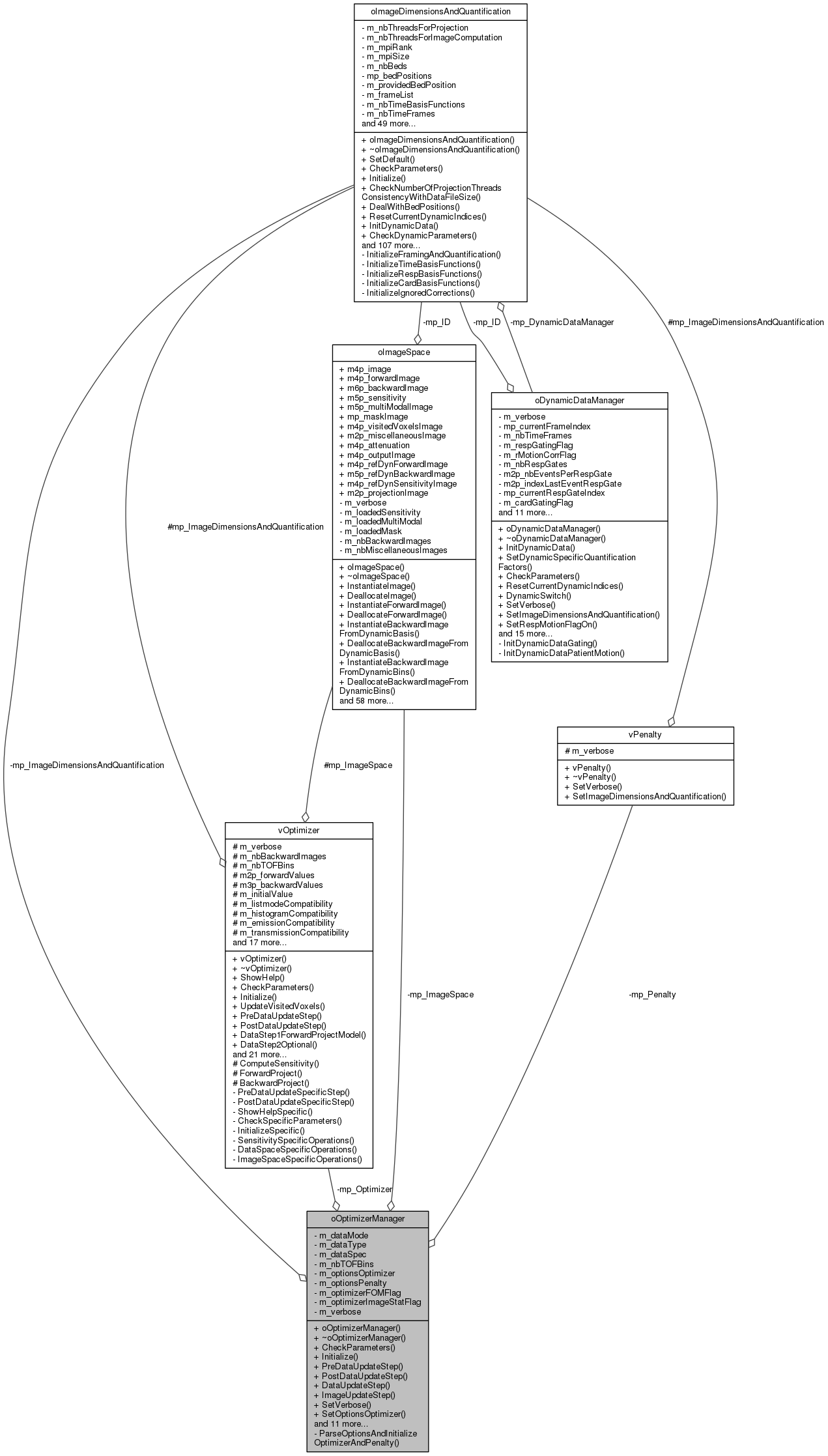

Collaboration diagram for oOptimizerManager:

Public Member Functions
	oOptimizerManager ()
	The constructor of oOptimizerManager. More...

	~oOptimizerManager ()
	The destructor of oOptimizerManager. More...

int	CheckParameters ()
	A function used to check the parameters settings. More...

int	Initialize ()
	A function used to initialize the manager and the optimizer it manages. More...

int	PreDataUpdateStep (int a_iteration, int a_nbIterations, int a_subset, int *ap_nbSubsets)
	A function that simply calls the eponym function from the vOptimizer. More...

int	PostDataUpdateStep (int a_iteration, int a_nbIterations, int a_subset, int *ap_nbSubsets)
	A function that simply calls the eponym function from the vOptimizer. More...

int	DataUpdateStep (oProjectionLine ap_Line, vEvent ap_Event, int a_bed, int a_timeFrame, int a_respGate, int a_cardGate, int a_iteration, int a_thread)
	A function dedicated to the update step in the data space (for each event inside the loop) More...

int	ImageUpdateStep (int a_iteration, int a_nbSubsets)
	A function dedicated to the update step in the image space (performed after the loop on events) More...

void	SetVerbose (int a_verboseLevel)
	Set the verbose level. More...

void	SetOptionsOptimizer (const string &a_optionsOptimizer)
	Set the optimizer projection options contained in the provided string. More...

void	SetOptionsPenalty (const string &a_optionsPenalty)
	Set the penalty projection options contained in the provided string. More...

void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	Set the image dimensions in use. More...

void	SetImageSpace (oImageSpace *ap_ImageSpace)
	Set the image space in use. More...

void	SetNbTOFBins (int a_nbTOFBins)
	Set the number of TOF bins in use. More...

void	SetDataMode (int a_dataMode)
	Set the mode of the data (histogram, list-mode) More...

void	SetDataType (int a_dataType)
	Set the type of the data (pet, spect, etc) More...

void	SetDataSpec (int a_dataSpec)
	Set the specificity of the data: EMISSION or TRANSMISSION. More...

void	SetOptimizerFOMFlag (bool a_optimizerFOMFlag)
	Set the optimizer FOM flag that specifies if some figures-of-merit (FOM) will be computed in the data space. More...

void	SetOptimizerImageStatFlag (bool a_optimizerImageStatFlag)
	Set the optimizer image stat flag that specifies if some basic statistics about image update is computed. More...

int	GetNbBackwardImages ()
	Return the number of backward images used by the optimizer, explaining why the eponym function of vOptimizer is called. More...

FLTNB	GetInitialValue ()
	Return the initial image value used by the optimizer, explaining why the eponym function of vOptimizer is called. More...

Private Member Functions
int	ParseOptionsAndInitializeOptimizerAndPenalty ()

Private Attributes
oImageDimensionsAndQuantification *	mp_ImageDimensionsAndQuantification

oImageSpace *	mp_ImageSpace

int	m_dataMode

int	m_dataType

int	m_dataSpec

int	m_nbTOFBins

string	m_optionsOptimizer

string	m_optionsPenalty

bool	m_optimizerFOMFlag

bool	m_optimizerImageStatFlag

vOptimizer *	mp_Optimizer

vPenalty *	mp_Penalty

int	m_verbose

Detailed Description

This class is designed to manage the optimization part of an iterative reconstruction.

As each manager class, it is created in the main program, all parameters are then set, checked, and the manager is initialized. The manager is then used by the algorithm itself, where the function DataUpdateStep() function is called for each event to apply the forward projection, perform operations in the data space and apply the back-proj, based on a oProjectionLine, a vEvent and a vOptimizer. The ImageUpdateStep() function is called after the loop on events to apply the update operations in the image space, based on the back-projected correction images.

Definition at line 51 of file oOptimizerManager.hh.

Constructor & Destructor Documentation

oOptimizerManager::oOptimizerManager ( )

The constructor of oOptimizerManager.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 40 of file oOptimizerManager.cc.

oOptimizerManager::~oOptimizerManager ( )

The destructor of oOptimizerManager.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were built by this class.

Definition at line 72 of file oOptimizerManager.cc.

Member Function Documentation

int oOptimizerManager::CheckParameters ( )

A function used to check the parameters settings.

This function does not take any parameter and is used to check that all mandatory members were correctly parameterized.

Returns: An integer reflecting the check status; 0 if no problem, another value otherwise.

Definition at line 81 of file oOptimizerManager.cc.

Here is the caller graph for this function:

int oOptimizerManager::DataUpdateStep	(	oProjectionLine *	ap_Line,
		vEvent *	ap_Event,
		int	a_bed,
		int	a_timeFrame,
		int	a_respGate,
		int	a_cardGate,
		int	a_iteration,
		int	a_thread
	)

A function dedicated to the update step in the data space (for each event inside the loop)

Parameters

oProjectionLine*	ap_Line
vEvent*	ap_Event
int	a_bed
int	a_timeFrame
int	a_respGate
int	a_cardGate
int	a_iteration
int	a_thread

This function will call many functions of the vOptimizer that split up the update step in the data space in smaller steps: 1. forward projection, 2. optional step, 3. backproj sensitivity for histogram mode,

optional step, 5. compute corrections, 6. optional step, 7. backproj corrections, 8. compute FOMs. This function is called by the iterative algorithm, inside the loop on all events.
Returns
An integer reflecting the execution status; 0 if no problem, another value otherwise.

Definition at line 417 of file oOptimizerManager.cc.

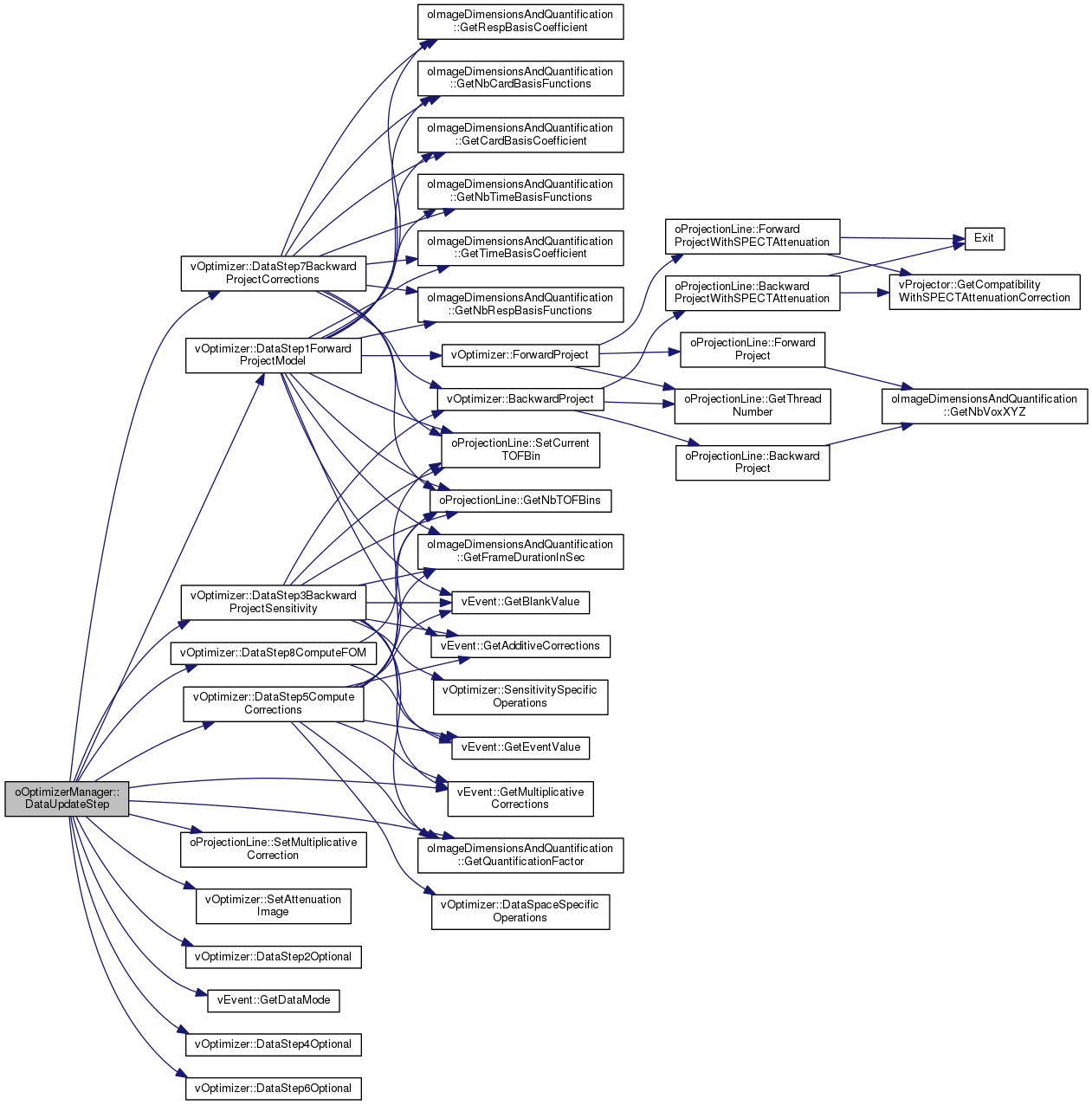

Here is the call graph for this function:

Here is the caller graph for this function:

public inline FLTNB oOptimizerManager::GetInitialValue ( )

inline

Return the initial image value used by the optimizer, explaining why the eponym function of vOptimizer is called.

Definition at line 253 of file oOptimizerManager.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline int oOptimizerManager::GetNbBackwardImages ( )

inline

Return the number of backward images used by the optimizer, explaining why the eponym function of vOptimizer is called.

Definition at line 247 of file oOptimizerManager.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

int oOptimizerManager::ImageUpdateStep	(	int	a_iteration,
		int	a_nbSubsets
	)

A function dedicated to the update step in the image space (performed after the loop on events)

Parameters

int	a_iteration
int	a_nbSubsets

This function will update the visited voxels first (see in vOptimizer for details), manage the call for penalty computation and call the image update step function specific to the optimizer.

Returns: An integer reflecting the execution status; 0 if no problem, another value otherwise.

Definition at line 506 of file oOptimizerManager.cc.

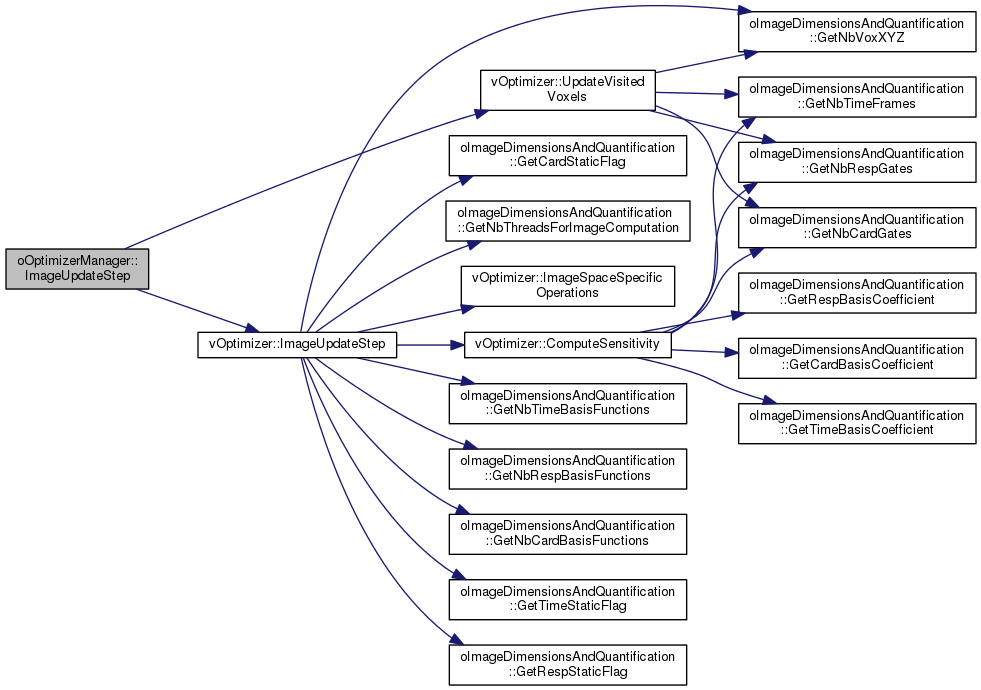

Here is the call graph for this function:

Here is the caller graph for this function:

int oOptimizerManager::Initialize ( )

A function used to initialize the manager and the optimizer it manages.

This function does not take any parameter and is used to initialize everything that should be initialized. In a few words, it parses the options, then creates and initializes the optimizer based on the provided options.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 134 of file oOptimizerManager.cc.

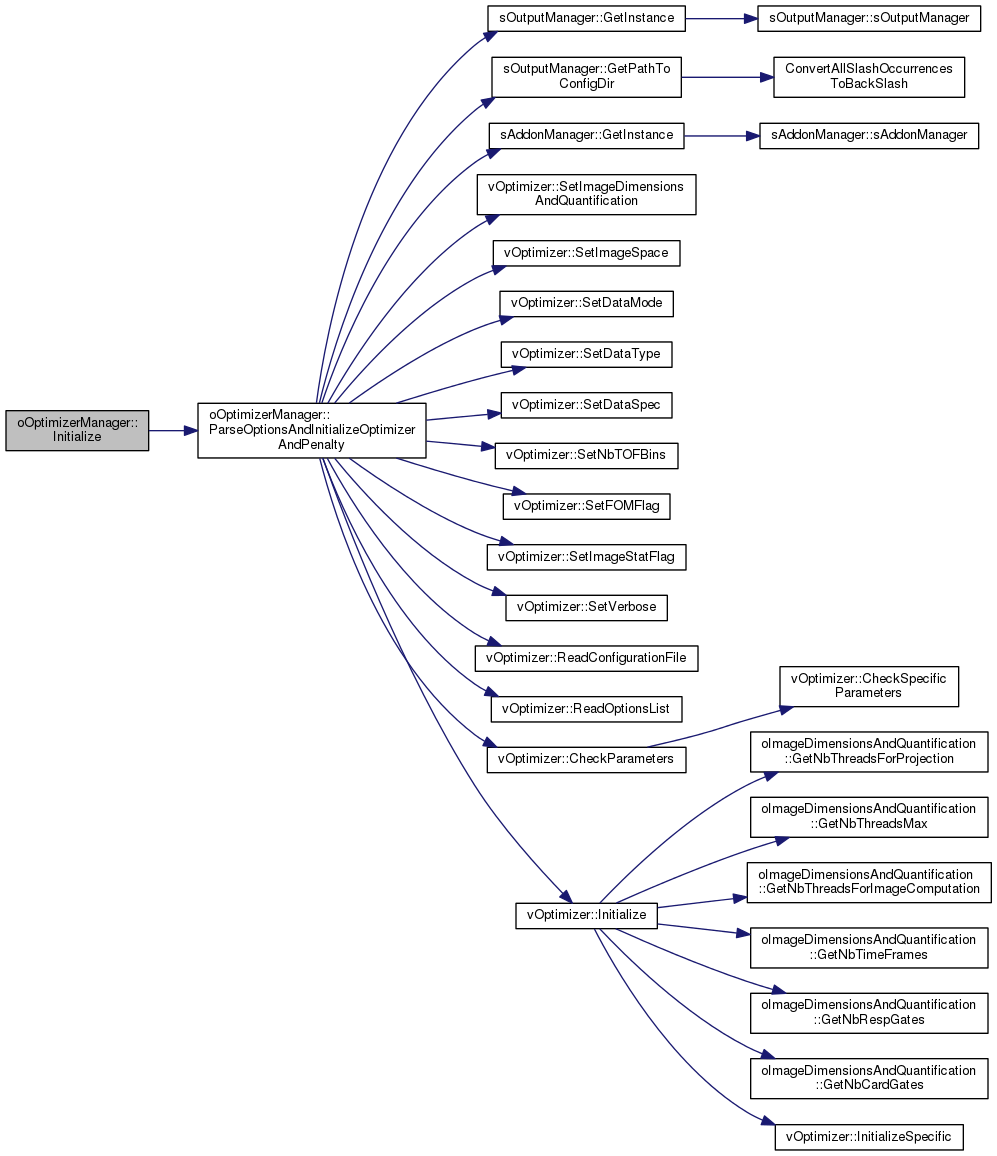

Here is the call graph for this function:

Here is the caller graph for this function:

int oOptimizerManager::ParseOptionsAndInitializeOptimizerAndPenalty ( )

private

Definition at line 155 of file oOptimizerManager.cc.

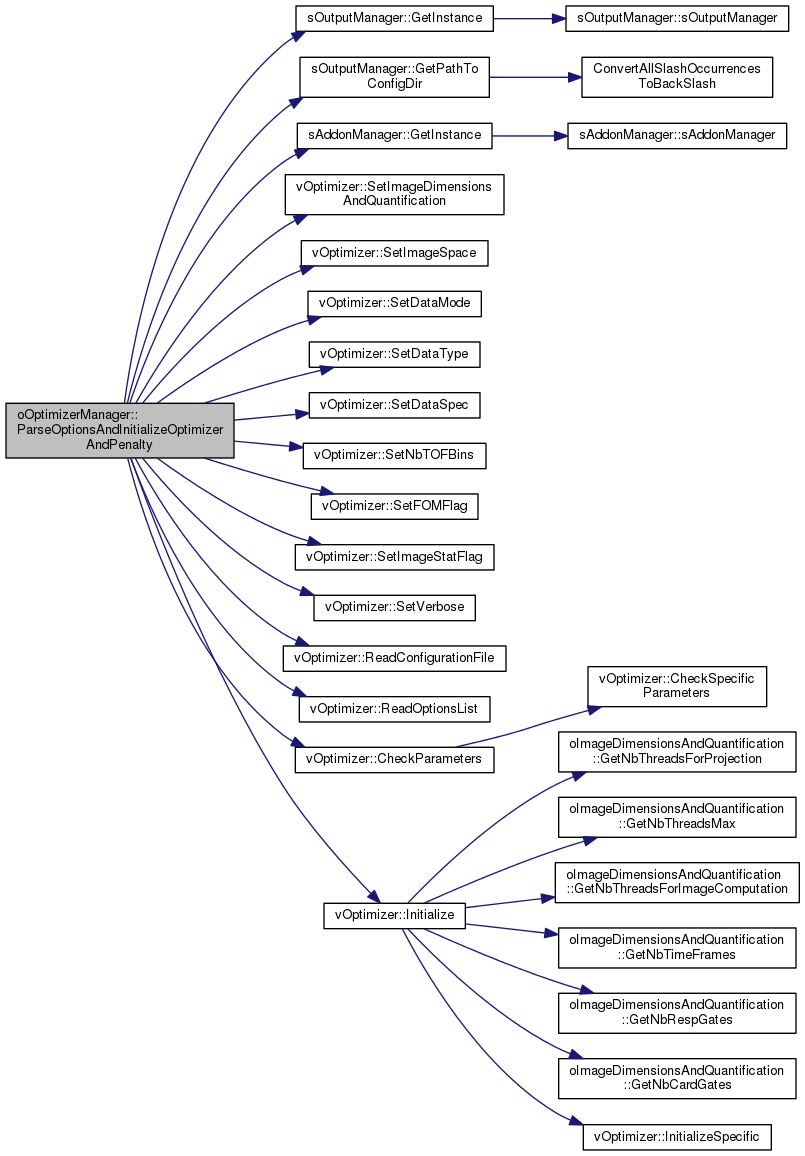

Here is the call graph for this function:

Here is the caller graph for this function:

int oOptimizerManager::PostDataUpdateStep	(	int	a_iteration,
		int	a_nbIterations,
		int	a_subset,
		int *	ap_nbSubsets
	)

A function that simply calls the eponym function from the vOptimizer.

Parameters

int	a_iteration
int	a_nbIterations
int	a_subset
int*	ap_nbSubsets

Returns: An integer reflecting the execution status; 0 if no problem, another value otherwise.

Definition at line 400 of file oOptimizerManager.cc.

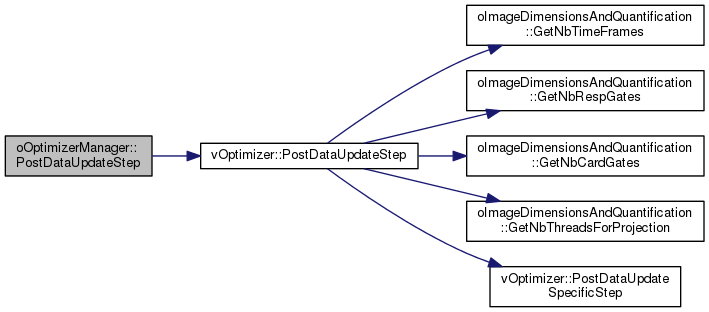

Here is the call graph for this function:

Here is the caller graph for this function:

int oOptimizerManager::PreDataUpdateStep	(	int	a_iteration,
		int	a_nbIterations,
		int	a_subset,
		int *	ap_nbSubsets
	)

A function that simply calls the eponym function from the vOptimizer.

Parameters

int	a_iteration
int	a_nbIterations
int	a_subset
int*	ap_nbSubsets

Returns: An integer reflecting the execution status; 0 if no problem, another value otherwise.

Definition at line 383 of file oOptimizerManager.cc.

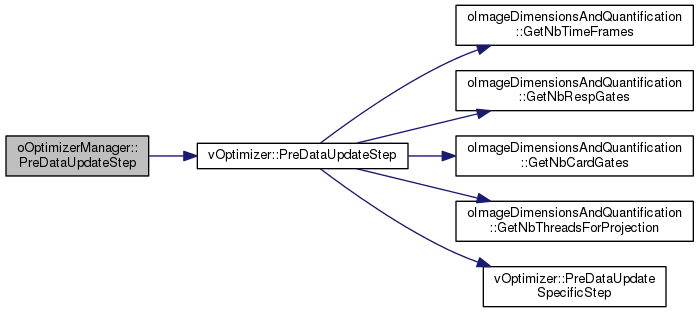

Here is the call graph for this function:

Here is the caller graph for this function:

public inline void oOptimizerManager::SetDataMode ( int a_dataMode )

inline

Set the mode of the data (histogram, list-mode)

Parameters

int	a_dataMode

Definition at line 213 of file oOptimizerManager.hh.

Here is the caller graph for this function:

public inline void oOptimizerManager::SetDataSpec ( int a_dataSpec )

inline

Set the specificity of the data: EMISSION or TRANSMISSION.

Parameters

int	a_dataSpec

Definition at line 227 of file oOptimizerManager.hh.

Here is the caller graph for this function:

public inline void oOptimizerManager::SetDataType ( int a_dataType )

inline

Set the type of the data (pet, spect, etc)

Parameters

int	a_dataType

Definition at line 220 of file oOptimizerManager.hh.

Here is the caller graph for this function:

public inline void oOptimizerManager::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification )

inline

Set the image dimensions in use.

Parameters

oImageDimensionsAndQuantification* ap_ImageDimensionsAndQuantification

Definition at line 192 of file oOptimizerManager.hh.

Here is the caller graph for this function:

public inline void oOptimizerManager::SetImageSpace ( oImageSpace * ap_ImageSpace )

inline

Set the image space in use.

Parameters

oImageSpace* ap_ImageSpace

Definition at line 199 of file oOptimizerManager.hh.

Here is the caller graph for this function:

public inline void oOptimizerManager::SetNbTOFBins ( int a_nbTOFBins )

inline

Set the number of TOF bins in use.

Parameters

int	a_nbTOFBins

Definition at line 206 of file oOptimizerManager.hh.

Here is the caller graph for this function:

public inline void oOptimizerManager::SetOptimizerFOMFlag ( bool a_optimizerFOMFlag )

inline

Set the optimizer FOM flag that specifies if some figures-of-merit (FOM) will be computed in the data space.

Parameters

bool	a_optimizerFOMFlag

Definition at line 234 of file oOptimizerManager.hh.

Here is the caller graph for this function:

public inline void oOptimizerManager::SetOptimizerImageStatFlag ( bool a_optimizerImageStatFlag )

inline

Set the optimizer image stat flag that specifies if some basic statistics about image update is computed.

Parameters

bool	a_optimizerImageStatFlag

Definition at line 241 of file oOptimizerManager.hh.

Here is the caller graph for this function:

public inline void oOptimizerManager::SetOptionsOptimizer ( const string & a_optionsOptimizer )

inline

Set the optimizer projection options contained in the provided string.

Parameters

const string& a_optionsOptimizer

Definition at line 178 of file oOptimizerManager.hh.

Here is the caller graph for this function:

public inline void oOptimizerManager::SetOptionsPenalty ( const string & a_optionsPenalty )

inline

Set the penalty projection options contained in the provided string.

Parameters

const string& a_optionsPenalty

Definition at line 185 of file oOptimizerManager.hh.

Here is the caller graph for this function:

public inline void oOptimizerManager::SetVerbose ( int a_verboseLevel )

inline

Set the verbose level.

Parameters

int	a_verboseLevel

Definition at line 171 of file oOptimizerManager.hh.

Here is the caller graph for this function:

Member Data Documentation

int oOptimizerManager::m_dataMode

private

Flag indicating if the data is List (=0) or Histogram (=1) mode

Definition at line 263 of file oOptimizerManager.hh.

int oOptimizerManager::m_dataSpec

private

Flag indicating if the data is EMISSION or TRANSMISSION

Definition at line 265 of file oOptimizerManager.hh.

int oOptimizerManager::m_dataType

private

Flag indicating if the data is PET (=0),SPECT (=1) or TRANSMISSION type (=2)

Definition at line 264 of file oOptimizerManager.hh.

int oOptimizerManager::m_nbTOFBins

private

The number of TOF bins in use

Definition at line 266 of file oOptimizerManager.hh.

bool oOptimizerManager::m_optimizerFOMFlag

private

Flag that says if some figures-of-merit will be computed in the data space

Definition at line 269 of file oOptimizerManager.hh.

bool oOptimizerManager::m_optimizerImageStatFlag

private

Flag that says if some basic statistics about the image update will be computed

Definition at line 270 of file oOptimizerManager.hh.

string oOptimizerManager::m_optionsOptimizer

private

The string containing options for the optimizer projections

Definition at line 267 of file oOptimizerManager.hh.

string oOptimizerManager::m_optionsPenalty

private

The string containing options for the penalty projections

Definition at line 268 of file oOptimizerManager.hh.

int oOptimizerManager::m_verbose

private

The verbose level

Definition at line 273 of file oOptimizerManager.hh.

oImageDimensionsAndQuantification* oOptimizerManager::mp_ImageDimensionsAndQuantification

private

Pointer to the oImageDimensionsAndQuantification object in use

Definition at line 261 of file oOptimizerManager.hh.

oImageSpace* oOptimizerManager::mp_ImageSpace

private

Pointer to the oImageSpace object in use

Definition at line 262 of file oOptimizerManager.hh.

vOptimizer* oOptimizerManager::mp_Optimizer

private

The actual optimizer in use

Definition at line 271 of file oOptimizerManager.hh.

vPenalty* oOptimizerManager::mp_Penalty

private

The actual penalty in use (optional)

Definition at line 272 of file oOptimizerManager.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
