oMatrix Class Reference

Structure designed for basic matrices operations. More...

#include <oMatrix.hh>

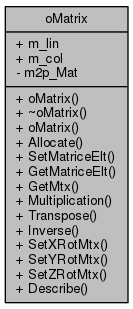

Collaboration diagram for oMatrix:
Collaboration graph

Public Member Functions

 oMatrix ()
 oMatrix constructor. Initialize the member variables to their default values. More...

 ~oMatrix ()
 oMatrix destructor. Free memory of the oMatrix object. More...

 oMatrix (uint16_t nl, uint16_t nc)
 oMatrix constructor. Instanciate a matrix structure with the number of lines and colons provided in parameters More...

void Allocate (uint16_t nl, uint16_t nc)
 Instanciate a Matrix structure with the number of lines and colons provided in parameters. More...

int SetMatriceElt (uint16_t l, uint16_t c, FLTNB a_val)
 Set the matrix element corresponding to the argument indices with the provided value. More...

FLTNB GetMatriceElt (uint16_t l, uint16_t c)

FLTNB ** GetMtx ()

int Multiplication (oMatrix *ap_Mtx, oMatrix *ap_MtxResult)
 Multiply the member matrix with the matrix provided in 1st parameter Return the result in the matric provided in 2nd parameter. More...

int Transpose (oMatrix *a_MtxResult)
 Transpose the elements of the matrix. More...

int Inverse (oMatrix *ap_MtxResult)
 Inverse the matrix on which the function is called An error is returned if the matrix is not square, or if there is a nil component on the diagonal The resulting matrix object must be different than the input matrix. More...

int SetXRotMtx (FLTNB ang)
 Set a (3,3) X-axis rotation matrix using the provided angle. More...

int SetYRotMtx (FLTNB ang)
 Set a (3,3) Y-axis rotation matrix using the provided angle. More...

int SetZRotMtx (FLTNB ang)
 Set a (3,3) Z-axis rotation matrix using the provided angle. More...

void Describe ()
 Display the element of the matrix. More...


Public Attributes

uint16_t m_lin

uint16_t m_col


Private Attributes

FLTNB ** m2p_Mat


Detailed Description

Structure designed for basic matrices operations.

This structure is mostly used in scanner classes, for geometrical rotation purposes

Definition at line 42 of file oMatrix.hh.

Constructor & Destructor Documentation

oMatrix::oMatrix ( )

oMatrix constructor. Initialize the member variables to their default values.

Definition at line 41 of file oMatrix.cc.

Here is the caller graph for this function:

oMatrix::~oMatrix ( )

oMatrix destructor. Free memory of the oMatrix object.

Definition at line 81 of file oMatrix.cc.

oMatrix::oMatrix ( uint16_t  nl,
uint16_t  nc
)

oMatrix constructor. Instanciate a matrix structure with the number of lines and colons provided in parameters

Parameters
nl: a number of lines
nc: a number of colons

Definition at line 61 of file oMatrix.cc.

Member Function Documentation

void oMatrix::Allocate ( uint16_t  nl,
uint16_t  nc
)

Instanciate a Matrix structure with the number of lines and colons provided in parameters.

Parameters
nla number of lines
nca number of colons

Definition at line 101 of file oMatrix.cc.

void oMatrix::Describe ( )

Display the element of the matrix.

Definition at line 473 of file oMatrix.cc.

FLTNB oMatrix::GetMatriceElt ( uint16_t  l,
uint16_t  c
)
Parameters
la line index
ca colon index
Returns
the matrix element value corresponding to the argument indices provided in arguments.

Definition at line 166 of file oMatrix.cc.

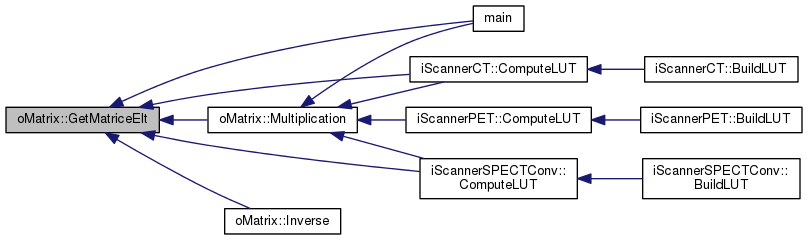

Here is the caller graph for this function:

FLTNB ** oMatrix::GetMtx ( )
inline
Returns
pointer to the matrix array.

Definition at line 96 of file oMatrix.hh.

Here is the caller graph for this function:

int oMatrix::Inverse ( oMatrix ap_MtxResult)

Inverse the matrix on which the function is called An error is returned if the matrix is not square, or if there is a nil component on the diagonal The resulting matrix object must be different than the input matrix.

Parameters
ap_MtxResult: output matrix containing the inverse matrix
Returns
0 if success, positive value otherwise

Definition at line 286 of file oMatrix.cc.

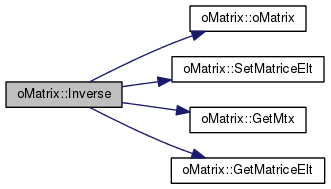

Here is the call graph for this function:

int oMatrix::Multiplication ( oMatrix ap_Mtx,
oMatrix ap_MtxResult
)

Multiply the member matrix with the matrix provided in 1st parameter Return the result in the matric provided in 2nd parameter.

Parameters
ap_Mtx: input matrix to multiply to the matrix from which the function is called
ap_MtxResult: output matrix containing the result of the multiplication
Returns
0 if success, positive value otherwise

Definition at line 185 of file oMatrix.cc.

Here is the call graph for this function:

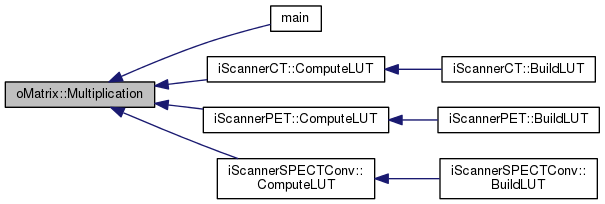

Here is the caller graph for this function:

int oMatrix::SetMatriceElt ( uint16_t  l,
uint16_t  c,
FLTNB  a_val
)

Set the matrix element corresponding to the argument indices with the provided value.

Parameters
la line index
ca colon index
a_val: a value to initialize the matrix element with
Returns
0 if success, positive value otherwise

Definition at line 139 of file oMatrix.cc.

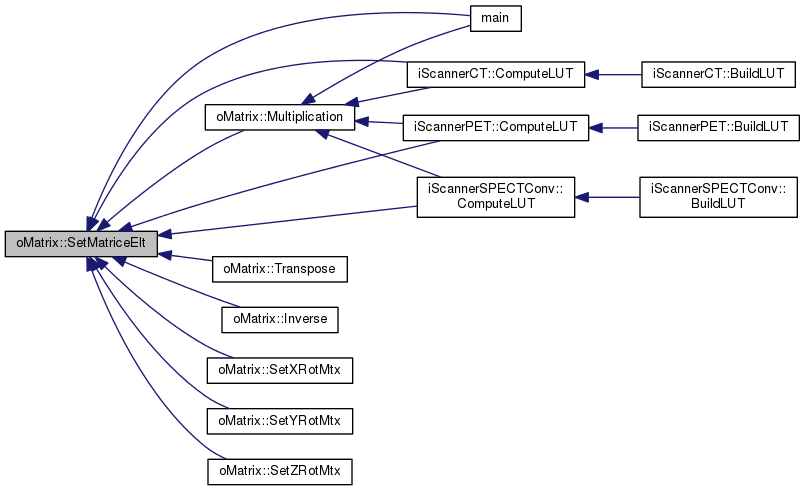

Here is the caller graph for this function:

int oMatrix::SetXRotMtx ( FLTNB  ang)

Set a (3,3) X-axis rotation matrix using the provided angle.

Parameters
ang: angle in degree
Returns
0 if sucess, positive value otherwise

Definition at line 373 of file oMatrix.cc.

Here is the call graph for this function:

int oMatrix::SetYRotMtx ( FLTNB  ang)

Set a (3,3) Y-axis rotation matrix using the provided angle.

Parameters
ang: angle in degree
Returns
0 if sucess, positive value otherwise

Definition at line 407 of file oMatrix.cc.

Here is the call graph for this function:

int oMatrix::SetZRotMtx ( FLTNB  ang)

Set a (3,3) Z-axis rotation matrix using the provided angle.

Parameters
ang: angle in degree
Returns
0 if sucess, positive value otherwise

Definition at line 441 of file oMatrix.cc.

Here is the call graph for this function:

int oMatrix::Transpose ( oMatrix a_MtxResult)

Transpose the elements of the matrix.

Parameters
ap_MtxResult: output matrix containing the result of the transposition
Returns
0 if success, positive value otherwise

Definition at line 229 of file oMatrix.cc.

Here is the call graph for this function:

Member Data Documentation

FLTNB** oMatrix::m2p_Mat
private

2D pointer containing the matrix elements. Default =NULL

Definition at line 160 of file oMatrix.hh.

uint16_t oMatrix::m_col

Number of colons in the matrix. Default =0

Definition at line 158 of file oMatrix.hh.

uint16_t oMatrix::m_lin

Number of lines in the matrix. Default =0

Definition at line 157 of file oMatrix.hh.
