This abstract class is the generic image convolver class used by the oImageConvolverManager. More...

#include <vImageConvolver.hh>

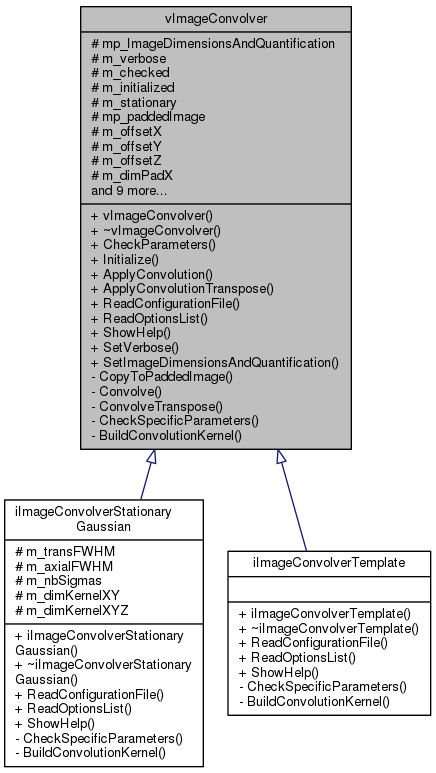

Inheritance diagram for vImageConvolver:

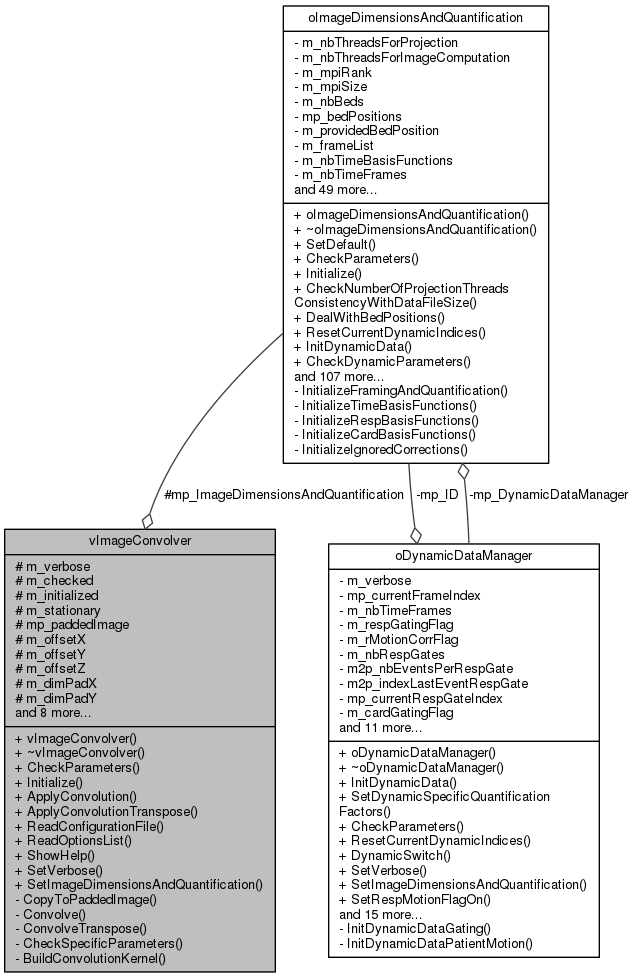

Collaboration diagram for vImageConvolver:

Public Member Functions
	vImageConvolver ()
	The constructor of vImageConvolver. More...

virtual	~vImageConvolver ()
	The destructor of vImageConvolver. More...

int	CheckParameters ()
	A public function used to check the parameters settings. More...

int	Initialize ()
	A public function used to initialize the module. More...

int	ApplyConvolution (FLTNB *ap_image)
	A public function used to apply the convolution module on the provided image. More...

int	ApplyConvolutionTranspose (FLTNB *ap_image)
	A public function used to apply the transpose convolution module on the provided image. More...

virtual int	ReadConfigurationFile (const string &a_fileOptions)=0
	A function used to read options from a configuration file. More...

virtual int	ReadOptionsList (const string &a_listOptions)=0
	A function used to read options from a list of options. More...

virtual void	ShowHelp ()=0
	A function used to show help about the child module. More...

void	SetVerbose (int a_verbose)
	Set the member m_verboseLevel to the provided value. More...

void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	Set the member mp_ImageDimensionsAndQuantification to the provided value. More...

Protected Attributes
oImageDimensionsAndQuantification *	mp_ImageDimensionsAndQuantification

int	m_verbose

bool	m_checked

bool	m_initialized

bool	m_stationary

FLTNB *	mp_paddedImage

INTNB	m_offsetX

INTNB	m_offsetY

INTNB	m_offsetZ

INTNB	m_dimPadX

INTNB	m_dimPadY

INTNB	m_dimPadZ

INTNB	m_dimPadXY

INTNB	m_dimPadXYZ

INTNB	m_nbKernels

INTNB *	mp_dimKernelX

INTNB *	mp_dimKernelY

INTNB *	mp_dimKernelZ

FLTNB **	m2p_kernel

Private Member Functions
void	CopyToPaddedImage (FLTNB *ap_inputImage)
	A private function used to copy the provided image into the padded buffer. More...

virtual int	Convolve (FLTNB *ap_outputImage)
	A private function used to apply the convolution on the padded image to the provided output image. More...

virtual int	ConvolveTranspose (FLTNB *ap_outputImage)
	A private function used to apply the transpose convolution on the padded image to the provided output image. More...

virtual int	CheckSpecificParameters ()=0
	A private function used to check the parameters settings specific to the child convolver. More...

virtual int	BuildConvolutionKernel ()=0
	A private function used to build the convolution kernel specific to the child convolver. More...

Detailed Description

This abstract class is the generic image convolver class used by the oImageConvolverManager.

This abstract class is the base of all implemented image convolvers inheriting from it. It is used by the oImageConvolverManager that instantiate a collection of children objects based on the provided options. It implements four main public functions:
(i) CheckParameters() which checks the mandatory common parameters and calls the pure virtual CheckSpecificParameters() function implemented by each child;
(ii) Initialize() which initializes some common stuff and calls the pure virtual BuildConvolutionKernel() function implemented by each child;
(iii) ApplyConvolution() which actually applies the convolution onto the provided image;
(iv) ApplyConvolutionTranspose() which applies the transpose of the convolution.
It also specifies other pure virtual functions dedicated to the reading of options and help associated to each child, and the Convolve() and ConvolveTranspose() functions which actually implement the specific convolving of each child module. As an example of a child module, see the iImageProcessingTemplate child class that illustrates how a specific image processing module should be implemented.

Definition at line 58 of file vImageConvolver.hh.

Constructor & Destructor Documentation

vImageConvolver::vImageConvolver ( )

The constructor of vImageConvolver.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 40 of file vImageConvolver.cc.

vImageConvolver::~vImageConvolver ( )

virtual

The destructor of vImageConvolver.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were build by this class. It is virtual, so that it is automatically called when a child object is deleted.

Definition at line 72 of file vImageConvolver.cc.

Member Function Documentation

int vImageConvolver::ApplyConvolution ( FLTNB * ap_image )

A public function used to apply the convolution module on the provided image.

Parameters

FLTNB* ap_image

This function is the first main action function used to apply the convolution on the provided image. It copy the provided image into the padded image buffer using the CopyToPaddedImage() private function, and then apply the convolution using the private Convolve() function.

Returns: An integer reflecting the convolution status; 0 if no problem, another value otherwise.

Definition at line 240 of file vImageConvolver.cc.

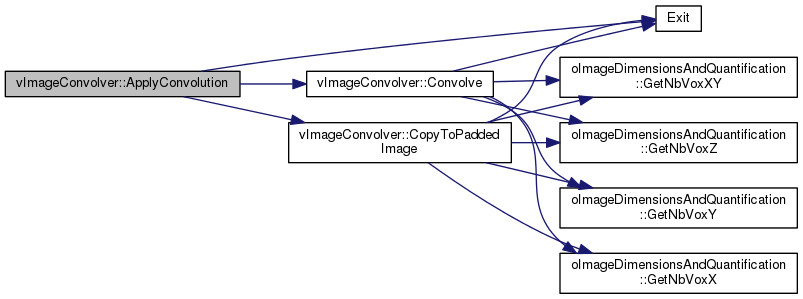

Here is the call graph for this function:

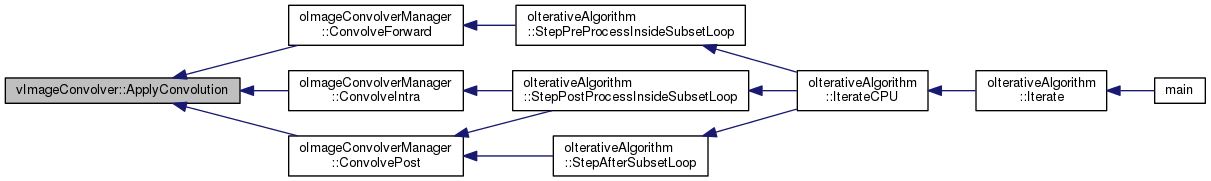

Here is the caller graph for this function:

int vImageConvolver::ApplyConvolutionTranspose ( FLTNB * ap_image )

A public function used to apply the transpose convolution module on the provided image.

Parameters

FLTNB* ap_image

This function is the second main action function used to apply the transpose of the convolution on the provided image. It copy the provided image into the padded image buffer using the CopyToPaddedImage() private function, and then apply the transpose of the convolution using the private ConvolveTranspose() function.

Returns: An integer reflecting the convolution status; 0 if no problem, another value otherwise.

Definition at line 267 of file vImageConvolver.cc.

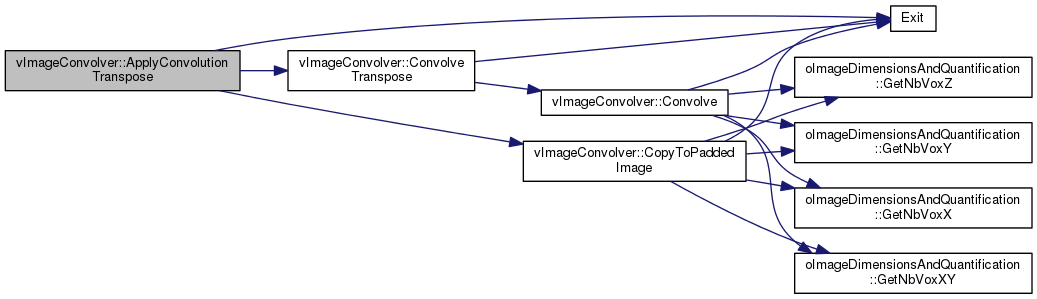

Here is the call graph for this function:

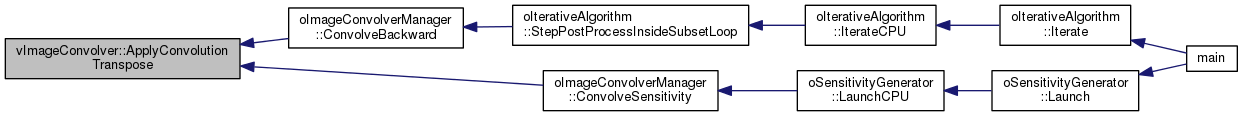

Here is the caller graph for this function:

private virtual int vImageConvolver::BuildConvolutionKernel ( )

privatepure virtual

A private function used to build the convolution kernel specific to the child convolver.

This function is used to build the convolution kernels associated to the child convolver. It is called by the Initialize() function. It is pure virtual so is implemented by children. To be the most generic possible, one can build has many convolution kernels as desired in order to implement spatially variant convolutions. The number of kernels should be specified, the kernels' dimensions allocated and specified, and same for the actual kernels' values.

Returns: An integer reflecting the building status; 0 if no problem, another value otherwise.

Implemented in iImageConvolverTemplate, and iImageConvolverStationaryGaussian.

Here is the caller graph for this function:

int vImageConvolver::CheckParameters ( )

A public function used to check the parameters settings.

This function does not take any parameter and is used to check that all mandatory members were correctly parameterized. At the end, it calls the pure virtual CheckSpecificParameters() function implemented by children.

Returns: An integer reflecting the check status; 0 if no problem, another value otherwise.

Definition at line 92 of file vImageConvolver.cc.

Here is the call graph for this function:

private virtual int vImageConvolver::CheckSpecificParameters ( )

privatepure virtual

A private function used to check the parameters settings specific to the child convolver.

This function is used to check that all parameters specific to the convolver are correctly set within allowed values. It is called by the CheckParameters() function. It is pure virtual so is implemented by children.

Returns: An integer reflecting the check status; 0 if no problem, another value otherwise.

Implemented in iImageConvolverTemplate, and iImageConvolverStationaryGaussian.

Here is the caller graph for this function:

int vImageConvolver::Convolve ( FLTNB * ap_outputImage )

privatevirtual

A private function used to apply the convolution on the padded image to the provided output image.

Parameters

FLTNB* ap_outputImage

This function is used to apply the convolution on the padded image to the provided output image. It is virtual so it can be overloaded. The current implementation is valid only for stationary kernels. So for spatially variant kernels, it must be overloaded.

Returns: An integer reflecting the convolution status; 0 if no problem, another value otherwise.

Definition at line 337 of file vImageConvolver.cc.

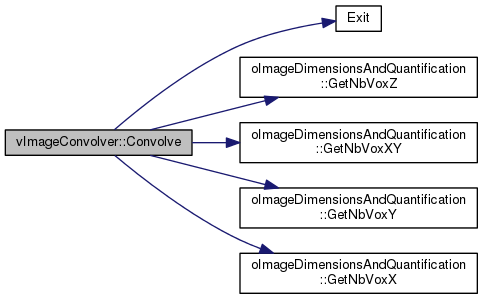

Here is the call graph for this function:

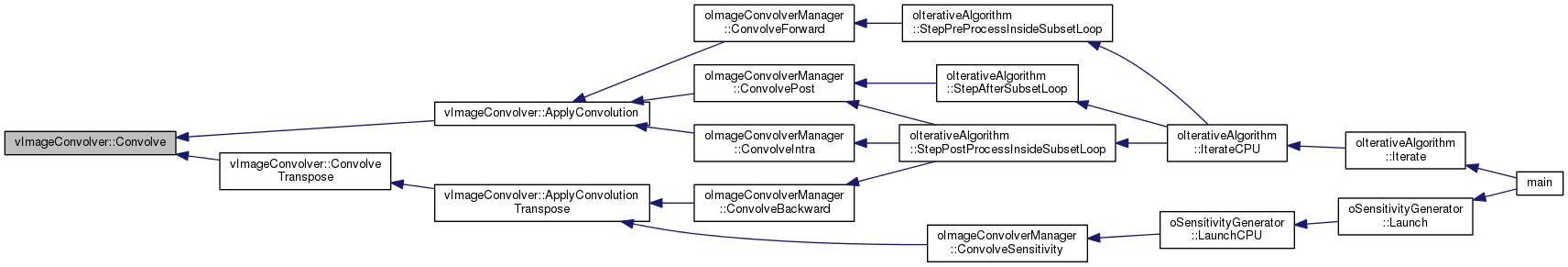

Here is the caller graph for this function:

int vImageConvolver::ConvolveTranspose ( FLTNB * ap_outputImage )

privatevirtual

A private function used to apply the transpose convolution on the padded image to the provided output image.

Parameters

FLTNB* ap_outputImage

This function is used to apply the transpose of the convolution on the padded image to the provided output image. It is virtual so it can be overloaded. The current implementation is valid only for stationary kernels as it simply call the Convolve() function. So for spatially variant kernels, it must be overloaded.

Returns: An integer reflecting the convolution status; 0 if no problem, another value otherwise.

Definition at line 424 of file vImageConvolver.cc.

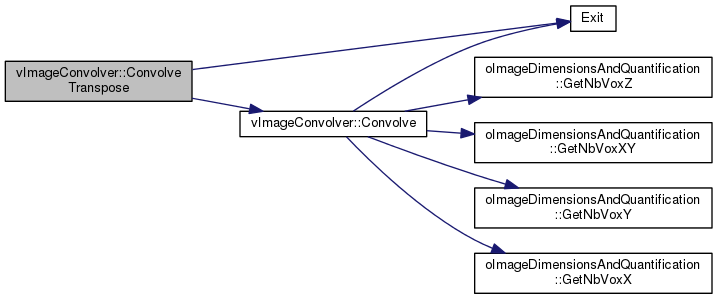

Here is the call graph for this function:

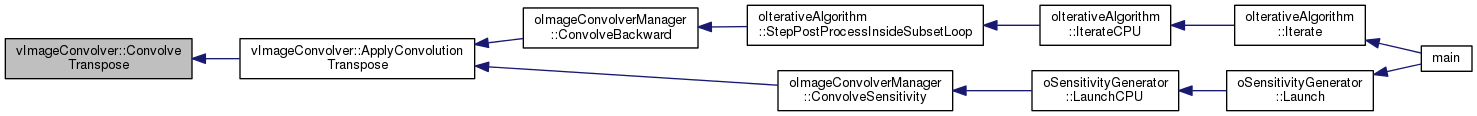

Here is the caller graph for this function:

void vImageConvolver::CopyToPaddedImage ( FLTNB * ap_inputImage )

private

A private function used to copy the provided image into the padded buffer.

Parameters

FLTNB* ap_inputImage

This function is copies the provided image into the padded image buffer. It is used right before apply the convolution or its transpose.

Definition at line 294 of file vImageConvolver.cc.

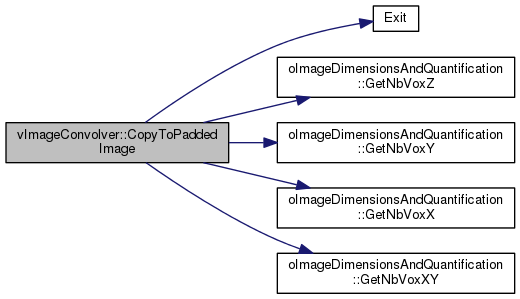

Here is the call graph for this function:

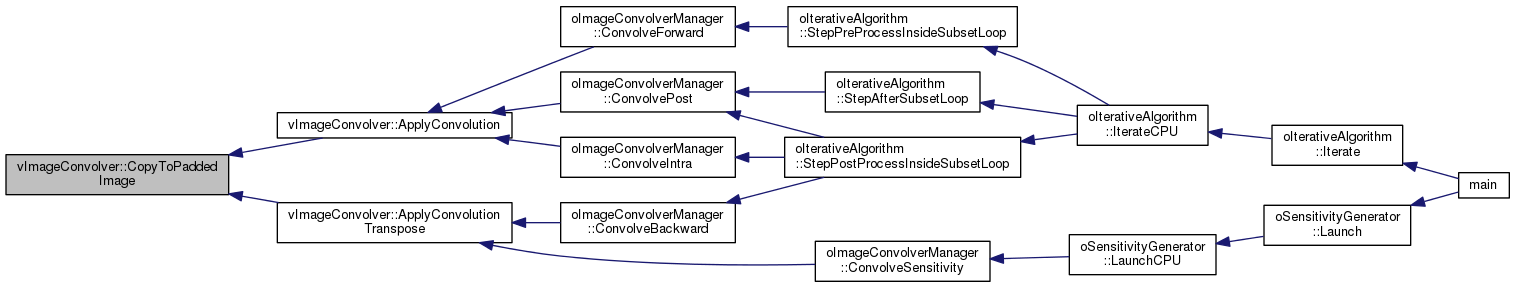

Here is the caller graph for this function:

int vImageConvolver::Initialize ( )

A public function used to initialize the module.

This function does not take any parameter and is used to initialize everything that should be initialized. At the beginning, it calls the pure virtual BuildConvolutionKernel() function implemented by children.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 124 of file vImageConvolver.cc.

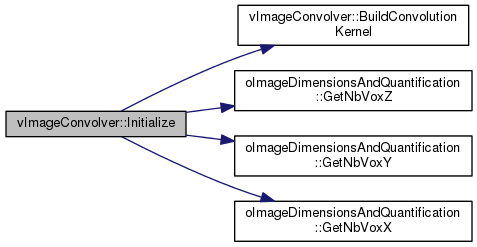

Here is the call graph for this function:

public virtual int vImageConvolver::ReadConfigurationFile ( const string & a_fileOptions )

pure virtual

A function used to read options from a configuration file.

Parameters

const string& a_configurationFile

This function implements the reading of all options associated to a child convolver, from a configuration file. It is pure virtual so is implemented by children. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns: An integer reflecting the reading success; 0 if success, another value otherwise.

Implemented in iImageConvolverTemplate, and iImageConvolverStationaryGaussian.

public virtual int vImageConvolver::ReadOptionsList ( const string & a_listOptions )

pure virtual

A function used to read options from a list of options.

Parameters

const string& a_optionsList

This function implements the reading of all options associated to a child convolver, from a list of options. It is pure virtual so is implemented by children. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns: An integer reflecting the reading success; 0 if success, another value otherwise.

Implemented in iImageConvolverTemplate, and iImageConvolverStationaryGaussian.

public void vImageConvolver::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification )

inline

Set the member mp_ImageDimensionsAndQuantification to the provided value.

Parameters

oImageDimensionsAndQuantification* ap_ImageDimensionsAndQuantification

Definition at line 240 of file vImageConvolver.hh.

Here is the caller graph for this function:

public void vImageConvolver::SetVerbose ( int a_verbose )

inline

Set the member m_verboseLevel to the provided value.

Parameters

int	a_verboseLevel

Definition at line 233 of file vImageConvolver.hh.

Here is the caller graph for this function:

public virtual int vImageConvolver::ShowHelp ( )

pure virtual

A function used to show help about the child module.

This function must describe what the module does and how to use it. It describes in details the different parameters of the module, and how to set them through the use of a configuration file or a list of options. It is pure virtual so is implemented by children.

Implemented in iImageConvolverTemplate, and iImageConvolverStationaryGaussian.

Here is the caller graph for this function:

Member Data Documentation

FLTNB** vImageConvolver::m2p_kernel

protected

The actual kernels, first pointer for the number of kernels, second pointer for the kernel values

Definition at line 269 of file vImageConvolver.hh.

bool vImageConvolver::m_checked

protected

Boolean that says if the parameters were checked or not

Definition at line 251 of file vImageConvolver.hh.

INTNB vImageConvolver::m_dimPadX

protected

The number of voxels of the padded image along X

Definition at line 259 of file vImageConvolver.hh.

INTNB vImageConvolver::m_dimPadXY

protected

The number of voxels of the padded image in a slice

Definition at line 262 of file vImageConvolver.hh.

INTNB vImageConvolver::m_dimPadXYZ

protected

The total number of voxels of the padded image

Definition at line 263 of file vImageConvolver.hh.

INTNB vImageConvolver::m_dimPadY

protected

The number of voxels of the padded image along Y

Definition at line 260 of file vImageConvolver.hh.

INTNB vImageConvolver::m_dimPadZ

protected

The number of voxels of the padded image along Z

Definition at line 261 of file vImageConvolver.hh.

bool vImageConvolver::m_initialized

protected

Boolean that says if the convolver was initialized or not

Definition at line 252 of file vImageConvolver.hh.

INTNB vImageConvolver::m_nbKernels

protected

The number of kernels (1 if stationary, more otherwise

Definition at line 265 of file vImageConvolver.hh.

INTNB vImageConvolver::m_offsetX

protected

The offset of the padded image along X

Definition at line 256 of file vImageConvolver.hh.

INTNB vImageConvolver::m_offsetY

protected

The offset of the padded image along Y

Definition at line 257 of file vImageConvolver.hh.

INTNB vImageConvolver::m_offsetZ

protected

The offset of the padded image along Z

Definition at line 258 of file vImageConvolver.hh.

bool vImageConvolver::m_stationary

protected

Boolean that says if the kernel is stationary or not

Definition at line 253 of file vImageConvolver.hh.

int vImageConvolver::m_verbose

protected

The verbose level

Definition at line 249 of file vImageConvolver.hh.

INTNB* vImageConvolver::mp_dimKernelX

protected

The dimension of each kernel along X

Definition at line 266 of file vImageConvolver.hh.

INTNB* vImageConvolver::mp_dimKernelY

protected

The dimension of each kernel along Y

Definition at line 267 of file vImageConvolver.hh.

INTNB* vImageConvolver::mp_dimKernelZ

protected

The dimension of each kernel along Z

Definition at line 268 of file vImageConvolver.hh.

oImageDimensionsAndQuantification* vImageConvolver::mp_ImageDimensionsAndQuantification

protected

Pointer to the oImageDimensionsAndQuantification object in use

Definition at line 248 of file vImageConvolver.hh.

FLTNB* vImageConvolver::mp_paddedImage

protected

The actual padded buffer image

Definition at line 255 of file vImageConvolver.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
