This is the mother class of image-based transformation class. More...

#include <vDeformation.hh>

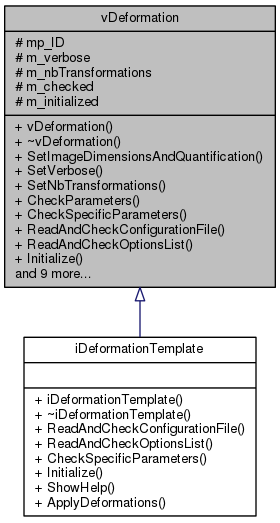

Inheritance diagram for vDeformation:

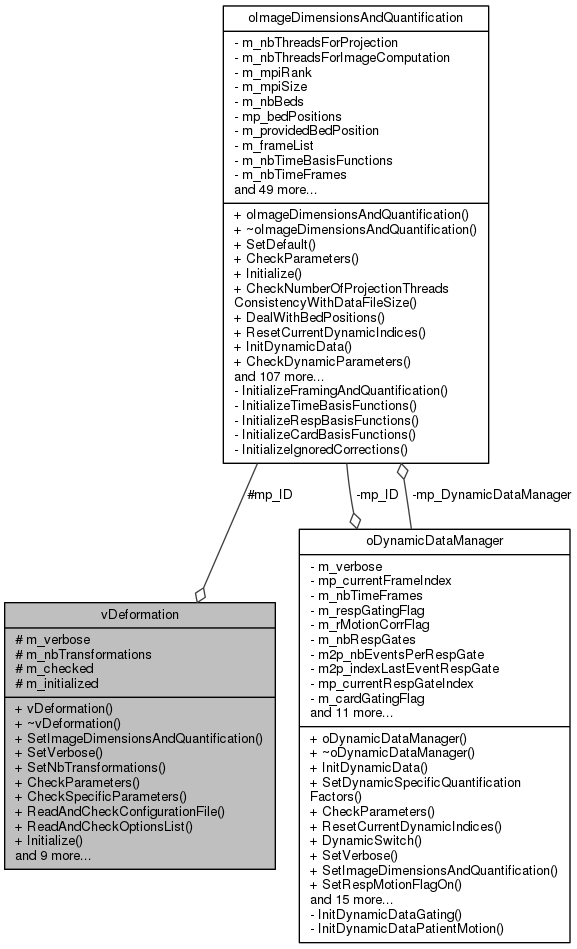

Collaboration diagram for vDeformation:

Public Member Functions
	vDeformation ()
	Constructor of vDeformation. Simply set all data members to default values. More...

virtual	~vDeformation ()
	Destructor of vDeformation. More...

void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	Set the image dimensions in use. More...

void	SetVerbose (int a_verbose)
	Set the verbose level. More...

void	SetNbTransformations (int a_nbTransformations)
	Set the number of transformation in the data to be performed on the dataset (equal to the number of gates in one frame) More...

virtual int	CheckParameters ()
	This function is used to check parameters after the latter have been all set using Set functions. More...

virtual int	CheckSpecificParameters ()=0
	This function is used to check the parameters of the child functions before initialization if required. More...

virtual int	ReadAndCheckConfigurationFile (const string &a_fileOptions)=0
	This function is used to read options from a configuration file. It is pure virtual so must be implemented by children. More...

virtual int	ReadAndCheckOptionsList (const string &a_listOptions)=0
	This function is used to read parameters from a string. It is pure virtual so must be implemented by children. More...

virtual int	Initialize ()=0
	This function is used to initialize specific data related to the child deformation model. It is pure virtual so must be implemented by children. More...

virtual void	ShowHelp ()=0
	This function is used to print out specific help about the deformation and its options. It is pure virtual so must be implemented by children. More...

virtual int	PerformDeformation (oImageSpace *ap_Image, int a_defIdx, int a_fr, int a_rimg, int a_cimg)
	Apply deformations during reconstruction. More...

virtual int	PerformDeformationBis (oImageSpace *ap_Image, int a_defIdx, int a_fr, int a_rimg, int a_cimg)

virtual int	PerformHistoSensitivityDeformation (oImageSpace *ap_Image, int a_defIdx, int fr, int rimg, int cimg)
	Apply deformations on the sensitivity image during reconstruction in histogram mode. More...

virtual int	ApplyDeformationsToBackwardImage (oImageSpace *ap_Image, int a_fr, int a_defIdx)
	Apply backward transformation of the backward image to the reference position. More...

virtual int	ApplyDeformationsToHistoSensitivityImage (oImageSpace *ap_Image, int a_fr, int a_defIdx)
	Apply backward transformations of the sensitivity image to the reference position (histogram mode) More...

virtual int	PerformSensitivityDeformation (oImageSpace *ap_Image, int a_defDirection, int a_defIdx, int fr, int rg, int cg)
	Apply image deformations during sensitivity image generation for list-mode. More...

virtual int	ApplyDeformations (FLTNB ap_inputImage, FLTNB ap_outputImage, int a_direction, int a_defIdx)=0
	This function prepares the deformation to perform It is a virtual pure deformation function to be implemented in the child class. More...

int	Tlerp (HPFLTNB ap_inputImage, HPFLTNB ap_outputImage, uint32_t iov, uint32_t iiv, FLTNB dX, FLTNB dY, FLTNB dZ)

Protected Attributes
oImageDimensionsAndQuantification *	mp_ID

int	m_verbose

int	m_nbTransformations

int	m_checked

int	m_initialized

Detailed Description

This is the mother class of image-based transformation class.

This class is a virtual one, in the sense that it cannot be used on its own because several pure virtual functions belong to it. Its children are implementations of actual deformation models.
Everywhere in the code, this parent class should be used instead of any of its children.
It can be used during the projection/reconstruction process by the oDeformationManager through the use of the Deformation functions that cannot be overloaded:

ApplyDeformationsToForwardImage() : Initial deformation of the forward image matrice
PerformDeformation() : Deformation of the forward image during the reconstruction process
ApplyDeformationsToBackwardImage() : Final deformation of the backward image
PerformSensitivityDeformation() : Forward or backward deformation during the sensitivity generation process
All children must implement the following pure virtual functions:
- ReadAndCheckConfigurationFile(): read specific options from a configuration file
- ReadAndCheckOptionsList(): read specific options from a string
- ShowHelp(): print helps about the deformation model specifications
- Initialize(): initialize specific stuff of the model (if required)
- CheckParameters(): Check the initialization of the parameters (if required)
- ApplyDeformations(): implement the actual deformation

Definition at line 65 of file vDeformation.hh.

Constructor & Destructor Documentation

vDeformation::vDeformation ( )

Constructor of vDeformation. Simply set all data members to default values.

Definition at line 43 of file vDeformation.cc.

vDeformation::~vDeformation ( )

virtual

Destructor of vDeformation.

Definition at line 63 of file vDeformation.cc.

Member Function Documentation

int vDeformation::ApplyDeformations	(	FLTNB *	ap_inputImage,
		FLTNB *	ap_outputImage,
		int	a_direction,
		int	a_defIdx
	)

pure virtual

This function prepares the deformation to perform
It is a virtual pure deformation function to be implemented in the child class.

Parameters

ap_inputImage	: input image to deform
ap_outputImage	: image in which the output of the deformation should be recovered
a_direction	: a direction for the deformation to perform (forward or backward)
a_defIdx	: index of the deformation

Returns: 0 if success, other value otherwise.

Implemented in iDeformationTemplate.

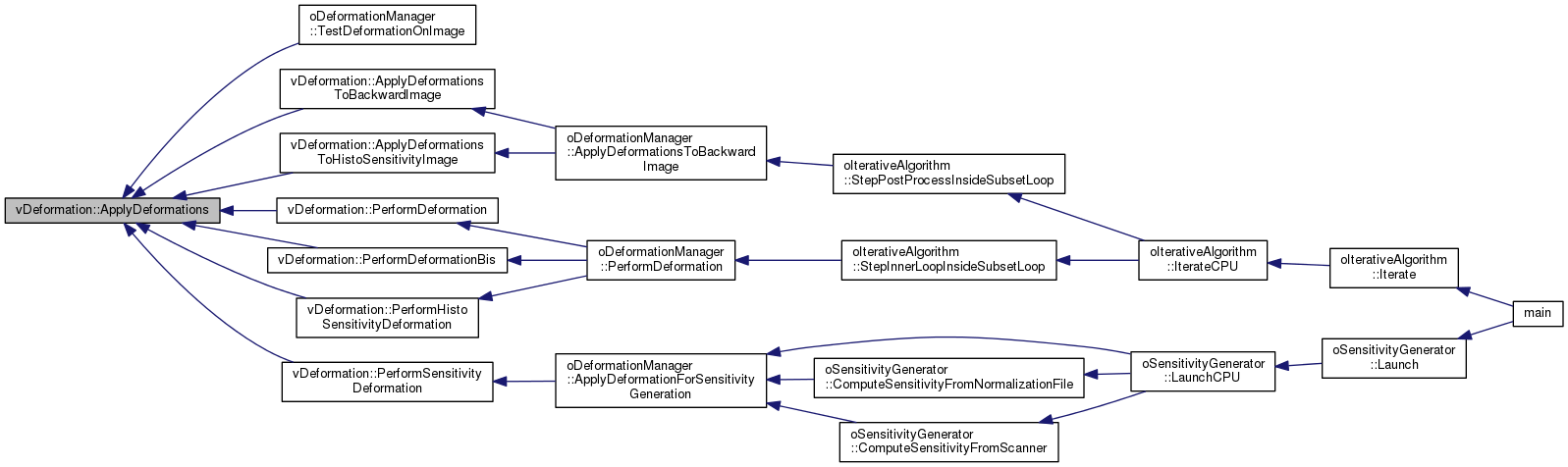

Here is the caller graph for this function:

int vDeformation::ApplyDeformationsToBackwardImage	(	oImageSpace *	ap_Image,
		int	a_fr,
		int	a_defIdx
	)

virtual

Apply backward transformation of the backward image to the reference position.

Parameters

ap_Image	: required to access the backward image and its deformation backup matrice
a_fr	: frame index
a_defIdx	: index of the deformation

Loop on frames
Recover any potential data stored in the backup matrice m2p_defTmpBackwardImage

Definition at line 135 of file vDeformation.cc.

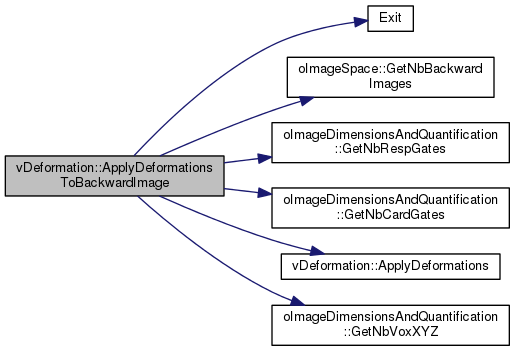

Here is the call graph for this function:

Here is the caller graph for this function:

int vDeformation::ApplyDeformationsToHistoSensitivityImage	(	oImageSpace *	ap_Image,
		int	a_fr,
		int	a_defIdx
	)

virtual

Apply backward transformations of the sensitivity image to the reference position (histogram mode)

Parameters

ap_Image	: required to access the backward image and its deformation backup matrice
a_fr	: frame index
a_defIdx	: index of the deformation

Loop on frames
Recover any potential data stored in the backup matrice m4p_defTmpSensitivityImage

Definition at line 203 of file vDeformation.cc.

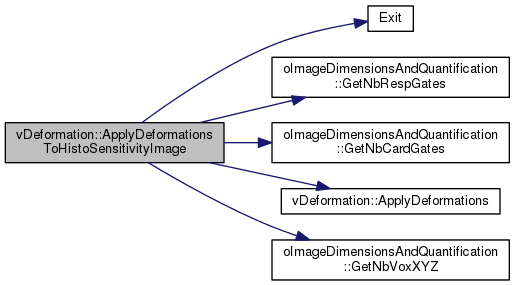

Here is the call graph for this function:

Here is the caller graph for this function:

int vDeformation::CheckParameters ( )

virtual

This function is used to check parameters after the latter have been all set using Set functions.

Returns: 0 if success, positive value otherwise.

Definition at line 78 of file vDeformation.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int vDeformation::CheckSpecificParameters ( )

pure virtual

This function is used to check the parameters of the child functions before initialization if required.

It could be overloaded by the child if needed. Default implementation is empty and return 0.

Returns: 0 if success, other value otherwise.

Implemented in iDeformationTemplate.

Here is the caller graph for this function:

int vDeformation::Initialize ( )

pure virtual

This function is used to initialize specific data related to the child deformation model.
It is pure virtual so must be implemented by children.

Returns: 0 if success, other value otherwise.

Implemented in iDeformationTemplate.

Here is the caller graph for this function:

int vDeformation::PerformDeformation	(	oImageSpace *	ap_Image,
		int	a_defIdx,
		int	a_fr,
		int	a_rimg,
		int	a_cimg
	)

virtual

Apply deformations during reconstruction.

Parameters

ap_Image	: required to access oImageSpace image matrices
a_defIdx	: index of the deformation
a_fr	: frame index
a_rimg	: respiratory image index
a_cimg	: cardiac image index

Recover all the data of the multithreaded backward image matrices in the first one (thread index 0)
1. Perform backward deformation of the backward image to the reference position with defIdx-1
2. Add coefficients of the backward image matrice to the temporary backup image matrice & reset backward image
3. Apply forward deformation of the forward image (backward deformation to the reference position with defIdx-1, and forward deformation with defIdx)
  Returns
  0 if success, positive value otherwise

Definition at line 257 of file vDeformation.cc.

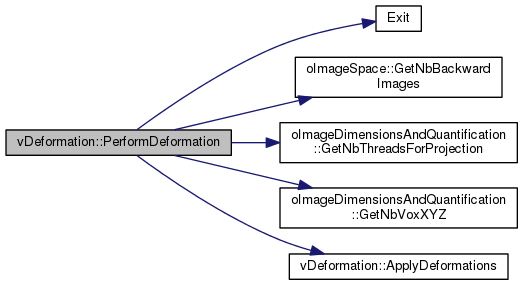

Here is the call graph for this function:

Here is the caller graph for this function:

int vDeformation::PerformDeformationBis	(	oImageSpace *	ap_Image,
		int	a_defIdx,
		int	a_fr,
		int	a_rimg,
		int	a_cimg
	)

virtual

Definition at line 346 of file vDeformation.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int vDeformation::PerformHistoSensitivityDeformation	(	oImageSpace *	ap_Image,
		int	a_defIdx,
		int	fr,
		int	rimg,
		int	cimg
	)

virtual

Apply deformations on the sensitivity image during reconstruction in histogram mode.

Parameters

ap_Image	: required to access oImageSpace image matrices
a_defIdx	: index of the deformation
fr	: frame index
rimg	: respiratory image index
cimg	: cardiac image index

Recover all the data of the multithreaded sensitivity image matrice in the first one (thread index 0)
1. Perform backward deformation of the sensitivity image to the reference position with defIdx-1
2. Add coefficients of the sensitivity image matrice to the temporary backup image matrice & reset sensitivity image
  Returns
  0 if success, positive value otherwise

Definition at line 397 of file vDeformation.cc.

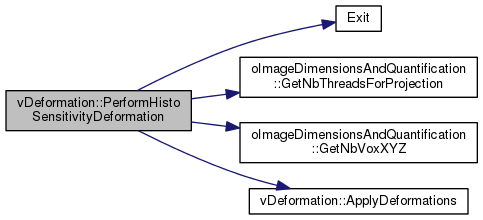

Here is the call graph for this function:

Here is the caller graph for this function:

int vDeformation::PerformSensitivityDeformation	(	oImageSpace *	ap_Image,
		int	a_defDirection,
		int	a_defIdx,
		int	fr,
		int	rg,
		int	cg
	)

virtual

Apply image deformations during sensitivity image generation for list-mode.

Parameters

ap_Image	: required to access oImageSpace image matrices
a_defDirection	: a direction for the deformation to perform (forward or backward)
a_defIdx	: index of the deformation
fr	: frame index
rg	: respiratory gate index
cg	: cardiac gate index

Depending on the deformation direction (forward or backward):
Forward : Perform forward deformation of the forward image to the deformation index position
Backward: Perform backward deformation of the backward image to the reference position

Returns: 0 if success, positive value otherwise

Definition at line 461 of file vDeformation.cc.

Here is the call graph for this function:

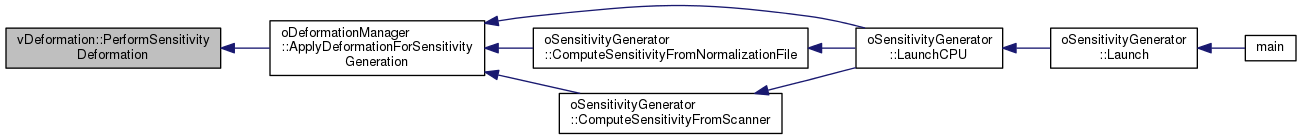

Here is the caller graph for this function:

int vDeformation::ReadAndCheckConfigurationFile ( const string & a_fileOptions )

pure virtual

This function is used to read options from a configuration file.
It is pure virtual so must be implemented by children.

Parameters

const string& a_configurationFile : ASCII file containing informations about a deformation model

Returns: 0 if success, other value otherwise.

Implemented in iDeformationTemplate.

Here is the caller graph for this function:

int vDeformation::ReadAndCheckOptionsList ( const string & a_listOptions )

pure virtual

This function is used to read parameters from a string.
It is pure virtual so must be implemented by children.

Parameters

const string& a_optionsList : a list of parameters separated by commas

Returns: 0 if success, other value otherwise.

Implemented in iDeformationTemplate.

Here is the caller graph for this function:

void vDeformation::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification )

inline

Set the image dimensions in use.

Parameters

oImageDimensionsAndQuantification* ap_ImageDimensionsAndQuantification

Definition at line 90 of file vDeformation.hh.

Here is the caller graph for this function:

void vDeformation::SetNbTransformations ( int a_nbTransformations )

inline

Set the number of transformation in the data to be performed on the dataset (equal to the number of gates in one frame)

Parameters

a_nbTransformations

Definition at line 105 of file vDeformation.hh.

Here is the caller graph for this function:

void vDeformation::SetVerbose ( int a_verbose )

inline

Set the verbose level.

Parameters

a_verboseLevel

Definition at line 97 of file vDeformation.hh.

Here is the caller graph for this function:

void vDeformation::ShowHelp ( )

pure virtual

This function is used to print out specific help about the deformation and its options.
It is pure virtual so must be implemented by children.

Implemented in iDeformationTemplate.

Here is the caller graph for this function:

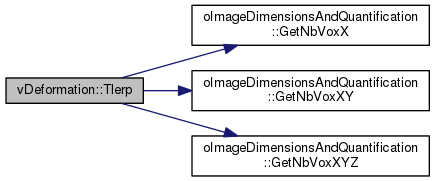

int vDeformation::Tlerp	(	HPFLTNB *	ap_inputImage,
		HPFLTNB *	ap_outputImage,
		uint32_t	iov,
		uint32_t	iiv,
		FLTNB	dX,
		FLTNB	dY,
		FLTNB	dZ
	)

Definition at line 525 of file vDeformation.cc.

Here is the call graph for this function:

Member Data Documentation

int vDeformation::m_checked

protected

Boolean indicating whether the parameters were checked or not

Definition at line 263 of file vDeformation.hh.

int vDeformation::m_initialized

protected

Boolean indicating whether the manager was initialized or not

Definition at line 264 of file vDeformation.hh.

int vDeformation::m_nbTransformations

protected

Number of transformations to be performed on the dataset (corresponding to the number of gates subsets of the data)

Definition at line 262 of file vDeformation.hh.

int vDeformation::m_verbose

protected

The verbose level

Definition at line 261 of file vDeformation.hh.

oImageDimensionsAndQuantification* vDeformation::mp_ID

protected

Pointer to the oImageDimensionsAndQuantification object in use

Definition at line 260 of file vDeformation.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
