This class is designed to be a mother virtual class for DataFile. More...

#include <vDataFile.hh>

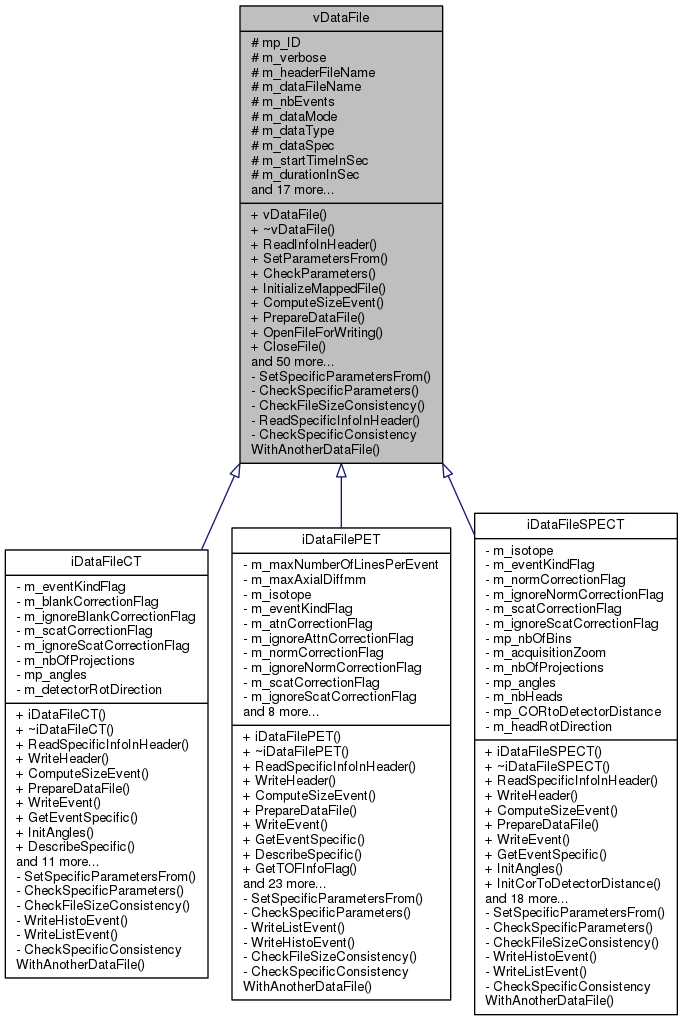

Inheritance diagram for vDataFile:

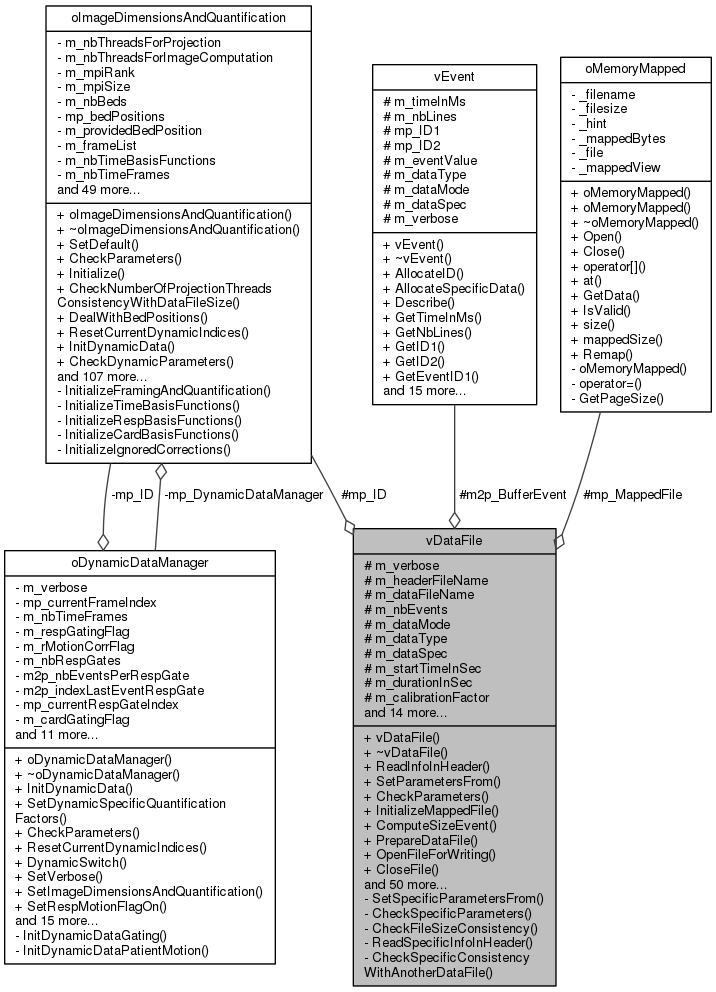

Collaboration diagram for vDataFile:

Public Member Functions
	vDataFile ()
	vDataFile constructor. More...

virtual	~vDataFile ()
	vDataFile destructor. More...

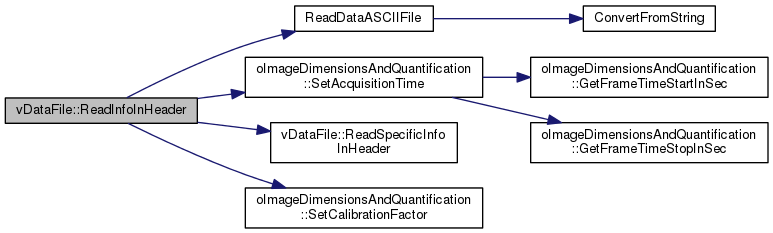

int	ReadInfoInHeader (bool a_affectQuantificationFlag=true)
	Read and check general information from the header datafile Call the ReadSpecificInformationInHeader() function implemented in child classes. More...

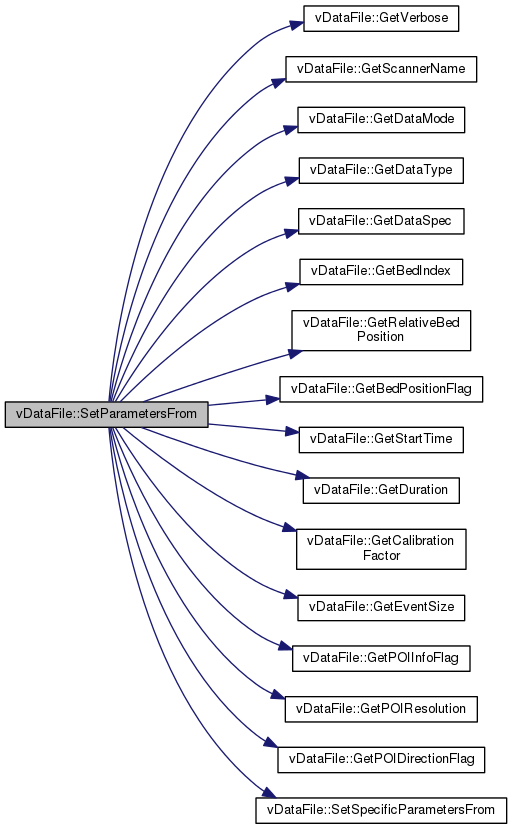

int	SetParametersFrom (vDataFile *ap_DataFile)
	Initialize all parameters from the provided datafile. More...

int	CheckParameters ()
	Check the initialization of member variables Call the CheckSpecificParameters() function implemented in child classes. More...

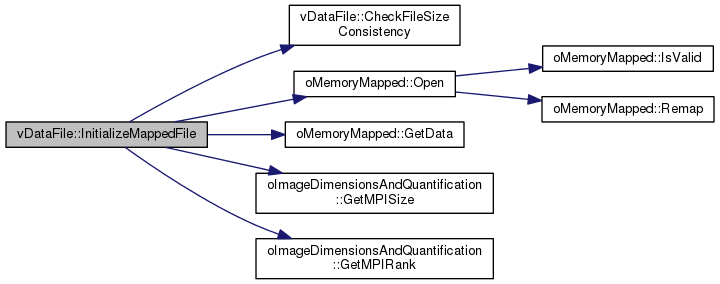

int	InitializeMappedFile ()
	Check the datafile existency, map it to memory and get the raw char* pointer. . More...

virtual int	ComputeSizeEvent ()=0
	This function is implemented in child classes Computation of the size of each event according to the mandatory/optional correction fields. More...

virtual int	PrepareDataFile ()=0
	This function is implemented in child classes Store different kind of information inside arrays (data relative to specific correction as well as basic raw data for the case data is loaded in RAM) Use the flag provided by the user to determine how the data has to be sorted (preloaded or read on the fly) More...

int	OpenFileForWriting (string a_suffix="")
	Open a binary file stream for writing, with eventually the suffix appended to the file name. More...

int	CloseFile ()
	Close as many binary file stream for writing. More...

virtual int	WriteHeader ()=0
	This function is implemented in child classes. Generate a header file according to the data output information. More...

virtual int	WriteEvent (vEvent *ap_Event, int a_th=0)=0
	This function is implemented in child classes Write event according to the chosen type of data. More...

vEvent *	GetEvent (int64_t a_eventIndex, int a_th=0)

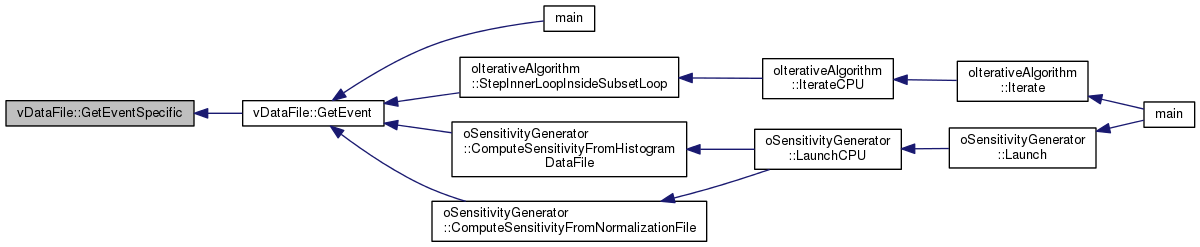

virtual vEvent *	GetEventSpecific (char *ap_buffer, int a_th)=0
	This function is implemented in child classes Read an event from the position pointed by 'ap_buffer', parse the generic or modality-specific information, and store them in the (multithreaded) 'm2p_BufferEvent' object. More...

void	GetEventIndexStartAndStop (int64_t ap_indexStart, int64_t ap_indexStop, int a_subsetNum=0, int a_NbSubsets=1)
	Compute the index start and stop of the events loop with respect to the current subset and MPI size and rank. More...

int	CheckConsistencyWithAnotherBedDataFile (vDataFile *ap_DataFile)
	Check consistency between 'this' and the provided datafile as two bed positions. More...

void	Describe ()
	A function used to describe the generic parts of the datafile. More...

virtual void	DescribeSpecific ()=0
	A pure virtual function used to describe the specific parts of the datafile. More...

virtual int	PROJ_InitFile ()=0
	This function is implemented in child classes Initialize the fstream objets for output writing as well as some other variables specific to the Projection script. More...

virtual int	PROJ_GetScannerSpecificParameters ()=0
	This function is implemented in child classes It is used to set several variables of the datafile when using the projection script. Get modality specific parameters from the scanner object, through the scannerManager. More...

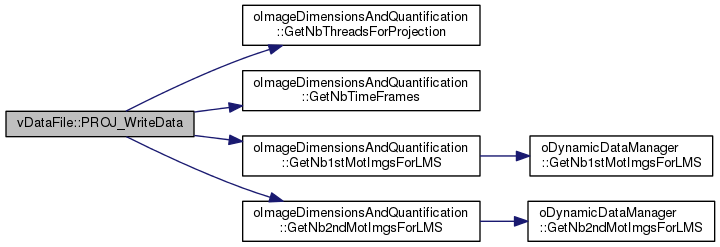

int	PROJ_WriteData ()
	Write/Merge chunk of data in a general data file. More...

int	PROJ_DeleteTmpDataFile ()
	Delete temporary datafile used for multithreaded output writing if needed. More...

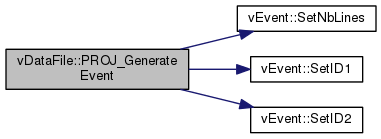

vEvent *	PROJ_GenerateEvent (int idx_elt1, int idx_elt2, int a_th)
	Generate a standard event and set up its ID Used by the projection, list-mode sensitivity generation, and datafile converter scripts. More...

int	GetBedIndex ()

int	GetDataMode ()

string	GetDataModeToString ()

int	GetDataType ()

string	GetDataTypeToString ()

int	GetDataSpec ()

string	GetDataSpecToString ()

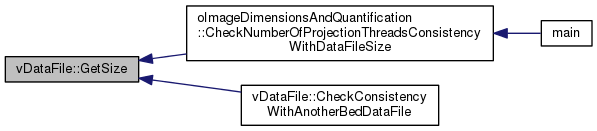

int64_t	GetSize ()

int64_t	GetEventSize ()

string	GetHeaderDataFileName ()

string	GetDataFileName ()

int64_t	GetStartTime ()

int64_t	GetDuration ()

FLTNB	GetCalibrationFactor ()

FLTNB *	GetPOIResolution ()

bool *	GetPOIDirectionFlag ()

bool	GetPOIInfoFlag ()

bool	GetIgnorePOIFlag ()

virtual int	GetMaxRingDiff ()
	Return an error by default. This function is surcharged by the PET (and CT) scanner daughter class. More...

void	SetDataMode (int a_dataMode)
	set the data mode More...

void	SetDataType (int a_dataType)
	set the data type More...

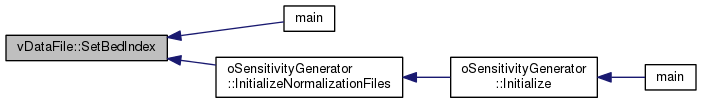

void	SetBedIndex (int a_bedIndex)
	set the bed index corresponding to this data file More...

bool	GetBedPositionFlag ()

FLTNB	GetRelativeBedPosition ()

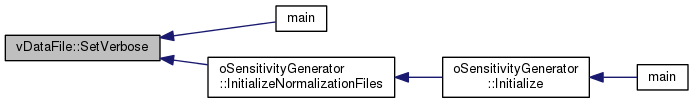

void	SetVerbose (int a_verboseLevel)
	set verbosity More...

int	GetVerbose ()
	Get the verbose level. More...

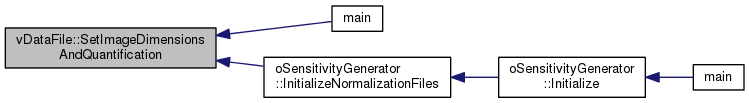

void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	set the pointer to the oImageDimensionsAndQuantification object More...

void	SetPOIResolution (FLTNB ap_value[3])
	initialize the POI resolution (for list-mode) More...

void	SetIgnorePOIFlag (bool a_ignorePOIFlag)
	Set a boolean that that if we ignore POI information or not. More...

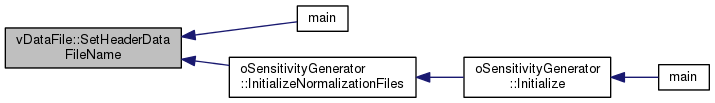

void	SetHeaderDataFileName (const string &a_headerFileName)
	set the data header file name More...

void	SetBinaryDataFileName (const string &a_dataFileName)
	set the data binary file name More...

void	SetCalibrationFactor (FLTNB a_value)
	initialize the global calibration factor with a FLTNB value More...

void	SetNbEvents (int64_t a_value)
	initialize the number of events with a int64_t value More...

void	SetStartTime (FLTNB a_value)

void	SetDuration (FLTNB a_value)

string	GetScannerName ()

virtual int	Shuffle (int64_t)
	!!!\ This function has been modified to be used specifically with a More...

Protected Attributes
oImageDimensionsAndQuantification *	mp_ID

int	m_verbose

string	m_headerFileName

string	m_dataFileName

int64_t	m_nbEvents

int	m_dataMode

int	m_dataType

int	m_dataSpec

FLTNB	m_startTimeInSec

FLTNB	m_durationInSec

FLTNB	m_calibrationFactor

int	m_bedIndex

FLTNB	m_relativeBedPosition

bool	m_bedPositionFlag

string	m_scannerName

bool	m_POIInfoFlag

bool	m_ignorePOIFlag

bool	mp_POIDirectionFlag [3]

FLTNB	mp_POIResolution [3]

int64_t	m_sizeEvent

fstream **	m2p_dataFile

vEvent **	m2p_BufferEvent

int64_t	m_mpi1stEvent

int64_t	m_mpiLastEvent

int64_t	m_mpiNbEvents

oMemoryMapped *	mp_MappedFile

char *	mp_mappedMemory

Private Member Functions
virtual int	SetSpecificParametersFrom (vDataFile *ap_DataFile)=0
	This function is implemented in child classes Initialize all specific parameters from the provided datafile. More...

virtual int	CheckSpecificParameters ()=0
	This function is implemented in child classes Check specific parameters of child classes. More...

virtual int	CheckFileSizeConsistency ()=0

virtual int	ReadSpecificInfoInHeader (bool a_affectQuantificationFlag=true)=0
	This function is implemented in child classes Read and check modality-specific information from the header datafile. More...

virtual int	CheckSpecificConsistencyWithAnotherDataFile (vDataFile *ap_DataFile)=0
	Check consistency between 'this' and the provided datafile, for specific characteristics. More...

Detailed Description

This class is designed to be a mother virtual class for DataFile.

This class manages the reading of the generic input file (header + data).
It uses some events as buffers to get data informations during run-time.

Definition at line 103 of file vDataFile.hh.

Constructor & Destructor Documentation

vDataFile::vDataFile ( )

vDataFile constructor.

Initialize the member variables to their default values.

Definition at line 39 of file vDataFile.cc.

vDataFile::~vDataFile ( )

virtual

vDataFile destructor.

Definition at line 85 of file vDataFile.cc.

Here is the call graph for this function:

Member Function Documentation

int vDataFile::CheckConsistencyWithAnotherBedDataFile ( vDataFile * ap_DataFile )

Check consistency between 'this' and the provided datafile as two bed positions.

Parameters

vDataFile* ap_DataFile

It checks data type, mode, number of events if histogram, event size, calibration factor, and scanner. For characteristics specific to the modality, it finally calls the pure virtual CheckSpecificConsistyWithAnotherBedDataFile() function implemented by children.

Returns: 0 if the provided datafile is consistent with 'this', another value otherwise

Definition at line 386 of file vDataFile.cc.

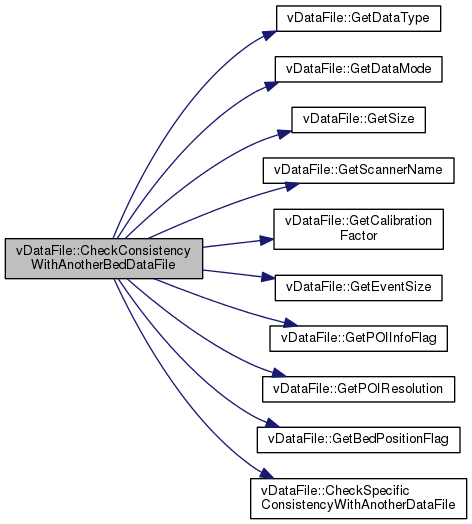

Here is the call graph for this function:

virtual int vDataFile::CheckFileSizeConsistency ( )

privatepure virtual

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileCT.

Here is the caller graph for this function:

int vDataFile::CheckParameters ( )

Check the initialization of member variables
Call the CheckSpecificParameters() function implemented in child classes.

Returns: 0 if success, and positive value otherwise.

Definition at line 315 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

vDataFile::CheckSpecificConsistencyWithAnotherDataFile ( vDataFile * ap_DataFile )

privatepure virtual

Check consistency between 'this' and the provided datafile, for specific characteristics.

Parameters

vDataFile* ap_DataFile

Pure virtual function implemented by children. It checks correction flags, etc.

Returns: 0 if the provided datafile is consistent with 'this', another value otherwise

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileCT.

Here is the caller graph for this function:

int vDataFile::CheckSpecificParameters ( )

privatepure virtual

This function is implemented in child classes
Check specific parameters of child classes.

Returns: 0 if success, and positive value otherwise.

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileCT.

Here is the caller graph for this function:

int vDataFile::CloseFile ( )

Close as many binary file stream for writing.

Use the m2p_dataFile for that purpose, see OpenFileForWriting() function

Returns: 0 upon success, another value otherwise

Definition at line 578 of file vDataFile.cc.

vDataFile::ComputeSizeEvent ( )

pure virtual

This function is implemented in child classes
Computation of the size of each event according to the mandatory/optional correction fields.

Returns: 0 is success, positive value otherwise

Implemented in iDataFileCT, iDataFileSPECT, and iDataFilePET.

Here is the caller graph for this function:

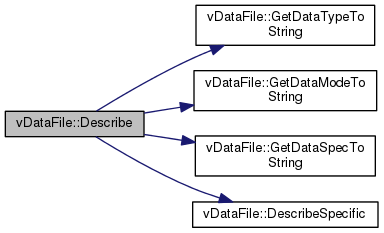

void vDataFile::Describe ( )

A function used to describe the generic parts of the datafile.

Definition at line 510 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

vDataFile::DescribeSpecific ( )

pure virtual

A pure virtual function used to describe the specific parts of the datafile.

Implemented in iDataFileSPECT, iDataFileCT, and iDataFilePET.

Here is the caller graph for this function:

int vDataFile::GetBedIndex ( )

inline

Returns: its bed index

Definition at line 294 of file vDataFile.hh.

Here is the caller graph for this function:

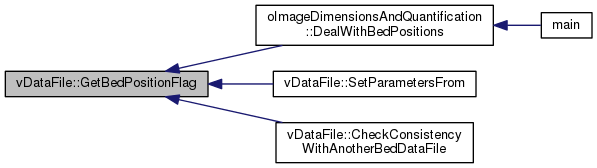

bool vDataFile::GetBedPositionFlag ( )

inline

Returns: The m_bedPositionFlag

Definition at line 426 of file vDataFile.hh.

Here is the caller graph for this function:

FLTNB vDataFile::GetCalibrationFactor ( )

inline

Returns: calibration factor

Definition at line 368 of file vDataFile.hh.

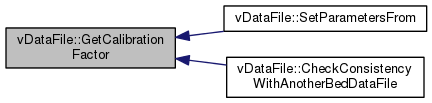

Here is the caller graph for this function:

string vDataFile::GetDataFileName ( )

inline

Returns: datafile name

Definition at line 350 of file vDataFile.hh.

int vDataFile::GetDataMode ( )

inline

Returns: data mode

Definition at line 300 of file vDataFile.hh.

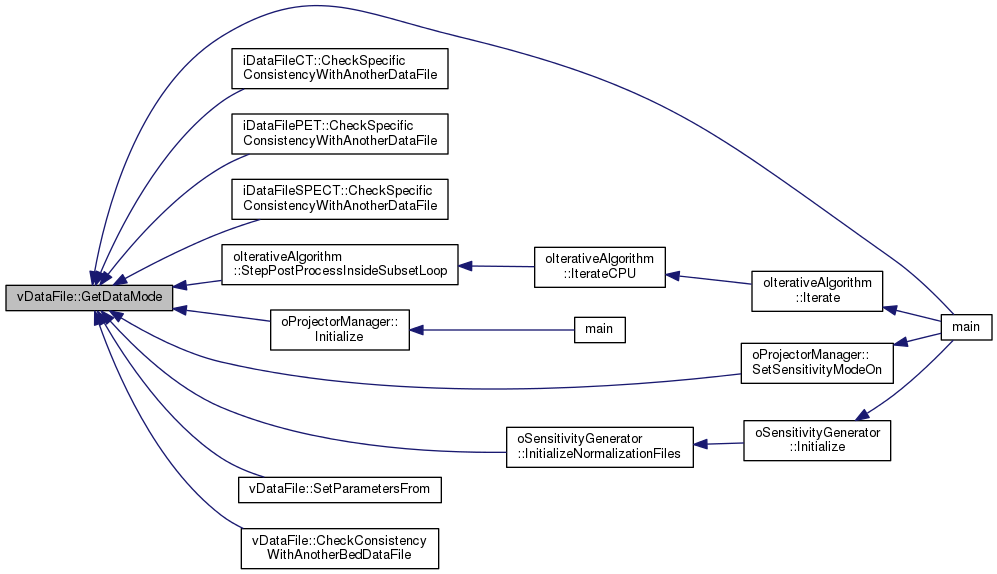

Here is the caller graph for this function:

string vDataFile::GetDataModeToString ( )

Returns: The data mode as a human-readable string

Definition at line 856 of file vDataFile.cc.

Here is the caller graph for this function:

int vDataFile::GetDataSpec ( )

inline

Returns: data spec

Definition at line 322 of file vDataFile.hh.

Here is the caller graph for this function:

string vDataFile::GetDataSpecToString ( )

Returns: The data spec as a human-readable string

Definition at line 872 of file vDataFile.cc.

Here is the caller graph for this function:

int vDataFile::GetDataType ( )

inline

Returns: data type

Definition at line 311 of file vDataFile.hh.

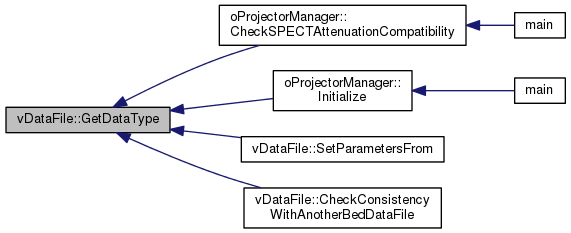

Here is the caller graph for this function:

string vDataFile::GetDataTypeToString ( )

Returns: The data type as a human-readable string

Definition at line 840 of file vDataFile.cc.

Here is the caller graph for this function:

int64_t vDataFile::GetDuration ( )

inline

Returns: int64_t corresponding to the acquisition duration (s)

Definition at line 362 of file vDataFile.hh.

Here is the caller graph for this function:

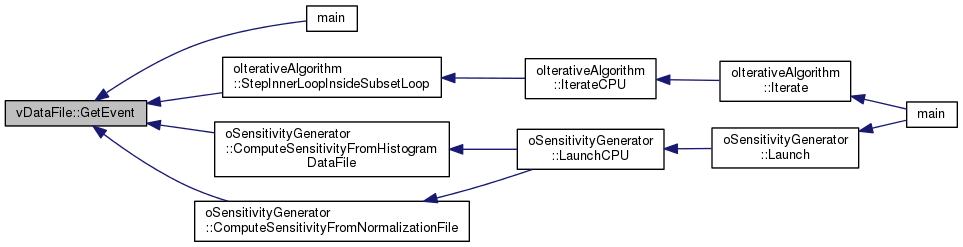

vEvent * vDataFile::GetEvent	(	int64_t	a_eventIndex,
		int	a_th = `0`
	)

Parameters

int64_t	a_eventIndex
int	a_th

x

Definition at line 598 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

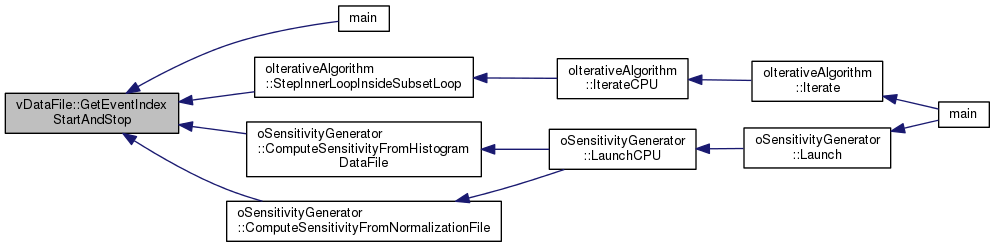

void vDataFile::GetEventIndexStartAndStop	(	int64_t *	ap_indexStart,
		int64_t *	ap_indexStop,
		int	a_subsetNum = `0`,
		int	a_NbSubsets = `1`
	)

Compute the index start and stop of the events loop with respect to the current subset and MPI size and rank.

Parameters

ap_indexStart	: pointer to recover the index of the first event
ap_indexStop	: pointer to recover the index of the last event
a_subsetNum	: actual subset index of the iteration (0 if no subsets)
a_nbSubsets	: max number of subsets in this iteration (1 if no subsets)

Definition at line 671 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t vDataFile::GetEventSize ( )

inline

Definition at line 339 of file vDataFile.hh.

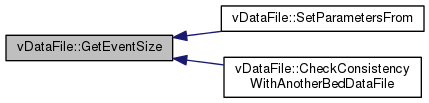

Here is the caller graph for this function:

vDataFile::GetEventSpecific	(	char *	ap_buffer,
		int	a_th
	)

pure virtual

This function is implemented in child classes
Read an event from the position pointed by 'ap_buffer', parse the generic or modality-specific information, and store them in the (multithreaded) 'm2p_BufferEvent' object.

Parameters

ap_buffer	: address pointing to the event to recover in the event buffer array
a_th	: index of the thread from which the function was called

Returns: the thread-specific 'm2p_BufferEvent' object containing the modality-specific information for the event

Implemented in iDataFileCT, iDataFileSPECT, and iDataFilePET.

Here is the caller graph for this function:

string vDataFile::GetHeaderDataFileName ( )

inline

Returns: headerdatafile name

Definition at line 344 of file vDataFile.hh.

bool vDataFile::GetIgnorePOIFlag ( )

inline

Returns: m_ignorePOIFlag

Definition at line 392 of file vDataFile.hh.

Here is the caller graph for this function:

int vDataFile::GetMaxRingDiff ( )

virtual

Return an error by default.
This function is surcharged by the PET (and CT) scanner daughter class.

Returns: -1 (error) if not surcharged by a daughter class

Definition at line 702 of file vDataFile.cc.

bool * vDataFile::GetPOIDirectionFlag ( )

inline

Returns: pointer to the array containing POI (position of interaction) direction flags

Definition at line 380 of file vDataFile.hh.

Here is the caller graph for this function:

bool vDataFile::GetPOIInfoFlag ( )

inline

Returns: m_POIInfoFlag

Definition at line 386 of file vDataFile.hh.

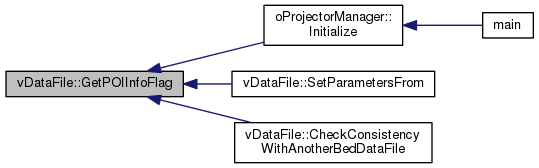

Here is the caller graph for this function:

FLTNB * vDataFile::GetPOIResolution ( )

inline

Returns: pointer to the array containing POI (position of interaction) resolution

Definition at line 374 of file vDataFile.hh.

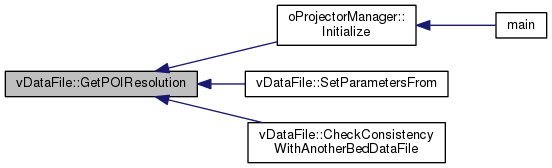

Here is the caller graph for this function:

FLTNB vDataFile::GetRelativeBedPosition ( )

inline

Returns: The m_relativeBedPositionInMm

Definition at line 432 of file vDataFile.hh.

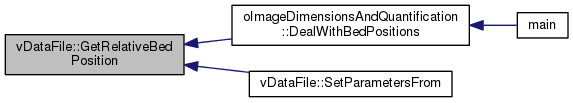

Here is the caller graph for this function:

string vDataFile::GetScannerName ( )

inline

Returns: the scanner name

Definition at line 522 of file vDataFile.hh.

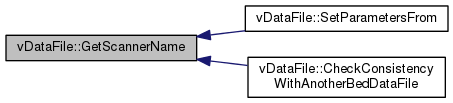

Here is the caller graph for this function:

int64_t vDataFile::GetSize ( )

inline

Returns: number of events in the datafile

Definition at line 333 of file vDataFile.hh.

Here is the caller graph for this function:

int64_t vDataFile::GetStartTime ( )

inline

Returns: int64_t corresponding to the acquisition start time (s)

Definition at line 356 of file vDataFile.hh.

Here is the caller graph for this function:

int vDataFile::GetVerbose ( )

inline

Get the verbose level.

Returns: m_verbose

Definition at line 446 of file vDataFile.hh.

Here is the caller graph for this function:

int vDataFile::InitializeMappedFile ( )

Check the datafile existency, map it to memory and get the raw char* pointer.
.

Returns: 0 if success, and positive value otherwise.

Definition at line 462 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int vDataFile::OpenFileForWriting ( string a_suffix = "" )

Open a binary file stream for writing, with eventually the suffix appended to the file name.

Parameters

string a_suffix

Use the m2p_dataFile for that purpose. This function along with the CloseFile function use only one thread

Returns: 0 upon success, another value otherwise

Definition at line 537 of file vDataFile.cc.

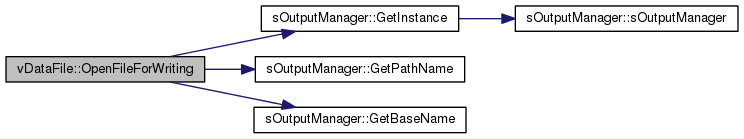

Here is the call graph for this function:

vDataFile::PrepareDataFile ( )

pure virtual

This function is implemented in child classes
Store different kind of information inside arrays (data relative to specific correction as well as basic raw data for the case data is loaded in RAM)
Use the flag provided by the user to determine how the data has to be sorted (preloaded or read on the fly)

Returns: 0 is success, positive value otherwise

Implemented in iDataFileCT, iDataFileSPECT, and iDataFilePET.

Here is the caller graph for this function:

int vDataFile::PROJ_DeleteTmpDataFile ( )

Delete temporary datafile used for multithreaded output writing if needed.

Definition at line 786 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

vEvent * vDataFile::PROJ_GenerateEvent	(	int	idx_elt1,
		int	idx_elt2,
		int	a_th
	)

Generate a standard event and set up its ID
Used by the projection, list-mode sensitivity generation, and datafile converter scripts.

Parameters

idx_elt1	: first ID of the event
idx_elt2	: second ID of the event
a_th	: index of the thread from which the function was called

Returns: the thread specific m2p_BufferEvent array containing the event

Definition at line 824 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

vDataFile::PROJ_GetScannerSpecificParameters ( )

pure virtual

This function is implemented in child classes
It is used to set several variables of the datafile when using the projection script.
Get modality specific parameters from the scanner object, through the scannerManager.

Returns: 0 if success, positive value otherwise

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileCT.

vDataFile::PROJ_InitFile ( )

pure virtual

This function is implemented in child classes
Initialize the fstream objets for output writing as well as some other variables specific to the Projection script.

Returns: 0 if success, and positive value otherwise.

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileCT.

Here is the caller graph for this function:

int vDataFile::PROJ_WriteData ( )

Write/Merge chunk of data in a general data file.

Definition at line 715 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int vDataFile::ReadInfoInHeader ( bool a_affectQuantificationFlag = true )

Read and check general information from the header datafile
Call the ReadSpecificInformationInHeader() function implemented in child classes.

Parameters

bool	a_affectQuantificationFlag = true

If the parameter flag is on, then affect the quantification factors from the oImageDimensionsAndQuantification after reading relevant information

Returns: 0 if success, and positive value otherwise.

Definition at line 110 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int vDataFile::ReadSpecificInfoInHeader ( bool a_affectQuantificationFlag = true )

privatepure virtual

This function is implemented in child classes
Read and check modality-specific information from the header datafile.

Parameters

bool	a_affectQuantificationFlag = true

If the parameter flag is on, then affect the quantification factors from the oImageDimensionsAndQuantification after reading relevant information

Returns: 0 if success, and positive value otherwise.

Implemented in iDataFileCT, iDataFileSPECT, and iDataFilePET.

Here is the caller graph for this function:

void vDataFile::SetBedIndex ( int a_bedIndex )

inline

set the bed index corresponding to this data file

Parameters

a_bedIndex

Definition at line 420 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetBinaryDataFileName ( const string & a_dataFileName )

inline

set the data binary file name

Parameters

const string& a_dataFileName

This function is dedicated to datafile conversion scripts

Definition at line 484 of file vDataFile.hh.

void vDataFile::SetCalibrationFactor ( FLTNB a_value )

inline

initialize the global calibration factor with a FLTNB value

Parameters

a_value

This function is dedicated to datafile conversion scripts

Definition at line 492 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetDataMode ( int a_dataMode )

inline

set the data mode

Parameters

a_dataMode

Definition at line 406 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetDataType ( int a_dataType )

inline

set the data type

Parameters

a_dataType

Definition at line 413 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetDuration ( FLTNB a_value )

inline

Definition at line 516 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetHeaderDataFileName ( const string & a_headerFileName )

inline

set the data header file name

Parameters

const string& a_headerFileName

This function is dedicated to datafile conversion scripts

Definition at line 476 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetIgnorePOIFlag ( bool a_ignorePOIFlag )

inline

Set a boolean that that if we ignore POI information or not.

Parameters

a_flag

Definition at line 468 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification )

inline

set the pointer to the oImageDimensionsAndQuantification object

Parameters

ap_ImageDimensionsAndQuantification

Definition at line 453 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetNbEvents ( int64_t a_value )

inline

initialize the number of events with a int64_t value

Parameters

a_value

This function is dedicated to datafile conversion scripts

Definition at line 500 of file vDataFile.hh.

Here is the caller graph for this function:

int vDataFile::SetParametersFrom ( vDataFile * ap_DataFile )

Initialize all parameters from the provided datafile.

This function is intended to be used right after the constructor

Returns: 0 if success, and positive value otherwise

Definition at line 275 of file vDataFile.cc.

Here is the call graph for this function:

void vDataFile::SetPOIResolution ( FLTNB ap_value[3] )

inline

initialize the POI resolution (for list-mode)

Parameters

ap_value : vector of 3 elements (x,y,z)

This function is dedicated to datafile conversion scripts

Definition at line 461 of file vDataFile.hh.

int vDataFile::SetSpecificParametersFrom ( vDataFile * ap_DataFile )

privatepure virtual

This function is implemented in child classes
Initialize all specific parameters from the provided datafile.

Returns: 0 if success, and positive value otherwise

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileCT.

Here is the caller graph for this function:

void vDataFile::SetStartTime ( FLTNB a_value )

inline

Definition at line 508 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetVerbose ( int a_verboseLevel )

inline

set verbosity

Parameters

a_verboseLevel

Definition at line 439 of file vDataFile.hh.

Here is the caller graph for this function:

int vDataFile::Shuffle ( int64_t nb_events_to_load )

virtual

!!!\ This function has been modified to be used specifically with a

Definition at line 623 of file vDataFile.cc.

vDataFile::WriteEvent	(	vEvent *	ap_Event,
		int	a_th = `0`
	)

pure virtual

This function is implemented in child classes
Write event according to the chosen type of data.

Parameters

ap_Event	: Event to write
a_th	: index of the thread from which the function was called

Returns: 0 if success, and positive value otherwise.

Implemented in iDataFileCT, iDataFileSPECT, and iDataFilePET.

Here is the caller graph for this function:

vDataFile::WriteHeader ( )

pure virtual

This function is implemented in child classes.
Generate a header file according to the data output information.

Returns: 0 if success, and positive value otherwise.

Implemented in iDataFileCT, iDataFileSPECT, and iDataFilePET.

Here is the caller graph for this function:

Member Data Documentation

vEvent** vDataFile::m2p_BufferEvent

protected

vEvent structure, used to read and transfer the raw data to each part of the algorithm (multithreaded)

Definition at line 600 of file vDataFile.hh.

fstream** vDataFile::m2p_dataFile

protected

File associated to the raw data file (multithreaded)

Definition at line 599 of file vDataFile.hh.

int vDataFile::m_bedIndex

protected

Bed position index corresponding to this data file

Definition at line 586 of file vDataFile.hh.

bool vDataFile::m_bedPositionFlag

protected

Flag indicating that a relative bed position has been provided

Definition at line 588 of file vDataFile.hh.

FLTNB vDataFile::m_calibrationFactor

protected

Calibration factor for the data. Default value =1.0

Definition at line 585 of file vDataFile.hh.

string vDataFile::m_dataFileName

protected

String containing the path to the raw datafile

Definition at line 578 of file vDataFile.hh.

int vDataFile::m_dataMode

protected

Flag indicating if the data is List (=0) or Histogram (=1) mode

Definition at line 580 of file vDataFile.hh.

int vDataFile::m_dataSpec

protected

Flag indicating the physical specificity of the data: SPEC_EMISSION or SPEC_TRANSMISSION

Definition at line 582 of file vDataFile.hh.

int vDataFile::m_dataType

protected

Flag indicating if the data is PET (=0),SPECT (=1) or TRANSMISSION type (=2)

Definition at line 581 of file vDataFile.hh.

FLTNB vDataFile::m_durationInSec

protected

Duration of the acquisition (s)

Definition at line 584 of file vDataFile.hh.

string vDataFile::m_headerFileName

protected

String containing the path to the header file

Definition at line 577 of file vDataFile.hh.

bool vDataFile::m_ignorePOIFlag

protected

Flag to say if we ignore the POI data if present, or not. Default = false

Definition at line 593 of file vDataFile.hh.

int64_t vDataFile::m_mpi1stEvent

protected

First index managed by this MPI instance

Definition at line 601 of file vDataFile.hh.

int64_t vDataFile::m_mpiLastEvent

protected

Last index (included) managed by this MPI instance

Definition at line 602 of file vDataFile.hh.

int64_t vDataFile::m_mpiNbEvents

protected

Number of events managed by this MPI instance

Definition at line 603 of file vDataFile.hh.

int64_t vDataFile::m_nbEvents

protected

Total number of events in the raw data

Definition at line 579 of file vDataFile.hh.

bool vDataFile::m_POIInfoFlag

protected

Flag to say if POI information is included in the datafile for each event

Definition at line 592 of file vDataFile.hh.

FLTNB vDataFile::m_relativeBedPosition

protected

Bed relative position in mm

Definition at line 587 of file vDataFile.hh.

string vDataFile::m_scannerName

protected

Scanner name

Definition at line 589 of file vDataFile.hh.

int64_t vDataFile::m_sizeEvent

protected

Size of an event in the datafile (calculated from mandatory and optional fields)

Definition at line 598 of file vDataFile.hh.

FLTNB vDataFile::m_startTimeInSec

protected

Start time of the acquisition (s)

Definition at line 583 of file vDataFile.hh.

int vDataFile::m_verbose

protected

Verbosity

Definition at line 574 of file vDataFile.hh.

oImageDimensionsAndQuantification* vDataFile::mp_ID

protected

Pointer to the oImageDimensionsAndQuantification object

Definition at line 573 of file vDataFile.hh.

oMemoryMapped* vDataFile::mp_MappedFile

protected

The object managing the mapping of the datafile

Definition at line 604 of file vDataFile.hh.

char* vDataFile::mp_mappedMemory

protected

The raw pointer directly mapped to the datafile

Definition at line 605 of file vDataFile.hh.

bool vDataFile::mp_POIDirectionFlag[3]

protected

Flag to say which direction is included in the POI for each event; radial, tangential and axial

Definition at line 594 of file vDataFile.hh.

FLTNB vDataFile::mp_POIResolution[3]

protected

POI resolution (position of interaction) for each direction: radial, tangential and axial

Definition at line 595 of file vDataFile.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
