This class gathers the information about the dynamic splitting of the data. More...

#include <oDynamicDataManager.hh>

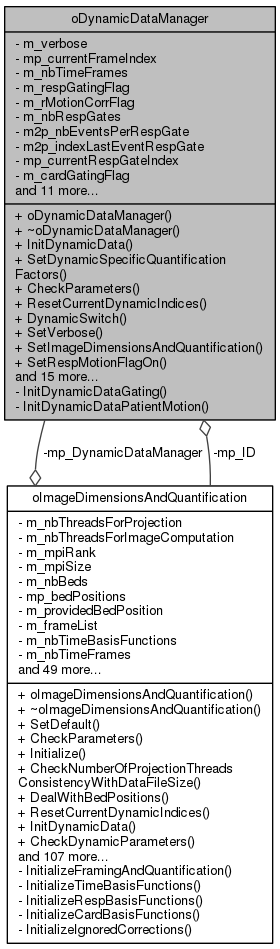

Collaboration diagram for oDynamicDataManager:

Public Member Functions
	oDynamicDataManager ()
	oDynamicDataManager constructor. Initialize the member variables to their default values. More...

	~oDynamicDataManager ()
	oDynamicDataManager destructor. More...

int	InitDynamicData (int a_nbRespGates, int a_nbCardGates, const string &a_pathTo4DDataSplittingFile, int a_rmMCorrFlag, int a_cMmCorrFlag, int a_dmCorrFlag, int a_pMotionCorrFlag)
	Main function for instanciation and initialization of the member variables and arrays. Call the specific initialization function depending of the type of dataset. More...

int	SetDynamicSpecificQuantificationFactors (FLTNB **a2p_quantificationFactors)
	Compute gate-specific quantificative factors using the number of events within each gate, and update the quantitative factors passed in argument. More...

int	CheckParameters (int64_t a_nbEvents)
	Check all mandatory parameters. More...

void	ResetCurrentDynamicIndices ()
	Reset to 0 the multithreaded dynamic arrays gathering the indices of current frame, gates and involuntary motion. More...

int	DynamicSwitch (int64_t a_index, uint32_t a_time, int a_bed, int a_th)
	This function is called in the reconstruction event loop. It is used to check if the current event belongs to a new respiratory/cardiac/involuntary motion gate Increment the index reporting the current relative gate in this case. More...

void	SetVerbose (int a_verboseLevel)
	set verbosity More...

void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	set the pointer to the oImageDimensionsAndQuantification object More...

void	SetRespMotionFlagOn ()
	set the respiratory motion flag to 'true' More...

void	SetCardMotionFlagOn ()
	set the cardiac motion flag to 'true' More...

void	SetPMotionFlagOn ()
	set the involuntary patient motion flag to 'true' More...

bool	IsRespMotionEnabled ()

bool	IsCardMotionEnabled ()

bool	IsPMotionEnabled ()

int	GetCurrentPMotionIndex (int a_th)
	return the number of the current involuntary patient motion image to be used in the ImageSpace matrices, for this thread More...

int	GetCurrentTimeFrame (int a_th)
	Return the index indicating the current time frame for this thread. More...

int	GetCurrentRespGate (int a_th)
	Return the index indicating the current respiratory gate for this thread. More...

int	GetCurrentRespImage (int a_th)
	return the number of the current respiratory gated image, to be used in the ImageSpace matrices for the reconstruction More...

int	GetCurrentCardGate (int a_th)
	Return the index indicating the current cardiac gate for this thread. More...

int	GetCurrentCardImage (int a_th)
	return the number of the current cardiac gated image, to be used in the ImageSpace matrices for the reconstruction More...

int	GetNb2ndMotImgsForLMS ()
	return the number of secundary motion (typically cardiac) images to be used in the ImageSpace matrices for the list-mode sensitivity image generation More...

int	GetPMotionFirstIndexForLMS (int a_fr)

int	GetNb1stMotImgsForLMS (int a_fr)
	return the number of first motion (either respiratory or involuntary patient motion) images to be used in the ImageSpace matrices for the list-mode sensitivity image generation More...

int	GetNbIPatMotionSubsets ()
	return the number of involuntary patient motion transformations More...

Private Member Functions
int	InitDynamicDataGating (const string &a_pathToGateFile)
	Initialisation of arrays containing informations about the data splitting and respiratory/cardiac gated reconstruction. More...

int	InitDynamicDataPatientMotion (const string &a_pathToFile)
	Initialisation of involuntary patient motion correction information, if any. More...

Private Attributes
oImageDimensionsAndQuantification *	mp_ID

int	m_verbose

int *	mp_currentFrameIndex

int	m_nbTimeFrames

bool	m_respGatingFlag

bool	m_rMotionCorrFlag

int	m_nbRespGates

int64_t **	m2p_nbEventsPerRespGate

int64_t **	m2p_indexLastEventRespGate

int *	mp_currentRespGateIndex

bool	m_cardGatingFlag

bool	m_cMotionCorrFlag

int	m_nbCardGates

int64_t **	m2p_nbEventsPerCardGate

int64_t **	m2p_indexLastEventCardGate

int *	mp_currentCardGateIndex

bool	m_pMotionCorrFlag

int	m_nbPMotionTriggers

uint16_t *	mp_framePMotionFirstIndex

uint16_t *	mp_frameNbPMotionTriggers

uint32_t *	mp_listPMotionTriggers

int *	mp_currentPMotionIndex

Detailed Description

This class gathers the information about the dynamic splitting of the data.

It contains the functions dedicated to the reading of user-provided informations about the dynamic dataset.
It is specific to each iDataFile object.
It holds several arrays related to the 4D splitting of the data, the current gates indices, as well as the related functions.

Definition at line 52 of file oDynamicDataManager.hh.

Constructor & Destructor Documentation

oDynamicDataManager::oDynamicDataManager ( )

oDynamicDataManager constructor. Initialize the member variables to their default values.

Definition at line 40 of file oDynamicDataManager.cc.

oDynamicDataManager::~oDynamicDataManager ( )

oDynamicDataManager destructor.

Definition at line 71 of file oDynamicDataManager.cc.

Member Function Documentation

int oDynamicDataManager::CheckParameters ( int64_t a_nbEvents )

Check all mandatory parameters.

Parameters

a_nbEvents : Number of events in the acquisition, used to check consistency with the gating metadata

Returns: 0 if success, positive value otherwise.

Definition at line 422 of file oDynamicDataManager.cc.

Here is the caller graph for this function:

int oDynamicDataManager::DynamicSwitch	(	int64_t	a_index,
		uint32_t	a_time,
		int	a_bed,
		int	a_th
	)

This function is called in the reconstruction event loop. It is used to check if the current event belongs to a new respiratory/cardiac/involuntary motion gate
Increment the index reporting the current relative gate in this case.

Parameters

a_currentEventIndex	: Index of the current event in the iterative reconstruction loop
a_currentTime	: Timestamp of the current event in the iterative reconstruction loop
a_bed
a_th

Definition at line 528 of file oDynamicDataManager.cc.

Here is the caller graph for this function:

oDynamicDataManager::GetCurrentCardGate ( int a_th )

inline

Return the index indicating the current cardiac gate for this thread.

Parameters

a_th

Returns: cardiac gate index.

Definition at line 212 of file oDynamicDataManager.hh.

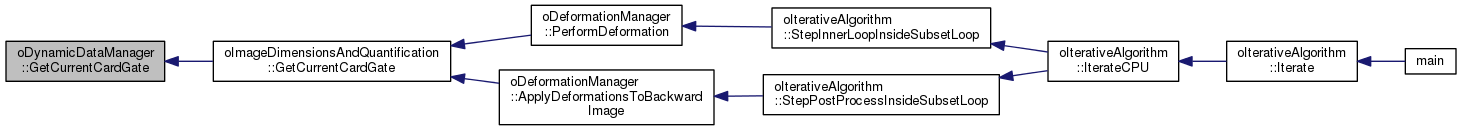

Here is the caller graph for this function:

oDynamicDataManager::GetCurrentCardImage ( int a_th )

inline

return the number of the current cardiac gated image, to be used in the ImageSpace matrices for the reconstruction

Parameters

a_th

if cardiac motion correction is enabled in reconstruction, the function returns 0 as only one image is reconstructed for each gate

Returns: the index of the current gated image related to the reconstruction for the specific thread

Definition at line 221 of file oDynamicDataManager.hh.

Here is the caller graph for this function:

oDynamicDataManager::GetCurrentPMotionIndex ( int a_th )

inline

return the number of the current involuntary patient motion image to be used in the ImageSpace matrices, for this thread

Parameters

a_th

Returns: the index of the current involuntary patient motion gated image if this methodology is enabled, 0 otherwise

Definition at line 179 of file oDynamicDataManager.hh.

Here is the caller graph for this function:

oDynamicDataManager::GetCurrentRespGate ( int a_th )

inline

Return the index indicating the current respiratory gate for this thread.

Parameters

a_th

Returns: respiratory gate index.

Definition at line 195 of file oDynamicDataManager.hh.

Here is the caller graph for this function:

oDynamicDataManager::GetCurrentRespImage ( int a_th )

inline

return the number of the current respiratory gated image, to be used in the ImageSpace matrices for the reconstruction

Parameters

a_th

if respiratory motion correction is enabled in reconstruction, the function returns 0 as only one image is reconstructed for each gate

Returns: the index of the gated image related to the reconstruction for the specific thread

Definition at line 204 of file oDynamicDataManager.hh.

Here is the caller graph for this function:

oDynamicDataManager::GetCurrentTimeFrame ( int a_th )

inline

Return the index indicating the current time frame for this thread.

Parameters

a_th

Returns: time frame index.

Definition at line 187 of file oDynamicDataManager.hh.

Here is the caller graph for this function:

oDynamicDataManager::GetNb1stMotImgsForLMS ( int a_fr )

inline

return the number of first motion (either respiratory or involuntary patient motion) images to be used in the ImageSpace matrices for the list-mode sensitivity image generation

Parameters

a_fr	= frame index

Returns: the total number of respiratory gates

Definition at line 246 of file oDynamicDataManager.hh.

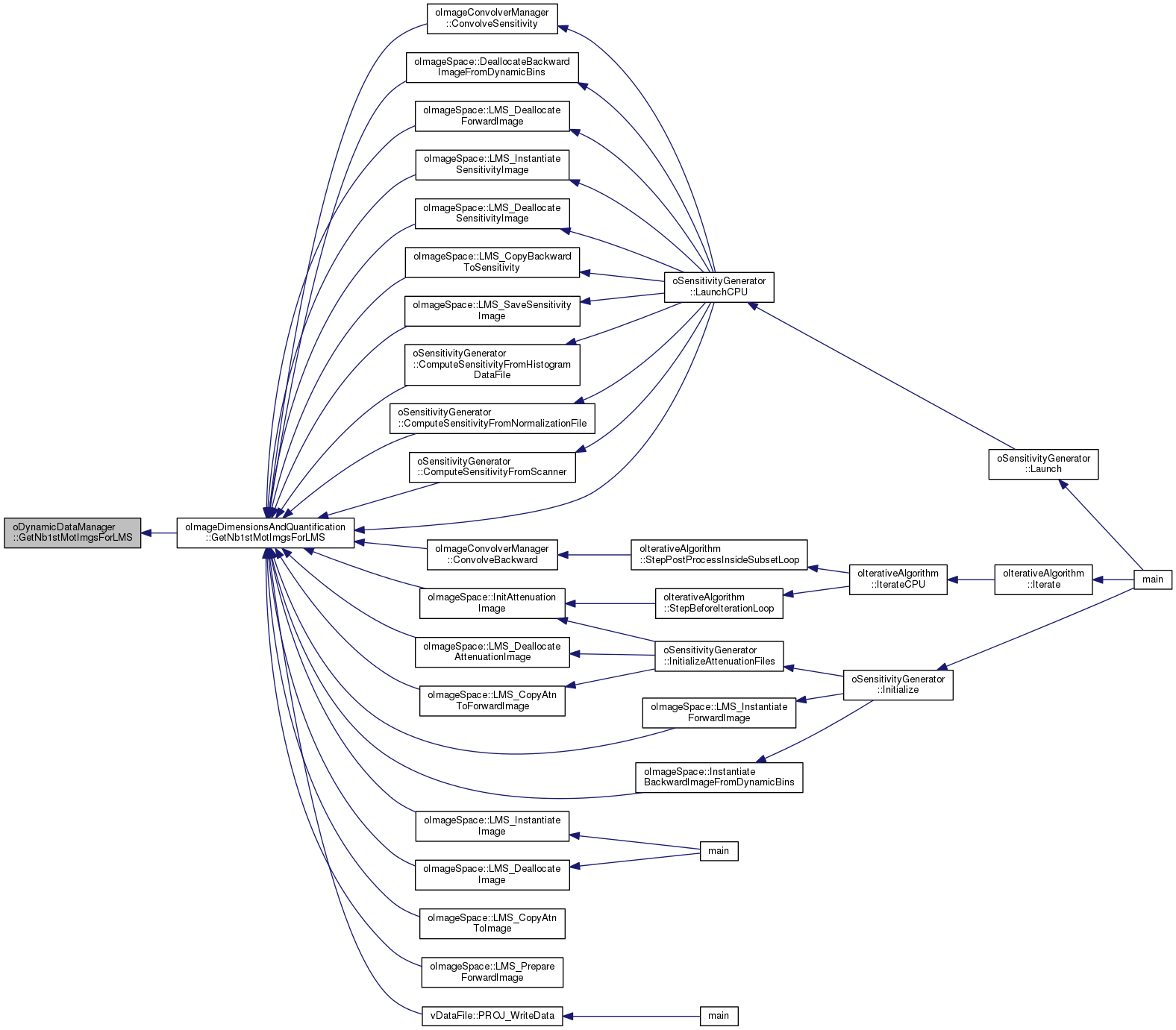

Here is the caller graph for this function:

oDynamicDataManager::GetNb2ndMotImgsForLMS ( )

inline

return the number of secundary motion (typically cardiac) images to be used in the ImageSpace matrices for the list-mode sensitivity image generation

Returns: the number of cardiac images required for the sensitivity image generation

Definition at line 228 of file oDynamicDataManager.hh.

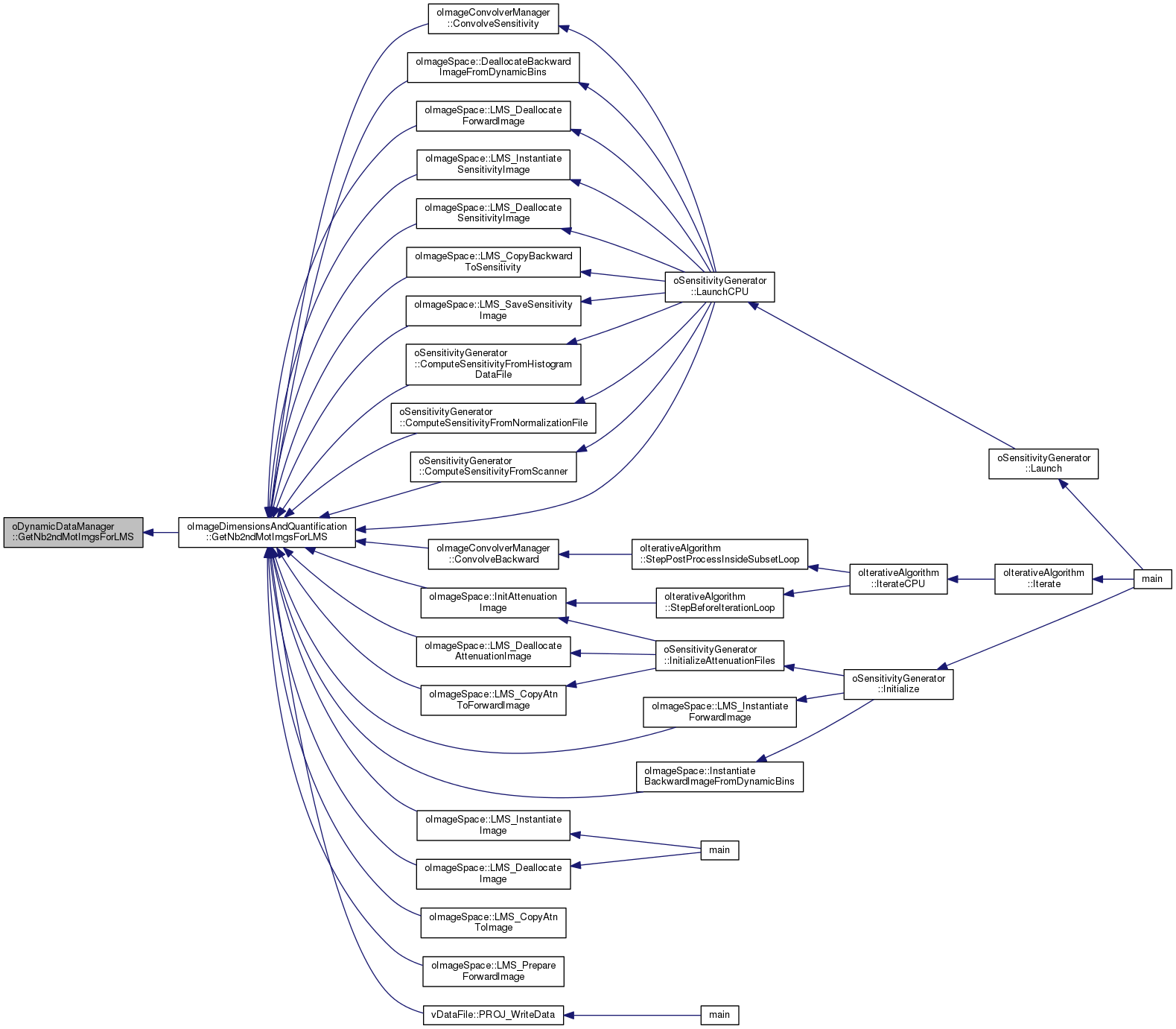

Here is the caller graph for this function:

oDynamicDataManager::GetNbIPatMotionSubsets ( )

inline

return the number of involuntary patient motion transformations

Returns: the total number of involuntary patient motion triggers

Definition at line 254 of file oDynamicDataManager.hh.

Here is the caller graph for this function:

int oDynamicDataManager::GetPMotionFirstIndexForLMS ( int a_fr )

inline

Definition at line 237 of file oDynamicDataManager.hh.

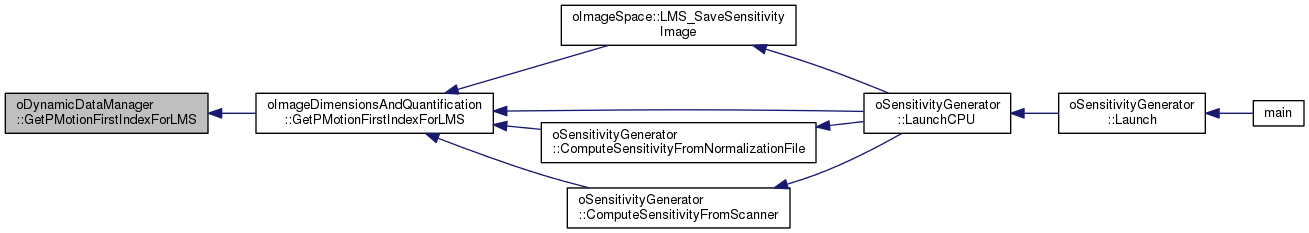

Here is the caller graph for this function:

int oDynamicDataManager::InitDynamicData	(	int	a_nbRespGates,
		int	a_nbCardGates,
		const string &	a_pathTo4DDataSplittingFile,
		int	a_rmMCorrFlag,
		int	a_cMmCorrFlag,
		int	a_dmCorrFlag,
		int	a_pMotionCorrFlag
	)

Main function for instanciation and initialization of the member variables and arrays. Call the specific initialization function depending of the type of dataset.

Parameters

a_nbRespGates
a_nbCardGates
a_pathTo4DDataFile	: path to an ASCII file containing dynamic metadata regarding the acquisition
a_rmCorrFlag	: indicate whether respiratory motion correction is enabled (1) or disabled (0)
a_cmCorrFlag	: indicate whether cardiac motion correction is enabled (1) or disabled (0)
a_dmCorrFlag	: indicate whether simultaneous respiratory and cardiac motion corrections are enabled (1) or disabled (0)
a_pmCorrFlag	: indicate whether involuntary patient motion correction is enabled (1) or disabled (0)

Definition at line 103 of file oDynamicDataManager.cc.

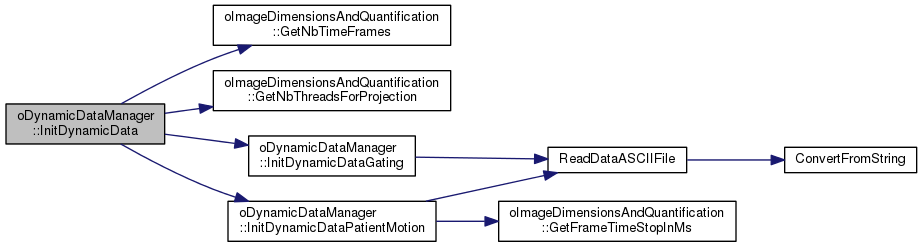

Here is the call graph for this function:

Here is the caller graph for this function:

int oDynamicDataManager::InitDynamicDataGating ( const string & a_pathToGateFile )

private

Initialisation of arrays containing informations about the data splitting and respiratory/cardiac gated reconstruction.

Parameters

a_pathToFile : path to an ASCII file containing dynamic metadata regarding the acquisition

Definition at line 231 of file oDynamicDataManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oDynamicDataManager::InitDynamicDataPatientMotion ( const string & a_pathToFile )

private

Initialisation of involuntary patient motion correction information, if any.

Parameters

a_pathToFile : path to an ASCII file containing dynamic metadata regarding the acquisition

Definition at line 301 of file oDynamicDataManager.cc.

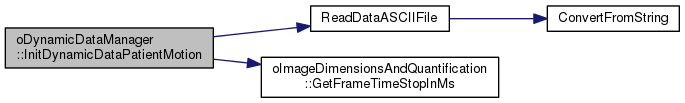

Here is the call graph for this function:

Here is the caller graph for this function:

oDynamicDataManager::IsCardMotionEnabled ( )

inline

Returns: true if cardiac motion is enabled, false otherwise

Definition at line 165 of file oDynamicDataManager.hh.

oDynamicDataManager::IsPMotionEnabled ( )

inline

Returns: true if involuntary patient motion is enabled, false otherwise

Definition at line 171 of file oDynamicDataManager.hh.

oDynamicDataManager::IsRespMotionEnabled ( )

inline

Returns: true if respiratory motion is enabled, false otherwise

Definition at line 159 of file oDynamicDataManager.hh.

void oDynamicDataManager::ResetCurrentDynamicIndices ( )

Reset to 0 the multithreaded dynamic arrays gathering the indices of current frame, gates and involuntary motion.

Definition at line 508 of file oDynamicDataManager.cc.

Here is the call graph for this function:

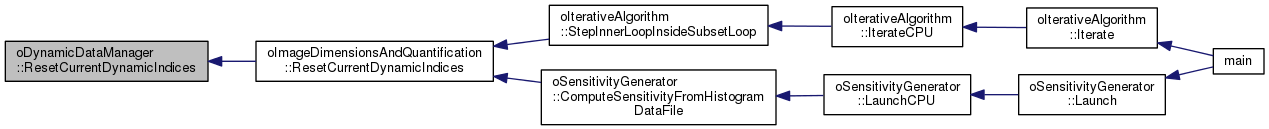

Here is the caller graph for this function:

oDynamicDataManager::SetCardMotionFlagOn ( )

inline

set the cardiac motion flag to 'true'

Definition at line 147 of file oDynamicDataManager.hh.

Here is the caller graph for this function:

int oDynamicDataManager::SetDynamicSpecificQuantificationFactors ( FLTNB ** a2p_quantificationFactors )

Compute gate-specific quantificative factors using the number of events within each gate, and update the quantitative factors passed in argument.

Parameters

FLTNB** a2p_quantificationFactors : 2 dimensional [timeframe][gate] set of quantitative factors to update

Definition at line 372 of file oDynamicDataManager.cc.

Here is the caller graph for this function:

oDynamicDataManager::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification )

inline

set the pointer to the oImageDimensionsAndQuantification object

Parameters

ap_ImageDimensionsAndQuantification

Definition at line 135 of file oDynamicDataManager.hh.

Here is the caller graph for this function:

oDynamicDataManager::SetPMotionFlagOn ( )

inline

set the involuntary patient motion flag to 'true'

Definition at line 153 of file oDynamicDataManager.hh.

Here is the caller graph for this function:

oDynamicDataManager::SetRespMotionFlagOn ( )

inline

set the respiratory motion flag to 'true'

Definition at line 141 of file oDynamicDataManager.hh.

Here is the caller graph for this function:

oDynamicDataManager::SetVerbose ( int a_verboseLevel )

inline

set verbosity

Parameters

a_verboseLevel

Definition at line 128 of file oDynamicDataManager.hh.

Here is the caller graph for this function:

Member Data Documentation

int64_t** oDynamicDataManager::m2p_indexLastEventCardGate

private

2 dimensional array [nb frames][nb resp gates] containing the last event in the cardiac gates

Definition at line 300 of file oDynamicDataManager.hh.

int64_t** oDynamicDataManager::m2p_indexLastEventRespGate

private

2 dimensional array [nb frames][nb resp gates] containing the last event in the respiratory gates

Definition at line 292 of file oDynamicDataManager.hh.

int64_t** oDynamicDataManager::m2p_nbEventsPerCardGate

private

2 dimensional array [nb frames][nb resp gates] containing the number of events in each cardiac gates.

Definition at line 299 of file oDynamicDataManager.hh.

int64_t** oDynamicDataManager::m2p_nbEventsPerRespGate

private

2 dimensional array [nb frames][nb resp gates] containing the number of events in each respiratory gates

Definition at line 291 of file oDynamicDataManager.hh.

bool oDynamicDataManager::m_cardGatingFlag

private

Flag indicating if cardiac gating is enabled

Definition at line 296 of file oDynamicDataManager.hh.

bool oDynamicDataManager::m_cMotionCorrFlag

private

Flag indicating if patient involuntary motion correction is enabled

Definition at line 297 of file oDynamicDataManager.hh.

int oDynamicDataManager::m_nbCardGates

private

Number of gates for cardiac motion correction

Definition at line 298 of file oDynamicDataManager.hh.

int oDynamicDataManager::m_nbPMotionTriggers

private

Total number of triggers for patient involuntary motion correction

Definition at line 305 of file oDynamicDataManager.hh.

int oDynamicDataManager::m_nbRespGates

private

Number of gates for respiratory motion correction

Definition at line 290 of file oDynamicDataManager.hh.

int oDynamicDataManager::m_nbTimeFrames

private

Number of time frames

Definition at line 285 of file oDynamicDataManager.hh.

bool oDynamicDataManager::m_pMotionCorrFlag

private

Flag indicating if patient involuntary motion correction is enabled

Definition at line 304 of file oDynamicDataManager.hh.

bool oDynamicDataManager::m_respGatingFlag

private

Flag indicating if respiratory gating is enabled

Definition at line 288 of file oDynamicDataManager.hh.

bool oDynamicDataManager::m_rMotionCorrFlag

private

Flag indicating if respiratory motion correction is enabled

Definition at line 289 of file oDynamicDataManager.hh.

int oDynamicDataManager::m_verbose

private

Verbosity

Definition at line 281 of file oDynamicDataManager.hh.

int* oDynamicDataManager::mp_currentCardGateIndex

private

Multithreaded array [nb threads] containing the index of the current cardiac gate in use

Definition at line 301 of file oDynamicDataManager.hh.

int* oDynamicDataManager::mp_currentFrameIndex

private

Multithreaded array [nb threads] containing the index of the current frame in use

Definition at line 284 of file oDynamicDataManager.hh.

int* oDynamicDataManager::mp_currentPMotionIndex

private

Multithreaded array [nb threads] containing the index for patient involuntary motion correction

Definition at line 309 of file oDynamicDataManager.hh.

int* oDynamicDataManager::mp_currentRespGateIndex

private

Multithreaded array [nb threads] containing the index of the current respiratory gate in use

Definition at line 293 of file oDynamicDataManager.hh.

uint16_t* oDynamicDataManager::mp_frameNbPMotionTriggers

private

Number of patient involuntary motion triggers by frame

Definition at line 307 of file oDynamicDataManager.hh.

uint16_t* oDynamicDataManager::mp_framePMotionFirstIndex

private

First index of patient involuntary motion triggers by frame

Definition at line 306 of file oDynamicDataManager.hh.

oImageDimensionsAndQuantification* oDynamicDataManager::mp_ID

private

Pointer to the oImageDimensionsAndQuantification object

Definition at line 280 of file oDynamicDataManager.hh.

uint32_t* oDynamicDataManager::mp_listPMotionTriggers

private

Array containing the timestamp of each trigger of the patient involuntary motion correction

Definition at line 308 of file oDynamicDataManager.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
