This class is designed to generically described any on-the-fly projector. More...

#include <vProjector.hh>

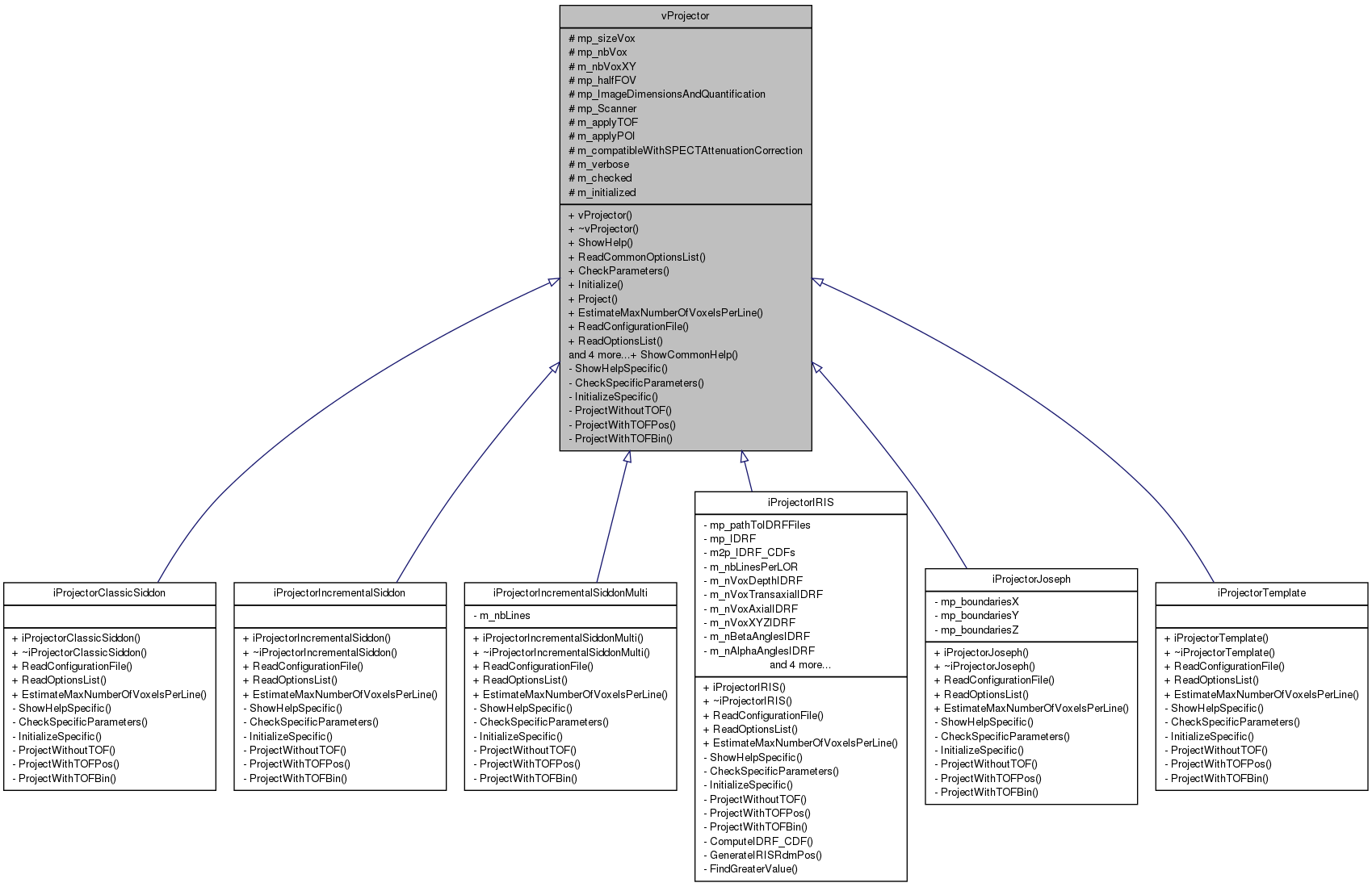

Inheritance diagram for vProjector:

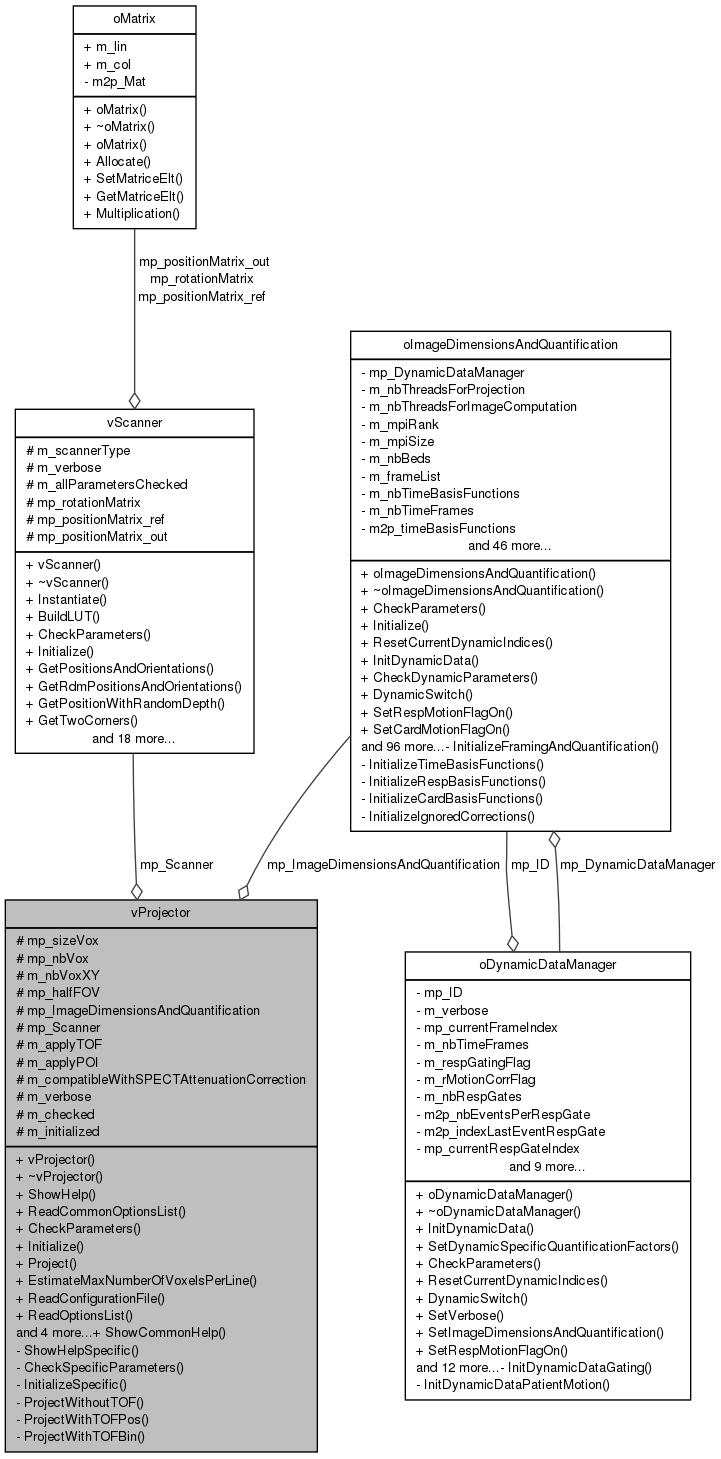

Collaboration diagram for vProjector:

Public Member Functions
	vProjector ()
	The constructor of vProjector.
virtual	~vProjector ()
	The destructor of vProjector.
void	ShowHelp ()
	A function used to show help about the projector.
int	ReadCommonOptionsList (const string &a_optionsList)
	This function is used to read options common to all projectors given as a string.
int	CheckParameters ()
	A public function used to check the parameters settings.
int	Initialize ()
	A public function used to initialize the projector.
int	Project (int a_direction, oProjectionLine ap_ProjectionLine, uint32_t ap_index1, uint32_t *ap_index2, int a_nbIndices)
	A function use to computed the projection elements with respect to the provided parameters.
virtual INTNB	EstimateMaxNumberOfVoxelsPerLine ()
	This function is used to compute and provide an estimate of the maximum number of voxels that could contribute to a projected line.
virtual int	ReadConfigurationFile (const string &a_configurationFile)=0
	A function used to read options from a configuration file.
virtual int	ReadOptionsList (const string &a_optionsList)=0
	A function used to read options from a list of options.
void	SetVerbose (int a_verbose)
	Set the verbose level.
void	SetScanner (vScanner *ap_Scanner)
	Set the pointer to the scanner in use.
int	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	Set the pointer to the image dimensions in use and copy locally some often use variables.
int	SetTOFAndPOIOptions (int a_dataType, bool a_ignoreTOF, bool a_ignorePOI)
	Set the TOF use as well as POI and checks compatibility with current data type.
bool	GetCompatibilityWithSPECTAttenuationCorrection ()
Static Public Member Functions
static void	ShowCommonHelp ()
	This function is used to print out some help about the use of options common to all projectors. It is static because it is called in main without instantiating an object.
Protected Attributes
FLTNB	mp_sizeVox [3]
INTNB	mp_nbVox [3]
INTNB	m_nbVoxXY
FLTNB	mp_halfFOV [3]
oImageDimensionsAndQuantification *	mp_ImageDimensionsAndQuantification
vScanner *	mp_Scanner
int	m_applyTOF
bool	m_applyPOI
bool	m_compatibleWithSPECTAttenuationCorrection
int	m_verbose
bool	m_checked
bool	m_initialized
Private Member Functions
virtual void	ShowHelpSpecific ()=0
	A function used to show help about the child module.
virtual int	CheckSpecificParameters ()=0
	A private function used to check the parameters settings specific to the child projector.
virtual int	InitializeSpecific ()=0
	A private function used to initialize everything specific to the child projector.
virtual int	ProjectWithoutTOF (int a_direction, oProjectionLine *ap_ProjectionLine)=0
	A function to project without TOF.
virtual int	ProjectWithTOFPos (int a_direction, oProjectionLine *ap_ProjectionLine)=0
	A function to project with TOF continuous information.
virtual int	ProjectWithTOFBin (int a_direction, oProjectionLine *ap_ProjectionLine)=0
	A function to project with TOF binned information.

Detailed Description

This class is designed to generically described any on-the-fly projector.

This class is an abstract one, in the sense that it cannot be used on its own because several pure virtual functions belong to it. Its children are implementations of actual on-the-fly projectors. Everywhere in the code, this parent class should be used instead of any of its children. It can be used during the projection/reconstruction process by the oProjectorManager through the use of the Project() function that cannot be overloaded. This function is called from the Project() function of the oProjectionManager to get a oProjectionLine associated to an vEvent.
All children must implement the following pure virtual functions:

ReadAndCheckConfigurationFile(): read specific options from a configuration file
ReadAndCheckOptionsList(): read specific options from a string
ShowHelp(): print helps about the projector specifications
Initialize(): initialize specific stuff of the projector
ProjectWithoutTOF(): project without the TOF info
ProjectWithTOFPos(): project with TOF info from list-mode data
ProjectWithTOFBin(): project with TOF info from histogram data

Definition at line 52 of file vProjector.hh.

Constructor & Destructor Documentation

vProjector::vProjector ( )

The constructor of vProjector.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 27 of file vProjector.cc.

vProjector::~vProjector ( ) [virtual]

The destructor of vProjector.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were built by this class. It is virtual, so that it is automatically called when a child object is deleted.

Definition at line 55 of file vProjector.cc.

Member Function Documentation

int vProjector::CheckParameters ( )

A public function used to check the parameters settings.

This function does not take any parameter and is used to check that all mandatory members were correctly parameterized. At the end, it calls the pure virtual CheckSpecificParameters() function implemented by children.

Returns:: An integer reflecting the check status; 0 if no problem, another value otherwise.

Definition at line 171 of file vProjector.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

private virtual int vProjector::CheckSpecificParameters ( ) [private, pure virtual]

A private function used to check the parameters settings specific to the child projector.

This function is used to check that all parameters specific to the projector are correctly set within allowed values. It is called by the CheckParameters() function. It is pure virtual so is implemented by children.

Returns:: An integer reflecting the check status; 0 if no problem, another value otherwise.

Implemented in iProjectorIRIS, iProjectorJoseph, iProjectorClassicSiddon, iProjectorIncrementalSiddon, iProjectorIncrementalSiddonMulti, and iProjectorTemplate.

Here is the caller graph for this function:

INTNB vProjector::EstimateMaxNumberOfVoxelsPerLine ( ) [virtual]

This function is used to compute and provide an estimate of the maximum number of voxels that could contribute to a projected line.

The vProjector implementation simply returns the total image's number of voxels, but it can be overloaded by children to provide a better estimate in order to optimize and reduce memory requirements of the oProjectionLine buffers when using the FIXED_LIST_STRATEGY.

Returns:: The estimate of the maximum number of voxels contributing to a line.

Reimplemented in iProjectorIncrementalSiddon, iProjectorIRIS, iProjectorJoseph, iProjectorClassicSiddon, iProjectorIncrementalSiddonMulti, and iProjectorTemplate.

Definition at line 247 of file vProjector.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

public bool vProjector::GetCompatibilityWithSPECTAttenuationCorrection ( ) [inline]

Returns:: m_compatibleWithSPECTAttenuationCorrection

Definition at line 283 of file vProjector.hh.

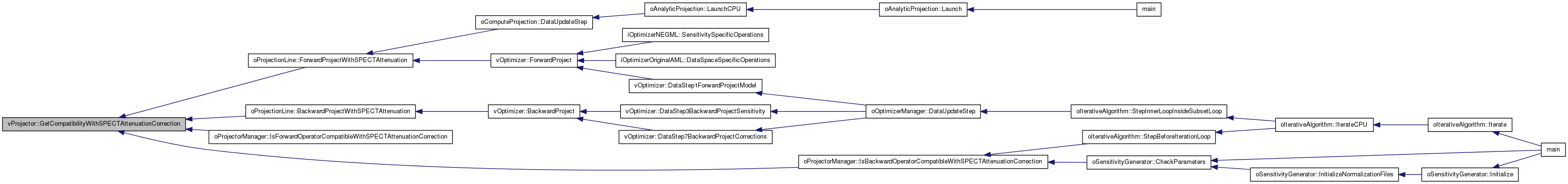

Here is the caller graph for this function:

int vProjector::Initialize ( )

A public function used to initialize the projector.

This function does not take any parameter and is used to initialize everything that should be initialized. At the end, it calls the pure virtual InitializeSpecific() function implemented by children.

Returns:: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 223 of file vProjector.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

private virtual int vProjector::InitializeSpecific ( ) [private, pure virtual]

A private function used to initialize everything specific to the child projector.

This function is used to initialize everything specific to the projector that should be initialized. It is called by the Initialize() function. It is pure virtual so is implemented by children.

Returns:: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Implemented in iProjectorIRIS, iProjectorJoseph, iProjectorClassicSiddon, iProjectorIncrementalSiddon, iProjectorIncrementalSiddonMulti, and iProjectorTemplate.

Here is the caller graph for this function:

int vProjector::Project	(	int	a_direction,
		oProjectionLine *	ap_ProjectionLine,
		uint32_t *	ap_index1,
		uint32_t *	ap_index2,
		int	a_nbIndices
	)

A function use to computed the projection elements with respect to the provided parameters.

Parameters:

int	a_direction
oProjectionLine*	ap_ProjectionLine
int*	ap_index1
int*	ap_index2
int	a_nbIndices

This function is used to fill the provided oProjectionLine with the system matrix elements associated to the provided indices. The filling is done by calling one of the three projection functions (w/o TOF) implemented by its children. This function cannot be overloaded. From a collection of scanner elements indices associated to a oProjectionLine and to a projection direction (FORWARD or BACKWARD), it first uses the scanner to get associated cartesian coordinates taking compression, mean depth of interaction or POI into account, it then applies offsets (general one from oImageDimensionsAndQuantification), LOR displacement (associated to each event). The computed coordinates are embedded into the oProjectionLine which are passed to the different pure virtual projection functions (w/o TOF). If the number of provided indices is one (no compression), then the provided indices are also passed to the oProjectionLine if needed by a highly specified projector. In the case of compression, the indices are set to -1 in the oProjectionLine, while the positions and orientations are averaged.

Returns:: An integer reflecting the projection status; 0 if no problem, another value otherwise.

Definition at line 257 of file vProjector.cc.

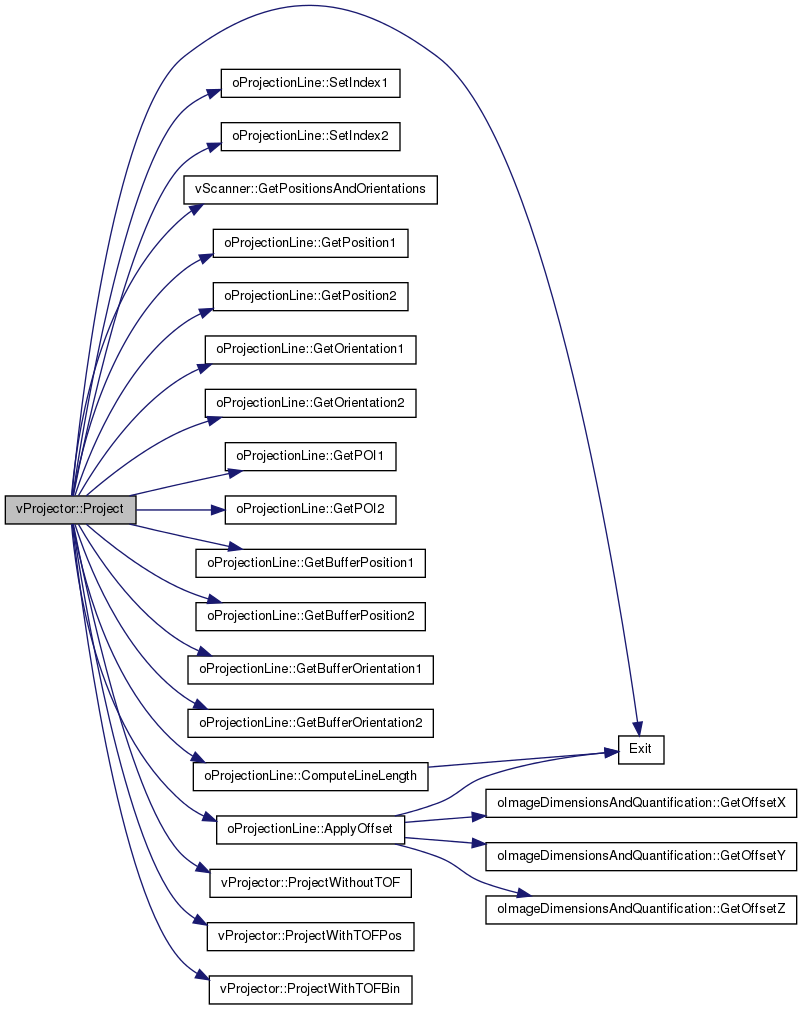

Here is the call graph for this function:

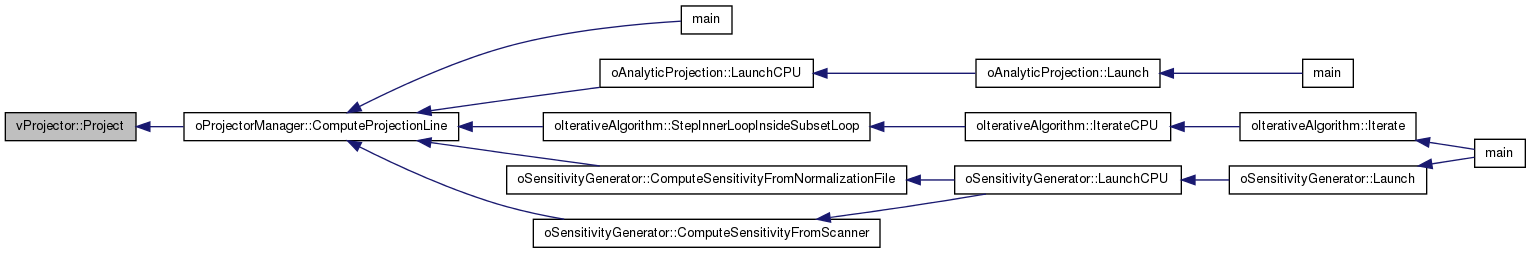

Here is the caller graph for this function:

private virtual int vProjector::ProjectWithoutTOF	(	int	a_direction,
		oProjectionLine *	ap_ProjectionLine
	)		`[private, pure virtual]`

A function to project without TOF.

Parameters:

int	a_direction
oProjectionLine*	ap_ProjectionLine

Projects the provided line following the provided direction, without TOF. It fills the provided oProjectionLine. This is a pure virtual function that must be implemented by children.

Returns:: An integer reflecting the projection status; 0 if no problem, another value otherwise.

Implemented in iProjectorIRIS, iProjectorJoseph, iProjectorClassicSiddon, iProjectorIncrementalSiddon, iProjectorIncrementalSiddonMulti, and iProjectorTemplate.

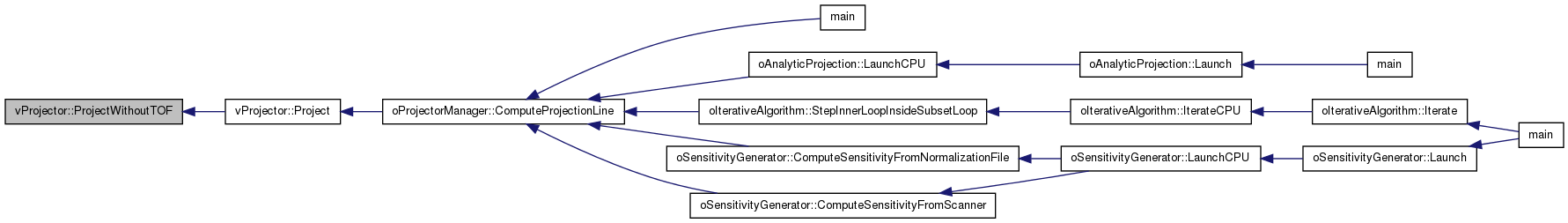

Here is the caller graph for this function:

private virtual int vProjector::ProjectWithTOFBin	(	int	a_direction,
		oProjectionLine *	ap_ProjectionLine
	)		`[private, pure virtual]`

A function to project with TOF binned information.

Parameters:

int	a_direction
oProjectionLine*	ap_ProjectionLine

Projects the provided line following the provided direction, with TOF information describe as a histogram bin. It fills the provided oProjectionLine. This is a pure virtual function that must be implemented by children.

Returns:: An integer reflecting the projection status; 0 if no problem, another value otherwise.

Implemented in iProjectorIRIS, iProjectorJoseph, iProjectorClassicSiddon, iProjectorIncrementalSiddon, iProjectorIncrementalSiddonMulti, and iProjectorTemplate.

Here is the caller graph for this function:

private virtual int vProjector::ProjectWithTOFPos	(	int	a_direction,
		oProjectionLine *	ap_ProjectionLine
	)		`[private, pure virtual]`

A function to project with TOF continuous information.

Parameters:

int	a_direction
oProjectionLine*	ap_ProjectionLine

Projects the provided line following the provided direction, with TOF described as a continuous measurement. It fills the provided oProjectionLine. This is a pure virtual function that must be implemented by children.

Returns:: An integer reflecting the projection status; 0 if no problem, another value otherwise.

Implemented in iProjectorIRIS, iProjectorJoseph, iProjectorClassicSiddon, iProjectorIncrementalSiddon, iProjectorIncrementalSiddonMulti, and iProjectorTemplate.

Here is the caller graph for this function:

int vProjector::ReadCommonOptionsList ( const string & a_optionsList )

This function is used to read options common to all projectors given as a string.

Returns:: An integer reflecting the reading success; 0 if success, another value otherwise.

Definition at line 160 of file vProjector.cc.

Here is the caller graph for this function:

public virtual int vProjector::ReadConfigurationFile ( const string & a_configurationFile ) [pure virtual]

A function used to read options from a configuration file.

Parameters:

const string& a_configurationFile

This function implements the reading of all options associated to a child projector, from a configuration file. It is pure virtual so is implemented by children. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns:: An integer reflecting the reading success; 0 if success, another value otherwise.

Implemented in iProjectorIncrementalSiddon, iProjectorIRIS, iProjectorJoseph, iProjectorClassicSiddon, iProjectorIncrementalSiddonMulti, and iProjectorTemplate.

Here is the caller graph for this function:

public virtual int vProjector::ReadOptionsList ( const string & a_optionsList ) [pure virtual]

A function used to read options from a list of options.

Parameters:

const string& a_optionsList

This function implements the reading of all options associated to a child projector, from a list of options. It is pure virtual so is implemented by children. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns:: An integer reflecting the reading success; 0 if success, another value otherwise.

Implemented in iProjectorIncrementalSiddon, iProjectorIRIS, iProjectorJoseph, iProjectorClassicSiddon, iProjectorIncrementalSiddonMulti, and iProjectorTemplate.

Here is the caller graph for this function:

int vProjector::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification )

Set the pointer to the image dimensions in use and copy locally some often use variables.

Parameters:

oImageDimensionsAndQuantification* ap_ImageDimensionsAndQuantification

Returns:: 0 if success, other value otherwise.

Definition at line 64 of file vProjector.cc.

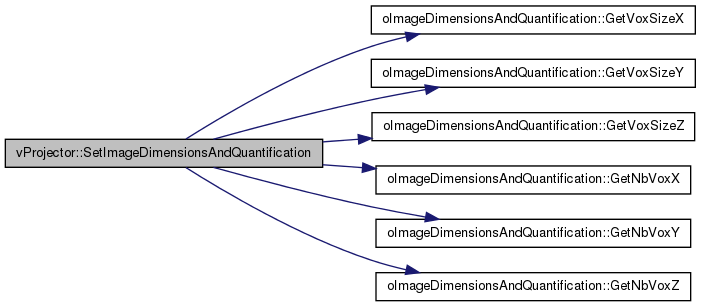

Here is the call graph for this function:

Here is the caller graph for this function:

public inline void vProjector::SetScanner ( vScanner * ap_Scanner ) [inline]

Set the pointer to the scanner in use.

Parameters:

vScanner* ap_Scanner

Definition at line 261 of file vProjector.hh.

Here is the caller graph for this function:

int vProjector::SetTOFAndPOIOptions	(	int	a_dataType,
		bool	a_ignoreTOF,
		bool	a_ignorePOI
	)

Set the TOF use as well as POI and checks compatibility with current data type.

Parameters:

int	a_dataType
bool	a_ignoreTOF
bool	a_ignorePOI

Returns:: 0 if success, other value otherwise.

Definition at line 93 of file vProjector.cc.

Here is the caller graph for this function:

public inline void vProjector::SetVerbose ( int a_verbose ) [inline]

Set the verbose level.

Parameters:

int	a_verboseLevel

Definition at line 254 of file vProjector.hh.

Here is the caller graph for this function:

void vProjector::ShowCommonHelp ( ) [static]

This function is used to print out some help about the use of options common to all projectors. It is static because it is called in main without instantiating an object.

Definition at line 126 of file vProjector.cc.

Here is the caller graph for this function:

void vProjector::ShowHelp ( )

A function used to show help about the projector.

This function simply calls the ShowHelpSpecific() function implemented by children.

Definition at line 146 of file vProjector.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

private virtual void vProjector::ShowHelpSpecific ( ) [private, pure virtual]

A function used to show help about the child module.

This function must describe what the projector does and how to use it. It describes in details the different parameters of the projector, and how to set them through the use of a configuration file or a list of options. It is pure virtual so is implemented by children. It is private because called by the public ShowHelp() function.

Implemented in iProjectorIRIS, iProjectorJoseph, iProjectorClassicSiddon, iProjectorIncrementalSiddon, iProjectorIncrementalSiddonMulti, and iProjectorTemplate.

Here is the caller graph for this function:
