CASToR
1.0
Tomographic Reconstruction (PET/SPECT)
|
This class is designed to manage the projection part of the reconstruction. More...
#include <oProjectorManager.hh>
Public Member Functions | |
oProjectorManager () | |
The constructor of oProjectorManager. | |
~oProjectorManager () | |
The destructor of oProjectorManager. | |
int | CheckParameters () |
A function used to check the parameters settings. | |
int | Initialize () |
A function used to initialize the manager and the projectors or system matrices it manages. | |
oProjectionLine * | ComputeProjectionLine (vEvent *ap_Event, int a_th) |
This function is used to compute system matrix elements from the associated projector or pre-computed system matrix given a vEvent and a thread index. As this function returns a pointer to a oProjectionLine (filled from its own oProjectionLine buffers), if a problem occurs while calling the Project functions of the vProjector or oSystemMatrix, it uses the Exit() function to stop the process. | |
void | SetVerbose (int a_verboseLevel) |
Set the verbose level. | |
void | SetScanner (vScanner *ap_Scanner) |
Set the scanner in use. | |
void | SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification) |
Set the image dimensions in use. | |
void | SetDataFile (vDataFile *ap_DataFile) |
Set a data file in use to later recover some information from it. | |
void | SetComputationStrategy (int a_computationStrategy) |
Set the computation strategy for the system matrix elements storage. | |
void | SetOptionsForward (const string &a_optionsForward) |
Set the forward projection options contained in the provided string. | |
void | SetOptionsBackward (const string &a_optionsBackward) |
Set the backward projection options contained in the provided string. | |
void | SetOptionsCommon (const string &a_optionsCommon) |
Set the common projection options contained in the provided string. | |
int | GetNbTOFBins () |
Get the number of TOF bins associated to the projector. | |
int | GetComputationStrategy () |
Get the computation strategy for the storage in the projection line. | |
bool | IsForwardOperatorCompatibleWithSPECTAttenuationCorrection () |

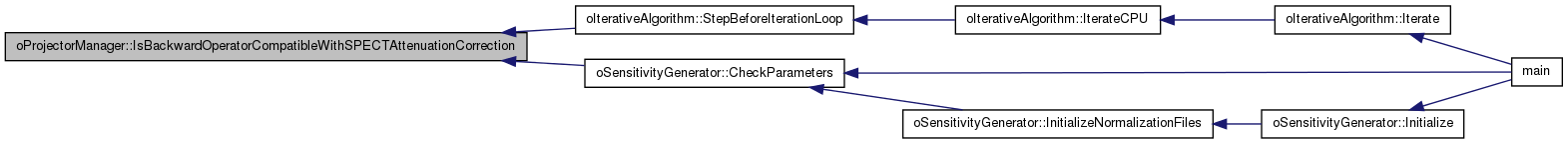

bool | IsBackwardOperatorCompatibleWithSPECTAttenuationCorrection () |
Private Member Functions | |
int | ParseOptionsAndInitializeProjectors () |
Parse forward and backward projection options contained in the previously provided strings. This function is called inside the Initialize() function. | |
Private Attributes | |
vScanner * | mp_Scanner |
oImageDimensionsAndQuantification * | mp_ImageDimensionsAndQuantification |
vDataFile * | mp_DataFile |
bool | m_applyTOF |
bool | m_applyPOI |
int | m_nbTOFBins |
int | m_computationStrategy |
string | m_optionsForward |
string | m_optionsBackward |
string | m_optionsCommon |
oSystemMatrix * | mp_SystemMatrixForward |
oSystemMatrix * | mp_SystemMatrixBackward |
vProjector * | mp_ProjectorForward |
vProjector * | mp_ProjectorBackward |
bool | m_UseSystemMatrixForward |
bool | m_UseSystemMatrixBackward |
bool | m_UseProjectorForward |
bool | m_UseProjectorBackward |
bool | m_UseMatchedProjectors |
oProjectionLine ** | m2p_ProjectionLines |
int | m_verbose |
bool | m_checked |
bool | m_initialized |
This class is designed to manage the projection part of the reconstruction.
As each manager class, it is created in the main program, all parameters are then set, checked, and the manager is initialized. The manager is then used by the algorithm itself, where the function ComputeProjectionLine() is called to compute the system matrix elements for the provided event, which are stored in a oProjectionLine. For multi-threading implementation, each thread have its own oProjectionLine. The manager will make use of a vProjector or a oSystemMatrix to compute the system matrix elements for forward and backward projections.
Definition at line 32 of file oProjectorManager.hh.
The constructor of oProjectorManager.
This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.
Definition at line 28 of file oProjectorManager.cc.
The destructor of oProjectorManager.
This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were built by this class.
Definition at line 72 of file oProjectorManager.cc.
A function used to check the parameters settings.
This function does not take any parameter and is used to check that all mandatory members were correctly parameterized.
Definition at line 123 of file oProjectorManager.cc.

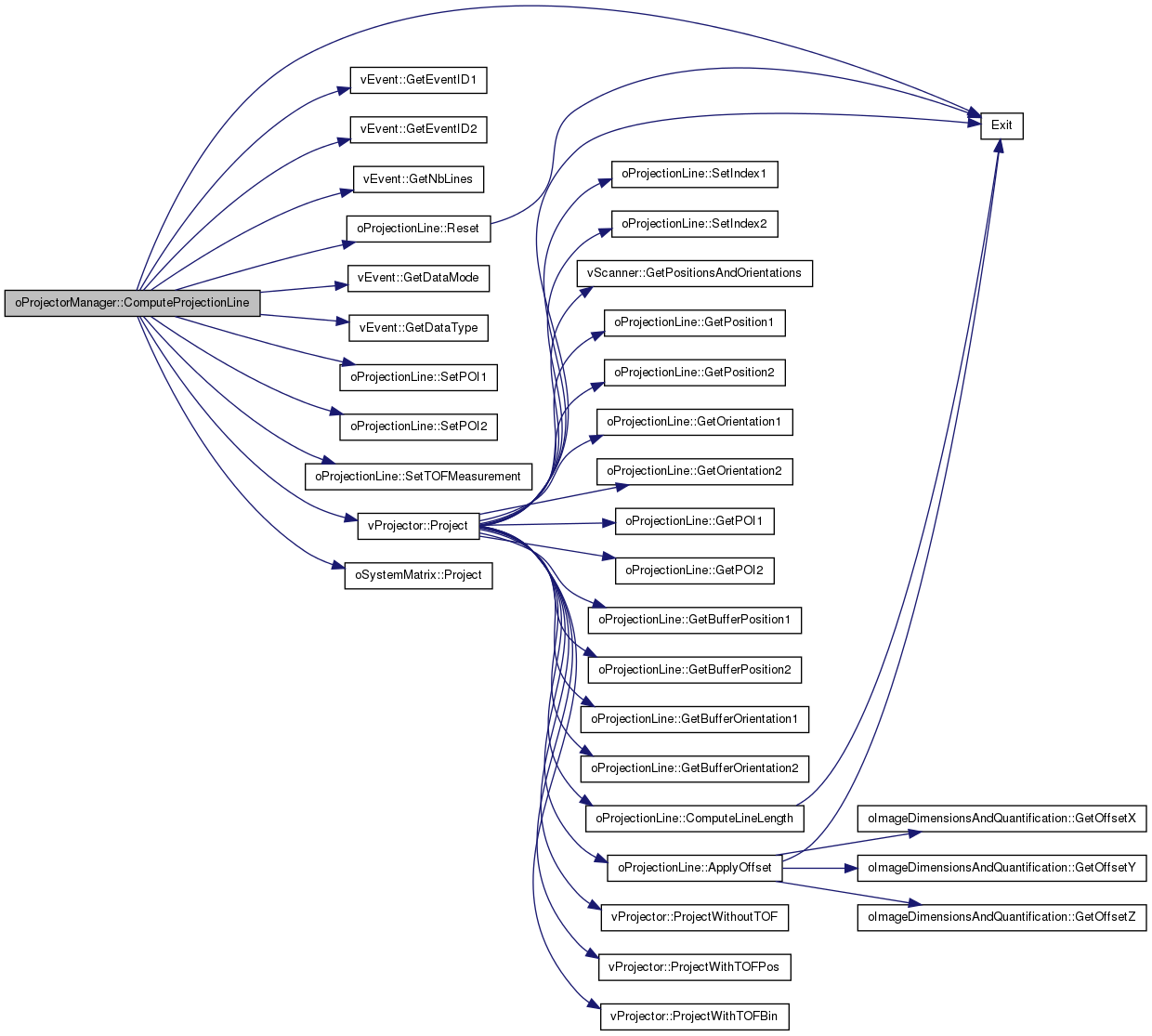

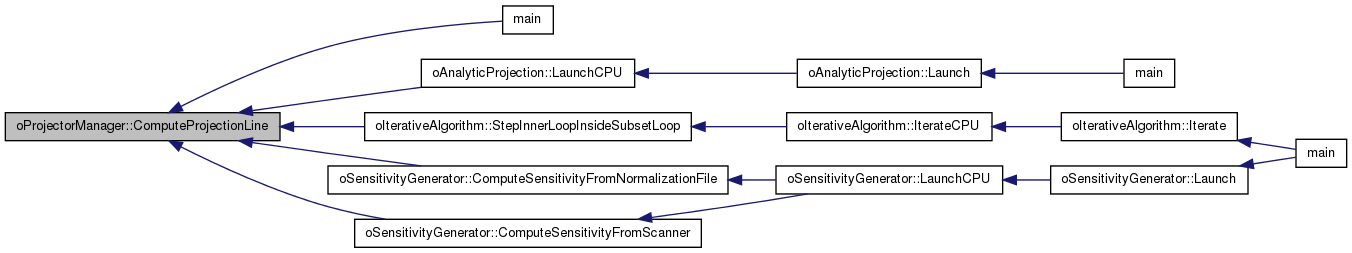

oProjectionLine * oProjectorManager::ComputeProjectionLine | ( | vEvent * | ap_Event, |
int | a_th | ||
) |
This function is used to compute system matrix elements from the associated projector or pre-computed system matrix given a vEvent and a thread index. As this function returns a pointer to a oProjectionLine (filled from its own oProjectionLine buffers), if a problem occurs while calling the Project functions of the vProjector or oSystemMatrix, it uses the Exit() function to stop the process.
vEvent* | ap_Event |
int | a_th |
Definition at line 542 of file oProjectorManager.cc.

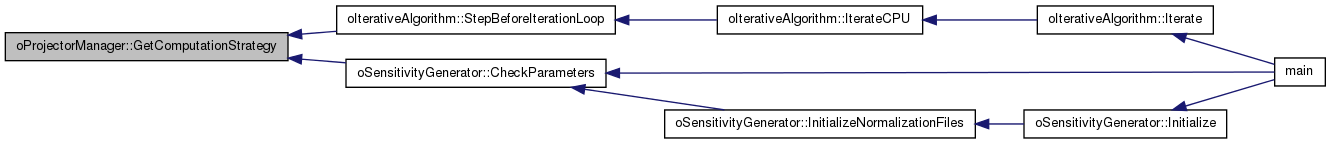

public inline int oProjectorManager::GetComputationStrategy | ( | ) | [inline] |
Get the computation strategy for the storage in the projection line.
Definition at line 158 of file oProjectorManager.hh.
public inline int oProjectorManager::GetNbTOFBins | ( | ) | [inline] |
Get the number of TOF bins associated to the projector.
Definition at line 151 of file oProjectorManager.hh.
int oProjectorManager::Initialize | ( | ) |
A function used to initialize the manager and the projectors or system matrices it manages.
This function does not take any parameter and is used to initialize everything that should be initialized. In a few words, it parses the options, then creates and initializes the projectors or system matrices based on the provided options.
Definition at line 179 of file oProjectorManager.cc.
Definition at line 110 of file oProjectorManager.cc.
Definition at line 97 of file oProjectorManager.cc.

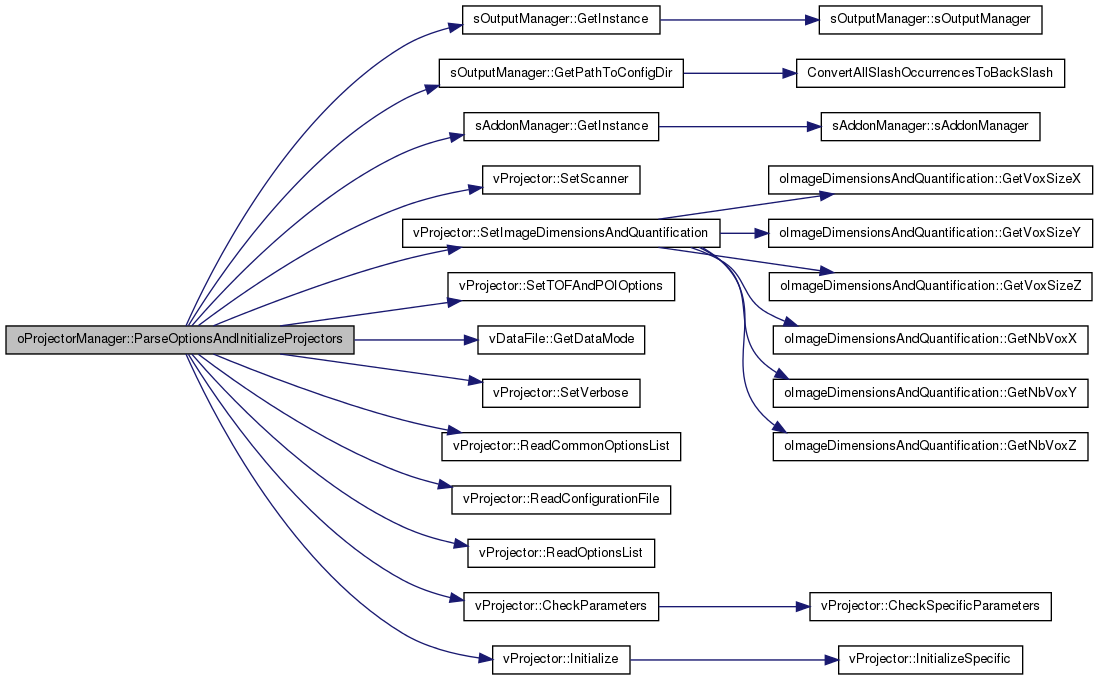

int oProjectorManager::ParseOptionsAndInitializeProjectors | ( | ) | [private] |
Parse forward and backward projection options contained in the previously provided strings. This function is called inside the Initialize() function.
Parse forward and backward projection options contained in the m_optionsForward and m_optionsBackward strings. Specific pure virtual functions of the vProjector are used to read parameters and initialize them. If a oSystemMatrix is used, specific functions are also called to read and initialize it. This function is called inside the Initialize() function. The syntax for the declaration of the projector and associated options is described inside the main program.
Definition at line 279 of file oProjectorManager.cc.
public inline void oProjectorManager::SetComputationStrategy | ( | int | a_computationStrategy | ) | [inline] |
Set the computation strategy for the system matrix elements storage.
int | a_computationStrategy |
Definition at line 123 of file oProjectorManager.hh.
public inline void oProjectorManager::SetDataFile | ( | vDataFile * | ap_DataFile | ) | [inline] |
Set a data file in use to later recover some information from it.
vDataFile* | ap_DataFile |
Definition at line 116 of file oProjectorManager.hh.
public inline void oProjectorManager::SetImageDimensionsAndQuantification | ( | oImageDimensionsAndQuantification * | ap_ImageDimensionsAndQuantification | ) | [inline] |
Set the image dimensions in use.
oImageDimensionsAndQuantification* | ap_ImageDimensionsAndQuantification |
Definition at line 109 of file oProjectorManager.hh.
public inline void oProjectorManager::SetOptionsBackward | ( | const string & | a_optionsBackward | ) | [inline] |
Set the backward projection options contained in the provided string.
const | string& a_optionsBackward |
Definition at line 137 of file oProjectorManager.hh.
public inline void oProjectorManager::SetOptionsCommon | ( | const string & | a_optionsCommon | ) | [inline] |
Set the common projection options contained in the provided string.
const | string& a_optionsCommon |
Definition at line 144 of file oProjectorManager.hh.
public inline void oProjectorManager::SetOptionsForward | ( | const string & | a_optionsForward | ) | [inline] |
Set the forward projection options contained in the provided string.
const | string& a_optionsForward |
Definition at line 130 of file oProjectorManager.hh.
public inline void oProjectorManager::SetScanner | ( | vScanner * | ap_Scanner | ) | [inline] |
Set the scanner in use.
vScanner* | ap_Scanner |
Definition at line 102 of file oProjectorManager.hh.
public inline void oProjectorManager::SetVerbose | ( | int | a_verboseLevel | ) | [inline] |
Set the verbose level.
int | a_verboseLevel |
Definition at line 95 of file oProjectorManager.hh.
The table of pointers to the oProjectionLines, one per thread
Definition at line 221 of file oProjectorManager.hh.
bool oProjectorManager::m_applyPOI [private] |
Boolean that says if we apply POI or not
Definition at line 201 of file oProjectorManager.hh.
bool oProjectorManager::m_applyTOF [private] |
Boolean that says if we apply TOF or not
Definition at line 200 of file oProjectorManager.hh.
bool oProjectorManager::m_checked [private] |
Boolean that says if the parameters were checked or not
Definition at line 225 of file oProjectorManager.hh.
int oProjectorManager::m_computationStrategy [private] |
The integer describing the computation strategy for system matrix elements storage
Definition at line 204 of file oProjectorManager.hh.
bool oProjectorManager::m_initialized [private] |
Boolean that says if the manager was initialized or not
Definition at line 227 of file oProjectorManager.hh.
int oProjectorManager::m_nbTOFBins [private] |
The number of TOF bins in use
Definition at line 202 of file oProjectorManager.hh.
string oProjectorManager::m_optionsBackward [private] |
The string containing options for the backward projections
Definition at line 207 of file oProjectorManager.hh.
string oProjectorManager::m_optionsCommon [private] |
The string containing common options for the projectors
Definition at line 209 of file oProjectorManager.hh.
string oProjectorManager::m_optionsForward [private] |
The string containing options for the forward projections
Definition at line 206 of file oProjectorManager.hh.
bool oProjectorManager::m_UseMatchedProjectors [private] |
Boolean that says if matched projectors are used
Definition at line 219 of file oProjectorManager.hh.
bool oProjectorManager::m_UseProjectorBackward [private] |
Boolean that says if a vProjector is used for backward projections
Definition at line 218 of file oProjectorManager.hh.
bool oProjectorManager::m_UseProjectorForward [private] |
Boolean that says if a vProjector is used for forward projections
Definition at line 217 of file oProjectorManager.hh.
bool oProjectorManager::m_UseSystemMatrixBackward [private] |
Boolean that says if a oSystemMatrix is used for backward projections
Definition at line 216 of file oProjectorManager.hh.
bool oProjectorManager::m_UseSystemMatrixForward [private] |
Boolean that says if a oSystemMatrix is used for forward projections
Definition at line 215 of file oProjectorManager.hh.
int oProjectorManager::m_verbose [private] |
The verbose level
Definition at line 223 of file oProjectorManager.hh.
vDataFile* oProjectorManager::mp_DataFile [private] |
Pointer to a vDataFile object in use
Definition at line 198 of file oProjectorManager.hh.
Pointer to the oImageDimensionsAndQuantification object in use
Definition at line 196 of file oProjectorManager.hh.
The pointer to the vProjector used for backward projections
Definition at line 214 of file oProjectorManager.hh.
vProjector* oProjectorManager::mp_ProjectorForward [private] |
The pointer to the vProjector used for forward projections
Definition at line 213 of file oProjectorManager.hh.
vScanner* oProjectorManager::mp_Scanner [private] |
Pointer to the vScanner object in use
Definition at line 194 of file oProjectorManager.hh.
The pointer to the oSystemMatrix used for backward projections
Definition at line 212 of file oProjectorManager.hh.
The pointer to the oSystemMatrix used for forward projections
Definition at line 211 of file oProjectorManager.hh.
