This class is designed to be a mother virtual class for Datafile. More...

#include <vDataFile.hh>

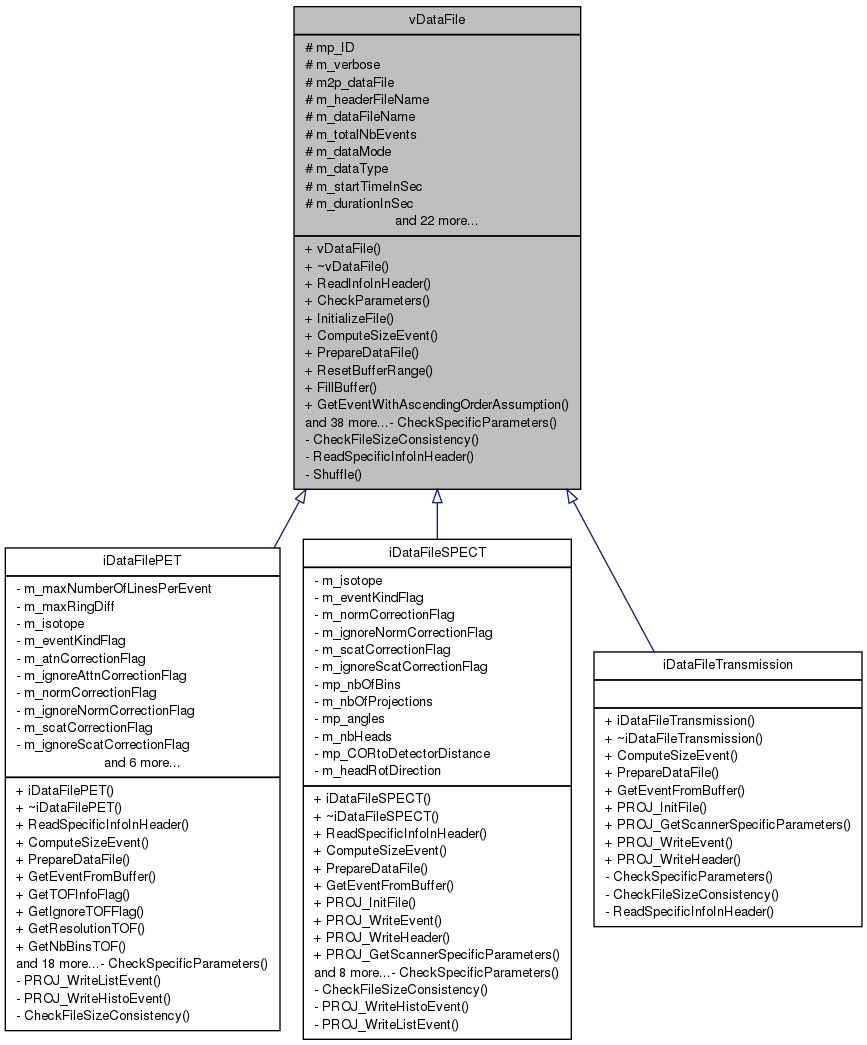

Inheritance diagram for vDataFile:

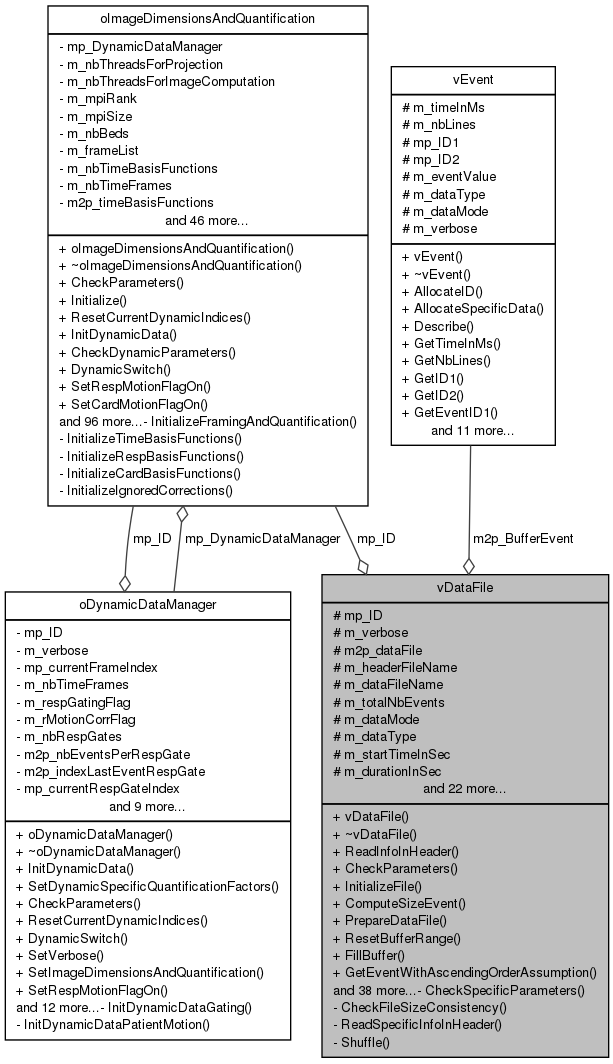

Collaboration diagram for vDataFile:

Public Member Functions
	vDataFile ()
	vDataFile constructor.
virtual	~vDataFile ()
	vDataFile destructor.

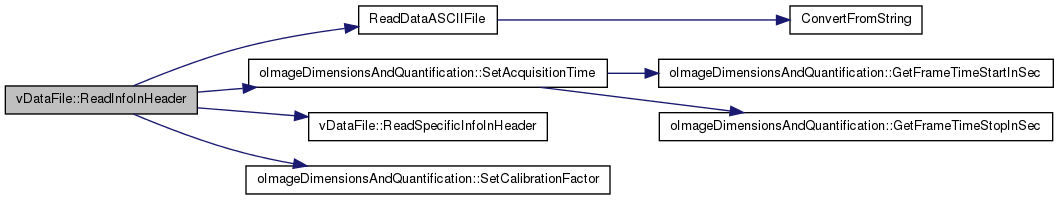

int	ReadInfoInHeader ()
	Read and check general information from the header datafile Call the ReadSpecificInformationInHeader() function implemented in child classes.
int	CheckParameters ()
	Check the initialization of member variables Call the CheckSpecificParameters() function implemented in child classes.

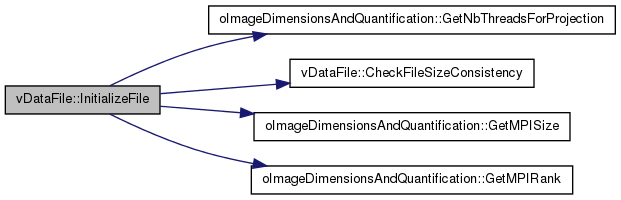

int	InitializeFile ()
	Instantiate the fstream objets for input reading and check if the related datafile's existence and consistency. Also init the char* buffers for event read directly from files.
virtual int	ComputeSizeEvent ()=0
	This function is implemented in child classes Computation of the size of each event according to the mandatory/optional correction fields.
virtual int	PrepareDataFile ()=0
	This function is implemented in child classes Store different kind of information inside arrays (data relative to specific correction as well as basic raw data for the case data is loaded in RAM) Use the flag provided by the user to determine how the data has to be sorted (preloaded or read on the fly)
void	ResetBufferRange ()
	Simply set the m_1stIdxArrayEvents and m_lastIdxArrayEvents to -1 only if the percentage load is strictly between 0 and 100.
int	FillBuffer (int64_t a_eventIndex)
	Fill 'mp_arrayEvents' from the 'a_eventIndex' position in the data file. The filling process stops after 'm_sizeArrayEvents' new events have been added, or if we reach the last event of the datafile.
vEvent *	GetEventWithAscendingOrderAssumption (int64_t a_eventIndex, int64_t a_eventIndexLimit, int a_th)
	According to the current part of the datafile loaded in memory, either read from this buffer or directly from datafile.
vEvent *	GetEventWithoutOrderAssumption (int64_t a_eventIndex, int a_th)
	According to the current part of the datafile loaded in memory, either read from this buffer or directly from datafile.
vEvent *	GetEventFromFile (int64_t a_eventIndex, int a_th)
	Return the a_eventIndex event from the datafile.
virtual vEvent *	GetEventFromBuffer (char *ap_buffer, int a_th)=0
	This function is implemented in child classes Read an event from the position pointed by 'ap_buffer', parse the generic or modality-specific information, and store them in the (multithreaded) 'm2p_BufferEvent' object.
void	GetEventIndexStartAndStop (int64_t ap_indexStart, int64_t ap_indexStop, int a_subsetNum, int a_NbSubsets)
	Compute the index start and stop of the events loop with respect to the current subset and MPI size and rank.
virtual int	PROJ_InitFile ()=0
	This function is implemented in child classes Initialize the fstream objets for output writing as well as some other variables specific to the Projection script.
virtual int	PROJ_GetScannerSpecificParameters ()=0
	This function is implemented in child classes It is used to set several variables of the datafile when using the projection script. Get modality specific parameters from the scanner object, through the scannerManager.
virtual int	PROJ_WriteEvent (vEvent *ap_Event, int a_th)=0
	This function is implemented in child classes Write event according to the chosen type of data.
virtual int	PROJ_WriteHeader ()=0
	This function is implemented in child classes. Generate a header file according to the projection and data output informations.

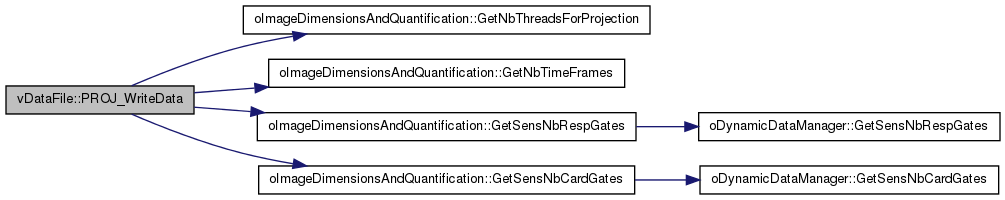

int	PROJ_WriteData ()
	Write/Merge chunk of data in a general data file.
int	PROJ_DeleteTmpDatafile ()
	Delete temporary datafile used for multithreaded output writing if needed.

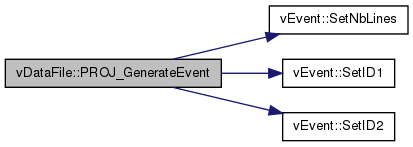

vEvent *	PROJ_GenerateEvent (int idx_elt1, int idx_elt2, int a_th)
	Generate a standard event and set up its ID Used by the projection, list-mode sensitivity generation, and datafile converter scripts.
int	GetBedIndex ()
int	GetDataMode ()
int	GetDataType ()
int64_t	GetSize ()
string	GetHeaderDataFileName ()
string	GetDataFileName ()
int64_t	GetStartTime ()
int64_t	GetDuration ()
FLTNB	GetCalibrationFactor ()
FLTNB *	GetResolutionPOI ()
bool	GetPOIInfoFlag ()
bool	GetIgnorePOIFlag ()
virtual int	GetMaxRingDiff ()
	Return an error by default. This function is surcharged by the PET (and CT) scanner daughter class.
void	SetDataMode (int a_dataMode)
	set the data mode
void	SetDataType (int a_dataType)
	set the data type
void	SetBedIndex (int a_bedIndex)
	set the bed index corresponding to this data file
void	SetPercentageLoad (int a_percentageLoad)
	Set the percentage of the data file that will be loaded in memory.
int	GetPercentageLoad ()
	Get the percentage of the data file that will be loaded in memory.
void	SetVerbose (int a_verboseLevel)
	set verbosity
int	GetVerbose ()
	Get the verbose level.
void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	set the pointer to the oImageDimensionsAndQuantification object
void	SetPOIResolution (FLTNB ap_value[3])
void	SetIgnorePOIFlag (bool a_ignorePOIFlag)
	Set a boolean that that if we ignore POI information or not.
void	SetHeaderDataFileName (const string &a_headerFileName)
	set the data header file name
void	SetCalibrationFactor (FLTNB a_value)
	initialize the global calibration factor with a FLTNB value
void	SetNbEvents (int64_t a_value)
	initialize the number of events with a int64_t value
void	SetStartTime (FLTNB a_value)
void	SetDuration (FLTNB a_value)
Protected Attributes
oImageDimensionsAndQuantification *	mp_ID
int	m_verbose
fstream **	m2p_dataFile
string	m_headerFileName
string	m_dataFileName
int64_t	m_totalNbEvents
int	m_dataMode
int	m_dataType
FLTNB	m_startTimeInSec
FLTNB	m_durationInSec
FLTNB	m_calibrationFactor
int	m_bedIndex
int64_t	m_sizeEvent
string	m_scannerName
bool	m_POIInfoFlag
bool	m_ignorePOIFlag
bool	mp_POIDirectionFlag [3]
FLTNB	mp_POIResolution [3]
vEvent **	m2p_BufferEvent
char *	mp_arrayEvents
char **	m2p_bufferEventFromFile
int64_t	m_mpi1stEvent
int64_t	m_mpiLastEvent
int64_t	m_mpiNbEvents
int64_t	m_1stIdxArrayEvents
int64_t	m_lastIdxArrayEvents
int64_t	m_sizeArrayEvents
int	m_percentageLoad
bool	m_requestBufferFilling
bool	m_currentlyFillingBuffer
bool *	mp_currentlyReadingBuffer
bool *	mp_overBufferRange
int64_t *	mp_nbEventsReadFromFile
Private Member Functions
virtual int	CheckSpecificParameters ()=0
	This function is implemented in child classes Check specific parameters of child classes.
virtual int	CheckFileSizeConsistency ()=0
virtual int	ReadSpecificInfoInHeader ()=0
	This function is implemented in child classes Read and check modality-specific information from the header datafile.
virtual int	Shuffle (int64_t)

Detailed Description

This class is designed to be a mother virtual class for Datafile.

This class manages the reading of the generic input file (header + data).
It uses some events as buffers to get data informations during run-time.

Definition at line 63 of file vDataFile.hh.

Constructor & Destructor Documentation

vDataFile::vDataFile ( )

vDataFile constructor.

Initialize the member variables to their default values.

Definition at line 26 of file vDataFile.cc.

vDataFile::~vDataFile ( ) [virtual]

vDataFile destructor.

Definition at line 79 of file vDataFile.cc.

Here is the call graph for this function:

Member Function Documentation

virtual int vDataFile::CheckFileSizeConsistency ( ) [private, pure virtual]

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

int vDataFile::CheckParameters ( )

Check the initialization of member variables
Call the CheckSpecificParameters() function implemented in child classes.

Returns:: 0 if success, and positive value otherwise.

Definition at line 254 of file vDataFile.cc.

Here is the call graph for this function:

int vDataFile::CheckSpecificParameters ( ) [private, pure virtual]

This function is implemented in child classes
Check specific parameters of child classes.

Returns:: 0 if success, and positive value otherwise.

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

vDataFile::ComputeSizeEvent ( ) [pure virtual]

This function is implemented in child classes
Computation of the size of each event according to the mandatory/optional correction fields.

Returns:: 0 is success, positive value otherwise

Implemented in iDataFileSPECT, iDataFilePET, and iDataFileTransmission.

Here is the caller graph for this function:

int vDataFile::FillBuffer ( int64_t a_eventIndex )

Fill 'mp_arrayEvents' from the 'a_eventIndex' position in the data file.
The filling process stops after 'm_sizeArrayEvents' new events have been added, or if we reach the last event of the datafile.

Parameters:

a_eventIndex : long int containing a position index in the data file, from which events should be loaded in the buffer

Returns:: Positive value if the reading failed, 0 otherwise

Definition at line 426 of file vDataFile.cc.

Here is the caller graph for this function:

int vDataFile::GetBedIndex ( ) [inline]

Returns:: its bed index

Definition at line 257 of file vDataFile.hh.

FLTNB vDataFile::GetCalibrationFactor ( ) [inline]

Returns:: calibration factor

Definition at line 305 of file vDataFile.hh.

string vDataFile::GetDataFileName ( ) [inline]

Returns:: datafile name

Definition at line 287 of file vDataFile.hh.

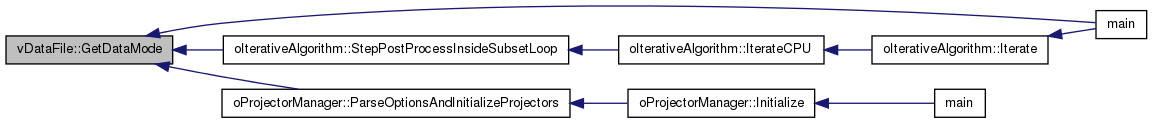

int vDataFile::GetDataMode ( ) [inline]

Returns:: data mode

Definition at line 263 of file vDataFile.hh.

Here is the caller graph for this function:

int vDataFile::GetDataType ( ) [inline]

Returns:: data type

Definition at line 269 of file vDataFile.hh.

Here is the caller graph for this function:

int64_t vDataFile::GetDuration ( ) [inline]

Returns:: int64_t corresponding to the acquisition duration (s)

Definition at line 299 of file vDataFile.hh.

vDataFile::GetEventFromBuffer	(	char *	ap_buffer,
		int	a_th
	)		`[pure virtual]`

This function is implemented in child classes
Read an event from the position pointed by 'ap_buffer', parse the generic or modality-specific information, and store them in the (multithreaded) 'm2p_BufferEvent' object.

Parameters:

ap_buffer	: address pointing to the event to recover in the event buffer array
a_th	: index of the thread from which the function was called

Returns:: the thread-specific 'm2p_BufferEvent' object containing the modality-specific information for the event

Implemented in iDataFileSPECT, iDataFilePET, and iDataFileTransmission.

Here is the caller graph for this function:

vEvent * vDataFile::GetEventFromFile	(	int64_t	a_eventIndex,
		int	a_th
	)

Return the a_eventIndex event from the datafile.

Parameters:

a_eventIndex	: index of the event to recover
a_th	: index of the thread from which the function was called

Returns:: the m2p_BufferEvent element of the the 'a_th' thread, or NULL is something went wrong

Definition at line 761 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void vDataFile::GetEventIndexStartAndStop	(	int64_t *	ap_indexStart,
		int64_t *	ap_indexStop,
		int	a_subsetNum,
		int	a_NbSubsets
	)

Compute the index start and stop of the events loop with respect to the current subset and MPI size and rank.

Parameters:

ap_indexStart	: pointer to recover the index of the first event
ap_indexStop	: pointer to recover the index of the last event
a_subsetNum	: actual subset index of the iteration (0 if no subsets)
a_nbSubsets	: max number of subsets in this iteration (1 if no subsets)

Definition at line 785 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

vEvent * vDataFile::GetEventWithAscendingOrderAssumption	(	int64_t	a_eventIndex,
		int64_t	a_eventIndexLimit,
		int	a_th
	)

According to the current part of the datafile loaded in memory, either read from this buffer or directly from datafile.

Parameters:

a_eventIndex	: index of the event to recover
a_eventIndexLimit	: index over which we consider the thread will soon finish
a_th	: index of the thread from which the function was called

This function can be used only inside a loop on events in the ascending order, because it uses this assumption to increase efficiency. Only the thread 0 manages the buffer, if out-of-range, it waits for all other threads to be 'after' this current buffer range to fill the next part. These parts of datafiles are computed based on the provided m_percentageLoad. The file is loaded into the mp_arrayEvents. See the implementation of this function for more detailed information in the comment sections.

Returns:: the m2p_BufferEvent element of the the 'a_th' thread, or NULL if something went wrong

Definition at line 521 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

vEvent * vDataFile::GetEventWithoutOrderAssumption	(	int64_t	a_eventIndex,
		int	a_th
	)

According to the current part of the datafile loaded in memory, either read from this buffer or directly from datafile.

Parameters:

a_eventIndex	: index of the event to recover
a_th	: index of the thread from which the function was called

This function can be used inside a loop on events without any assumption on the order. Only the thread 0 manages the buffer, if out-of-range, it requests to fill the buffer and waits for all other threads to stop reading from the buffer. Once done, it fills the buffer, the file being loaded into the mp_arrayEvents. These parts of datafiles are computed based on the provided m_percentageLoad. With this function, it is possible that the thread 0 is ahead of others threads so in an ascending order, these other threads will be late and always read from file. If this function is used inside a loop on events in the ascending order, then please use the GetEventWithAscendingOrderAssumption() function.

Returns:: the m2p_BufferEvent element of the the 'a_th' thread, or NULL if something went wrong

Definition at line 646 of file vDataFile.cc.

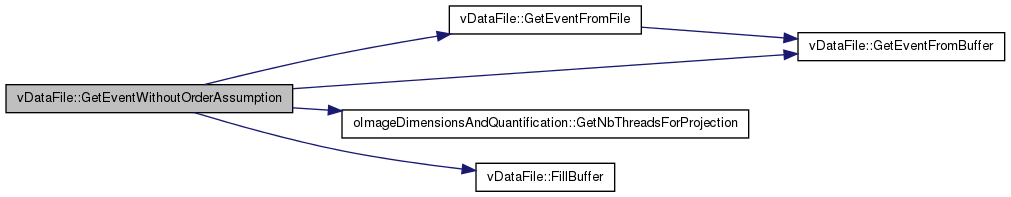

Here is the call graph for this function:

Here is the caller graph for this function:

string vDataFile::GetHeaderDataFileName ( ) [inline]

Returns:: headerdatafile name

Definition at line 281 of file vDataFile.hh.

bool vDataFile::GetIgnorePOIFlag ( ) [inline]

Returns:: m_ignorePOIFlag

Definition at line 323 of file vDataFile.hh.

Here is the caller graph for this function:

int vDataFile::GetMaxRingDiff ( ) [virtual]

Return an error by default.
This function is surcharged by the PET (and CT) scanner daughter class.

Returns:: -1 (error) if not surcharged by a daughter class

Reimplemented in iDataFilePET.

Definition at line 818 of file vDataFile.cc.

int vDataFile::GetPercentageLoad ( ) [inline]

Get the percentage of the data file that will be loaded in memory.

Returns:: m_percentageLoad

Definition at line 365 of file vDataFile.hh.

bool vDataFile::GetPOIInfoFlag ( ) [inline]

Returns:: m_POIInfoFlag

Definition at line 317 of file vDataFile.hh.

Here is the caller graph for this function:

FLTNB * vDataFile::GetResolutionPOI ( ) [inline]

Returns:: pointer to the array containing POI (position of interaction) resolution

Definition at line 311 of file vDataFile.hh.

Here is the caller graph for this function:

int64_t vDataFile::GetSize ( ) [inline]

Returns:: number of events in the datafile

Definition at line 275 of file vDataFile.hh.

Here is the caller graph for this function:

int64_t vDataFile::GetStartTime ( ) [inline]

Returns:: int64_t corresponding to the acquisition start time (s)

Definition at line 293 of file vDataFile.hh.

int vDataFile::GetVerbose ( ) [inline]

Get the verbose level.

Returns:: m_verbose

Definition at line 379 of file vDataFile.hh.

int vDataFile::InitializeFile ( )

Instantiate the fstream objets for input reading and check if the related datafile's existence and consistency.
Also init the char* buffers for event read directly from files.

Returns:: 0 if success, and positive value otherwise.

Definition at line 325 of file vDataFile.cc.

Here is the call graph for this function:

vDataFile::PrepareDataFile ( ) [pure virtual]

This function is implemented in child classes
Store different kind of information inside arrays (data relative to specific correction as well as basic raw data for the case data is loaded in RAM)
Use the flag provided by the user to determine how the data has to be sorted (preloaded or read on the fly)

Returns:: 0 is success, positive value otherwise

Implemented in iDataFileSPECT, iDataFilePET, and iDataFileTransmission.

Here is the caller graph for this function:

int vDataFile::PROJ_DeleteTmpDatafile ( )

Delete temporary datafile used for multithreaded output writing if needed.

Returns:: 0 if success, and positive value otherwise.

Definition at line 920 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

vEvent * vDataFile::PROJ_GenerateEvent	(	int	idx_elt1,
		int	idx_elt2,
		int	a_th
	)

Generate a standard event and set up its ID
Used by the projection, list-mode sensitivity generation, and datafile converter scripts.

Parameters:

idx_elt1	: first ID of the event
idx_elt2	: second ID of the event
a_th	: index of the thread from which the function was called

Returns:: the thread specific m2p_BufferEvent array containing the event

Definition at line 968 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

vDataFile::PROJ_GetScannerSpecificParameters ( ) [pure virtual]

This function is implemented in child classes
It is used to set several variables of the datafile when using the projection script.
Get modality specific parameters from the scanner object, through the scannerManager.

Returns:: 0 if success, positive value otherwise

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

vDataFile::PROJ_InitFile ( ) [pure virtual]

This function is implemented in child classes
Initialize the fstream objets for output writing as well as some other variables specific to the Projection script.

Returns:: 0 if success, and positive value otherwise.

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

int vDataFile::PROJ_WriteData ( )

Write/Merge chunk of data in a general data file.

Returns:: 0 if success, and positive value otherwise.

Definition at line 840 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

vDataFile::PROJ_WriteEvent	(	vEvent *	ap_Event,
		int	a_th
	)		`[pure virtual]`

This function is implemented in child classes
Write event according to the chosen type of data.

Parameters:

ap_Event	: Event to write
a_th	: index of the thread from which the function was called

Returns:: 0 if success, and positive value otherwise.

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

vDataFile::PROJ_WriteHeader ( ) [pure virtual]

This function is implemented in child classes.
Generate a header file according to the projection and data output informations.

Returns:: 0 if success, and positive value otherwise.

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

int vDataFile::ReadInfoInHeader ( )

Read and check general information from the header datafile
Call the ReadSpecificInformationInHeader() function implemented in child classes.

Returns:: 0 if success, and positive value otherwise.

Definition at line 134 of file vDataFile.cc.

Here is the call graph for this function:

int vDataFile::ReadSpecificInfoInHeader ( ) [private, pure virtual]

This function is implemented in child classes
Read and check modality-specific information from the header datafile.

Returns:: 0 if success, and positive value otherwise.

Implemented in iDataFileSPECT, iDataFilePET, and iDataFileTransmission.

Here is the caller graph for this function:

void vDataFile::ResetBufferRange ( )

Simply set the m_1stIdxArrayEvents and m_lastIdxArrayEvents to -1 only if the percentage load is strictly between 0 and 100.

The purpose of this function is to be called at before a loop over the datafile so that any thread will have an event index always inside or above the buffer range when the GetEventWithAscendingOrderAssumption() is used to get events.

Definition at line 404 of file vDataFile.cc.

Here is the caller graph for this function:

void vDataFile::SetBedIndex ( int a_bedIndex ) [inline]

set the bed index corresponding to this data file

Parameters:

a_bedIndex

Definition at line 351 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetCalibrationFactor ( FLTNB a_value ) [inline]

initialize the global calibration factor with a FLTNB value

Parameters:

a_value

This function is dedicated to datafile conversion scripts

Definition at line 416 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetDataMode ( int a_dataMode ) [inline]

set the data mode

Parameters:

a_dataMode

Definition at line 337 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetDataType ( int a_dataType ) [inline]

set the data type

Parameters:

a_dataType

Definition at line 344 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetDuration ( FLTNB a_value ) [inline]

Definition at line 440 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetHeaderDataFileName ( const string & a_headerFileName ) [inline]

set the data header file name

This function is dedicated to datafile conversion scripts

Definition at line 408 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetIgnorePOIFlag ( bool a_ignorePOIFlag ) [inline]

Set a boolean that that if we ignore POI information or not.

Parameters:

a_flag

Definition at line 401 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification ) [inline]

set the pointer to the oImageDimensionsAndQuantification object

Parameters:

ap_ImageDimensionsAndQuantification

Definition at line 386 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetNbEvents ( int64_t a_value ) [inline]

initialize the number of events with a int64_t value

Parameters:

a_value

This function is dedicated to datafile conversion scripts

Definition at line 424 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetPercentageLoad ( int a_percentageLoad ) [inline]

Set the percentage of the data file that will be loaded in memory.

Parameters:

a_percentageLoad

Definition at line 358 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetPOIResolution ( FLTNB ap_value[3] ) [inline]

Definition at line 394 of file vDataFile.hh.

void vDataFile::SetStartTime ( FLTNB a_value ) [inline]

Definition at line 432 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetVerbose ( int a_verboseLevel ) [inline]

set verbosity

Parameters:

a_verboseLevel

Definition at line 372 of file vDataFile.hh.

Here is the caller graph for this function:

int vDataFile::Shuffle ( int64_t nb_events_to_load ) [private, virtual]

Definition at line 481 of file vDataFile.cc.

Member Data Documentation

vEvent** vDataFile::m2p_BufferEvent [protected]

vEvent structure, used to read and transfer the raw data to each part of the algorithm (multithreaded)

Definition at line 499 of file vDataFile.hh.

char** vDataFile::m2p_bufferEventFromFile [protected]

Buffer used to recover one event from the datafile (multithreaded)

Definition at line 501 of file vDataFile.hh.

fstream** vDataFile::m2p_dataFile [protected]

File associated to the raw data file (multithreaded)

Definition at line 479 of file vDataFile.hh.

int64_t vDataFile::m_1stIdxArrayEvents [protected]

Index of the first event contained in the 'mp_arrayEvents' buffer

Definition at line 505 of file vDataFile.hh.

int vDataFile::m_bedIndex [protected]

Bed position index corresponding to this data file

Definition at line 488 of file vDataFile.hh.

FLTNB vDataFile::m_calibrationFactor [protected]

Calibration factor for the data. Default value =1.0

Definition at line 487 of file vDataFile.hh.

bool vDataFile::m_currentlyFillingBuffer [protected]

File buffer is being filled by the first thread

Definition at line 510 of file vDataFile.hh.

string vDataFile::m_dataFileName [protected]

String containing the path to the raw datafile

Definition at line 481 of file vDataFile.hh.

int vDataFile::m_dataMode [protected]

Flag indicating if the data is List (=0) or Histogram (=1) mode

Definition at line 483 of file vDataFile.hh.

int vDataFile::m_dataType [protected]

Flag indicating if the data is PET (=0),SPECT (=1) or TRANSMISSION type (=2)

Definition at line 484 of file vDataFile.hh.

FLTNB vDataFile::m_durationInSec [protected]

Duration of the acquisition (s)

Definition at line 486 of file vDataFile.hh.

string vDataFile::m_headerFileName [protected]

String containing the path to the header file

Definition at line 480 of file vDataFile.hh.

bool vDataFile::m_ignorePOIFlag [protected]

Flag to say if we ignore the POI data if present, or not. Default = false

Definition at line 494 of file vDataFile.hh.

int64_t vDataFile::m_lastIdxArrayEvents [protected]

Index of the last event contained in the 'mp_arrayEvents' buffer

Definition at line 506 of file vDataFile.hh.

int64_t vDataFile::m_mpi1stEvent [protected]

First index managed by this MPI instance

Definition at line 502 of file vDataFile.hh.

int64_t vDataFile::m_mpiLastEvent [protected]

Last index (included) managed by this MPI instance

Definition at line 503 of file vDataFile.hh.

int64_t vDataFile::m_mpiNbEvents [protected]

Number of events managed by this MPI instance

Definition at line 504 of file vDataFile.hh.

int vDataFile::m_percentageLoad [protected]

Percentage of the data file that is loaded

Definition at line 508 of file vDataFile.hh.

bool vDataFile::m_POIInfoFlag [protected]

Flag to say if POI information is included in the datafile for each event

Definition at line 493 of file vDataFile.hh.

bool vDataFile::m_requestBufferFilling [protected]

The first thread is requesting and waiting to fill the buffer

Definition at line 509 of file vDataFile.hh.

string vDataFile::m_scannerName [protected]

Scanner name

Definition at line 490 of file vDataFile.hh.

int64_t vDataFile::m_sizeArrayEvents [protected]

Size of the 'mp_arrayEvents' buffer

Definition at line 507 of file vDataFile.hh.

int64_t vDataFile::m_sizeEvent [protected]

Size of an event in the datafile (calculated from mandatory and optional fields)

Definition at line 489 of file vDataFile.hh.

FLTNB vDataFile::m_startTimeInSec [protected]

Start time of the acquisition (s)

Definition at line 485 of file vDataFile.hh.

int64_t vDataFile::m_totalNbEvents [protected]

Total number of events in the raw data

Definition at line 482 of file vDataFile.hh.

int vDataFile::m_verbose [protected]

Verbosity

Definition at line 476 of file vDataFile.hh.

char* vDataFile::mp_arrayEvents [protected]

Buffer used to store parts of, or the entire, raw data file. Its size depends of 'm_sizeArrayEvents'

Definition at line 500 of file vDataFile.hh.

bool* vDataFile::mp_currentlyReadingBuffer [protected]

One bool per thread (except first thread), saying that the thread is currently reading from the file buffer

Definition at line 511 of file vDataFile.hh.

oImageDimensionsAndQuantification* vDataFile::mp_ID [protected]

Pointer to the oImageDimensionsAndQuantification object

Definition at line 475 of file vDataFile.hh.

int64_t* vDataFile::mp_nbEventsReadFromFile [protected]

Counters of how many events were read directly from file, one for each thread

Definition at line 513 of file vDataFile.hh.

bool* vDataFile::mp_overBufferRange [protected]

One bool per thread (except first thread), saying that the thread is currently under the buffer range or not

Definition at line 512 of file vDataFile.hh.

bool vDataFile::mp_POIDirectionFlag[3] [protected]

Flag to say which direction is included in the POI for each event; radial, tangential and axial

Definition at line 495 of file vDataFile.hh.

FLTNB vDataFile::mp_POIResolution[3] [protected]

POI resolution (position of interaction) for each direction: radial, tangential and axial

Definition at line 496 of file vDataFile.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
