This class is a child of the vDynamicModel class implementing a template squeleton. More...

#include <iDynamicModelTemplate.hh>

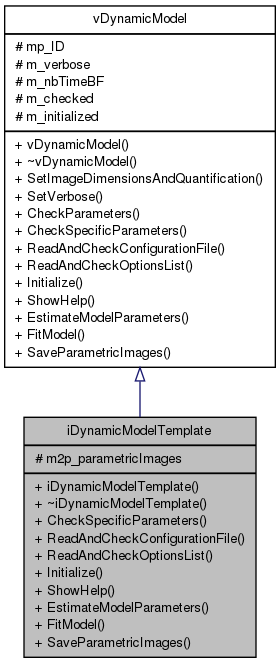

Inheritance diagram for iDynamicModelTemplate:

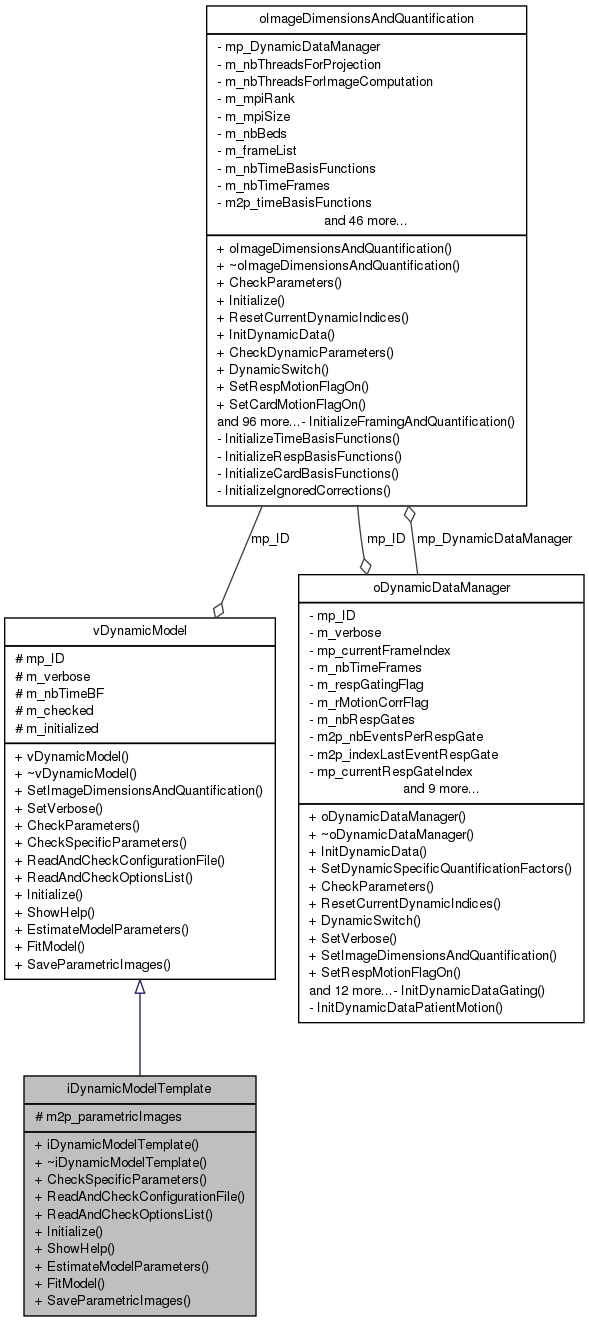

Collaboration diagram for iDynamicModelTemplate:

Public Member Functions
	iDynamicModelTemplate ()
	Constructor of iDynamicModelTemplate. Simply set all data members to default values.
	~iDynamicModelTemplate ()
	Destructor of iDynamicModelTemplate.
int	CheckSpecificParameters ()
	This function is used to check whether all member variables have been correctly initialized or not.
int	ReadAndCheckConfigurationFile (string a_fileOptions)
	This function is used to read options from a configuration file.
int	ReadAndCheckOptionsList (string a_listOptions)
	This function is used to read parameters from a string.
int	Initialize ()
	This function is used to initialize Patlak parametric images and basis functions.
void	ShowHelp ()
	This function is used to print out specific help about the deformation model and its options.
int	EstimateModelParameters (oImageSpace *ap_Image, int a_ite, int a_sset)
	Estimate Patlak parametric images.
int	FitModel (oImageSpace *ap_Image, int a_ite, int a_sset)
	Estimate image using Patlak parametric images and basis functions.
int	SaveParametricImages (int a_iteration)
	Write parametric images on disk.
Protected Attributes
FLTNB **	m2p_parametricImages

Detailed Description

This class is a child of the vDynamicModel class implementing a template squeleton.

Use this class to implement your own custom deformation model.

Definition at line 24 of file iDynamicModelTemplate.hh.

Constructor & Destructor Documentation

iDynamicModelTemplate::iDynamicModelTemplate ( )

Constructor of iDynamicModelTemplate. Simply set all data members to default values.

Definition at line 29 of file iDynamicModelTemplate.cc.

iDynamicModelTemplate::~iDynamicModelTemplate ( )

Destructor of iDynamicModelTemplate.

Definition at line 46 of file iDynamicModelTemplate.cc.

Member Function Documentation

int iDynamicModelTemplate::CheckSpecificParameters ( ) [virtual]

This function is used to check whether all member variables have been correctly initialized or not.

Returns:: 0 if success, positive value otherwise.

Implements vDynamicModel.

Definition at line 134 of file iDynamicModelTemplate.cc.

int iDynamicModelTemplate::EstimateModelParameters	(	oImageSpace *	ap_Image,
		int	a_ite,
		int	a_sset
	)		`[virtual]`

Estimate Patlak parametric images.

Parameters:

ap_ImageS	: pointer to the ImageSpace
a_ite	: index of the actual iteration (not used)
a_sset	: index of the actual subset (not used)

Returns:: 0 if success, other value otherwise.

Implements vDynamicModel.

Definition at line 197 of file iDynamicModelTemplate.cc.

Here is the call graph for this function:

int iDynamicModelTemplate::FitModel	(	oImageSpace *	ap_Image,
		int	a_ite,
		int	a_sset
	)		`[virtual]`

Estimate image using Patlak parametric images and basis functions.

Parameters:

ap_ImageS	: pointer to the ImageSpace
a_ite	: index of the actual iteration (not used)
a_sset	: index of the actual subset (not used)

Returns:: 0 if success, other value otherwise.

Implements vDynamicModel.

Definition at line 254 of file iDynamicModelTemplate.cc.

Here is the call graph for this function:

int iDynamicModelTemplate::Initialize ( ) [virtual]

This function is used to initialize Patlak parametric images and basis functions.

Returns:: 0 if success, other value otherwise.

Implements vDynamicModel.

Definition at line 159 of file iDynamicModelTemplate.cc.

int iDynamicModelTemplate::ReadAndCheckConfigurationFile ( string a_fileOptions ) [virtual]

This function is used to read options from a configuration file.

Parameters:

a_configurationFile : ASCII file containing informations about a dynamic model

Returns:: 0 if success, other value otherwise.

Implements vDynamicModel.

Definition at line 83 of file iDynamicModelTemplate.cc.

int iDynamicModelTemplate::ReadAndCheckOptionsList ( string a_listOptions ) [virtual]

This function is used to read parameters from a string.

Parameters:

a_optionsList : a list of parameters separated by commas

Returns:: 0 if success, other value otherwise.

Implements vDynamicModel.

Definition at line 109 of file iDynamicModelTemplate.cc.

int iDynamicModelTemplate::SaveParametricImages ( int a_iteration ) [virtual]

Write parametric images on disk.

Parameters:

a_ite : index of the actual iteration

Returns:: 0 if success, other value otherwise.

Implements vDynamicModel.

Definition at line 313 of file iDynamicModelTemplate.cc.

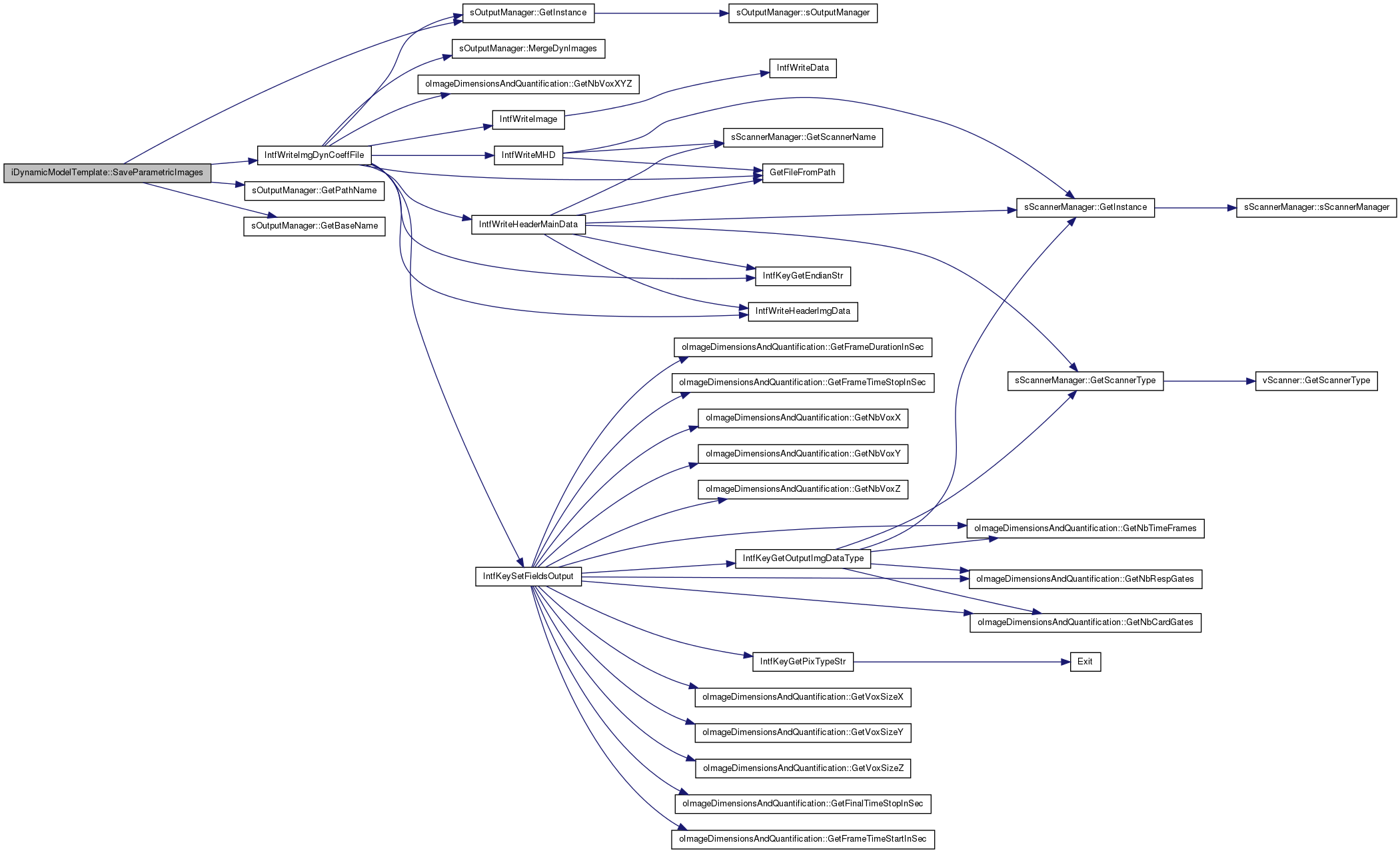

Here is the call graph for this function:

void iDynamicModelTemplate::ShowHelp ( ) [virtual]

This function is used to print out specific help about the deformation model and its options.

Implements vDynamicModel.

Definition at line 62 of file iDynamicModelTemplate.cc.

Member Data Documentation

FLTNB** iDynamicModelTemplate::m2p_parametricImages [protected]

2 dimensions (or more if required) array containing parametric image. It must be a 2 dimensions array [nb of basis functions][nb of voxels]

Definition at line 113 of file iDynamicModelTemplate.hh.
