This class holds all the matrices in the image domain that can be used in the algorithm: image, forward-image, correction, additional image, sensitivity image. More...

#include <oImageSpace.hh>

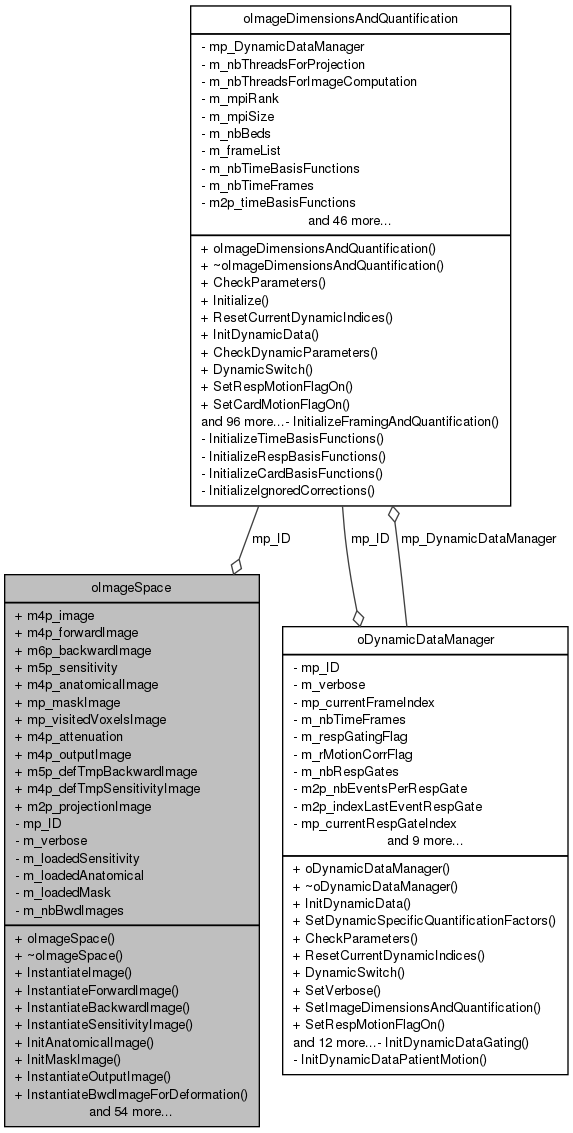

Collaboration diagram for oImageSpace:

[legend]

List of all members.

Public Member Functions
	oImageSpace ()
	oImageSpace constructor. Initialize the member variables to their default values.
	~oImageSpace ()
	oImageSpace destructor.

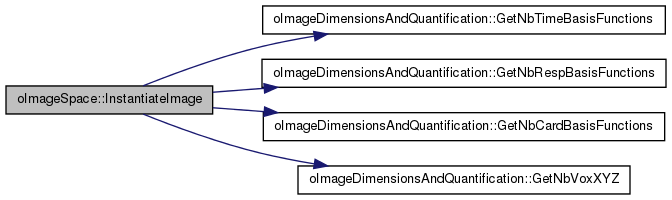

void	InstantiateImage ()
	Allocate memory for the main image matrices.

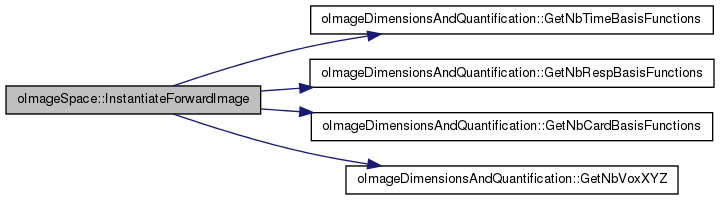

void	InstantiateForwardImage ()
	Allocate memory for the forward image matrices.

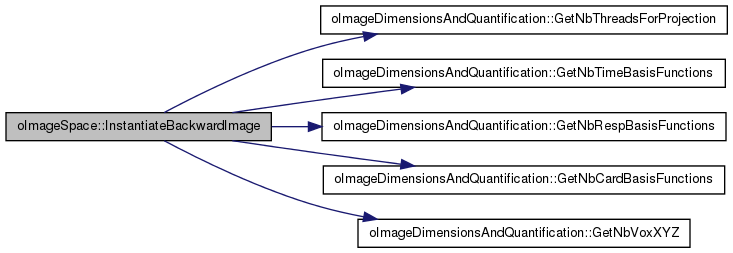

void	InstantiateBackwardImage (int a_nbBackwardImages)
	Allocate memory for the backward image matrices and set the number of backward images for the whole class.

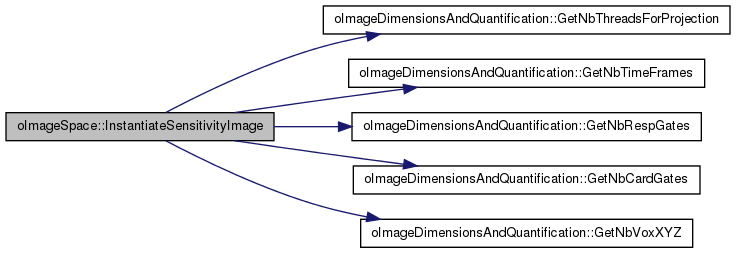

void	InstantiateSensitivityImage (const string &a_pathToSensitivityImage)
	Initialize the sensitivity image matrices.

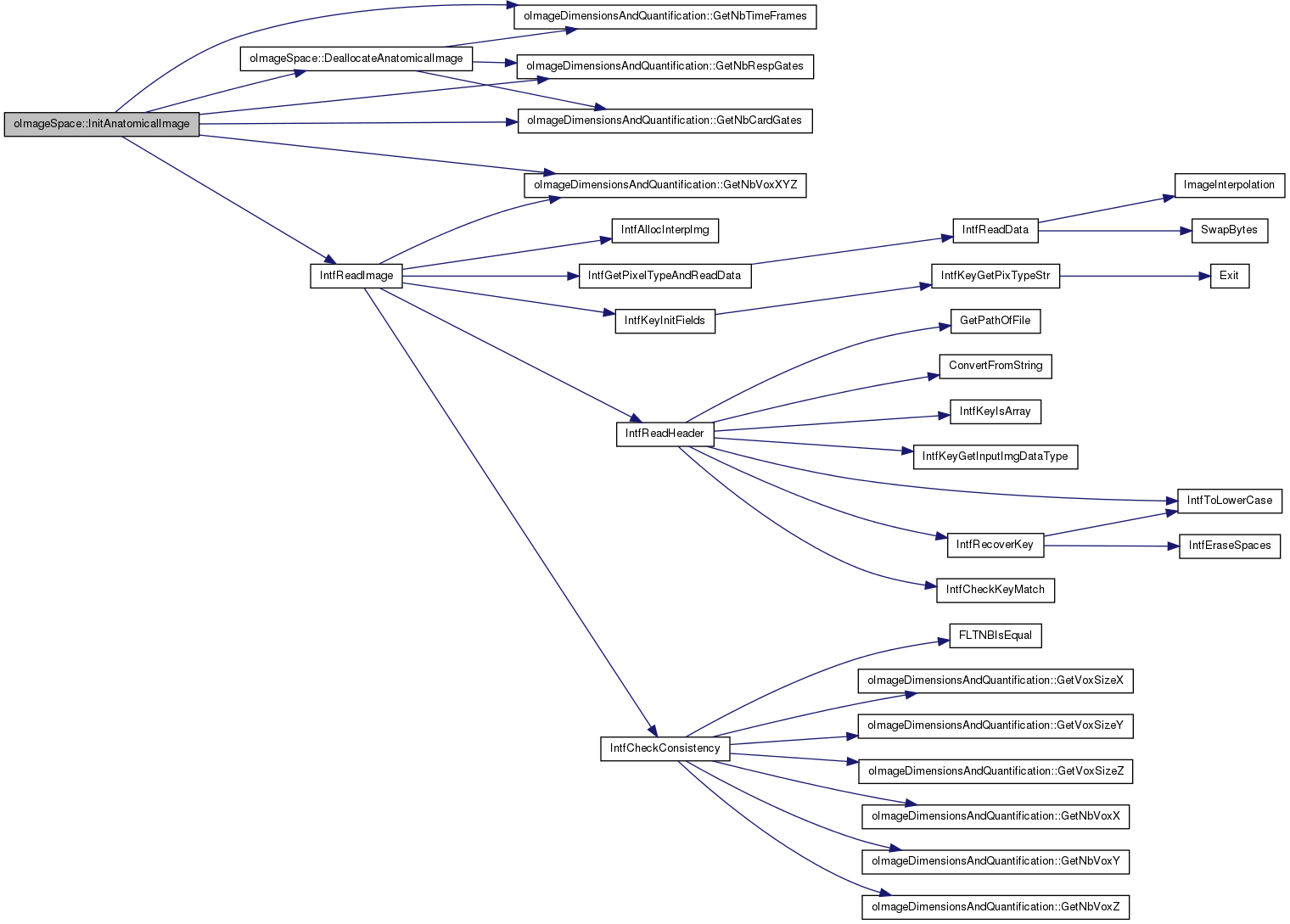

int	InitAnatomicalImage (const string &a_pathToAnatomicalImage)
	Memory allocation and Initialization for the anatomical image matrices.

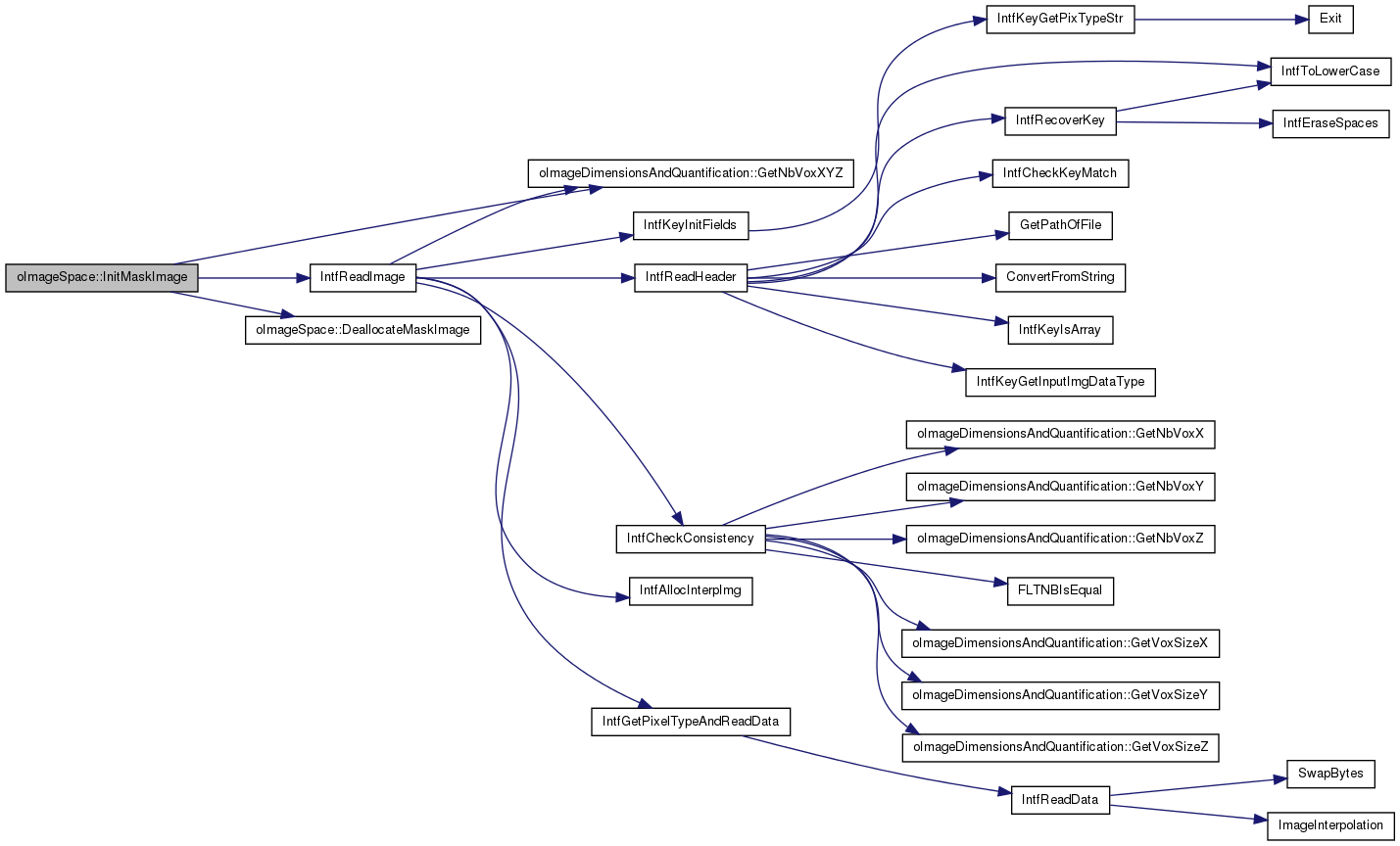

int	InitMaskImage (const string &a_pathToImage)
	Memory allocation and Initialization for the mask image.

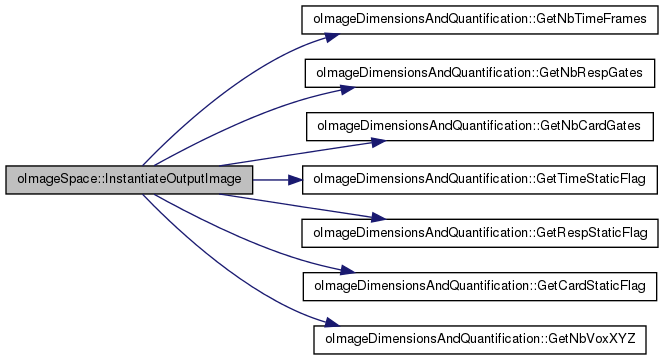

void	InstantiateOutputImage ()
	Instanciate Image matrices dedicated to output writing on disk.

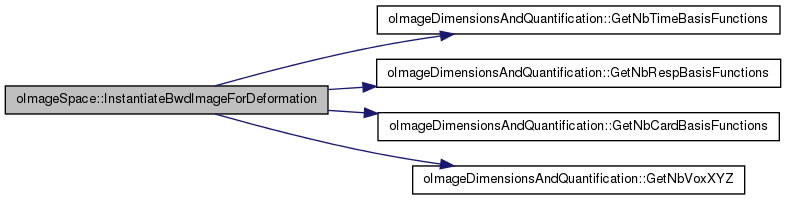

void	InstantiateBwdImageForDeformation ()
	Memory allocation for the buffer backward image required for image-based deformation.

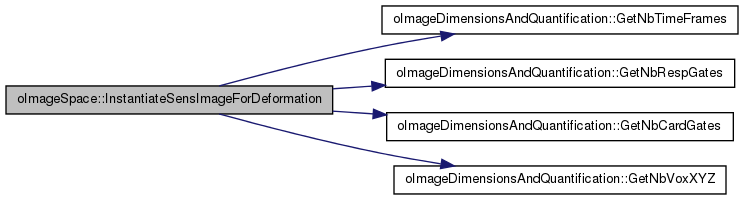

void	InstantiateSensImageForDeformation ()
	Memory allocation for the buffer sensitivity image required for image-based deformation (only for PET HISTOGRAM mode)
void	InstantiateVisitedVoxelsImage ()
	Memory allocation and initialization for the image matrix containing binary information regarding which 3D voxels have been visited during the projection steps.
void	DeallocateImage ()
	Free memory for the main image matrices.
void	DeallocateForwardImage ()
	Free memory for the forward image matrices.
void	DeallocateBackwardImage ()
	Free memory for the backward image matrices.

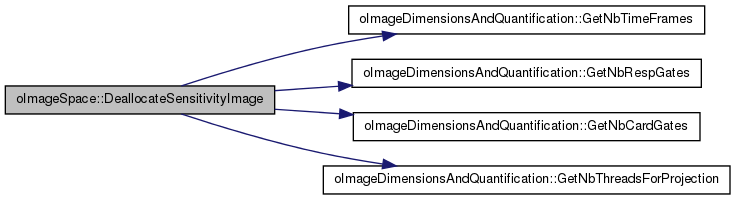

void	DeallocateSensitivityImage ()
void	DeallocateAnatomicalImage ()
	Free memory for the anatomical image.
void	DeallocateMaskImage ()
	Free memory for the mask image.
void	DeallocateBwdImageForDeformation ()
	Free memory for the buffer backward image required for image-based deformation.
void	DeallocateSensImageForDeformation ()
void	DeallocateOutputImage ()
	Free memory for the Image matrices dedicated to output writing on disk.
void	DeallocateVisitedVoxelsImage ()
	Free memory for the image matrix containing binary information regarding which 3D voxels have been visited during the projection steps.

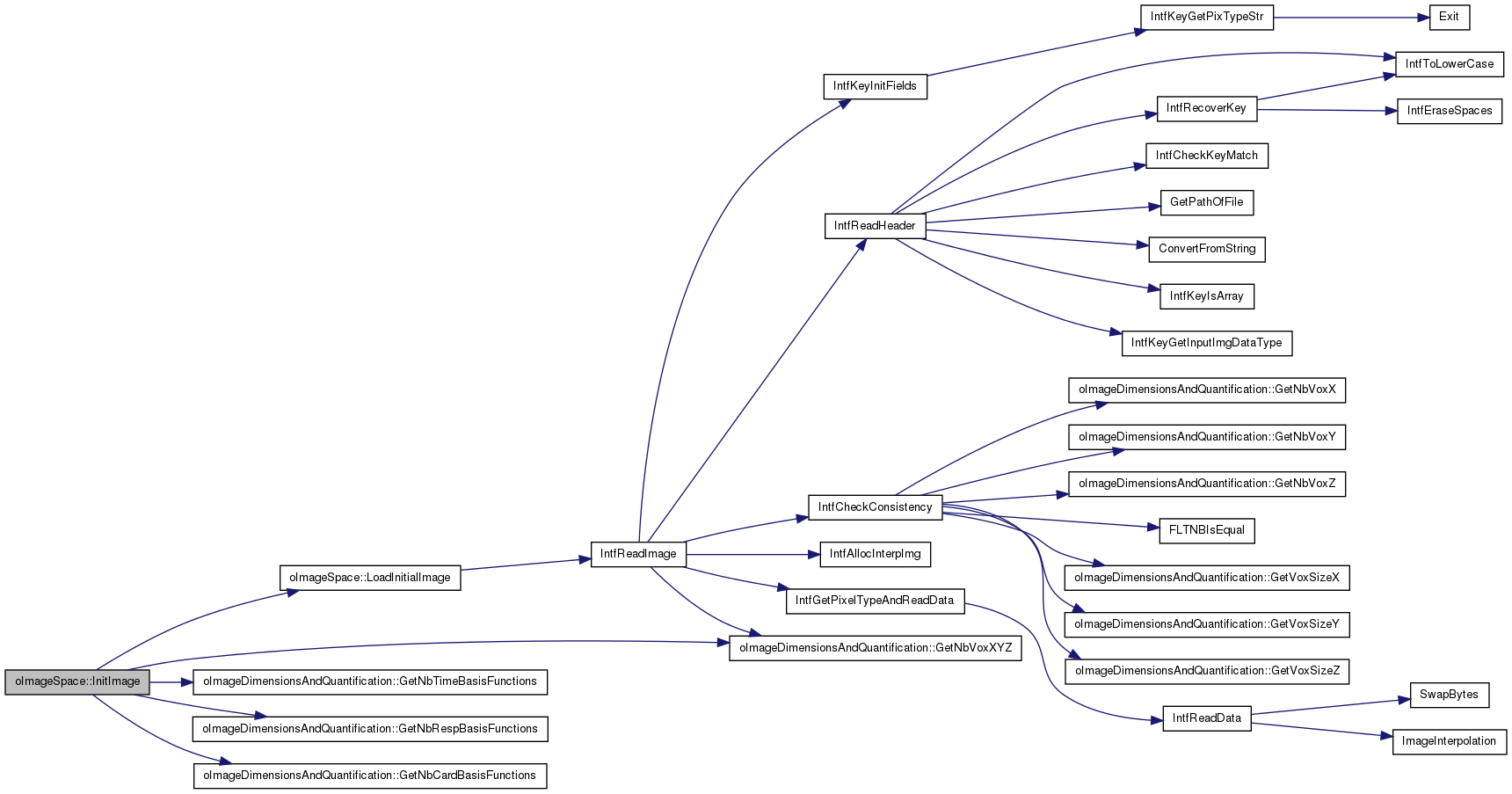

int	InitImage (const string &a_pathToInitialImage, FLTNB a_value)
	Initialize the main image, either using:

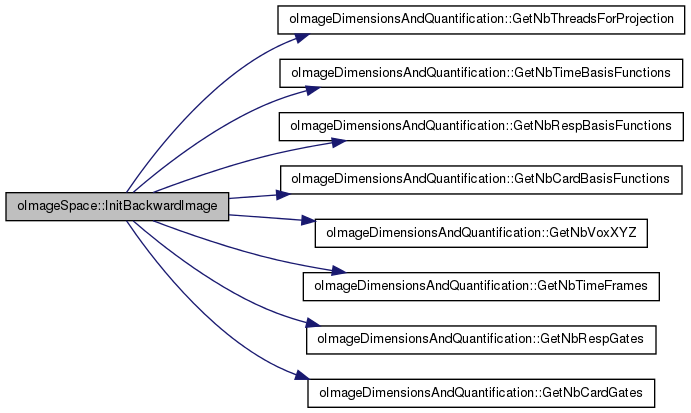

void	InitBackwardImage ()
	Initialize each voxel of the backward images to 0, also for sensitivity if not loaded (estimated on the fly).
int	InitSensitivityImage (const string &a_pathToSensitivityImage)
	Initialization for the sensitivity image matrices.
void	InitBwdImageForDeformation ()
	Initialize the buffer backward image dedicated to image-based deformation.

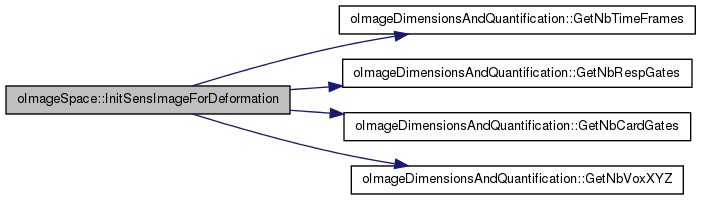

void	InitSensImageForDeformation ()
	Initialize the buffer sensitivity image dedicated to image-based deformation, if required (histogram mode, as sensitivity is not loaded)

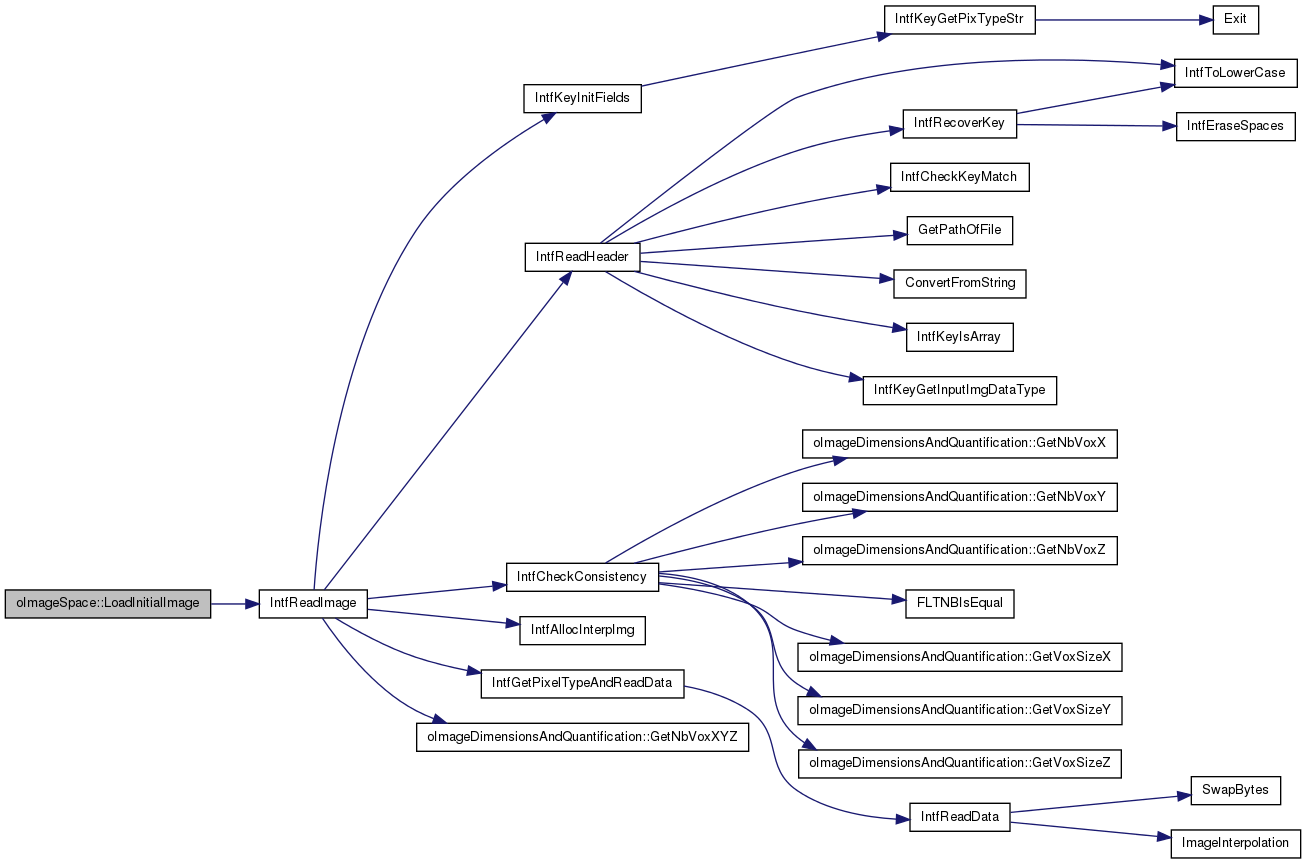

int	LoadInitialImage (const string &a_pathToImage)
	Load the initial image provided by the user in the corresponding matrix.
void	ComputeOutputImage ()
int	ApplyOutputFOVMasking ()
	Mask the outside of the transaxial FOV based on the m_fovOutPercent.
int	ApplyOutputFlip ()
	Just flip the output image.

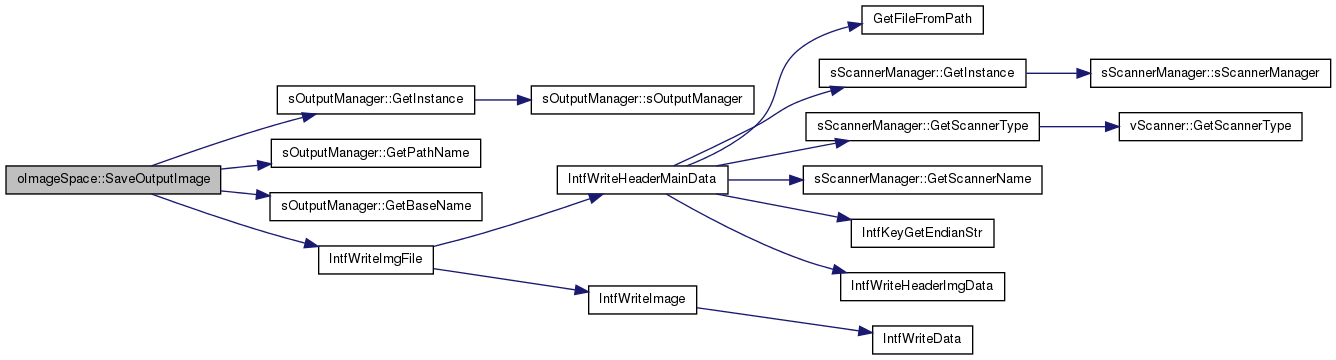

int	SaveOutputImage (int a_iteration, int a_subset=-1)
	Call the interfile function to write output image on disk.
void	SaveDebugImage (const string &a_name)
	Just a debug function dedicated to write any kind of image on disk in raw format, for debugging purposes.

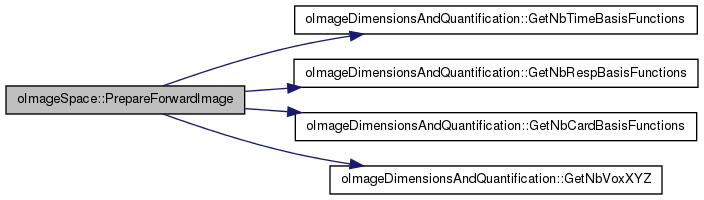

void	PrepareForwardImage ()
	Copy current image matrix in the forward-image buffer matrix.

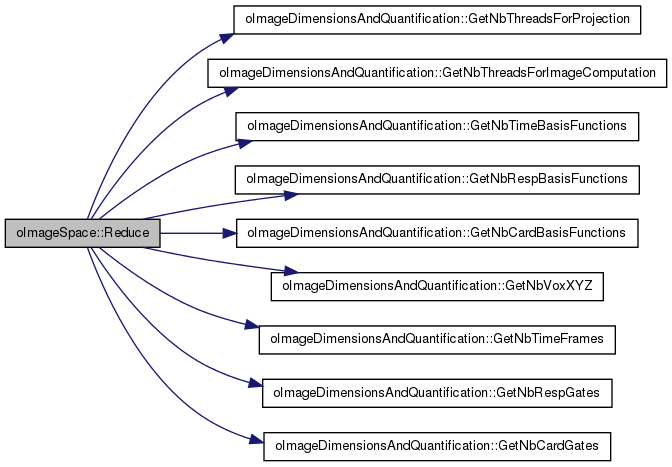

void	Reduce ()
	Merge parallel results into the matrix of the backward image matrix of the first thread. Also for MPI.
void	CleanNeverVisitedVoxels ()
	Based on the visitedVoxelsImage, clean the never visited voxels in the image. This function must be called at the end of each iteration.
void	LMS_InstantiateImage ()
	Allocate memory for the main image matrices (for list-mode sensitivity generation)
void	LMS_InstantiateForwardImage ()
	Allocate memory for the forward image matrices (for list-mode sensitivity generation)

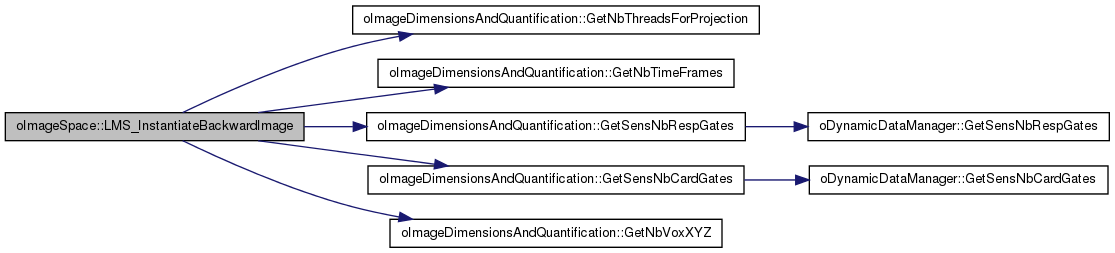

void	LMS_InstantiateBackwardImage ()
	Allocate memory for the backward image matrices and initialize them (for list-mode sensitivity generation)

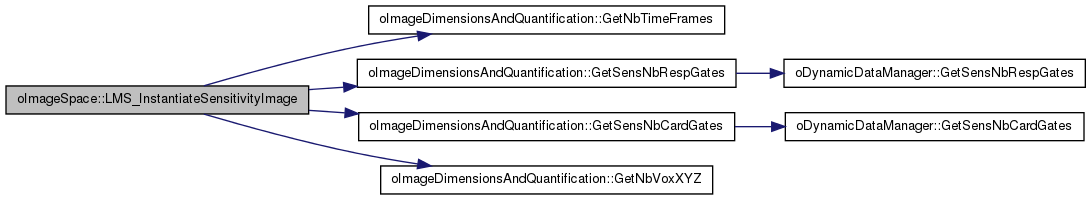

void	LMS_InstantiateSensitivityImage ()
	Allocate memory for the sensitivity image matrices (for list-mode sensitivity generation)

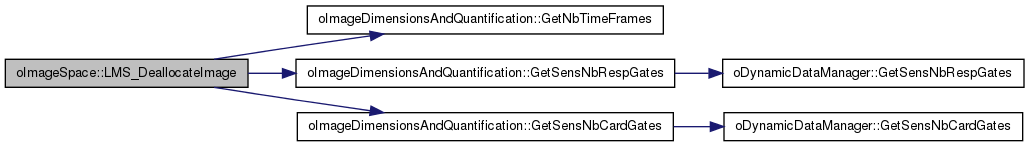

void	LMS_DeallocateImage ()
	Free memory for the main image matrices (for list-mode sensitivity generation)
void	LMS_DeallocateForwardImage ()
	Free memory for the forward image matrices (for list-mode sensitivity generation)
void	LMS_DeallocateBackwardImage ()
	Free memory for the backward image matrices (for list-mode sensitivity generation)
void	LMS_DeallocateSensitivityImage ()
	Free memory for the sensitivity image matrices (for list-mode sensitivity generation)
void	LMS_DeallocateAttenuationImage ()
	Free memory for the Attenuation image matrices (for analytical projection or list-mode sensitivity generation)

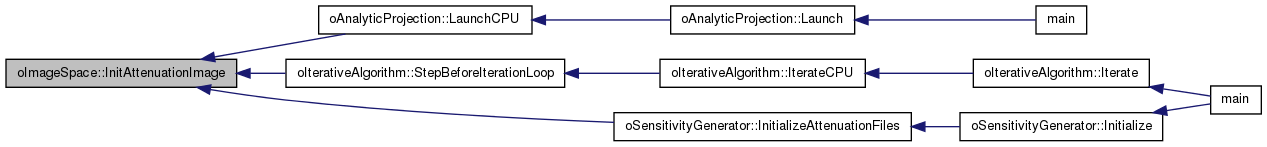

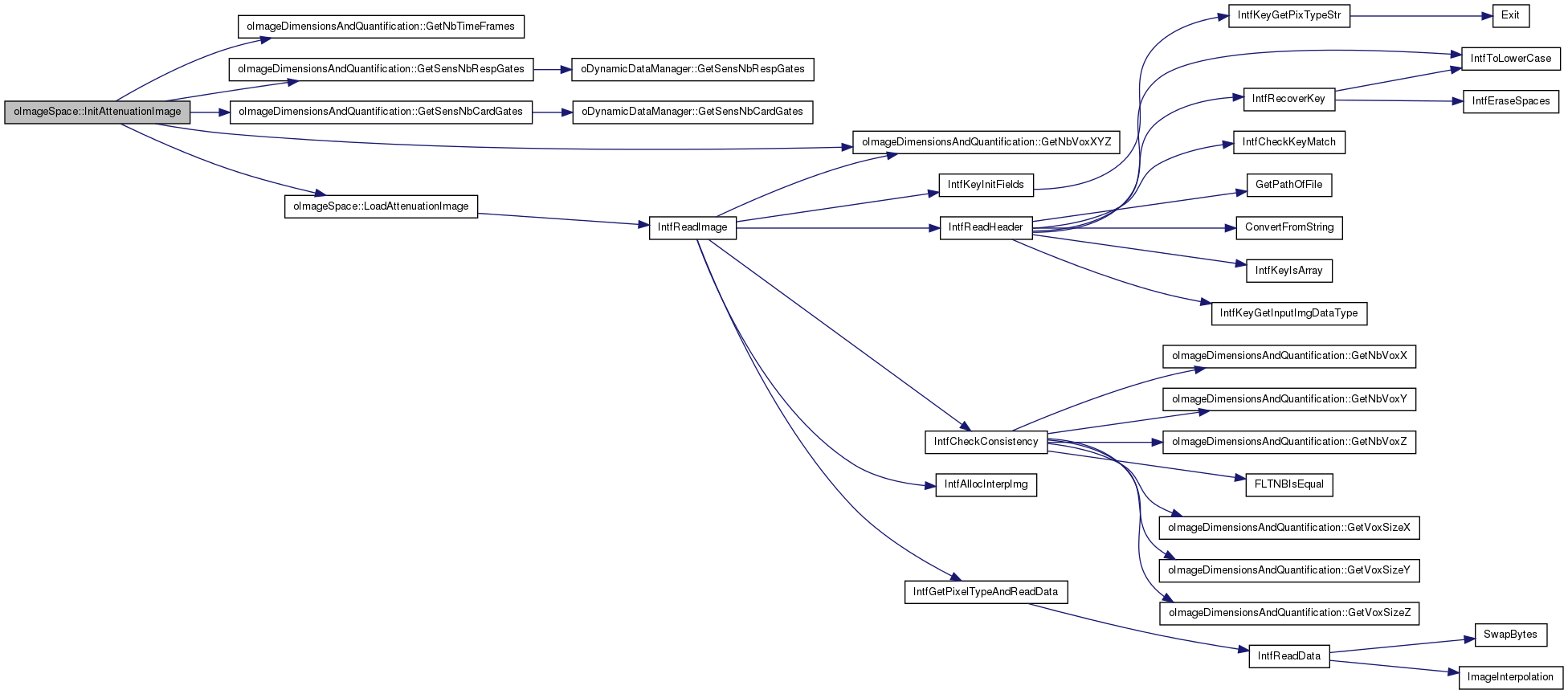

int	InitAttenuationImage (const string &a_pathToAtnImage)
	Memory allocation and initialisation for the attenuation image using either :

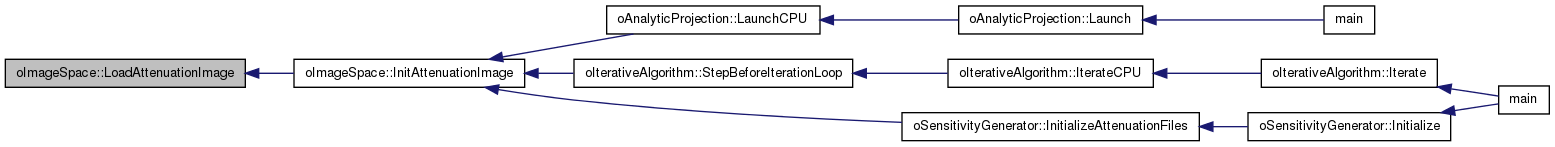

int	LoadAttenuationImage (const string &a_pathToImage)
	Load the attenuation image provided by the user in the m2p_attenuation matrix.

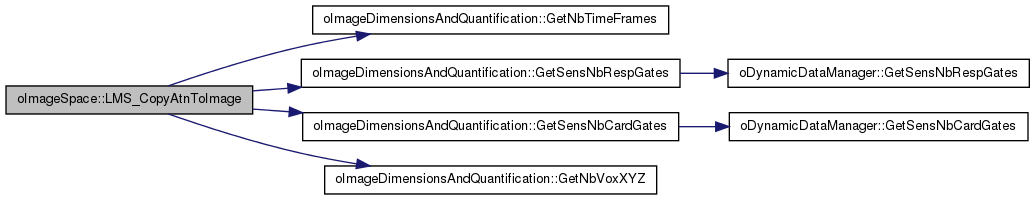

void	LMS_CopyAtnToImage ()
	Copy the attenuation image contained in the 'm2p_attenuation' matrix inside the m2p_image matrix.

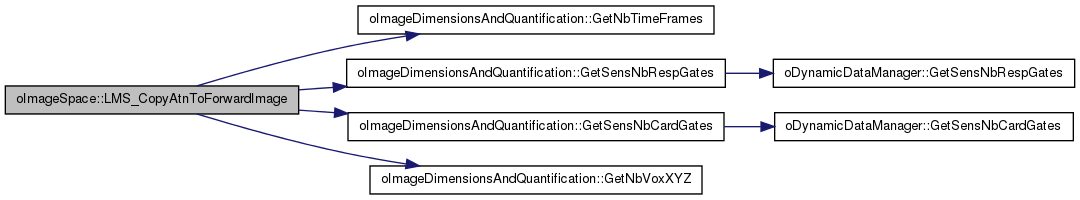

void	LMS_CopyAtnToForwardImage ()
	Copy the attenuation image contained in the 'm2p_attenuation' matrix inside the m4p_forwardImage matrix.

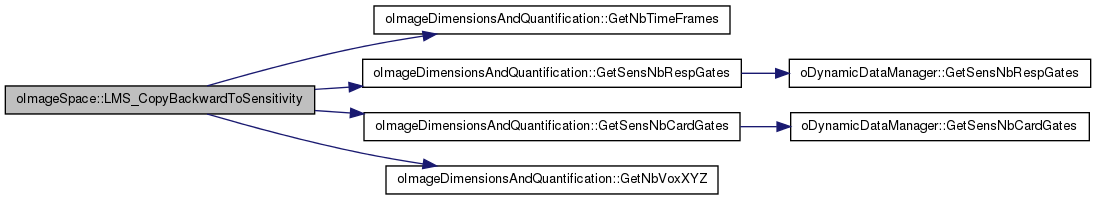

void	LMS_CopyBackwardToSensitivity ()

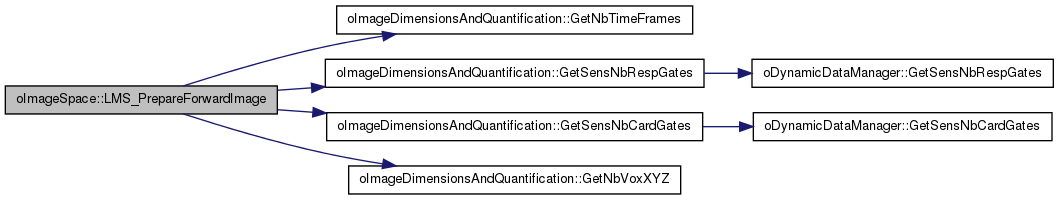

void	LMS_PrepareForwardImage ()
	Copy current image in forward-image buffer (for list-mode sensitivity generation)
void	LMS_Reduce (int a_frame, int a_rGate, int a_cGate)
	Merge parallel results into the matrix of the backward image matrix of the first thread for the specific frame / respiratory gate / cardiac gate (for list-mode sensitivity generation)

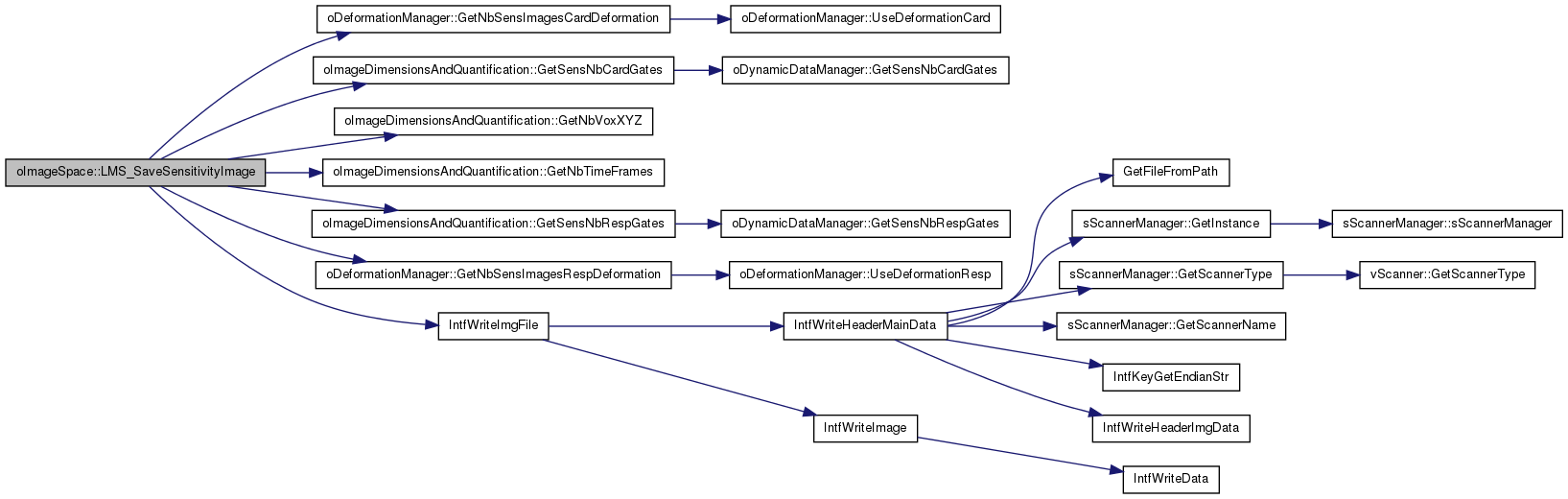

int	LMS_SaveSensitivityImage (const string &a_pathToSensitivityImage, oDeformationManager *ap_DeformationManager)
	Call the interfile function to write the sensitivity image on disk.
void	PROJ_InstantiateProjectionImage (int a_nbProjs, int a_nbPixels)
	Instanciate and initialize projection image for analytical projection.
void	PROJ_DeallocateProjectionImage (int a_nbProjs)
	Free memory for the projection image for analytical projection.
int	PROJ_InitImage (const string &a_pathToInitialImage)
	Load the initial image for the analytical projection.

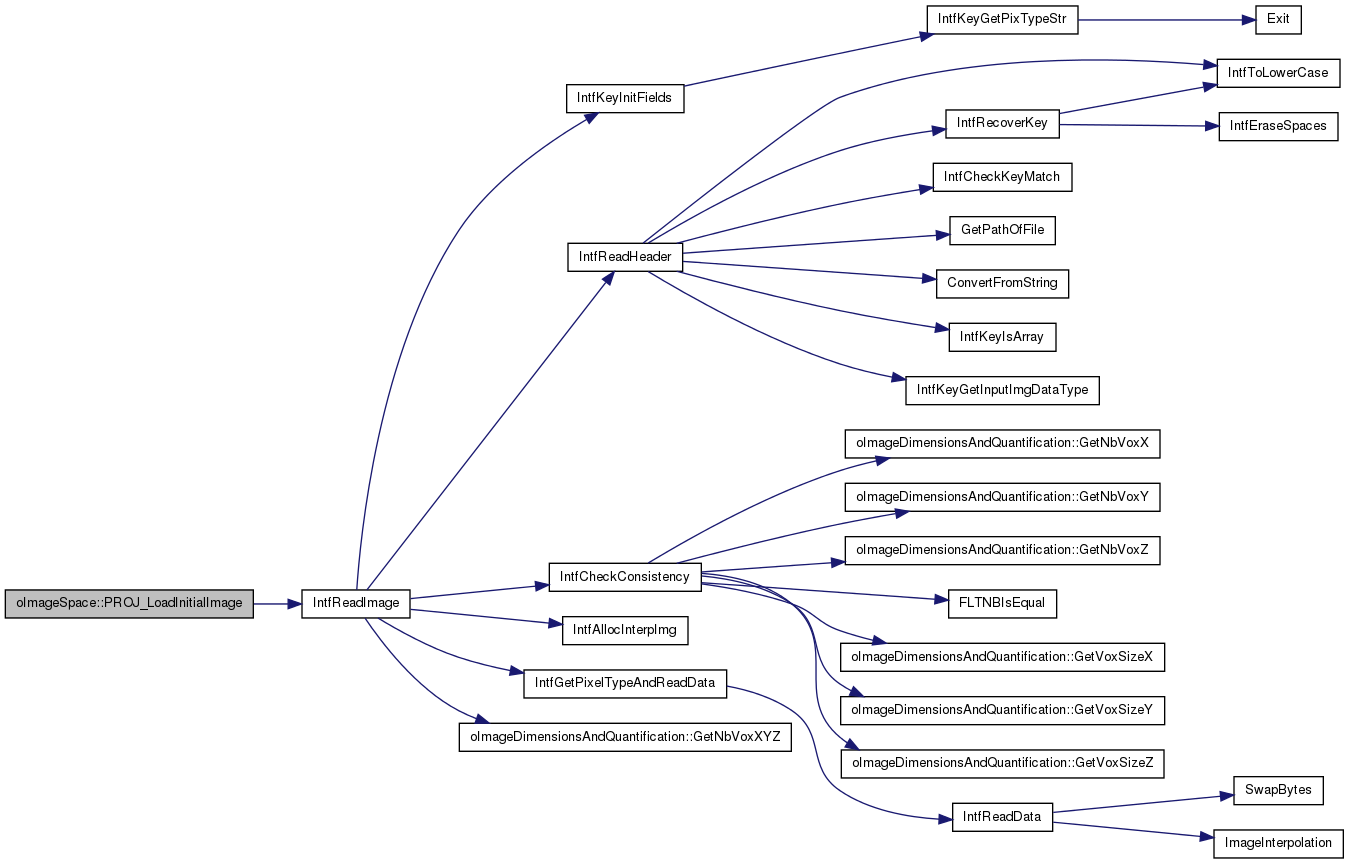

int	PROJ_LoadInitialImage (const string &a_pathToImage)
	Load the initial image for the analytical projection.

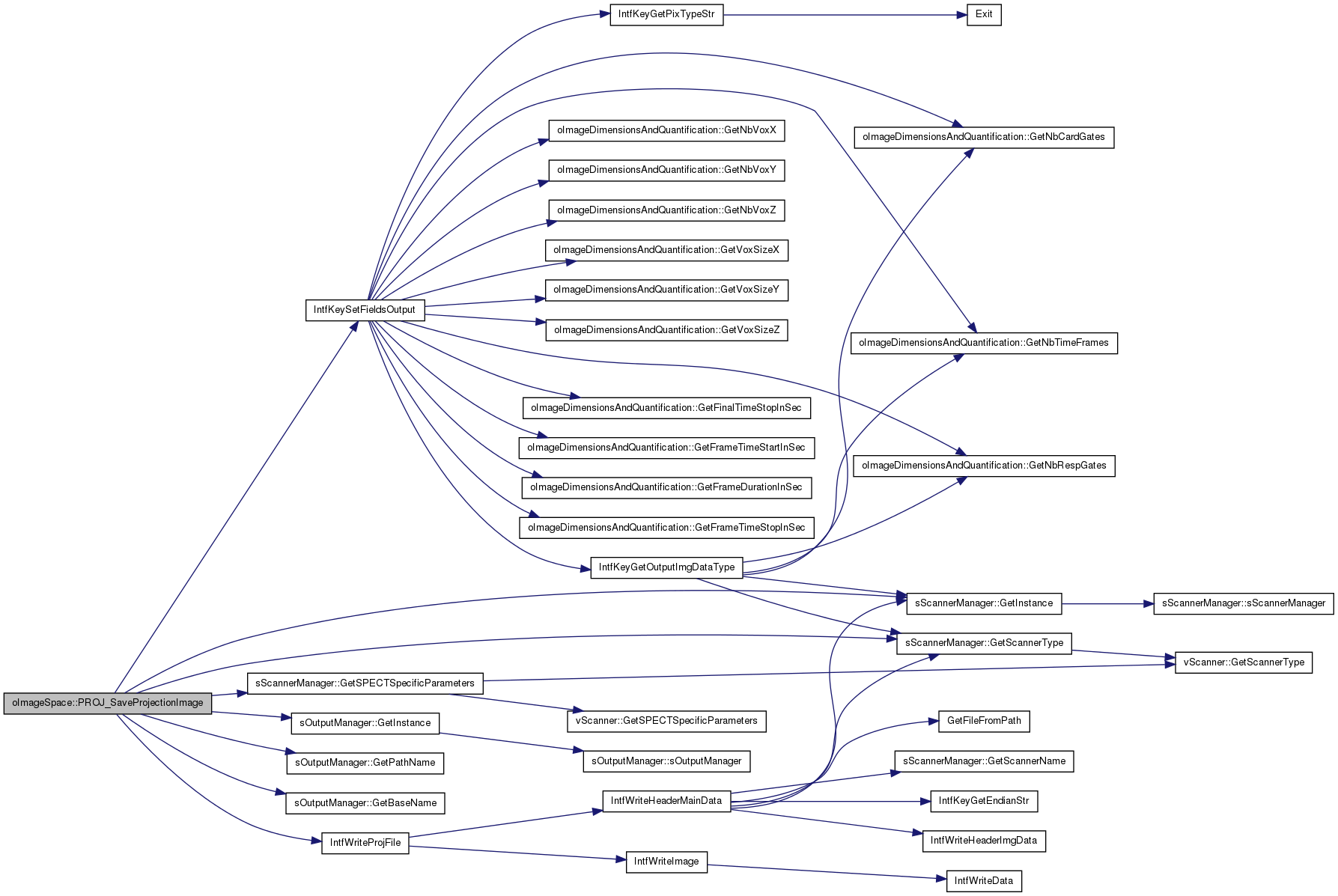

int	PROJ_SaveProjectionImage ()
	Save an image of the projected data (for analytic projection)
void	SetVerbose (int a_verboseLevel)
	set verbosity
void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	set the pointer to the oImageDimensionsAndQuantification object
int	GetNbBackwardImages ()
bool	IsLoadedSensitivity ()
bool	IsLoadedAnatomical ()
bool	IsLoadedMask ()
bool	Checked ()
	Simply check that the image dimensions and verbosity has been set.
Public Attributes
FLTNB ****	m4p_image
FLTNB ****	m4p_forwardImage
FLTNB ******	m6p_backwardImage
FLTNB *****	m5p_sensitivity
FLTNB ****	m4p_anatomicalImage
FLTNB *	mp_maskImage
FLTNB *	mp_visitedVoxelsImage
FLTNB ****	m4p_attenuation
FLTNB ****	m4p_outputImage
FLTNB *****	m5p_defTmpBackwardImage
FLTNB ****	m4p_defTmpSensitivityImage
FLTNB **	m2p_projectionImage
Private Attributes
oImageDimensionsAndQuantification *	mp_ID
int	m_verbose
bool	m_loadedSensitivity
bool	m_loadedAnatomical
bool	m_loadedMask
int	m_nbBwdImages

Detailed Description

This class holds all the matrices in the image domain that can be used in the algorithm: image, forward-image, correction, additional image, sensitivity image.

Image matrices are public and can be directly accessed from each classes.
It also includes many functions for initializating, reseting, or deforming the images.
Mandatory Reconstruction image matrices :
Image: 4 pointers: 1: dynamic frames, 2: respiratory gates, 3: cardiac gates, 4: 3D voxels
ForwardImage: 4 pointers: 1: dynamic frames, 2: respiratory gates, 3: cardiac gates, 4: 3D voxels
BackwardImage: 6 pointers: 1: number of images (for optimizer), 2: threads, 3: dynamic frames, 4: respiratory gates, 5: cardiac gates, 6: 3D voxels
SensitivityImage: 5 pointers: 1: threads, 2: dynamic frames, 3: respiratory gates, 4: cardiac gates, 5: 3D voxels
OutputImage: 4 pointers: 1: dynamic frames, 2: respiratory gates, 3: cardiac gates, 4: 3D voxels
VisitedVoxelsImage: 1 pointer: 1: 3D voxels
Optional Reconstruction image matrices :
AnatomicalImage: 4 pointers: 1: dynamic frames, 2: respiratory gates, 3: cardiac gates, 4: 3D voxels
DefTmpBackwardImage: 6 pointers: 1: number of images (for optimizer), 2: threads, 3: dynamic frames, 4: respiratory gates, 5: cardiac gates, 6: 3D voxels
DefTmpSensitivityImage: 5 pointers: 1: threads, 2: dynamic frames, 3: respiratory gates, 4: cardiac gates, 5: 3D voxels
Projection image matrices :
Attenuation: 4 pointers: 1: dynamic frames, 2: respiratory gates, 3: cardiac gates, 4: 3D voxels:
ProjectionImage: 2 pointers: 1: number of projections, 2: 2D pixels

Definition at line 41 of file oImageSpace.hh.

Constructor & Destructor Documentation

oImageSpace::oImageSpace ( )

oImageSpace constructor. Initialize the member variables to their default values.

Definition at line 31 of file oImageSpace.cc.

oImageSpace::~oImageSpace ( )

oImageSpace destructor.

Definition at line 63 of file oImageSpace.cc.

Member Function Documentation

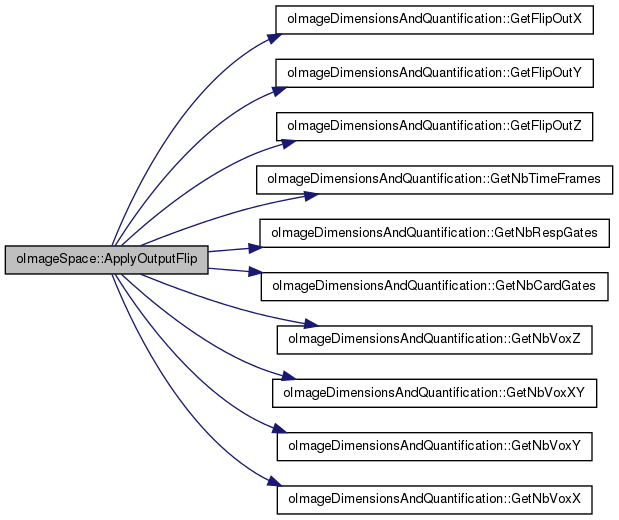

int oImageSpace::ApplyOutputFlip ( )

Just flip the output image.

Do this on m4p_outputImage

Definition at line 1360 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

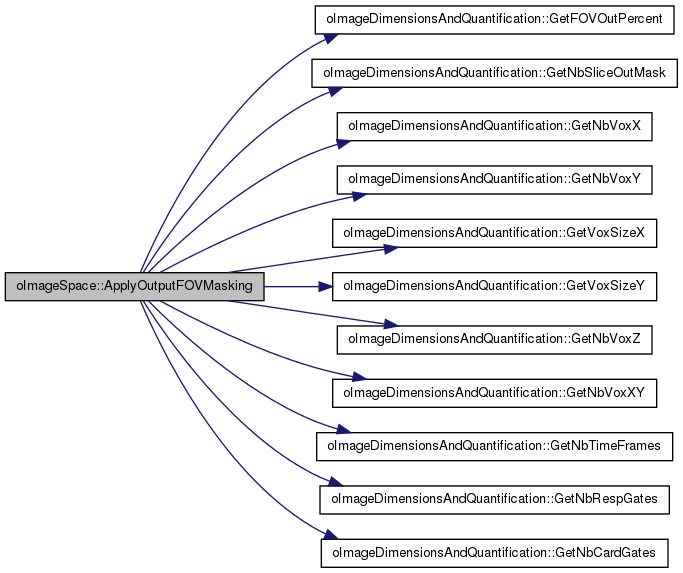

int oImageSpace::ApplyOutputFOVMasking ( )

Mask the outside of the transaxial FOV based on the m_fovOutPercent.

Do this on m4p_outputImage

Definition at line 1485 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

oImageSpace::Checked ( ) [inline]

Simply check that the image dimensions and verbosity has been set.

Returns:: true if image dimensions and verbosity are set

Definition at line 574 of file oImageSpace.hh.

Here is the caller graph for this function:

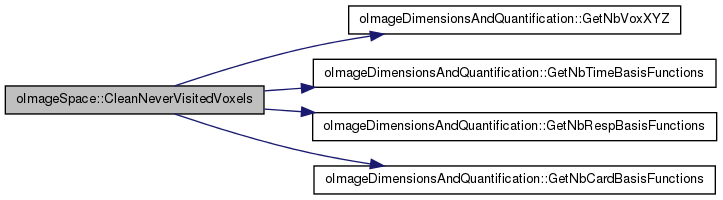

void oImageSpace::CleanNeverVisitedVoxels ( )

Based on the visitedVoxelsImage, clean the never visited voxels in the image. This function must be called at the end of each iteration.

Definition at line 1833 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::ComputeOutputImage ( )

Definition at line 1301 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

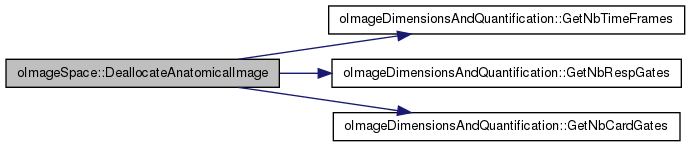

void oImageSpace::DeallocateAnatomicalImage ( )

Free memory for the anatomical image.

Definition at line 522 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

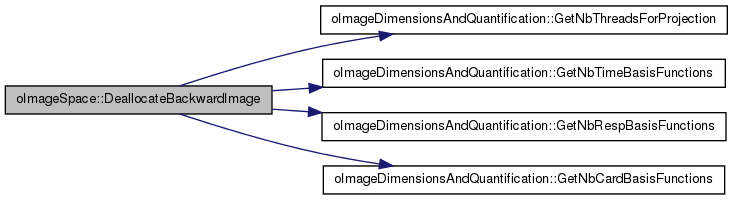

void oImageSpace::DeallocateBackwardImage ( )

Free memory for the backward image matrices.

Definition at line 265 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

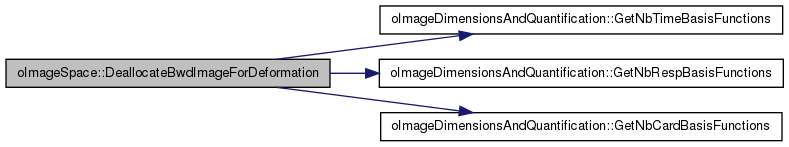

void oImageSpace::DeallocateBwdImageForDeformation ( )

Free memory for the buffer backward image required for image-based deformation.

Free memory for the buffer sensitivity image required for image-based deformation.

Definition at line 774 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

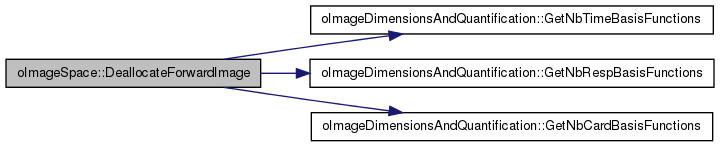

void oImageSpace::DeallocateForwardImage ( )

Free memory for the forward image matrices.

Definition at line 184 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

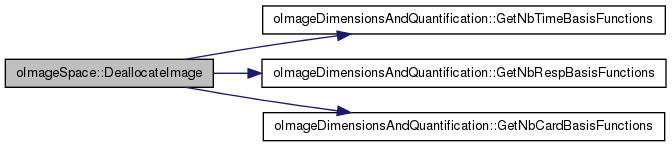

void oImageSpace::DeallocateImage ( )

Free memory for the main image matrices.

Definition at line 114 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::DeallocateMaskImage ( )

Free memory for the mask image.

Definition at line 615 of file oImageSpace.cc.

Here is the caller graph for this function:

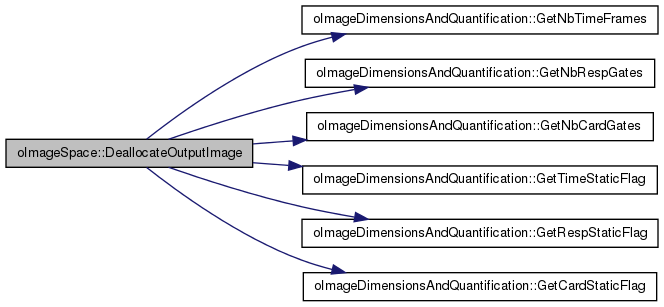

void oImageSpace::DeallocateOutputImage ( )

Free memory for the Image matrices dedicated to output writing on disk.

Definition at line 688 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

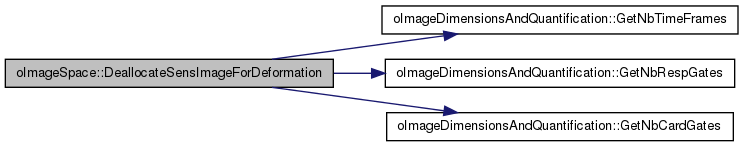

void oImageSpace::DeallocateSensImageForDeformation ( )

Definition at line 839 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::DeallocateSensitivityImage ( )

Definition at line 394 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::DeallocateVisitedVoxelsImage ( )

Free memory for the image matrix containing binary information regarding which 3D voxels have been visited during the projection steps.

Definition at line 889 of file oImageSpace.cc.

Here is the caller graph for this function:

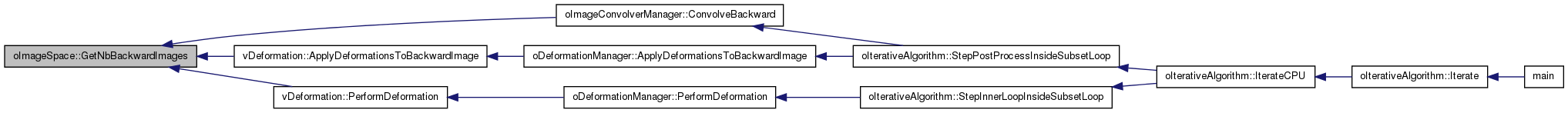

oImageSpace::GetNbBackwardImages ( ) [inline]

Returns:: the number of backward images required for the selected optimizer

Definition at line 549 of file oImageSpace.hh.

Here is the caller graph for this function:

int oImageSpace::InitAnatomicalImage ( const string & a_pathToAnatomicalImage )

Memory allocation and Initialization for the anatomical image matrices.

Parameters:

a_pathToAnatomicalImage : path to the anatomical image

Nothing is performed if the path provided in parameter is empty

Returns:: 0 if success, positive value otherwise

Definition at line 454 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageSpace::InitAttenuationImage ( const string & a_pathToAtnImage )

Memory allocation and initialisation for the attenuation image using either :

Parameters:

a_pathToAtnImage

: path to an existing image

an image provided by the user (a_pathToAtnImage or a_pathToCTImage)
the default value (=a_value)

Returns:: 0 if success, positive value otherwise

Definition at line 943 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::InitBackwardImage ( )

Initialize each voxel of the backward images to 0, also for sensitivity if not loaded (estimated on the fly).

Definition at line 1128 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

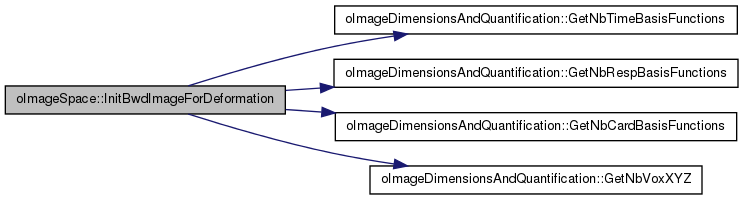

void oImageSpace::InitBwdImageForDeformation ( )

Initialize the buffer backward image dedicated to image-based deformation.

this function is used by the vDeformation class, in order to reset the backward image after its content has been recovered in the buffer backward image (typically, after a deformation step)

Definition at line 1250 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageSpace::InitImage	(	const string &	a_pathToInitialImage,
		FLTNB	a_value
	)

Initialize the main image, either using:

Parameters:

a_pathToInitialImage	: path to an existing image
a_value	: value to initialize each voxel with, if an input image is not provided an existing image at path 'a_pathToInitialImage' initialize each voxel with 'a_value'.

Returns:: 0 if success, positive value otherwise

Definition at line 1052 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageSpace::InitMaskImage ( const string & a_pathToImage )

Memory allocation and Initialization for the mask image.

Parameters:

a_pathToImage : path to the mask image

Nothing is performed if the path provided in parameter is empty

Returns:: 0 if success, positive value otherwise

Definition at line 559 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::InitSensImageForDeformation ( )

Initialize the buffer sensitivity image dedicated to image-based deformation, if required (histogram mode, as sensitivity is not loaded)

Definition at line 1274 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageSpace::InitSensitivityImage ( const string & a_pathToSensitivityImage )

Initialization for the sensitivity image matrices.

Parameters:

a_pathToSensitivityImage : path to the sensitivity image (should be provided only in list-mode reconstruction)

Sensitivity image initialization depends on the reconstruction mode :

list-mode: Sensitivity image has been computed before reconstruction, it is loaded from the path provided in parameter
histogram: Sensitivity image is calculated on the fly during reconstruction. First dimension (thread) is only used in histogram mode, as the on-the-fly sensitivity image computation must be thread safe
Returns:
0 if success, positive value otherwise

Definition at line 1180 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::InstantiateBackwardImage ( int a_nbBackwardImages )

Allocate memory for the backward image matrices and set the number of backward images for the whole class.

Parameters:

a_nbBackwardImages : number of backward images required for the optimization algorithm

Definition at line 218 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::InstantiateBwdImageForDeformation ( )

Memory allocation for the buffer backward image required for image-based deformation.

Definition at line 735 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::InstantiateForwardImage ( )

Allocate memory for the forward image matrices.

Definition at line 147 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::InstantiateImage ( )

Allocate memory for the main image matrices.

Definition at line 76 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::InstantiateOutputImage ( )

Instanciate Image matrices dedicated to output writing on disk.

Compute output image using the m4p_image matrix and the time/respiratory/cardiac basis functions. Store the result in the m4p_outputImage matrix.

Additionnal output image matrix is needed if the reconstruction uses intrinsic temporal basis functions In this case, the image matrices are defined in the temporal image basis functions space, therefore requiring an additional step to recover the images in the regular image-space. If no intrinsic temporal basis functions are used, m4p_outputImage just refers to the address of the image matrix containing the regular image.

If time/respiratory/cardiac basis functions have been initialized, this function has no effect.

Definition at line 641 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::InstantiateSensImageForDeformation ( )

Memory allocation for the buffer sensitivity image required for image-based deformation (only for PET HISTOGRAM mode)

Definition at line 810 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::InstantiateSensitivityImage ( const string & a_pathToSensitivityImage )

Initialize the sensitivity image matrices.

Free memory for the sensitivity image matrices.

Parameters:

a_pathToSensitivityImage : path to the sensitivity image

Sensitivity image initialization depends on the reconstruction mode :

list-mode: Sensitivity image has been computed before reconstruction, it is loaded from the path provided in parameter
histogram: Sensitivity image is calculated on the fly during reconstruction. First dimension (thread) is only used in histogram mode, as the on-the-fly sensitivity image computation must be thread safe
Returns:
0 if success, positive value otherwise

Parameters:

a_pathToSensitivityImage : path to the sensitivity image (should be provided only in list-mode reconstruction)

Sensitivity image deallocation depends on the reconstruction mode (multithreaded in histogram but not in list-mode)

Definition at line 315 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::InstantiateVisitedVoxelsImage ( )

Memory allocation and initialization for the image matrix containing binary information regarding which 3D voxels have been visited during the projection steps.

Definition at line 869 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

oImageSpace::IsLoadedAnatomical ( ) [inline]

Returns:: boolean indicating if an anatomical image has been loaded (true) or not (false)

Definition at line 561 of file oImageSpace.hh.

oImageSpace::IsLoadedMask ( ) [inline]

Returns:: boolean indicating if a mask image has been loaded (true) or not (false)

Definition at line 567 of file oImageSpace.hh.

oImageSpace::IsLoadedSensitivity ( ) [inline]

Returns:: boolean indicating if the sensitivity is preloaded for the reconstruction (true) or computed on the fly (false)

Definition at line 555 of file oImageSpace.hh.

Here is the caller graph for this function:

void oImageSpace::LMS_CopyAtnToForwardImage ( )

Copy the attenuation image contained in the 'm2p_attenuation' matrix inside the m4p_forwardImage matrix.

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 2180 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::LMS_CopyAtnToImage ( )

Copy the attenuation image contained in the 'm2p_attenuation' matrix inside the m2p_image matrix.

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 2156 of file oImageSpace.cc.

Here is the call graph for this function:

void oImageSpace::LMS_CopyBackwardToSensitivity ( )

Definition at line 2203 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

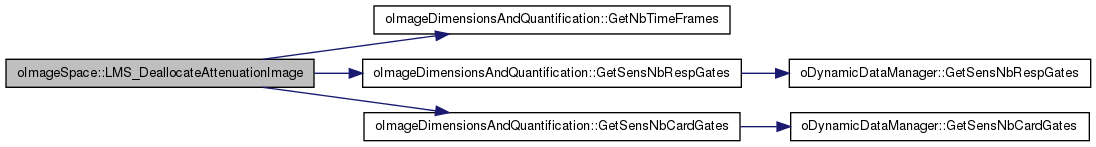

void oImageSpace::LMS_DeallocateAttenuationImage ( )

Free memory for the Attenuation image matrices (for analytical projection or list-mode sensitivity generation)

Definition at line 908 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

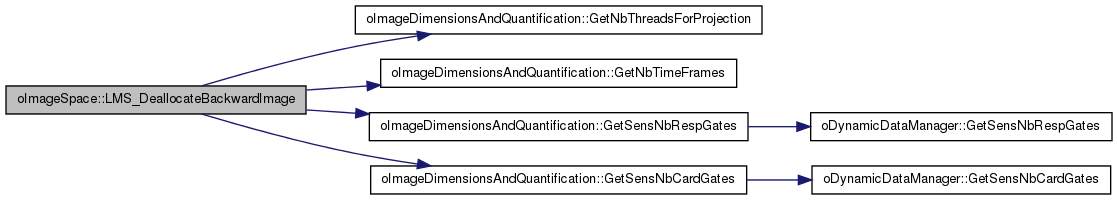

void oImageSpace::LMS_DeallocateBackwardImage ( )

Free memory for the backward image matrices (for list-mode sensitivity generation)

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 2053 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::LMS_DeallocateForwardImage ( )

Free memory for the forward image matrices (for list-mode sensitivity generation)

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 1971 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::LMS_DeallocateImage ( )

Free memory for the main image matrices (for list-mode sensitivity generation)

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 1906 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::LMS_DeallocateSensitivityImage ( )

Free memory for the sensitivity image matrices (for list-mode sensitivity generation)

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 2122 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::LMS_InstantiateBackwardImage ( )

Allocate memory for the backward image matrices and initialize them (for list-mode sensitivity generation)

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 2006 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

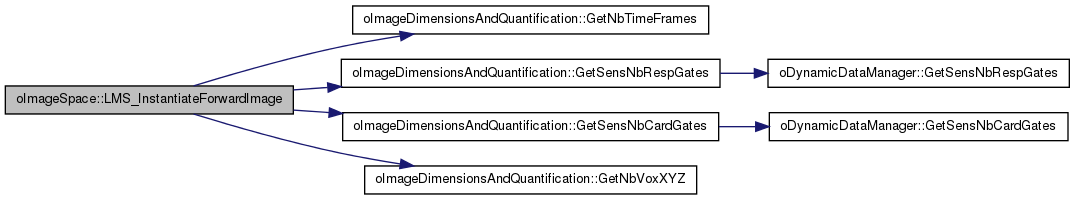

void oImageSpace::LMS_InstantiateForwardImage ( )

Allocate memory for the forward image matrices (for list-mode sensitivity generation)

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 1937 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::LMS_InstantiateImage ( )

Allocate memory for the main image matrices (for list-mode sensitivity generation)

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 1874 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::LMS_InstantiateSensitivityImage ( )

Allocate memory for the sensitivity image matrices (for list-mode sensitivity generation)

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 2092 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::LMS_PrepareForwardImage ( )

Copy current image in forward-image buffer (for list-mode sensitivity generation)

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 2223 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::LMS_Reduce	(	int	a_frame,
		int	a_rGate,
		int	a_cGate
	)

Merge parallel results into the matrix of the backward image matrix of the first thread for the specific frame / respiratory gate / cardiac gate (for list-mode sensitivity generation)

Parameters:

a_fr	: time frame
a_rg	: respiratory gate
a_cg	: cardiac gate

This function is dedicated to list-mode sensitivity (LMS) generation.

Definition at line 2249 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageSpace::LMS_SaveSensitivityImage	(	const string &	a_pathToSensitivityImage,
		oDeformationManager *	ap_DeformationManager
	)

Call the interfile function to write the sensitivity image on disk.

Parameters:

a_pathToSensitivityImage	: path to the sensitivity image (should be provided only in list-mode reconstruction)
ap_DeformationManager	: Pointer to the deformation manager objet (required to retrieve the number of gates in the sensitivity image)

If image deformation is enabled for respiratory/cardiac gated data, the gated images are summed up into one image and normalize

Returns:: 0 if success, positive value otherwise

Definition at line 2277 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageSpace::LoadAttenuationImage ( const string & a_pathToImage )

Load the attenuation image provided by the user in the m2p_attenuation matrix.

Parameters:

a_pathToAtnImage : path to an existing image

Returns:: 0 if success, positive value otherwise

Definition at line 1008 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageSpace::LoadInitialImage ( const string & a_pathToImage )

Load the initial image provided by the user in the corresponding matrix.

Parameters:

a_pathToImage : path to an existing image

Returns:: 0 if success, positive value otherwise

Definition at line 1090 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::PrepareForwardImage ( )

Copy current image matrix in the forward-image buffer matrix.

Definition at line 1691 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::PROJ_DeallocateProjectionImage ( int a_nbProjs )

Free memory for the projection image for analytical projection.

Parameters:

a_nbProjs : a number of projection slices in the projection

This function is currently only dedicated to SPECT projection, and used by the analytical projection script

Definition at line 2368 of file oImageSpace.cc.

Here is the caller graph for this function:

int oImageSpace::PROJ_InitImage ( const string & a_pathToInitialImage )

Load the initial image for the analytical projection.

Parameters:

a_pathToInitialImage : path to the image to project

Returns:: 0 if success, positive value otherwise

Definition at line 2394 of file oImageSpace.cc.

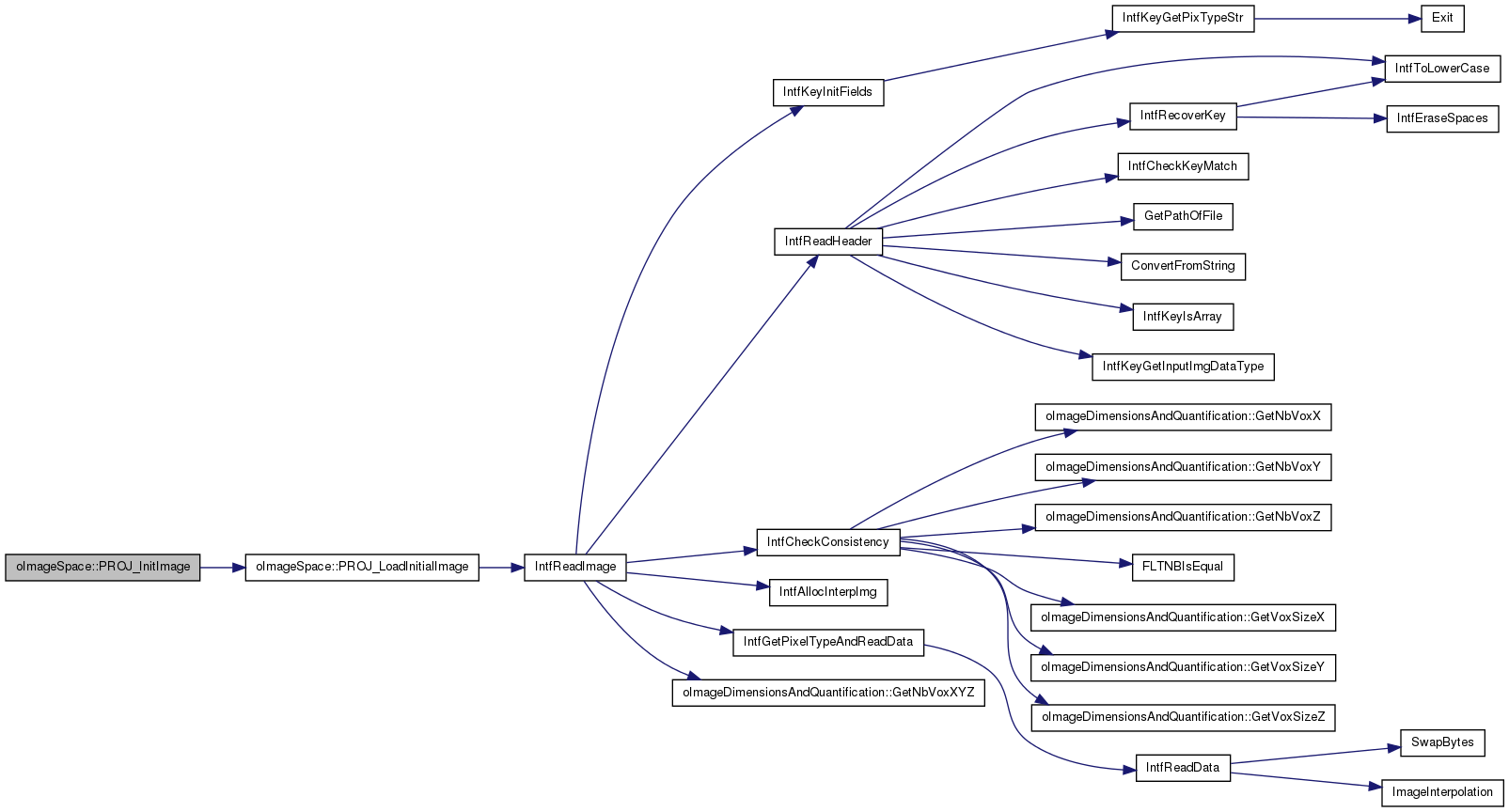

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::PROJ_InstantiateProjectionImage	(	int	a_nbProjs,
		int	a_nbPixels
	)

Instanciate and initialize projection image for analytical projection.

Parameters:

a_nbProjs	: a number of projection slices in the projection
a_nbPixels	: a total number of pixels in the projection slices

This function is currently only dedicated to SPECT projection, and used by the analytical projection script

Definition at line 2340 of file oImageSpace.cc.

Here is the caller graph for this function:

int oImageSpace::PROJ_LoadInitialImage ( const string & a_pathToImage )

Load the initial image for the analytical projection.

Parameters:

a_pathToImage : path to the image to project

Returns:: 0 if success, positive value otherwise

Definition at line 2429 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageSpace::PROJ_SaveProjectionImage ( )

Save an image of the projected data (for analytic projection)

Returns:: 0 if success, positive value otherwise

Definition at line 2470 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::Reduce ( )

Merge parallel results into the matrix of the backward image matrix of the first thread. Also for MPI.

Definition at line 1714 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageSpace::SaveDebugImage ( const string & a_name )

Just a debug function dedicated to write any kind of image on disk in raw format, for debugging purposes.

Parameters:

a_name : output name of the image

Definition at line 1658 of file oImageSpace.cc.

Here is the call graph for this function:

int oImageSpace::SaveOutputImage	(	int	a_iteration,
		int	a_subset = `-1`
	)

Call the interfile function to write output image on disk.

Parameters:

a_iteration	: current iteration index
a_subset	: current number of subsets (or -1 by default)

Returns:: 0 if success, positive value otherwise

Definition at line 1604 of file oImageSpace.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

oImageSpace::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification ) [inline]

set the pointer to the oImageDimensionsAndQuantification object

Parameters:

ap_ImageDimensionsAndQuantification

Definition at line 543 of file oImageSpace.hh.

Here is the caller graph for this function:

oImageSpace::SetVerbose ( int a_verboseLevel ) [inline]

set verbosity

Parameters:

a_verboseLevel

Definition at line 536 of file oImageSpace.hh.

Here is the caller graph for this function:

Member Data Documentation

FLTNB** oImageSpace::m2p_projectionImage

Dynamic array for a projection image (currently dedicated to SPECT analytical projection), containing a 2-vectors voxellized image matrix Required in the case the reconstruction uses intrinsic temporal basis functions. In any other case, m4p_outputImage just refers to the address of the image matrix containing the regular image. 2 pointers: 1: number of projections 2: 2D pixels

Definition at line 144 of file oImageSpace.hh.

FLTNB**** oImageSpace::m4p_anatomicalImage

Dynamic array for anatomical images to be used in reconstruction, containing a 4-vectors voxellized image matrix. 4 pointers: 1: dynamic frames, 2: respiratory gates, 3: cardiac gates, 4: 3D voxels

Definition at line 93 of file oImageSpace.hh.

FLTNB**** oImageSpace::m4p_attenuation

Dynamic array for the attenuation images, used in analytical projection or sensitivity list-mode generation, containing a 4-vectors voxellized image matrix. 4 pointers: 1: dynamic frames, 2: respiratory gates, 3: cardiac gates, 4: 3D voxels

Definition at line 108 of file oImageSpace.hh.

FLTNB**** oImageSpace::m4p_defTmpSensitivityImage

Buffer dynamic array for the sensitivity image (image-based normalization factors), containing a 5-vectors voxellized image matrix. Required when image-based deformation is enabled during histogram-based reconstruction 5 pointers: 1: threads, 2: dynamic frames, 3: respiratory gates, 4: cardiac gates, 5: 3D voxels

Definition at line 135 of file oImageSpace.hh.

FLTNB**** oImageSpace::m4p_forwardImage

Dynamic array for the forward image (image data before the projection step), containing a 4-vectors voxellized image matrix. 4 pointers: 1: dynamic frames, 2: respiratory gates, 3: cardiac gates, 4: 3D voxels

Definition at line 68 of file oImageSpace.hh.

FLTNB**** oImageSpace::m4p_image

Dynamic array for the reconstructed image, containing a 4-vectors voxellized image matrix. 4 pointers: 1: dynamic frames, 2: respiratory gates, 3: cardiac gates, 4: 3D voxels

Definition at line 61 of file oImageSpace.hh.

FLTNB**** oImageSpace::m4p_outputImage

Dynamic array for the output image to be written on disk, containing a 4-vectors voxellized image matrix Required in the case the reconstruction uses intrinsic temporal basis functions. In any other case, m4p_outputImage just refers to the address of the image matrix containing the regular image. 4 pointers: 1: dynamic frames, 2: respiratory gates, 3: cardiac gates, 4: 3D voxels

Definition at line 115 of file oImageSpace.hh.

FLTNB***** oImageSpace::m5p_defTmpBackwardImage

Buffer dynamic array for the backward image (image-based correction factors computed after the projection/backprojection steps), containing a 6-vectors voxellized image matrix. Required when image-based deformation is enabled during reconstruction 6 pointers: 1: number of images (dedicated to the optimization algorithm) 2: threads, 3: dynamic frames, 4: respiratory gates, 5: cardiac gates, 6: 3D voxels

Definition at line 124 of file oImageSpace.hh.

FLTNB***** oImageSpace::m5p_sensitivity

Dynamic array for the sensitivity image (image-based normalization factors), containing a 5-vectors voxellized image matrix. 5 pointers: 1: threads, 2: dynamic frames, 3: respiratory gates, 4: cardiac gates, 5: 3D voxels

Definition at line 85 of file oImageSpace.hh.

FLTNB****** oImageSpace::m6p_backwardImage

Dynamic array for the backward image (image-based correction factors computed after the projection/backprojection steps), containing a 6-vectors voxellized image matrix. 6 pointers: 1: number of images (dedicated to the optimization algorithm) 2: threads, 3: dynamic frames, 4: respiratory gates, 5: cardiac gates, 6: 3D voxels

Definition at line 75 of file oImageSpace.hh.

bool oImageSpace::m_loadedAnatomical [private]

Flag indicating if an anatomical image has been loaded

Definition at line 584 of file oImageSpace.hh.

bool oImageSpace::m_loadedMask [private]

Flag indicating if a mask image has been loaded

Definition at line 585 of file oImageSpace.hh.

bool oImageSpace::m_loadedSensitivity [private]

Flag indicating if reconstruction is listmode, otherwise histogram because sensitivity is computed on-the-fly

Definition at line 583 of file oImageSpace.hh.

int oImageSpace::m_nbBwdImages [private]

Number of backward images in the related image matrix (for the optimizer)
