This class is designed to manage the computation of the sensitivity image. More...

#include <oSensitivityGenerator.hh>

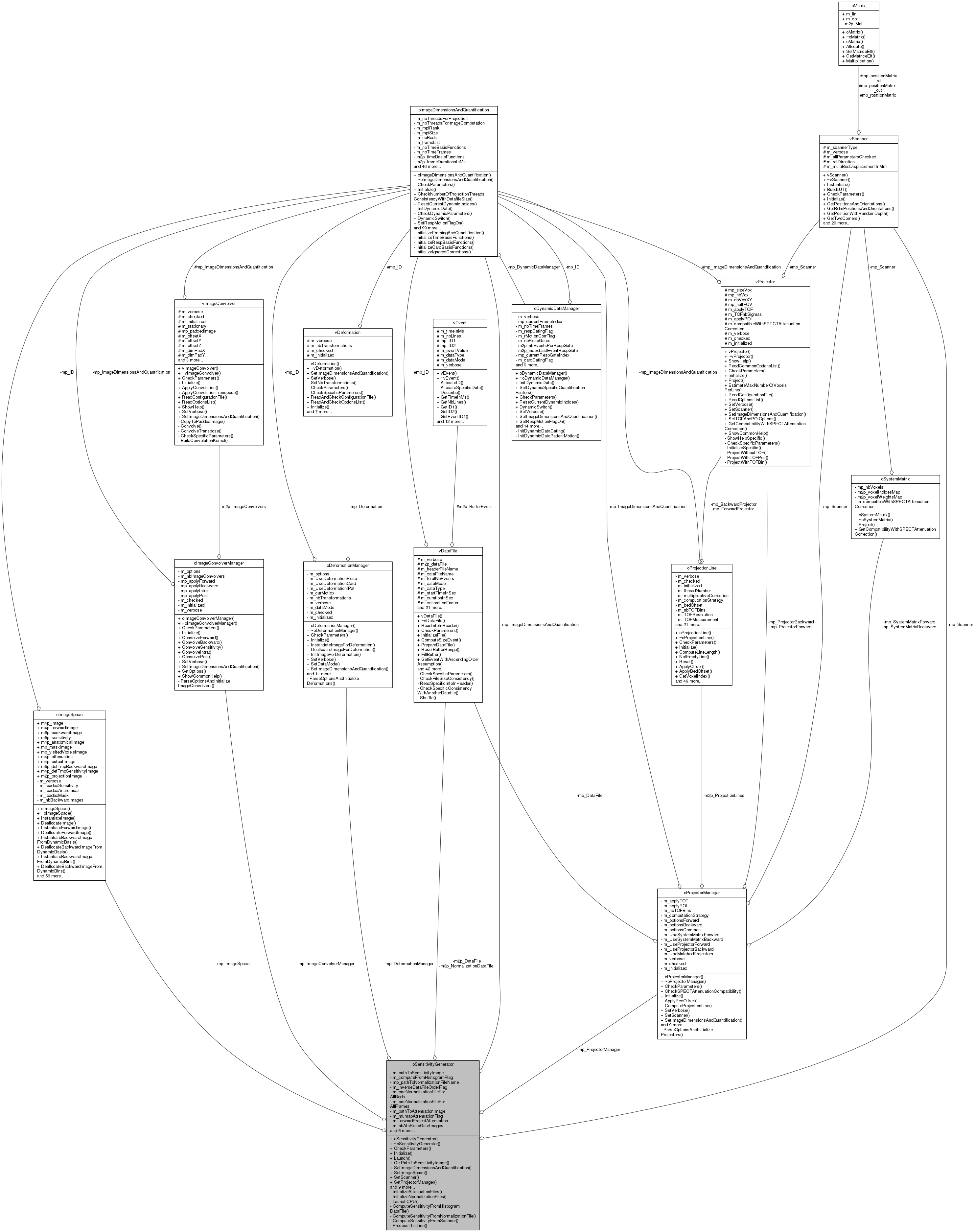

Collaboration diagram for oSensitivityGenerator:

Public Member Functions
	oSensitivityGenerator ()
	The constructor of oSensitivityGenerator. More...

	~oSensitivityGenerator ()
	The destructor of oSensitivityGenerator. More...

int	CheckParameters ()
	A public function used to check the parameters settings. More...

int	Initialize ()
	A public function used to initialize the sensitivity generator. More...

int	Launch ()
	A public function used to launch the sensitivity generator (compute the sensitivity image) More...

string	GetPathToSensitivityImage ()
	This function return the path to the sensitivity image. More...

void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	This function is used to set the pointer to the oImageDimensionsAndQuantification in use. More...

void	SetImageSpace (oImageSpace *ap_ImageSpace)
	This function is used to set the pointer to the oImageSpace in use. More...

void	SetScanner (vScanner *ap_Scanner)
	This function is used to set the pointer to the vScanner in use. More...

void	SetProjectorManager (oProjectorManager *ap_ProjectorManager)
	This function is used to set the pointer to the oProjectorManager in use. More...

void	SetImageConvolverManager (oImageConvolverManager *ap_ImageConvolverManager)
	This function is used to set the pointer to the oImageConvolverManager in use. More...

void	SetDeformationManager (oDeformationManager *ap_DeformationManager)
	This function is used to set the pointer to the oDeformationManager in use. More...

void	SetDataFile (vDataFile **a2p_DataFile)
	This function is used to set the pointer to the vDataFile array in use. More...

void	SetComputeFromHistogramFlag (bool a_computeFromHistogramFlag)
	This function is used to set the m_computeFromHistogramFlag. More...

void	SetPathToNormalizationFileName (vector< string > ap_pathToNormalizationFileName, bool a_inverseDataFileOrderFlag)
	This function is used to set the path to the normalization file names, and the flag saying if their order must be reversed. More...

void	SetPathToAttenuationImage (string a_pathToAttenuationImage)
	This function is used to set the path to the attenuation image. More...

void	SetNumberOfAtnGateImages (int a_nbAtnRespGateImages, int a_nbAtnCardGateImages)

void	SetGPUflag (bool a_flagGPU)
	This function is used to set the GPU flag; do we use GPU or not. More...

void	SetVerbose (int a_verboseLevel)

Private Member Functions
int	InitializeAttenuationFiles ()
	Initialize the attenuation images provided for sensitivity computation. More...

int	InitializeNormalizationFiles ()
	Initialize the normalization datafiles provided for sensitivity computation. More...

int	LaunchCPU ()
	Launch the computation of the sensitivity image (CPU version) More...

int	ComputeSensitivityFromHistogramDataFile (int a_bed)
	Launch the computation of the sensitivity image for this bed, based on the input histogram data files. More...

int	ComputeSensitivityFromNormalizationFile (int a_bed)
	Launch the computation of the sensitivity image for this bed, based on normalization data files. More...

int	ComputeSensitivityFromScanner (int a_bed)
	Launch the computation of the sensitivity image for this bed, based on a loop over all scanner elements. More...

int	ProcessThisLine (oProjectionLine ap_Line, vEvent ap_Event, int a_bed, int a_frame, int a_respGate, int a_cardGate, int a_thread)
	This function manages the computation of the sensitivity contribution of the projection line provided as a parameter. More...

Private Attributes
string	m_pathToSensitivityImage

oImageDimensionsAndQuantification *	mp_ImageDimensionsAndQuantification

oImageSpace *	mp_ImageSpace

vScanner *	mp_Scanner

oProjectorManager *	mp_ProjectorManager

oImageConvolverManager *	mp_ImageConvolverManager

oDeformationManager *	mp_DeformationManager

vDataFile **	m2p_DataFile

bool	m_computeFromHistogramFlag

vector< string >	mp_pathToNormalizationFileName

bool	m_inverseDataFileOrderFlag

vDataFile ***	m3p_NormalizationDataFile

bool	m_oneNormalizationFileForAllBeds

bool	m_oneNormalizationFileForAllFrames

string	m_pathToAttenuationImage

bool	m_mumapAttenuationFlag

bool	m_forwardProjectAttenuation

int	m_nbAtnRespGateImages

int	m_nbAtnCardGateImages

uint64_t *	mp_lineCounter

bool	m_flagGPU

int	m_verbose

bool	m_checked

bool	m_initialized

Detailed Description

This class is designed to manage the computation of the sensitivity image.

The sensitivity computation can be done in two ways:
(i) using a normalization data file if provided, where the loop for computation will be done on all events included in the datafile, with included normalization factors;
(ii) if no normalization file is provided, using a loop on all scanner elements.
A mumap in cm-1 can also be provided in order to include the attenuation correction in the sensitivity image.

Definition at line 34 of file oSensitivityGenerator.hh.

Constructor & Destructor Documentation

oSensitivityGenerator::oSensitivityGenerator ( )

The constructor of oSensitivityGenerator.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 27 of file oSensitivityGenerator.cc.

oSensitivityGenerator::~oSensitivityGenerator ( )

The destructor of oSensitivityGenerator.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were built by this class.

Definition at line 61 of file oSensitivityGenerator.cc.

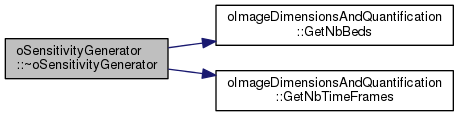

Here is the call graph for this function:

Member Function Documentation

int oSensitivityGenerator::CheckParameters ( )

A public function used to check the parameters settings.

This function does not take any parameter and is used to check that all mandatory members were correctly parameterized.

Returns: An integer reflecting the check status; 0 if no problem, another value otherwise.

Definition at line 82 of file oSensitivityGenerator.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oSensitivityGenerator::ComputeSensitivityFromHistogramDataFile ( int a_bed )

private

Launch the computation of the sensitivity image for this bed, based on the input histogram data files.

Parameters

int a_bed

The loop is done over the events of the histogram data files, which represent the collection of all data channels for the different dynamic frames.

Returns: An integer reflecting the computation status; 0 if no problem, another value otherwise.

Definition at line 575 of file oSensitivityGenerator.cc.

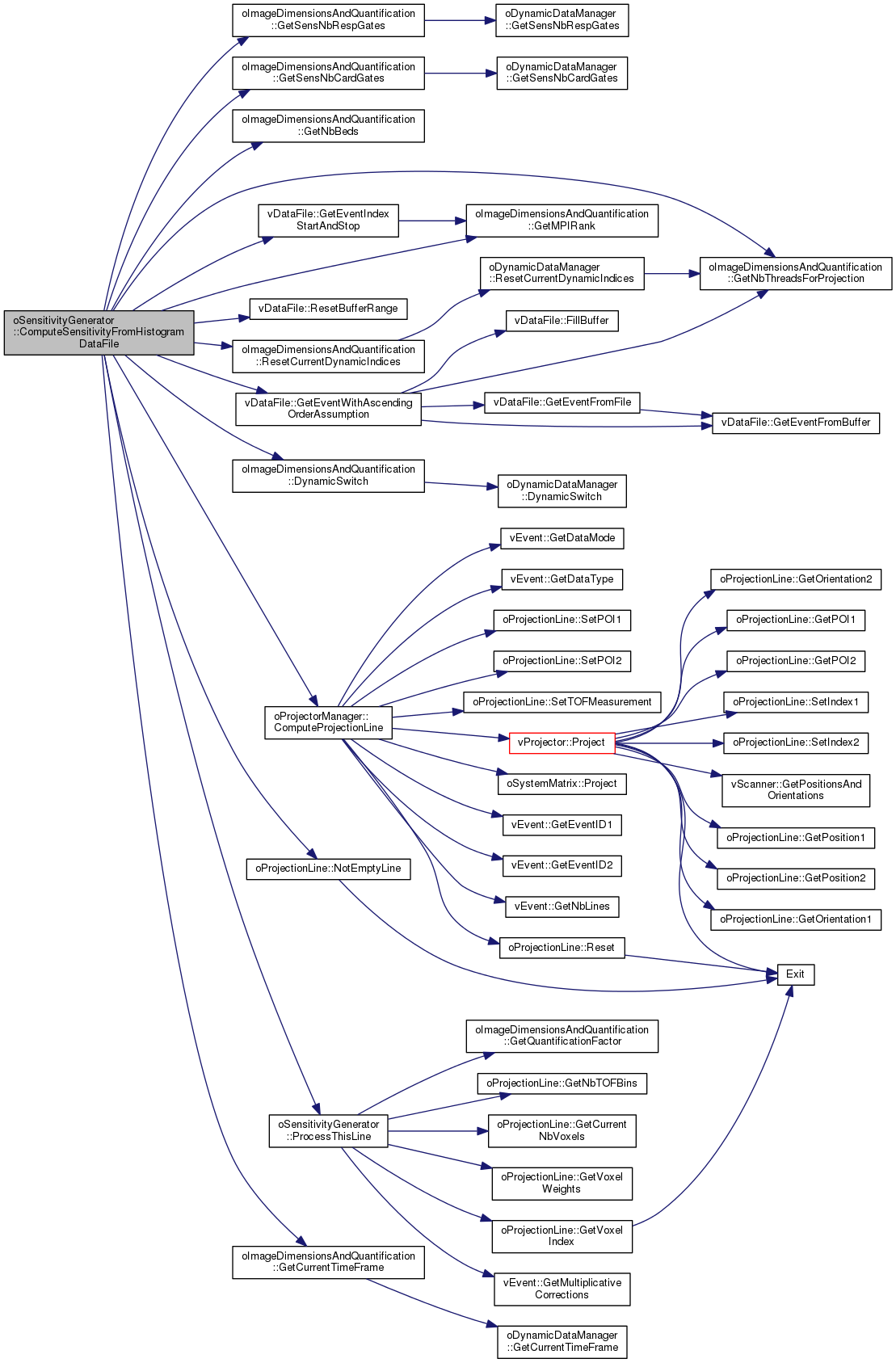

Here is the call graph for this function:

Here is the caller graph for this function:

int oSensitivityGenerator::ComputeSensitivityFromNormalizationFile ( int a_bed )

private

Launch the computation of the sensitivity image for this bed, based on normalization data files.

Parameters

int a_bed

The loop is done over the events of the normalization data files, which represent the collection of all data channels for the different dynamic frames.

Returns: An integer reflecting the computation status; 0 if no problem, another value otherwise.

Definition at line 717 of file oSensitivityGenerator.cc.

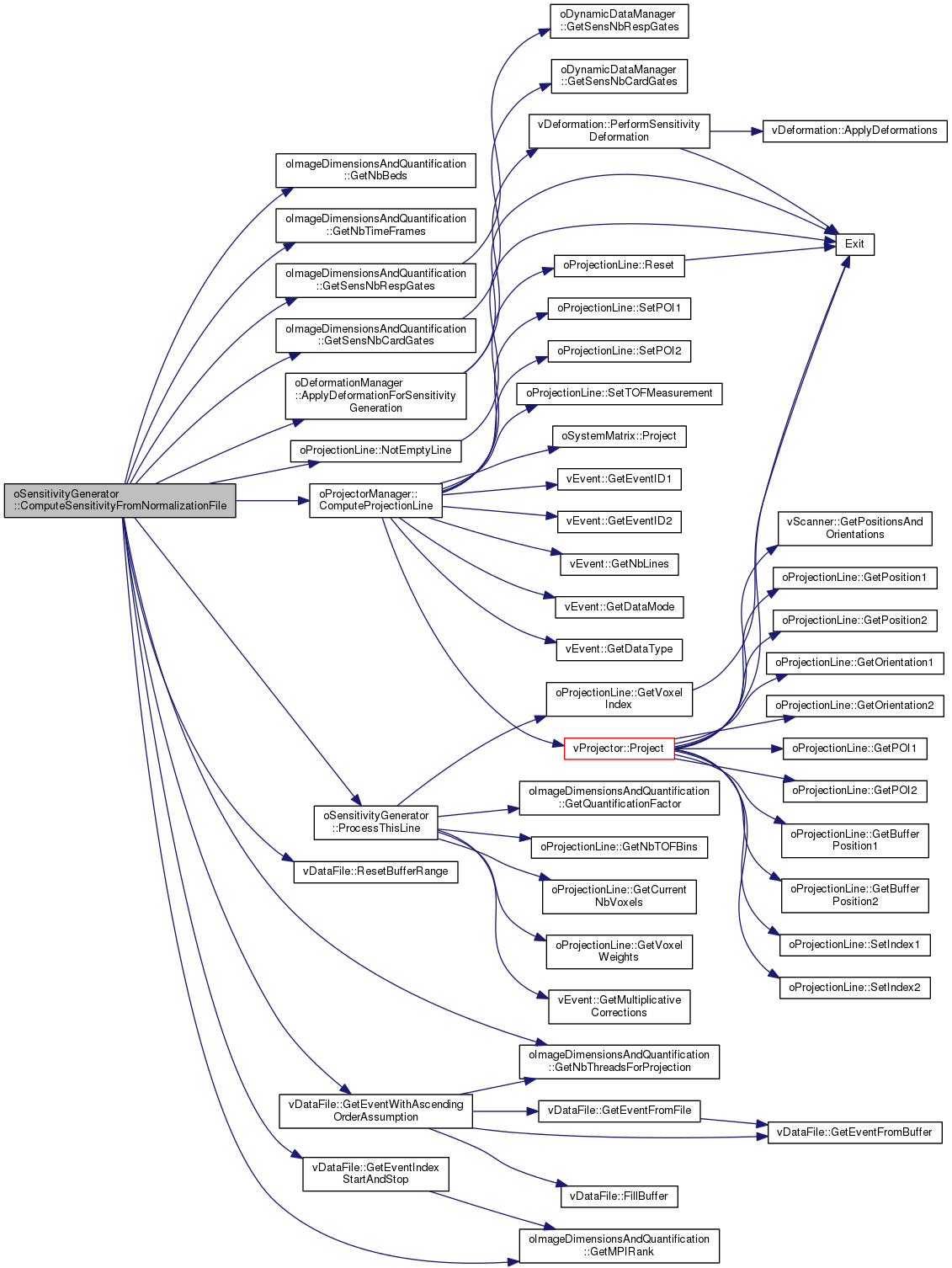

Here is the call graph for this function:

Here is the caller graph for this function:

int oSensitivityGenerator::ComputeSensitivityFromScanner ( int a_bed )

private

Launch the computation of the sensitivity image for this bed, based on a loop over all scanner elements.

Parameters

int a_bed

Returns: An integer reflecting the computation status; 0 if no problem, another value otherwise.

Definition at line 863 of file oSensitivityGenerator.cc.

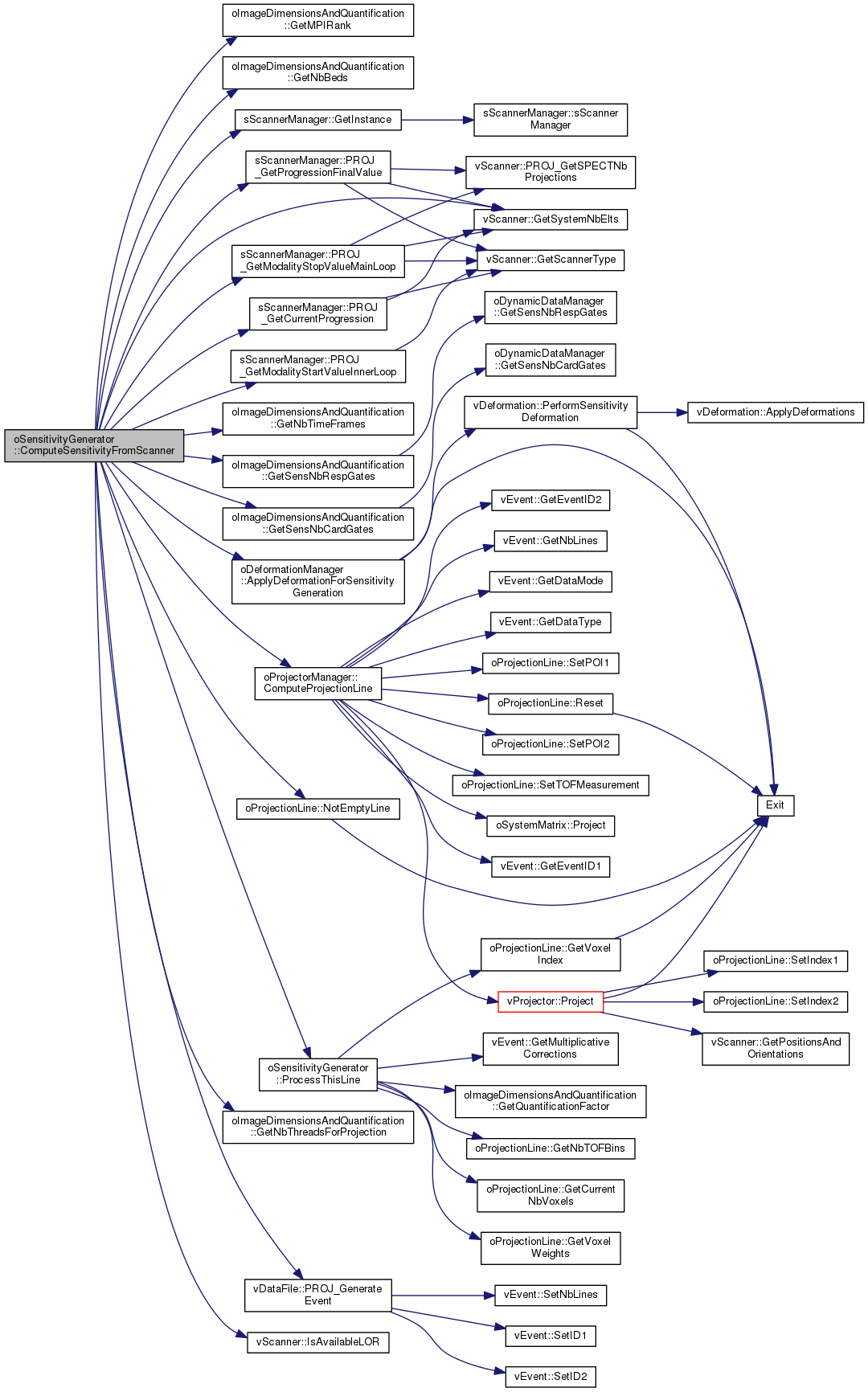

Here is the call graph for this function:

Here is the caller graph for this function:

string oSensitivityGenerator::GetPathToSensitivityImage ( )

This function return the path to the sensitivity image.

Returns: m_pathToSensitivityImage

Definition at line 1109 of file oSensitivityGenerator.cc.

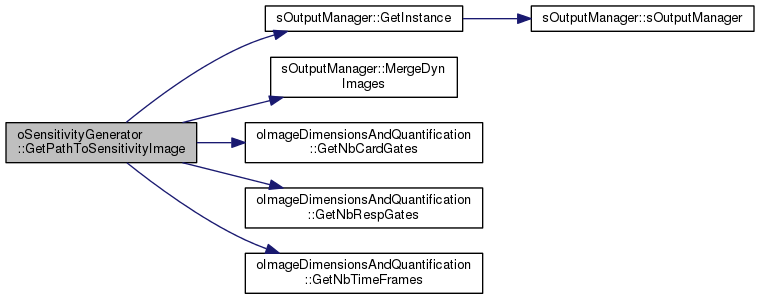

Here is the call graph for this function:

Here is the caller graph for this function:

int oSensitivityGenerator::Initialize ( )

A public function used to initialize the sensitivity generator.

This function does not take any parameter and is used to initialize everything that should be initialized.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 150 of file oSensitivityGenerator.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oSensitivityGenerator::InitializeAttenuationFiles ( )

private

Initialize the attenuation images provided for sensitivity computation.

This function is called by the Initialize() function. It checks and reads the provided attenuation images to be taken into account for sensitivity computation.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 400 of file oSensitivityGenerator.cc.

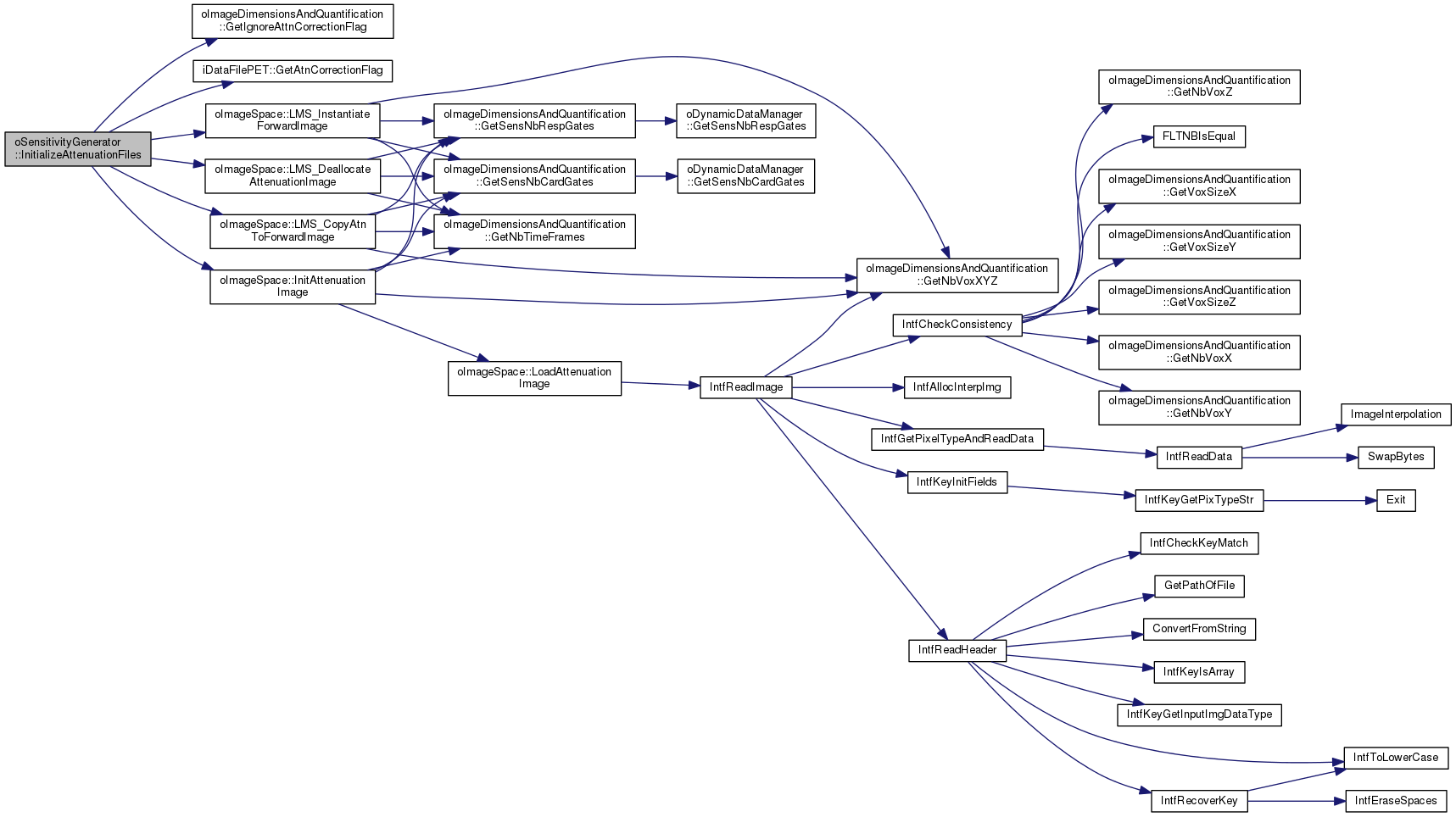

Here is the call graph for this function:

Here is the caller graph for this function:

int oSensitivityGenerator::InitializeNormalizationFiles ( )

private

Initialize the normalization datafiles provided for sensitivity computation.

This function is called by the Initialize() function. It checks and reads the provided normalization datafiles to be taken into account for sensitivity computation.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 218 of file oSensitivityGenerator.cc.

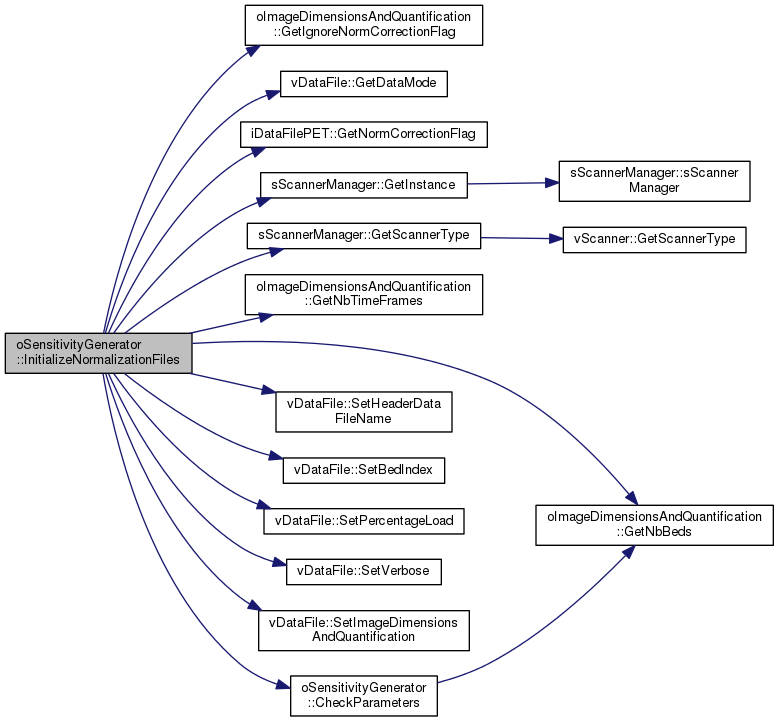

Here is the call graph for this function:

Here is the caller graph for this function:

int oSensitivityGenerator::Launch ( )

A public function used to launch the sensitivity generator (compute the sensitivity image)

This function does not take any parameter and is used to launch the computation of the sensitivity image. In fact, it simply switches between the CPU and GPU versions of the function (which are private).

Returns: An integer reflecting the computation status; 0 if no problem, another value otherwise.

Definition at line 468 of file oSensitivityGenerator.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oSensitivityGenerator::LaunchCPU ( )

private

Launch the computation of the sensitivity image (CPU version)

This function calls either the ComputeSensitivityFromNormalizationFile() or the ComputeSensitivityFromScanner() function based on normalization data files provided or not.
It does the loop over all bed positions.

Returns: An integer reflecting the computation status; 0 if no problem, another value otherwise.

Definition at line 486 of file oSensitivityGenerator.cc.

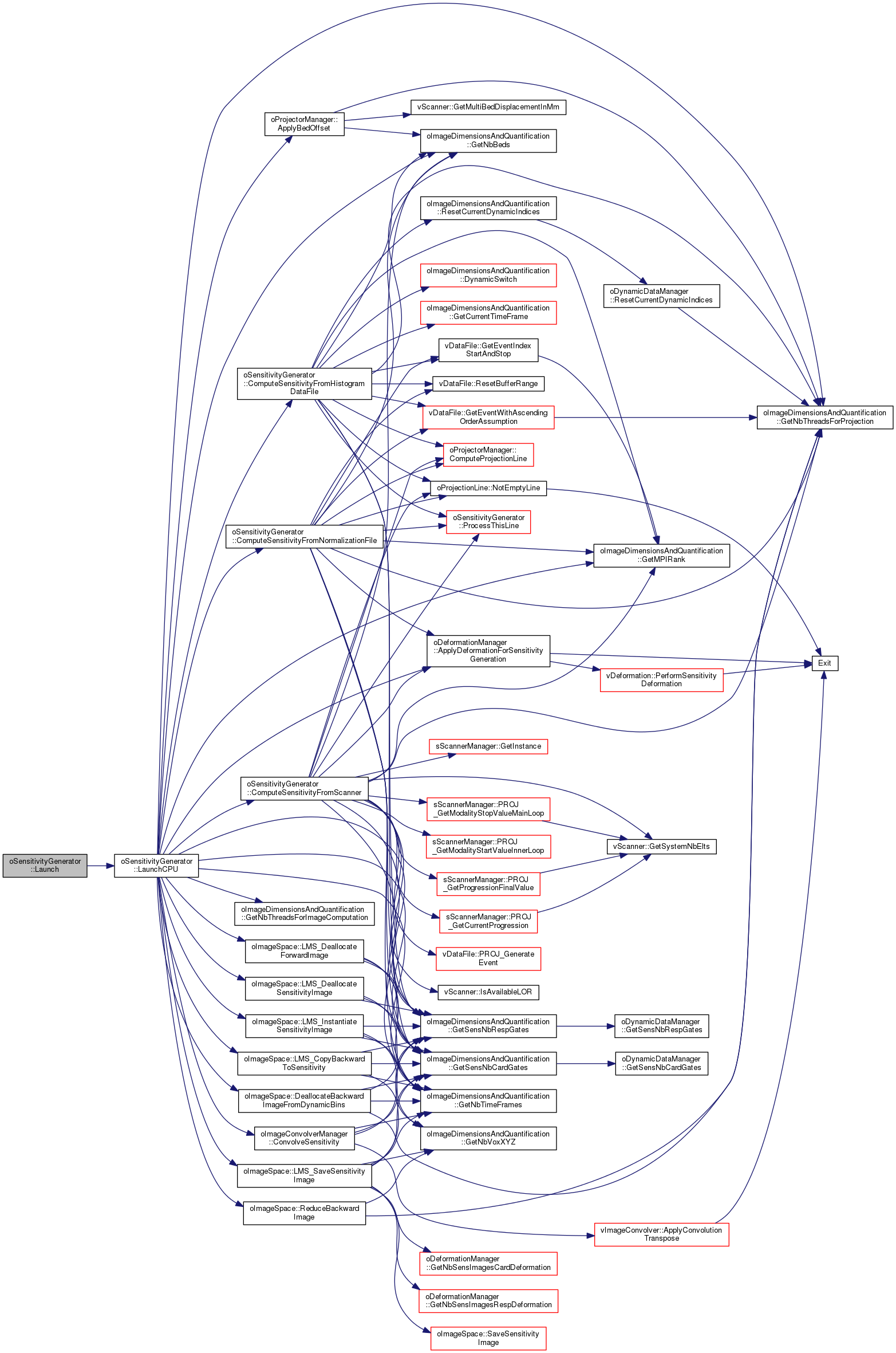

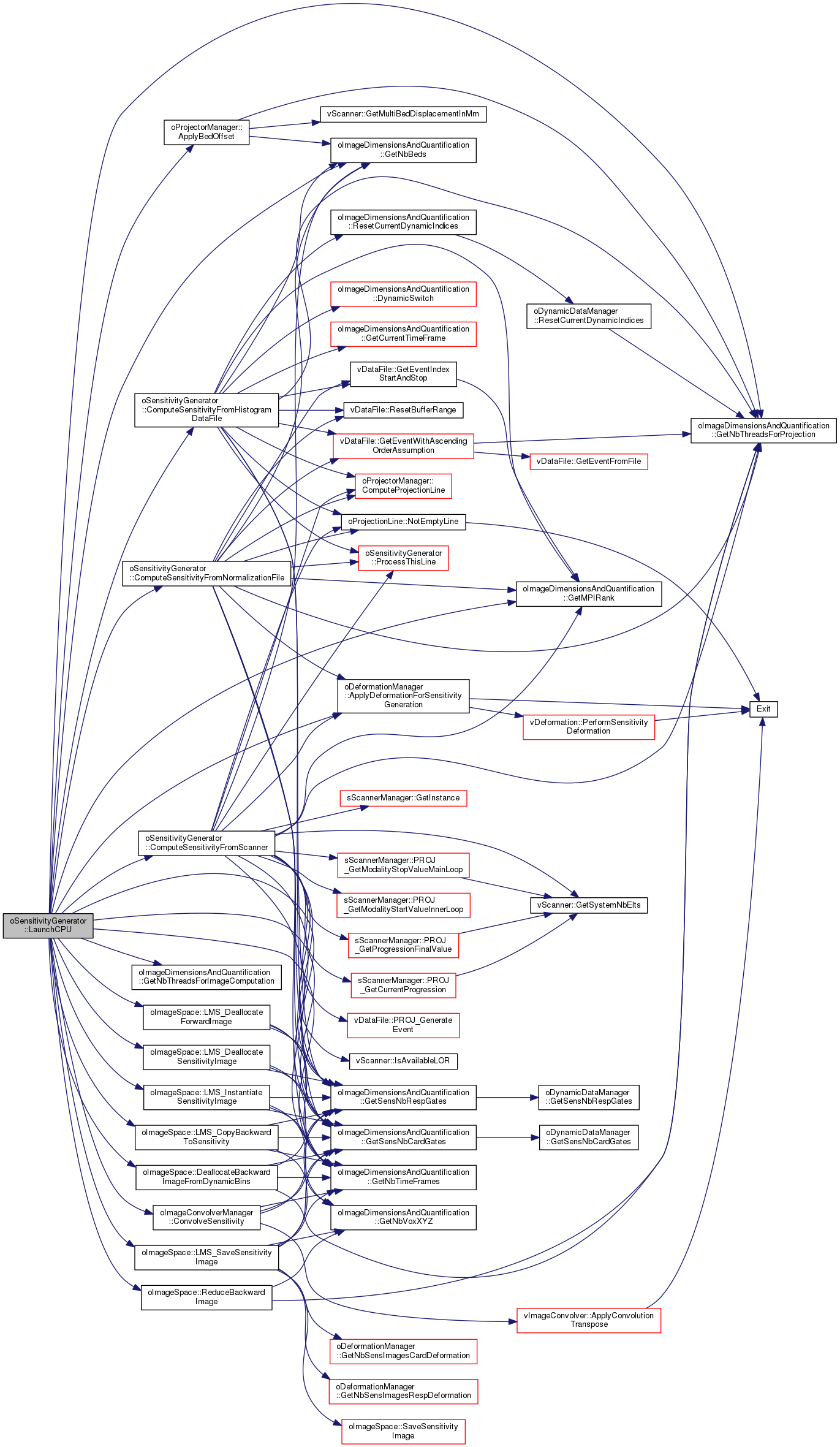

Here is the call graph for this function:

Here is the caller graph for this function:

int oSensitivityGenerator::ProcessThisLine	(	oProjectionLine *	ap_Line,
		vEvent *	ap_Event,
		int	a_bed,
		int	a_frame,
		int	a_respGate,
		int	a_cardGate,
		int	a_thread
	)

private

This function manages the computation of the sensitivity contribution of the projection line provided as a parameter.

Parameters

oProjectionLine*	ap_Line
vEvent*	ap_Event
int	a_bed
int	a_frame
int	a_respGate
int	a_cardGate
int	a_thread

For the given line, the given event, the current bed, frame, respiratory and cardiac gates, the function performs the forward projectio into the attenuation images (if any), compute the sensitivity contribution, and back-projects this contribution into the sensitivity image.

Returns: An integer reflecting the projection status; 0 if no problem, another value otherwise.

Definition at line 1041 of file oSensitivityGenerator.cc.

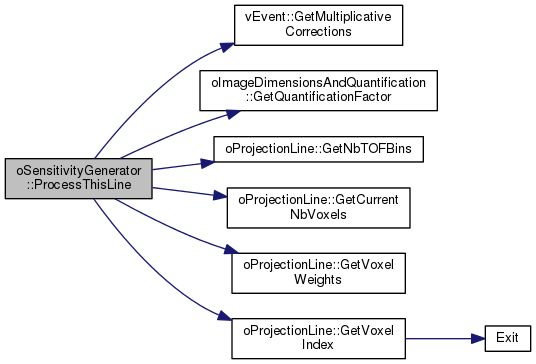

Here is the call graph for this function:

Here is the caller graph for this function:

public inline void oSensitivityGenerator::SetComputeFromHistogramFlag ( bool a_computeFromHistogramFlag )

inline

This function is used to set the m_computeFromHistogramFlag.

Parameters

bool	a_computeFromHistogramFlag

Definition at line 229 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

public inline void oSensitivityGenerator::SetDataFile ( vDataFile ** a2p_DataFile )

inline

This function is used to set the pointer to the vDataFile array in use.

Parameters

vDataFile** a2p_DataFile

Definition at line 222 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

public inline void oSensitivityGenerator::SetDeformationManager ( oDeformationManager * ap_DeformationManager )

inline

This function is used to set the pointer to the oDeformationManager in use.

Parameters

oDeformationManager* ap_DeformationManager

Definition at line 215 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

public inline void oSensitivityGenerator::SetGPUflag ( bool a_flagGPU )

inline

This function is used to set the GPU flag; do we use GPU or not.

Parameters

bool a_flagGPU

Definition at line 260 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

public inline void oSensitivityGenerator::SetImageConvolverManager ( oImageConvolverManager * ap_ImageConvolverManager )

inline

This function is used to set the pointer to the oImageConvolverManager in use.

Parameters

oImageConvolverManager* ap_ImageConvolverManager

Definition at line 208 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

public inline void oSensitivityGenerator::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification )

inline

This function is used to set the pointer to the oImageDimensionsAndQuantification in use.

Parameters

oImageDimensionsAndQuantification* ap_ImageDimensionsAndQuantification

Definition at line 180 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

public inline void oSensitivityGenerator::SetImageSpace ( oImageSpace * ap_ImageSpace )

inline

This function is used to set the pointer to the oImageSpace in use.

Parameters

oImageSpace* ap_ImageSpace

Definition at line 187 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

void oSensitivityGenerator::SetNumberOfAtnGateImages	(	int	a_nbAtnRespGateImages,
		int	a_nbAtnCardGateImages
	)

inline

Definition at line 253 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

public inline void oSensitivityGenerator::SetPathToAttenuationImage ( string a_pathToAttenuationImage )

inline

This function is used to set the path to the attenuation image.

Parameters

string a_pathToAttenuationImage

Definition at line 245 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

public inline void oSensitivityGenerator::SetPathToNormalizationFileName	(	vector< string >	ap_pathToNormalizationFileName,
		bool	a_inverseDataFileOrderFlag
	)

inline

This function is used to set the path to the normalization file names, and the flag saying if their order must be reversed.

Parameters

vector<string>	ap_pathToNormalizationFileName
bool	a_inverseDataFileOrderFlag

Definition at line 237 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

public inline void oSensitivityGenerator::SetProjectorManager ( oProjectorManager * ap_ProjectorManager )

inline

This function is used to set the pointer to the oProjectorManager in use.

Parameters

oProjectorManager* ap_ProjectorManager

Definition at line 201 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

public inline void oSensitivityGenerator::SetScanner ( vScanner * ap_Scanner )

inline

This function is used to set the pointer to the vScanner in use.

Parameters

vScanner* ap_Scanner

Definition at line 194 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

void oSensitivityGenerator::SetVerbose ( int a_verboseLevel )

inline

Definition at line 267 of file oSensitivityGenerator.hh.

Here is the caller graph for this function:

Member Data Documentation

vDataFile** oSensitivityGenerator::m2p_DataFile

private

Pointer to the array of vDataFile objects

Definition at line 282 of file oSensitivityGenerator.hh.

vDataFile*** oSensitivityGenerator::m3p_NormalizationDataFile

private

Pointer to the double array of vDataFile objects for normalization

Definition at line 286 of file oSensitivityGenerator.hh.

bool oSensitivityGenerator::m_checked

private

Boolean that says if the parameters were checked or not

Definition at line 297 of file oSensitivityGenerator.hh.

bool oSensitivityGenerator::m_computeFromHistogramFlag

private

A boolean to specify if the datafile is histogram and that the sensitivity must be computed from it

Definition at line 283 of file oSensitivityGenerator.hh.

bool oSensitivityGenerator::m_flagGPU

private

Do we use GPU or not (default=false)

Definition at line 295 of file oSensitivityGenerator.hh.

bool oSensitivityGenerator::m_forwardProjectAttenuation

private

Flag to say that we need to forward project the provided attenuation map (many conditions for that)

Definition at line 291 of file oSensitivityGenerator.hh.

bool oSensitivityGenerator::m_initialized

private

Boolean that says if the projector was initialized or not

Definition at line 298 of file oSensitivityGenerator.hh.

bool oSensitivityGenerator::m_inverseDataFileOrderFlag

private

Flag to say that the provided normalization data file names order must be reversed

Definition at line 285 of file oSensitivityGenerator.hh.

bool oSensitivityGenerator::m_mumapAttenuationFlag

private

Flag to say if an attenuation image has to been provided

Definition at line 290 of file oSensitivityGenerator.hh.

int oSensitivityGenerator::m_nbAtnCardGateImages

private

Number of attenuation images corresponding to the cardiac gates

Definition at line 293 of file oSensitivityGenerator.hh.

int oSensitivityGenerator::m_nbAtnRespGateImages

private

Number of attenuation images corresponding to the respiratory gates

Definition at line 292 of file oSensitivityGenerator.hh.

bool oSensitivityGenerator::m_oneNormalizationFileForAllBeds

private

A boolean to specify if only one normalization file has been provided for all beds

Definition at line 287 of file oSensitivityGenerator.hh.

bool oSensitivityGenerator::m_oneNormalizationFileForAllFrames

private

A boolean to specify if only one normalization file has been provided for all frames

Definition at line 288 of file oSensitivityGenerator.hh.

string oSensitivityGenerator::m_pathToAttenuationImage

private

String of the path to the attenuation images

Definition at line 289 of file oSensitivityGenerator.hh.

string oSensitivityGenerator::m_pathToSensitivityImage

private

The actual path to the created sensitivity image

Definition at line 268 of file oSensitivityGenerator.hh.

int oSensitivityGenerator::m_verbose

private

Verbosity (default=-1)

Definition at line 296 of file oSensitivityGenerator.hh.

oDeformationManager* oSensitivityGenerator::mp_DeformationManager

private

Pointer to the Deformation Manager object

Definition at line 281 of file oSensitivityGenerator.hh.

oImageConvolverManager* oSensitivityGenerator::mp_ImageConvolverManager

private

Pointer to the Image Convolver Manager object

Definition at line 280 of file oSensitivityGenerator.hh.

oImageDimensionsAndQuantification* oSensitivityGenerator::mp_ImageDimensionsAndQuantification

private

Pointer to the oImageDimensionsAndQuantification object

Definition at line 276 of file oSensitivityGenerator.hh.

oImageSpace* oSensitivityGenerator::mp_ImageSpace

private

Pointer to the Image Space object

Definition at line 277 of file oSensitivityGenerator.hh.

uint64_t* oSensitivityGenerator::mp_lineCounter

private

Counters of the number of effectively projected lines, 1 per thread

Definition at line 294 of file oSensitivityGenerator.hh.

vector<string> oSensitivityGenerator::mp_pathToNormalizationFileName

private

Vector of normalization file names

Definition at line 284 of file oSensitivityGenerator.hh.

oProjectorManager* oSensitivityGenerator::mp_ProjectorManager

private

Pointer to the Projector Manager object

Definition at line 279 of file oSensitivityGenerator.hh.

vScanner* oSensitivityGenerator::mp_Scanner

private

Pointer to the Scanner object

Definition at line 278 of file oSensitivityGenerator.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
