This class is designed to manage all dimensions and quantification related stuff. More...

#include <oImageDimensionsAndQuantification.hh>

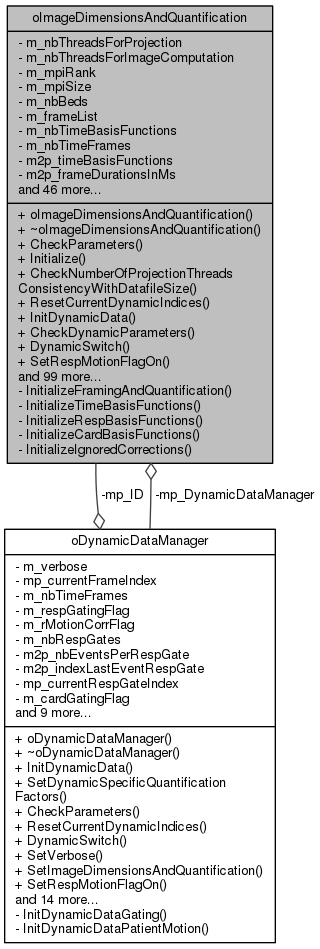

Collaboration diagram for oImageDimensionsAndQuantification:

Public Member Functions
	oImageDimensionsAndQuantification ()
	The constructor of oImageDimensionsAndQuantification. More...

	~oImageDimensionsAndQuantification ()
	The destructor of oImageDimensionsAndQuantification. More...

int	CheckParameters ()
	A function used to check the parameters settings. More...

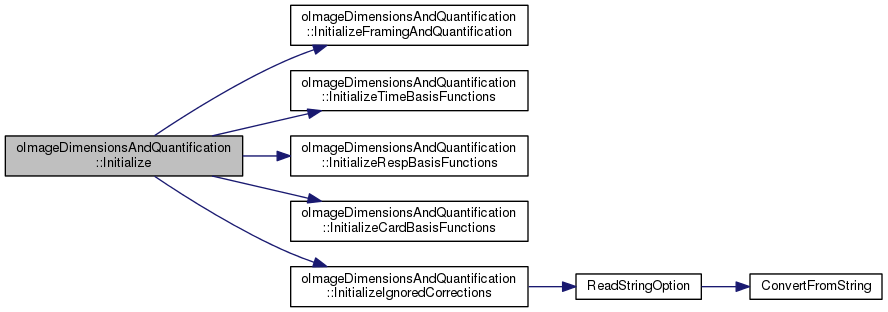

int	Initialize ()
	A function used to initialize all that is needed. More...

void	CheckNumberOfProjectionThreadsConsistencyWithDatafileSize (vDataFile **a2p_Datafile)

void	ResetCurrentDynamicIndices ()
	Call the eponym function from the oDynamicDataManager class using the member object. More...

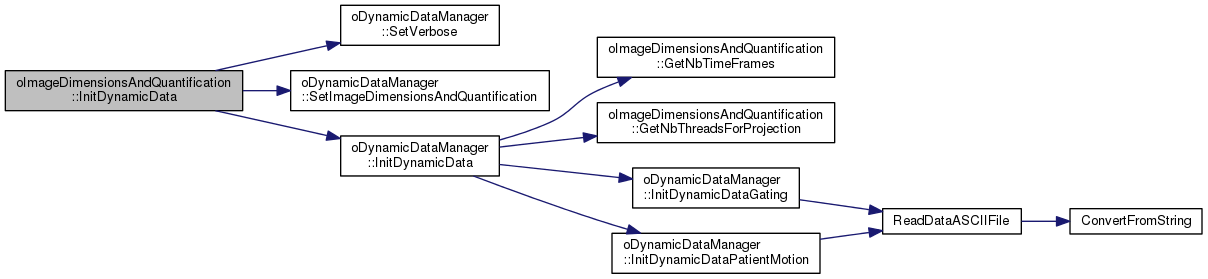

int	InitDynamicData (string a_pathTo4DDataSplittingFile, int a_respMotionCorrectionFlag, int a_cardMotionCorrectionFlag, int a_doubleMotionCorrectionFlag, int a_invMotionCorrectionFlag, int a_nbRespGates, int a_nbCardGates)
	Call the eponym function from the oDynamicDataManager object in order to initialize its data. More...

int	CheckDynamicParameters (int64_t a_nbEvents)
	Call the eponym function from the oDynamicDataManager object in order to check its parameters. More...

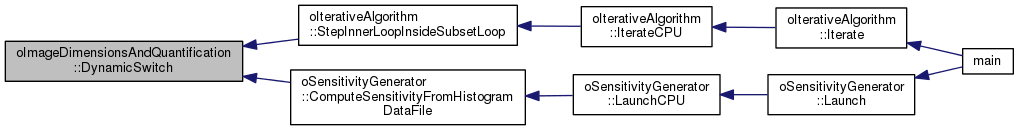

int	DynamicSwitch (int64_t a_currentEventIndex, uint32_t a_currentTime, int a_bed, int a_th)
	Call the eponym function from the oDynamicDataManager class using the member object. More...

void	SetRespMotionFlagOn ()
	Call the eponym function from the oDynamicDataManager class using the member object. More...

void	SetCardMotionFlagOn ()
	Call the eponym function from the oDynamicDataManager class using the member object. More...

void	SetPMotionFlagOn ()
	Call the eponym function from the oDynamicDataManager class using the member object. More...

int	GetCurrentRespGate (int a_th)
	call the eponym function from the oDynamicDataManager object More...

int	GetCurrentCardGate (int a_th)
	call the eponym function from the oDynamicDataManager object More...

int	GetSensNbRespGates ()
	call the eponym function from the oDynamicDataManager object More...

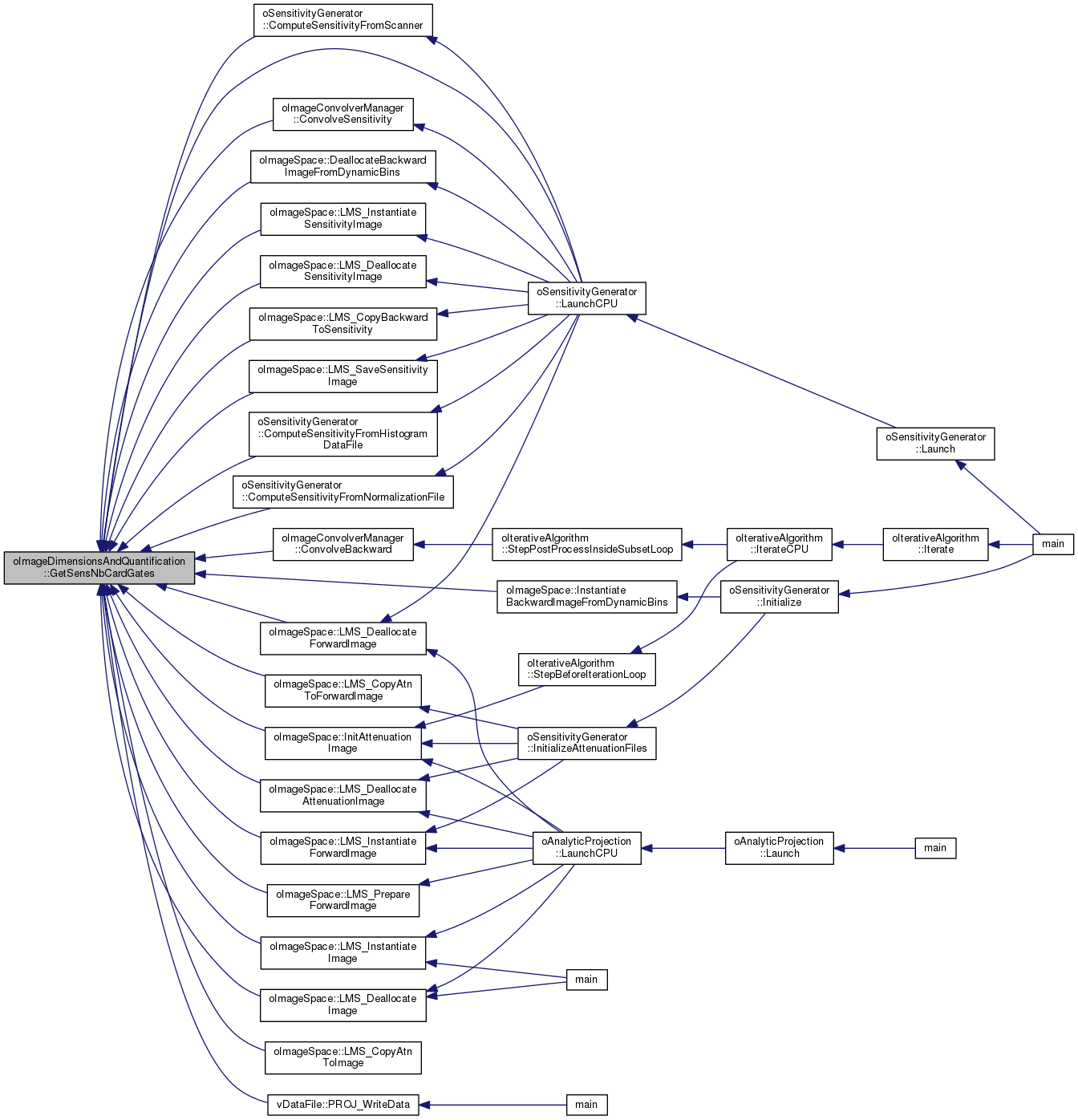

int	GetSensNbCardGates ()

int	GetCurrentRespImage (int a_th)
	call the eponym function from the oDynamicDataManager object More...

int	GetCurrentCardImage (int a_th)
	call the eponym function from the oDynamicDataManager object More...

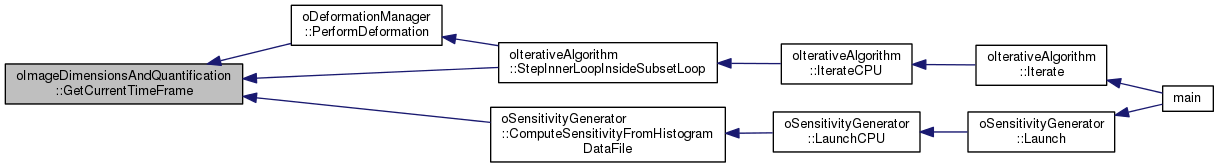

int	GetCurrentTimeFrame (int a_th)
	call the eponym function from the oDynamicDataManager object More...

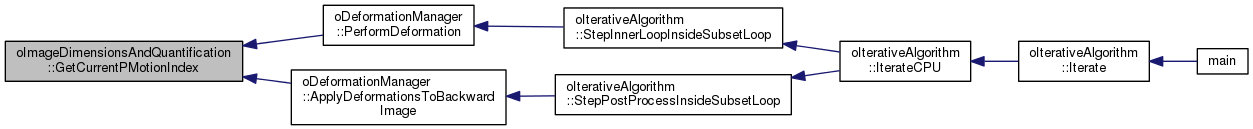

int	GetCurrentPMotionIndex (int a_th)
	call the eponym function from the oDynamicDataManager object More...

int	GetNbIPatMotionSubsets ()
	call the eponym function from the oDynamicDataManager object More...

void	SetVerbose (int a_verbose)
	Set the member m_verboseLevel to the provided value. More...

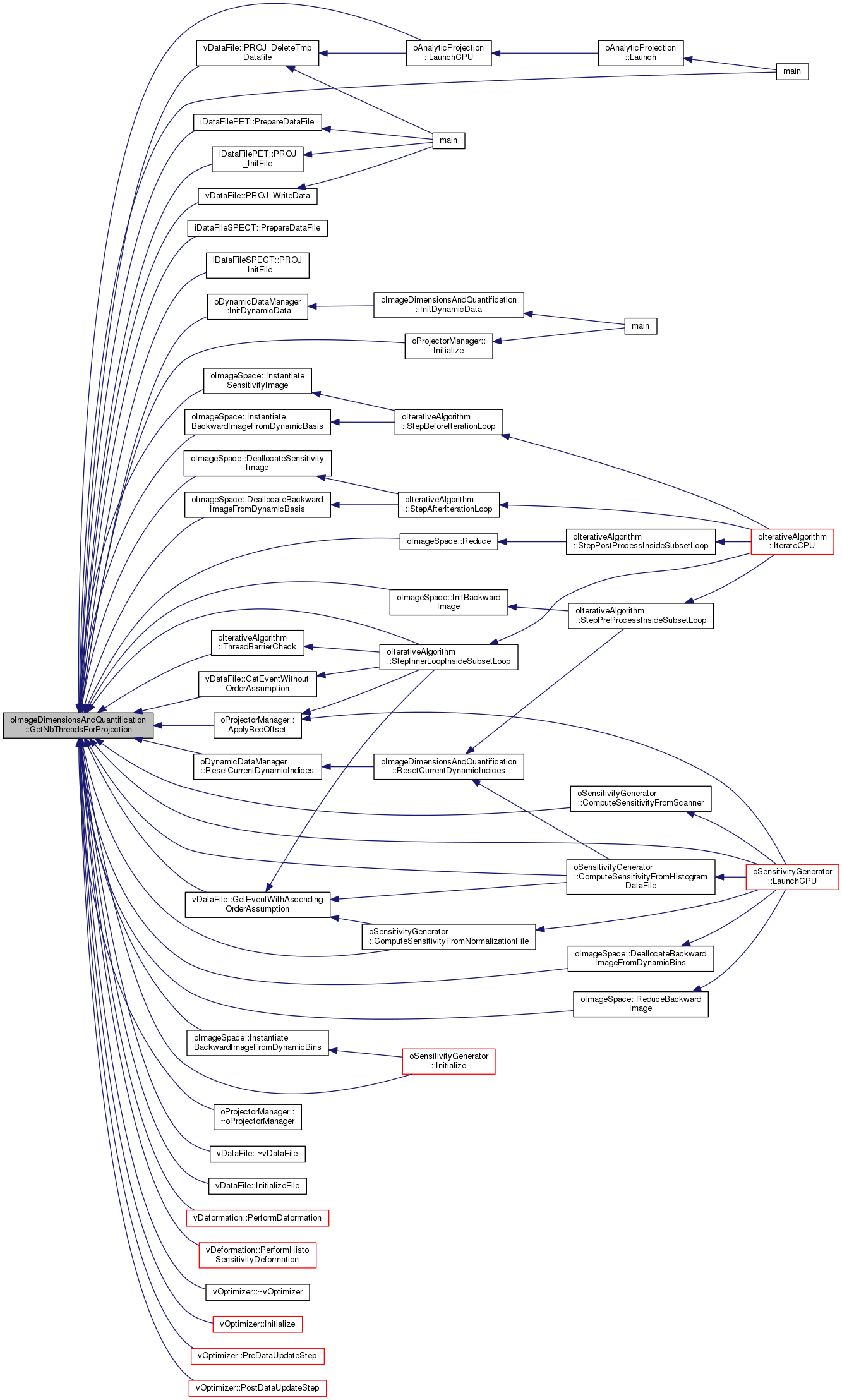

int	GetNbThreadsForProjection ()
	Get the number of threads used for projections. More...

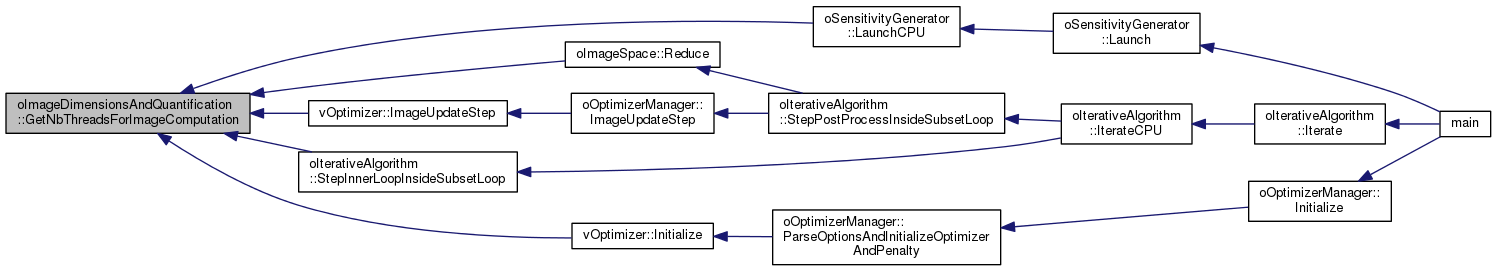

int	GetNbThreadsForImageComputation ()
	Get the number of threads used for image operations. More...

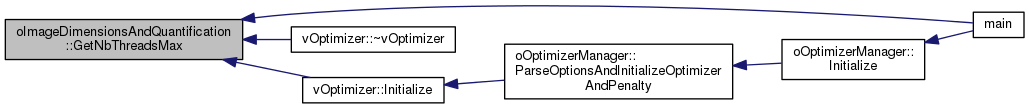

int	GetNbThreadsMax ()
	Get the maximum between the number of threads used for projections and image operations. More...

int	SetNbThreads (const string &a_nbThreads)
	Set the number of threads. More...

void	SetMPIRankAndSize (int a_mpiRank, int a_mpiSize)
	Set the MPI rank of the MPI instance, and the MPI size (the number of instances) More...

int	GetMPISize ()
	Get the MPI size (the number of MPI instances) More...

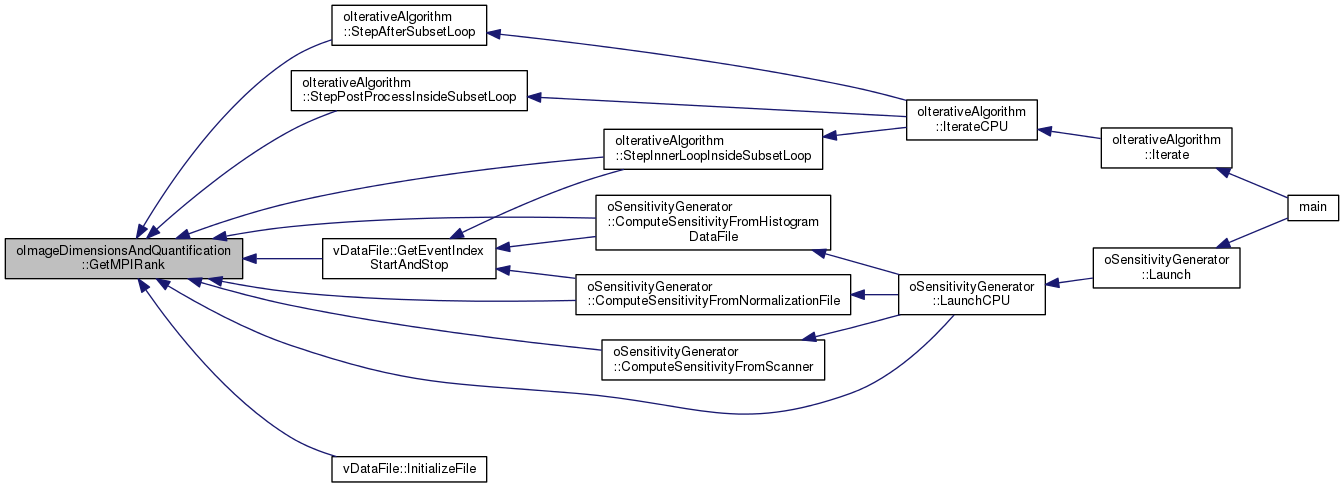

int	GetMPIRank ()
	Get the MPI instance number (the rank) More...

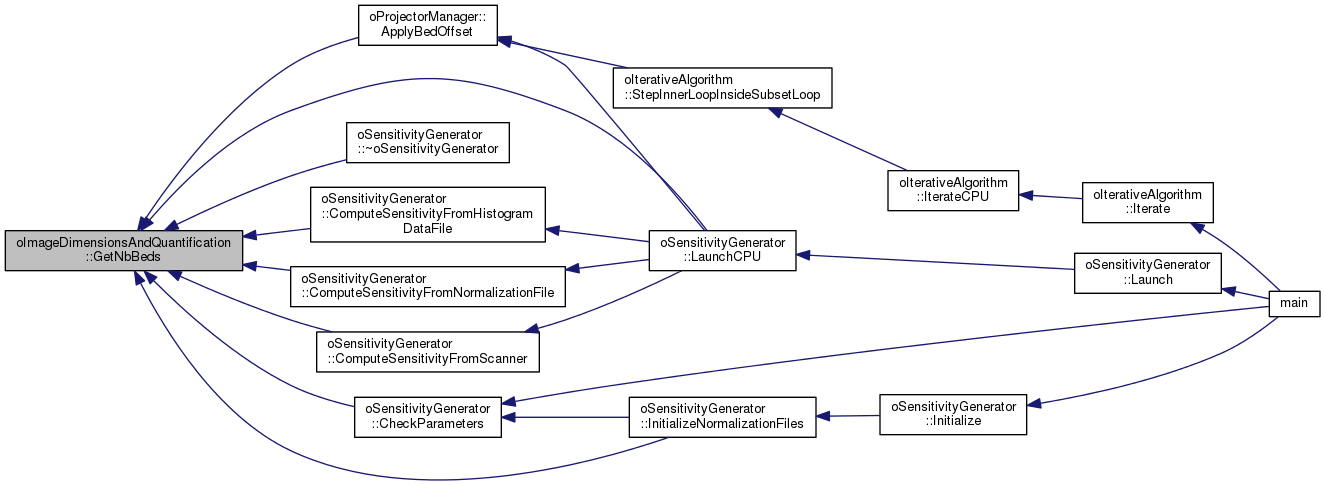

int	GetNbBeds ()
	Get the number of bed positions. More...

void	SetNbBeds (int a_nbBeds)
	Set the number of bed positions. More...

int	GetNbTimeFrames ()
	Get the number of time frames. More...

int	GetNbTimeBasisFunctions ()
	Get the number of time basis functions. More...

FLTNB	GetTimeBasisCoefficient (int a_timeBasisFunction, int a_timeFrame)
	Get the time basis coefficients for the provided frame and basis function. More...

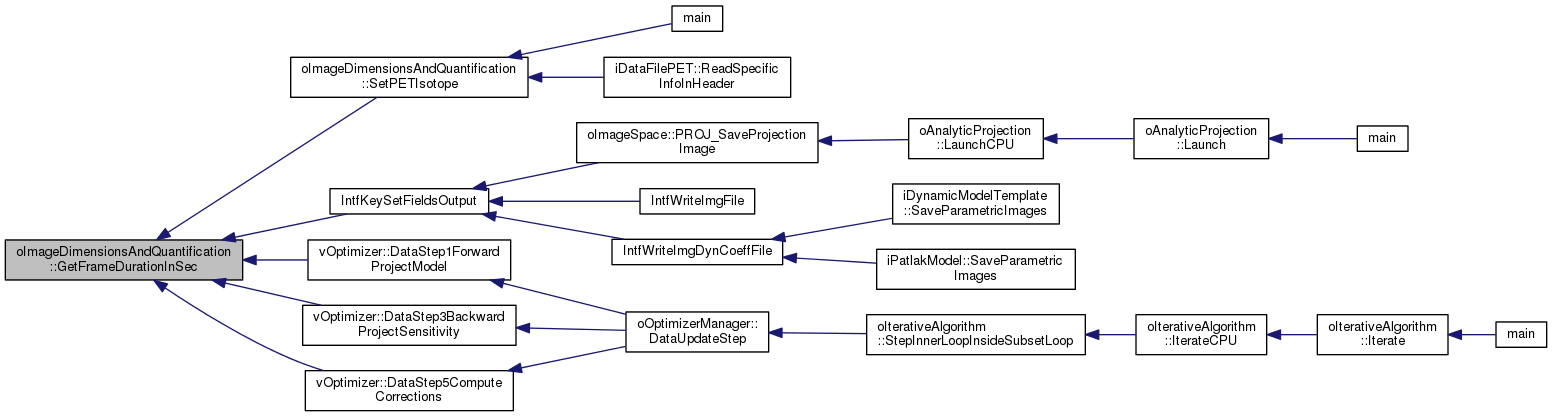

FLTNB	GetFrameDurationInSec (int a_bed, int a_frame)
	Get the frame duration for the given bed, in seconds as a FLTNB. More...

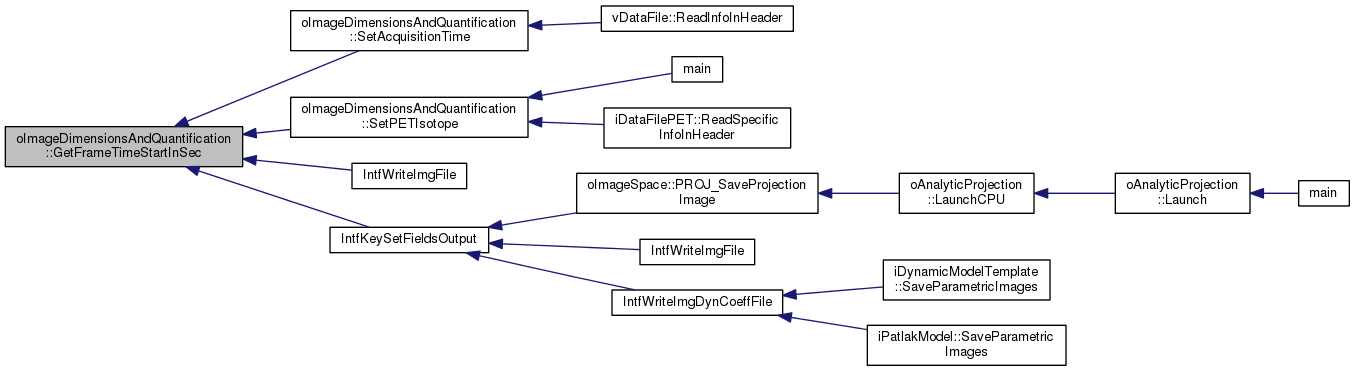

FLTNB	GetFrameTimeStartInSec (int a_bed, int a_frame)
	Get the frame time start for the given bed, in seconds as a FLTNB. More...

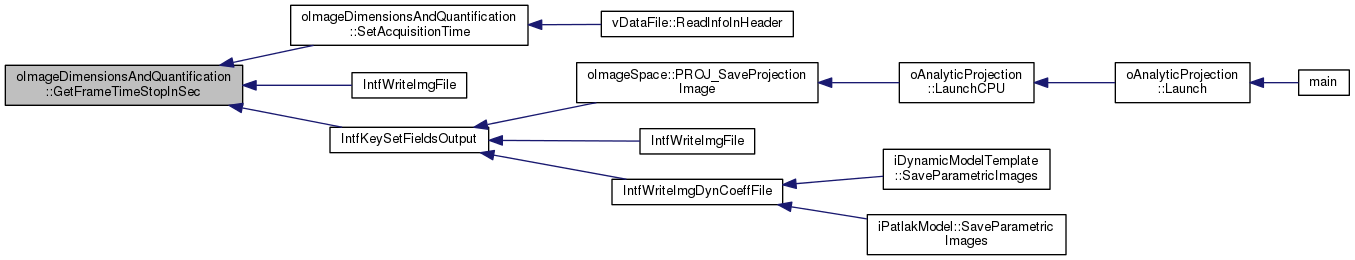

FLTNB	GetFrameTimeStopInSec (int a_bed, int a_frame)
	Get the frame time stop for the given bed, in seconds as a FLTNB. More...

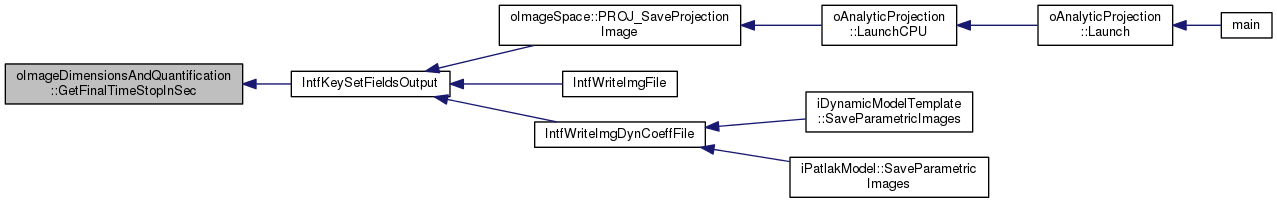

FLTNB	GetFinalTimeStopInSec (int a_bed)
	Get the last frame time stop for the given bed, in seconds as a FLTNB. More...

uint32_t	GetFrameDurationInMs (int a_bed, int a_frame)
	Get the frame duration for the given bed, in milliseconds as a uint32_t. More...

uint32_t	GetFrameTimeStartInMs (int a_bed, int a_frame)
	Get the frame time start for the given bed, in milliseconds as a uint32_t. More...

uint32_t	GetFrameTimeStopInMs (int a_bed, int a_frame)
	Get the frame time stop for the given bed, in milliseconds as a uint32_t. More...

uint32_t	GetFinalTimeStopInMs (int a_bed)
	Get the last frame time stop for the given bed, in milliseconds as a uint32_t. More...

void	SetFrames (const string &a_frameList)
	Set the frame list (a string that will be parsed by the InitializeFramingAndQuantification function) More...

void	SetNbTimeBasisFunctions (int a_nbTimeBasisFunctions)
	Set the number of time basis functions. More...

void	SetTimeBasisFunctionsFile (const string &a_timeBasisFunctionsFile)
	Set the file name containing the time basis functions coefficients. More...

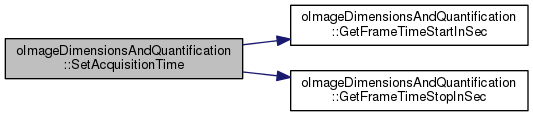

int	SetAcquisitionTime (int a_bed, FLTNB a_timeStartInSec, FLTNB a_durationInSec)
	Set the acquisition time if not already set by the SetTimeFrames() More...

bool	GetTimeStaticFlag ()
	Get the time static flag that says if the reconstruction has only one frame or not. More...

int	GetNbRespGates ()
	Get the number of respiratory gates. More...

int	GetNbRespBasisFunctions ()
	Get the number of respiratory basis functions. More...

FLTNB	GetRespBasisCoefficient (int a_respBasisFunction, int a_respGate)
	Get the respiratory basis coefficients for the provided respiratory gate and basis function. More...

void	SetNbRespGates (int a_nbRespGates)
	Set the number of respiratory gates. More...

void	SetNbRespBasisFunctions (int a_nbRespBasisFunctions)
	Set the number of respiratory basis functions. More...

void	SetRespBasisFunctionsFile (const string &a_respBasisFunctionsFile)
	Set the file name containing the respiratory basis functions coefficients. More...

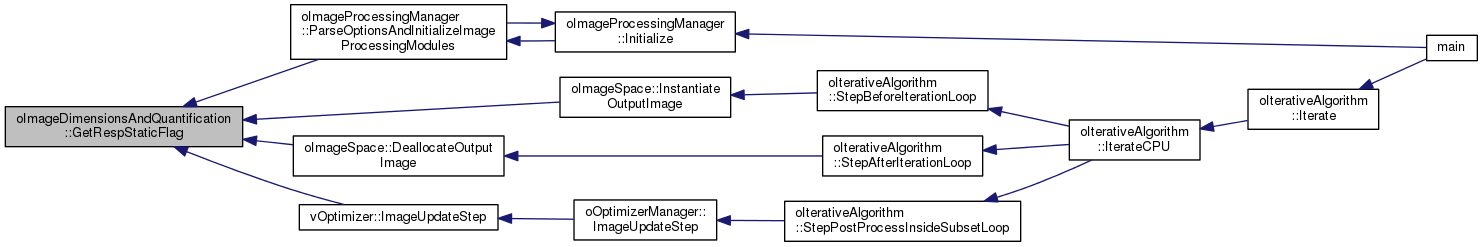

bool	GetRespStaticFlag ()
	Get the respiratory static flag that says if the reconstruction has only one respiratory gate or not. More...

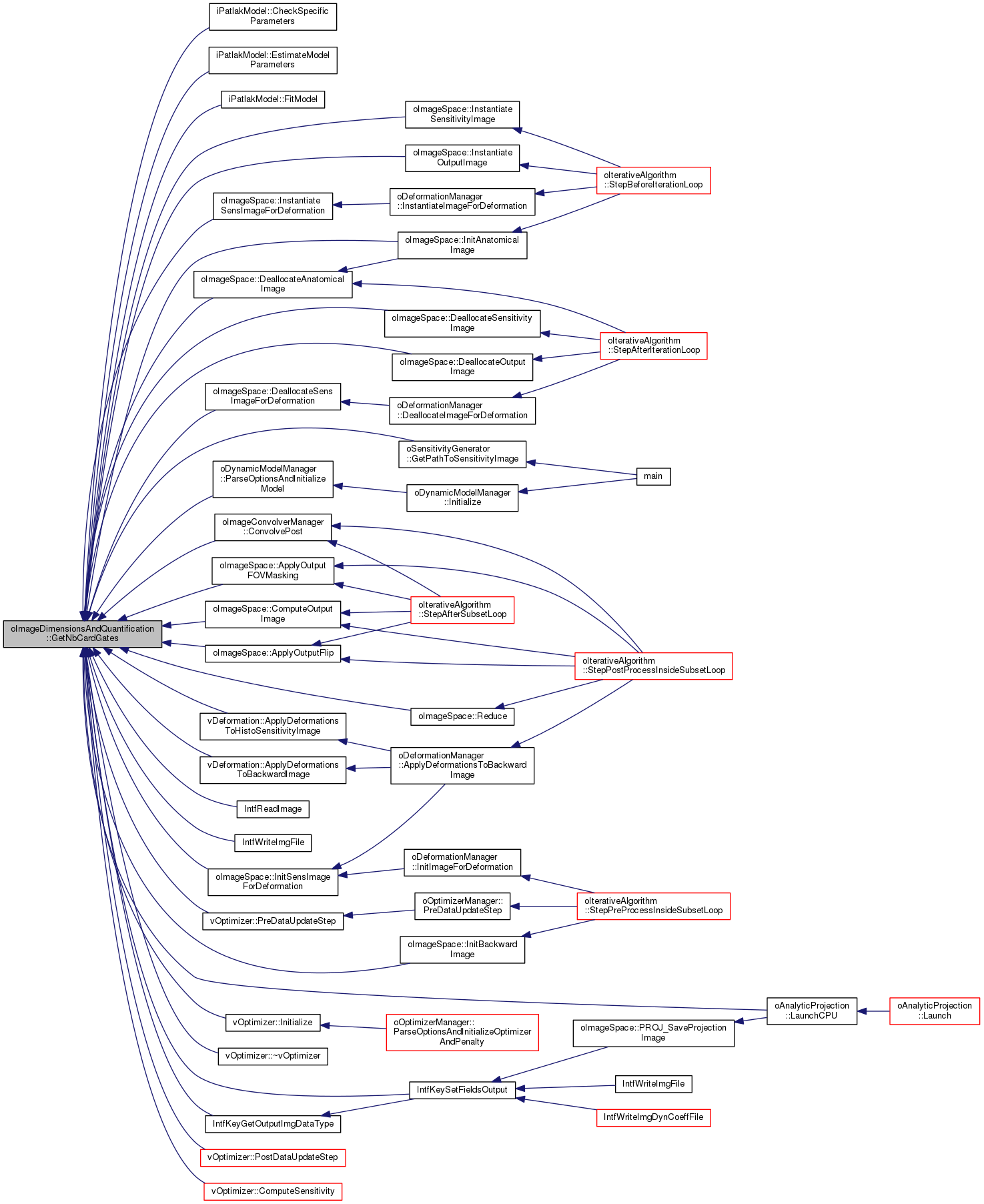

int	GetNbCardGates ()
	Get the number of cardiac gates. More...

int	GetNbCardBasisFunctions ()
	Get the number of cardiac basis functions. More...

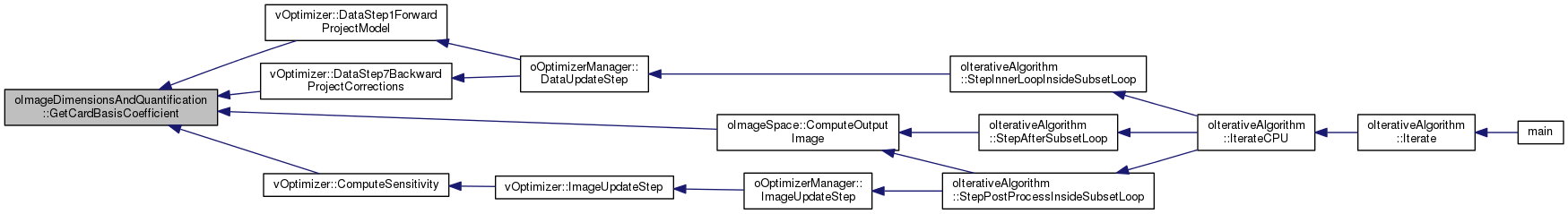

FLTNB	GetCardBasisCoefficient (int a_cardBasisFunction, int a_cardGate)
	Get the cardiac basis coefficients for the provided cardiac gate and basis function. More...

void	SetNbCardGates (int a_nbCardGates)
	Set the number of cardiac gates. More...

void	SetNbCardBasisFunctions (int a_nbCardBasisFunctions)
	Set the number of cardiac basis functions. More...

void	SetCardBasisFunctionsFile (const string &a_cardBasisFunctionsFile)
	Set the file name containing the cardiac basis functions coefficients. More...

bool	GetCardStaticFlag ()
	Get the cardiac static flag that says if the reconstruction has only one cardiac gate or not. More...

INTNB	GetNbVoxX ()
	Get the number of voxels along the X axis. More...

INTNB	GetNbVoxY ()
	Get the number of voxels along the Y axis. More...

INTNB	GetNbVoxZ ()
	Get the number of voxels along the Z axis. More...

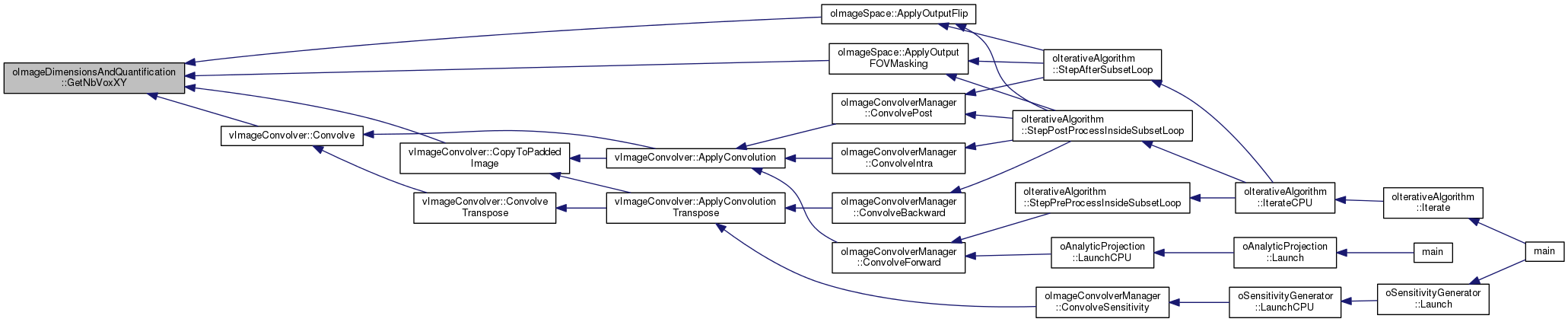

INTNB	GetNbVoxXY ()
	Get the number of voxels in a slice. More...

INTNB	GetNbVoxXYZ ()
	Get the total number of voxels. More...

INTNB	GetNbVoxDiagonal ()
	Get an estimation of the number of voxels along the image diagonal. More...

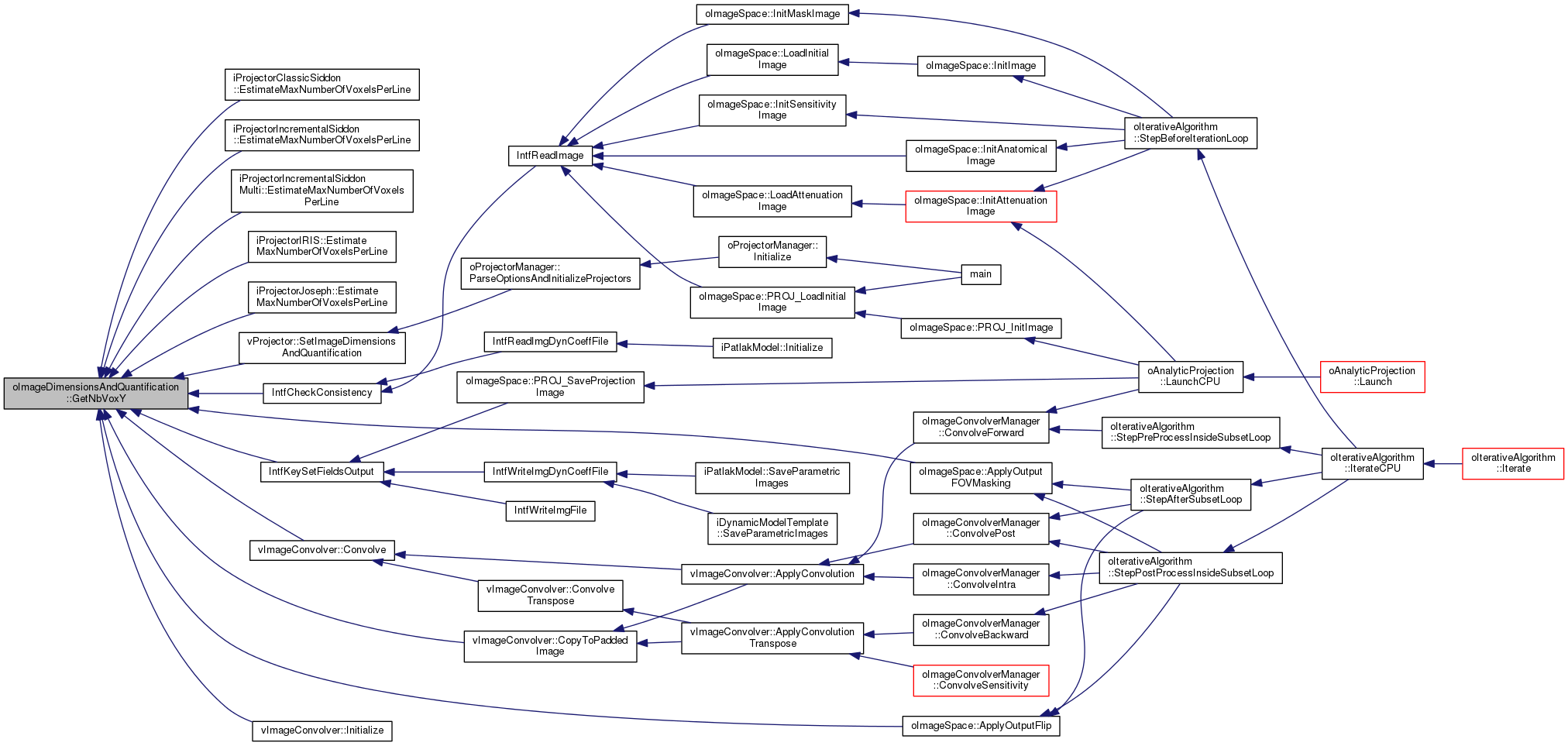

void	SetNbVoxX (INTNB a_nbVoxX)
	Set the number of voxels along the X axis. More...

void	SetNbVoxY (INTNB a_nbVoxY)
	Set the number of voxels along the Y axis. More...

void	SetNbVoxZ (INTNB a_nbVoxZ)
	Set the number of voxels along the Z axis. More...

FLTNB	GetVoxSizeX ()
	Get the voxel's size along the X axis, in mm. More...

FLTNB	GetVoxSizeY ()
	Get the voxel's size along the Y axis, in mm. More...

FLTNB	GetVoxSizeZ ()
	Get the voxel's size along the Z axis, in mm. More...

FLTNB	GetFOVSizeX ()
	Get the size of the field-of-view along the X axis, in mm. More...

FLTNB	GetFOVSizeY ()
	Get the size of the field-of-view along the Y axis, in mm. More...

FLTNB	GetFOVSizeZ ()
	Get the size of the field-of-view along the Z axis, in mm. More...

void	SetVoxSizeX (FLTNB a_voxSizeX)
	Set the voxel's size along the X axis, in mm. More...

void	SetVoxSizeY (FLTNB a_voxSizeY)
	Set the voxel's size along the Y axis, in mm. More...

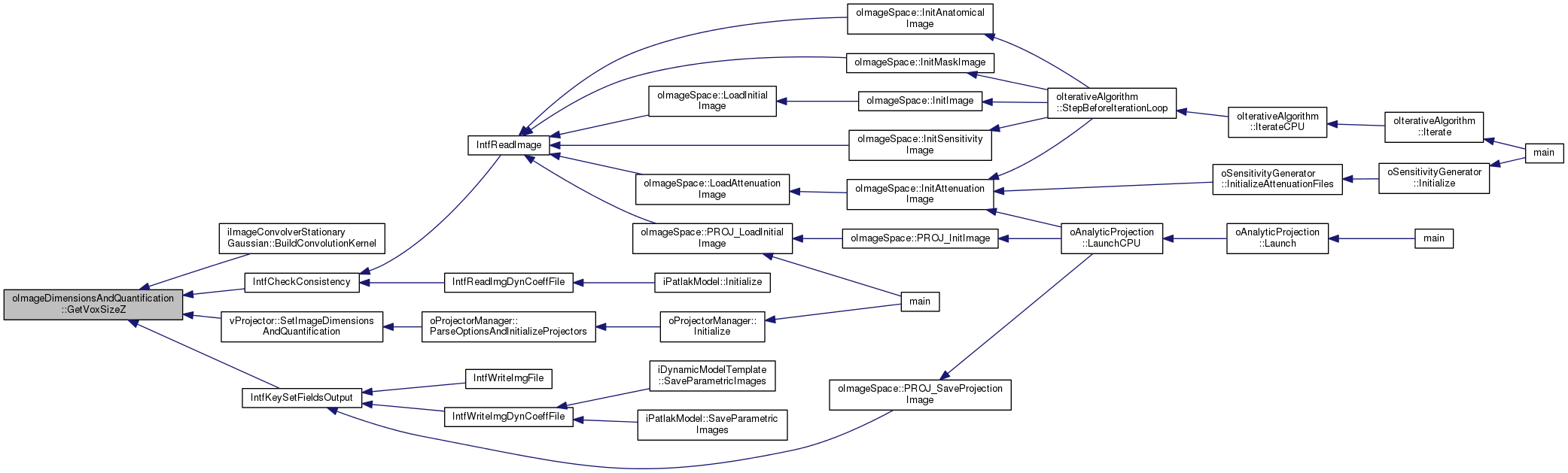

void	SetVoxSizeZ (FLTNB a_voxSizeZ)
	Set the voxel's size along the Z axis, in mm. More...

void	SetFOVSizeX (FLTNB a_fovSizeX)
	Set the FOV's size along the X axis, in mm. More...

void	SetFOVSizeY (FLTNB a_fovSizeY)
	Set the FOV's size along the Y axis, in mm. More...

void	SetFOVSizeZ (FLTNB a_fovSizeZ)
	Set the FOV's size along the Z axis, in mm. More...

void	SetFOVOutMasking (FLTNB a_fovOutPercent, INTNB a_nbSliceOutMask)
	Set the output FOV masking settings: transaxial unmasked FOV percent and number of extrem slices to removed. More...

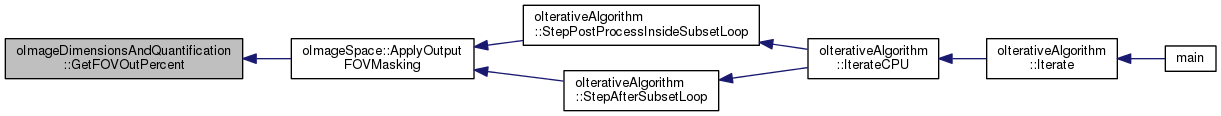

FLTNB	GetFOVOutPercent ()
	Get the percentage of transaxial unmasked FOV. More...

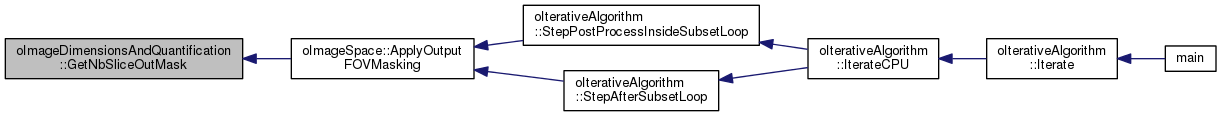

INTNB	GetNbSliceOutMask ()
	Get the number of extrem slices that will be masked at each side. More...

int	SetFlipOut (const string &a_flipOut)
	Set the output flip options, the parameter being a string potentially containing the letters x, y and z. More...

bool	GetFlipOutX ()
	Get the boolean saying if the output image must be flipped along the X axis. More...

bool	GetFlipOutY ()
	Get the boolean saying if the output image must be flipped along the Y axis. More...

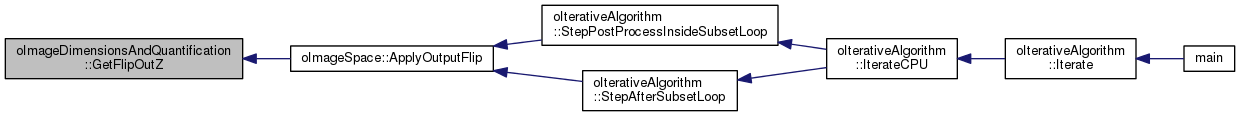

bool	GetFlipOutZ ()
	Get the boolean saying if the output image must be flipped along the Z axis. More...

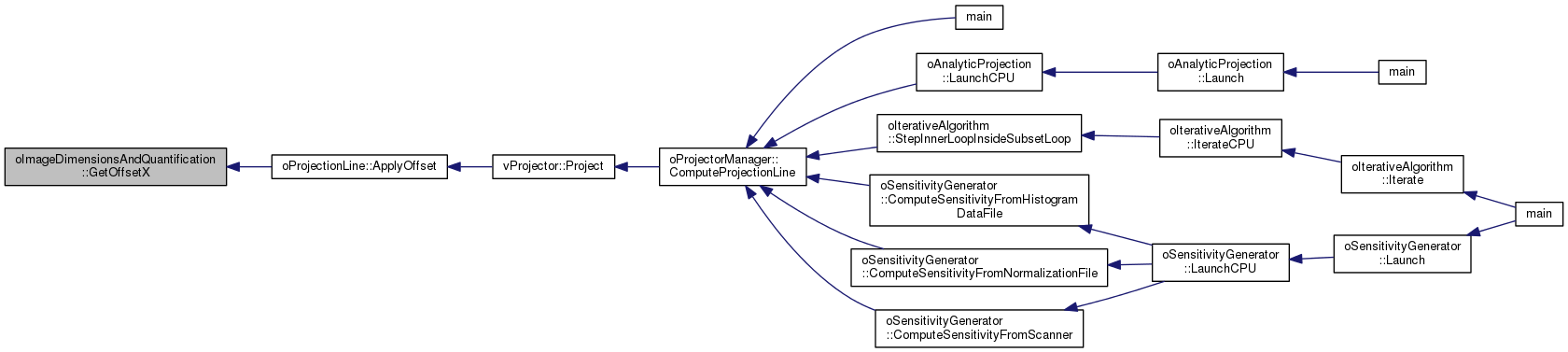

FLTNB	GetOffsetX ()
	Get the image offset along the X axis, in mm. More...

FLTNB	GetOffsetY ()
	Get the image offset along the Y axis, in mm. More...

FLTNB	GetOffsetZ ()
	Get the image offset along the Z axis, in mm. More...

void	SetOffsetX (FLTNB a_offsetX)
	Set the image offset along the X axis, in mm. More...

void	SetOffsetY (FLTNB a_offsetY)
	Set the image offset along the Y axis, in mm. More...

void	SetOffsetZ (FLTNB a_offsetZ)
	Set the image offset along the Z axis, in mm. More...

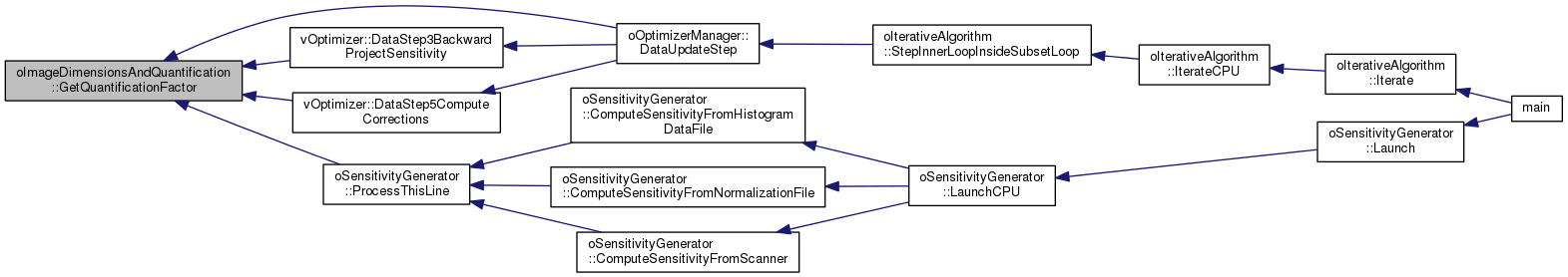

FLTNB	GetQuantificationFactor (int a_bed, int a_frame, int a_respGate, int a_cardGate)
	Get the quantification factor corresponding to the provided bed, frame, respiratory and cardiac gates. More...

int	SetCalibrationFactor (int a_bed, FLTNB a_calibrationFactor)
	Set the calibration factor for the provided bed. More...

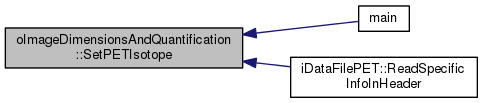

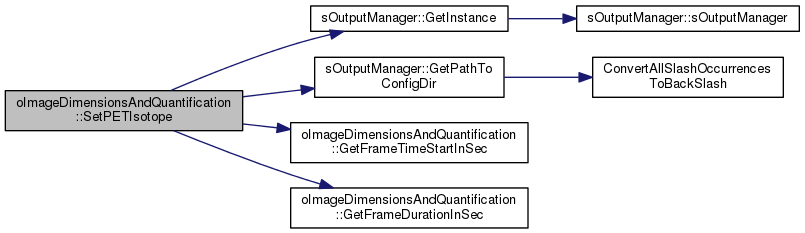

int	SetPETIsotope (int a_bed, const string &a_isotope)
	Set the PET isotope for the provided bed. More...

int	SetSPECTIsotope (int a_bed, const string &a_isotope)
	Set the SPECT isotope for the provided bed. More...

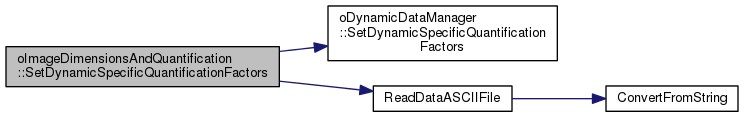

int	SetDynamicSpecificQuantificationFactors (const string &a_quantificationFile)
	Apply specific quantification factors manually provided as an option. More...

void	SetIgnoredCorrections (const string &a_ignoredCorrectionsList)
	Set the string specifying the corrections that will be ignored. More...

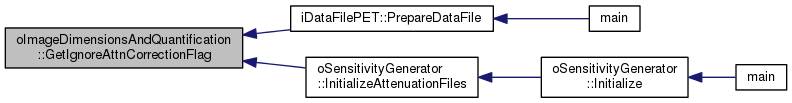

bool	GetIgnoreAttnCorrectionFlag ()
	Get the boolean that says if the attenuation correction is ignored or not. More...

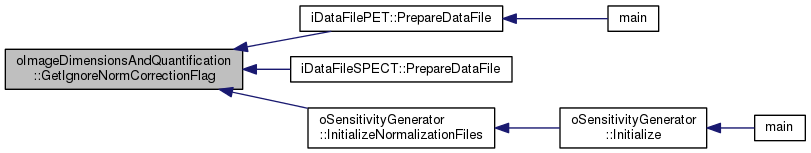

bool	GetIgnoreNormCorrectionFlag ()
	Get the boolean that says if the normalization correction is ignored or not. More...

bool	GetIgnoreScatCorrectionFlag ()
	Get the boolean that says if the scatter correction is ignored or not. More...

bool	GetIgnoreRandCorrectionFlag ()
	Get the boolean that says if the random correction is ignored or not. More...

bool	GetIgnoreDecaCorrectionFlag ()
	Get the boolean that says if the decay correction is ignored or not. More...

bool	GetIgnoreBratCorrectionFlag ()
	Get the boolean that says if the branching ratio correction is ignored or not. More...

bool	GetIgnoreFdurCorrectionFlag ()
	Get the boolean that says if the frame duration correction is ignored or not. More...

bool	GetIgnoreCaliCorrectionFlag ()
	Get the boolean that says if the calibration correction is ignored or not. More...

Private Member Functions
int	InitializeFramingAndQuantification ()
	A function used to initialize the framing and quantification tables. More...

int	InitializeTimeBasisFunctions ()
	A function used to initialize the time basis functions. More...

int	InitializeRespBasisFunctions ()
	A function used to initialize the respiratory basis functions. More...

int	InitializeCardBasisFunctions ()
	A function used to initialize the cardiac basis functions. More...

int	InitializeIgnoredCorrections ()
	A function used to initialize the ignored corrections. More...

Private Attributes
oDynamicDataManager *	mp_DynamicDataManager

int	m_nbThreadsForProjection

int	m_nbThreadsForImageComputation

int	m_mpiRank

int	m_mpiSize

int	m_nbBeds

string	m_frameList

int	m_nbTimeBasisFunctions

int	m_nbTimeFrames

FLTNB **	m2p_timeBasisFunctions

uint32_t **	m2p_frameDurationsInMs

uint32_t **	m2p_frameTimeStartInMs

uint32_t **	m2p_frameTimeStopInMs

string	m_timeBasisFunctionsFile

bool	m_timeStaticFlag

FLTNB ***	m3p_quantificationFactors

string	m_ignoredCorrectionsList

bool	m_ignoreAttnCorrectionFlag

bool	m_ignoreNormCorrectionFlag

bool	m_ignoreRandCorrectionFlag

bool	m_ignoreScatCorrectionFlag

bool	m_ignoreDecaCorrectionFlag

bool	m_ignoreBratCorrectionFlag

bool	m_ignoreFdurCorrectionFlag

bool	m_ignoreCaliCorrectionFlag

int	m_nbRespBasisFunctions

int	m_nbRespGates

FLTNB **	m2p_respBasisFunctions

string	m_respBasisFunctionsFile

bool	m_respStaticFlag

int	m_nbCardBasisFunctions

int	m_nbCardGates

FLTNB **	m2p_cardBasisFunctions

string	m_cardBasisFunctionsFile

bool	m_cardStaticFlag

INTNB	m_nbVoxX

INTNB	m_nbVoxY

INTNB	m_nbVoxZ

INTNB	m_nbVoxXY

INTNB	m_nbVoxXYZ

FLTNB	m_voxSizeX

FLTNB	m_voxSizeY

FLTNB	m_voxSizeZ

FLTNB	m_fovSizeX

FLTNB	m_fovSizeY

FLTNB	m_fovSizeZ

FLTNB	m_offsetX

FLTNB	m_offsetY

FLTNB	m_offsetZ

FLTNB	m_fovOutPercent

INTNB	m_nbSliceOutMask

bool	m_flipOutX

bool	m_flipOutY

bool	m_flipOutZ

bool	m_checked

bool	m_initialized

int	m_verbose

Detailed Description

This class is designed to manage all dimensions and quantification related stuff.

This class gather all dimensions information as well as quantification. It also manages the oDynamicDataManager which itself manages the dynamic data. Most classes in the project have a pointer to this class.

Definition at line 25 of file oImageDimensionsAndQuantification.hh.

Constructor & Destructor Documentation

oImageDimensionsAndQuantification::oImageDimensionsAndQuantification ( )

The constructor of oImageDimensionsAndQuantification.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 26 of file oImageDimensionsAndQuantification.cc.

oImageDimensionsAndQuantification::~oImageDimensionsAndQuantification ( )

The destructor of oImageDimensionsAndQuantification.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were build by this class.

Definition at line 93 of file oImageDimensionsAndQuantification.cc.

Member Function Documentation

int oImageDimensionsAndQuantification::CheckDynamicParameters ( int64_t a_nbEvents )

Call the eponym function from the oDynamicDataManager object in order to check its parameters.

Parameters

int64_t a_nbEvents

Returns: 0 is success, positive value otherwise

Definition at line 1287 of file oImageDimensionsAndQuantification.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void oImageDimensionsAndQuantification::CheckNumberOfProjectionThreadsConsistencyWithDatafileSize ( vDataFile ** a2p_Datafile )

Parameters

vDataFile** a2p_Datafile

Reduce the number of projection threads to the lowest number of events in all datafiles, if the latter is below the former.

Definition at line 423 of file oImageDimensionsAndQuantification.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::CheckParameters ( )

A function used to check the parameters settings.

This function does not take any parameter and is used to check that all mandatory members were correctly parameterized.

Returns: An integer reflecting the check status; 0 if no problem, another value otherwise.

Definition at line 263 of file oImageDimensionsAndQuantification.cc.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::DynamicSwitch	(	int64_t	a_currentEventIndex,
		uint32_t	a_currentTime,
		int	a_bed,
		int	a_th
	)

inline

Call the eponym function from the oDynamicDataManager class using the member object.

Parameters

a_currentEventIndex
a_currentTime
a_bed
a_th

Returns: An integer reflecting the dynamic evoluation (gate/frame change, involuntary motion)

Definition at line 164 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetCardBasisCoefficient	(	int	a_cardBasisFunction,
		int	a_cardGate
	)

inline

Get the cardiac basis coefficients for the provided cardiac gate and basis function.

Parameters

int	a_cardBasisFunction
int	a_cardGate

Returns: m2p_cardBasisFunctions[a_cardBasisFunction][a_cardGate]

Definition at line 541 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline bool oImageDimensionsAndQuantification::GetCardStaticFlag ( )

inline

Get the cardiac static flag that says if the reconstruction has only one cardiac gate or not.

Returns: m_cardStaticFlag

Definition at line 569 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetCurrentCardGate ( int a_th )

inline

call the eponym function from the oDynamicDataManager object

Parameters

a_th

Returns: the current cardiac gate index

Definition at line 203 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetCurrentCardImage ( int a_th )

inline

call the eponym function from the oDynamicDataManager object

Parameters

a_th

Returns: the index of the current cardiac image for reconstruction

Definition at line 233 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::GetCurrentPMotionIndex ( int a_th )

inline

call the eponym function from the oDynamicDataManager object

Parameters

a_th

Returns: the index of the current involuntary motion gate

Definition at line 249 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetCurrentRespGate ( int a_th )

inline

call the eponym function from the oDynamicDataManager object

Parameters

a_th

Returns: the current respiratory gate index

Definition at line 195 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetCurrentRespImage ( int a_th )

inline

call the eponym function from the oDynamicDataManager object

Parameters

a_th

Returns: the index of the current respiratory image for reconstruction

Definition at line 225 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetCurrentTimeFrame ( int a_th )

inline

call the eponym function from the oDynamicDataManager object

Parameters

a_th

Returns: the index of the current time frame

Definition at line 241 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline uint32_t oImageDimensionsAndQuantification::GetFinalTimeStopInMs ( int a_bed )

inline

Get the last frame time stop for the given bed, in milliseconds as a uint32_t.

Parameters

int a_bed

Returns: m2p_frameTimeStopInMs[a_bed][m_nbTimeFrames-1]

Definition at line 429 of file oImageDimensionsAndQuantification.hh.

public inline FLTNB oImageDimensionsAndQuantification::GetFinalTimeStopInSec ( int a_bed )

inline

Get the last frame time stop for the given bed, in seconds as a FLTNB.

Parameters

int a_bed

Returns: ((FLTNB)(m2p_frameTimeStopInMs[a_bed][m_nbTimeFrames-1]))/1000.

Definition at line 394 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline bool oImageDimensionsAndQuantification::GetFlipOutX ( )

inline

Get the boolean saying if the output image must be flipped along the X axis.

Returns: m_flipOutX

Definition at line 754 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline bool oImageDimensionsAndQuantification::GetFlipOutY ( )

inline

Get the boolean saying if the output image must be flipped along the Y axis.

Returns: m_flipOutY

Definition at line 761 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline bool oImageDimensionsAndQuantification::GetFlipOutZ ( )

inline

Get the boolean saying if the output image must be flipped along the Z axis.

Returns: m_flipOutZ

Definition at line 768 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetFOVOutPercent ( )

inline

Get the percentage of transaxial unmasked FOV.

Returns: m_fovOutPercent

Definition at line 733 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetFOVSizeX ( )

inline

Get the size of the field-of-view along the X axis, in mm.

Returns: m_fovSizeX

Definition at line 662 of file oImageDimensionsAndQuantification.hh.

public inline FLTNB oImageDimensionsAndQuantification::GetFOVSizeY ( )

inline

Get the size of the field-of-view along the Y axis, in mm.

Returns: m_fovSizeY

Definition at line 669 of file oImageDimensionsAndQuantification.hh.

public inline FLTNB oImageDimensionsAndQuantification::GetFOVSizeZ ( )

inline

Get the size of the field-of-view along the Z axis, in mm.

Returns: m_fovSizeZ

Definition at line 676 of file oImageDimensionsAndQuantification.hh.

public inline uint32_t oImageDimensionsAndQuantification::GetFrameDurationInMs	(	int	a_bed,
		int	a_frame
	)

inline

Get the frame duration for the given bed, in milliseconds as a uint32_t.

Parameters

int	a_bed
int	a_frame

Returns: m2p_frameDurationsInMs[a_bed][a_frame]

Definition at line 403 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetFrameDurationInSec	(	int	a_bed,
		int	a_frame
	)

inline

Get the frame duration for the given bed, in seconds as a FLTNB.

Parameters

int	a_bed
int	a_frame

Returns: ((FLTNB)(m2p_frameDurationsInMs[a_bed][a_frame]))/1000.

Definition at line 368 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline uint32_t oImageDimensionsAndQuantification::GetFrameTimeStartInMs	(	int	a_bed,
		int	a_frame
	)

inline

Get the frame time start for the given bed, in milliseconds as a uint32_t.

Parameters

int	a_bed
int	a_frame

Returns: m2p_frameTimeStartInMs[a_bed][a_frame]

Definition at line 412 of file oImageDimensionsAndQuantification.hh.

public inline FLTNB oImageDimensionsAndQuantification::GetFrameTimeStartInSec	(	int	a_bed,
		int	a_frame
	)

inline

Get the frame time start for the given bed, in seconds as a FLTNB.

Parameters

int	a_bed
int	a_frame

Returns: ((FLTNB)(m2p_frameTimeStartInMs[a_bed][a_frame]))/1000.

Definition at line 377 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline uint32_t oImageDimensionsAndQuantification::GetFrameTimeStopInMs	(	int	a_bed,
		int	a_frame
	)

inline

Get the frame time stop for the given bed, in milliseconds as a uint32_t.

Parameters

int	a_bed
int	a_frame

Returns: m2p_frameTimeStopInMs[a_bed][a_frame]

Definition at line 421 of file oImageDimensionsAndQuantification.hh.

public inline FLTNB oImageDimensionsAndQuantification::GetFrameTimeStopInSec	(	int	a_bed,
		int	a_frame
	)

inline

Get the frame time stop for the given bed, in seconds as a FLTNB.

Parameters

int	a_bed
int	a_frame

Returns: ((FLTNB)(m2p_frameTimeStopInMs[a_bed][a_frame]))/1000.

Definition at line 386 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline bool oImageDimensionsAndQuantification::GetIgnoreAttnCorrectionFlag ( )

inline

Get the boolean that says if the attenuation correction is ignored or not.

Returns: m_ignoreAttnCorrectionFlag

Definition at line 868 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline bool oImageDimensionsAndQuantification::GetIgnoreBratCorrectionFlag ( )

inline

Get the boolean that says if the branching ratio correction is ignored or not.

Returns: m_ignoreBratCorrectionFlag

Definition at line 903 of file oImageDimensionsAndQuantification.hh.

public inline bool oImageDimensionsAndQuantification::GetIgnoreCaliCorrectionFlag ( )

inline

Get the boolean that says if the calibration correction is ignored or not.

Returns: m_ignoreCaliCorrectionFlag

Definition at line 917 of file oImageDimensionsAndQuantification.hh.

public inline bool oImageDimensionsAndQuantification::GetIgnoreDecaCorrectionFlag ( )

inline

Get the boolean that says if the decay correction is ignored or not.

Returns: m_ignoreDecaCorrectionFlag

Definition at line 896 of file oImageDimensionsAndQuantification.hh.

public inline bool oImageDimensionsAndQuantification::GetIgnoreFdurCorrectionFlag ( )

inline

Get the boolean that says if the frame duration correction is ignored or not.

Returns: m_ignoreFdurCorrectionFlag

Definition at line 910 of file oImageDimensionsAndQuantification.hh.

public inline bool oImageDimensionsAndQuantification::GetIgnoreNormCorrectionFlag ( )

inline

Get the boolean that says if the normalization correction is ignored or not.

Returns: m_ignoreNormCorrectionFlag

Definition at line 875 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline bool oImageDimensionsAndQuantification::GetIgnoreRandCorrectionFlag ( )

inline

Get the boolean that says if the random correction is ignored or not.

Returns: m_ignoreRandCorrectionFlag

Definition at line 889 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline bool oImageDimensionsAndQuantification::GetIgnoreScatCorrectionFlag ( )

inline

Get the boolean that says if the scatter correction is ignored or not.

Returns: m_ignoreScatCorrectionFlag

Definition at line 882 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetMPIRank ( )

inline

Get the MPI instance number (the rank)

Returns: m_mpiRank

Definition at line 322 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetMPISize ( )

inline

Get the MPI size (the number of MPI instances)

Returns: m_mpiSize

Definition at line 315 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetNbBeds ( )

inline

Get the number of bed positions.

Returns: m_nbBeds

Definition at line 329 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetNbCardBasisFunctions ( )

inline

Get the number of cardiac basis functions.

Returns: m_nbCardBasisFunctions

Definition at line 532 of file oImageDimensionsAndQuantification.hh.

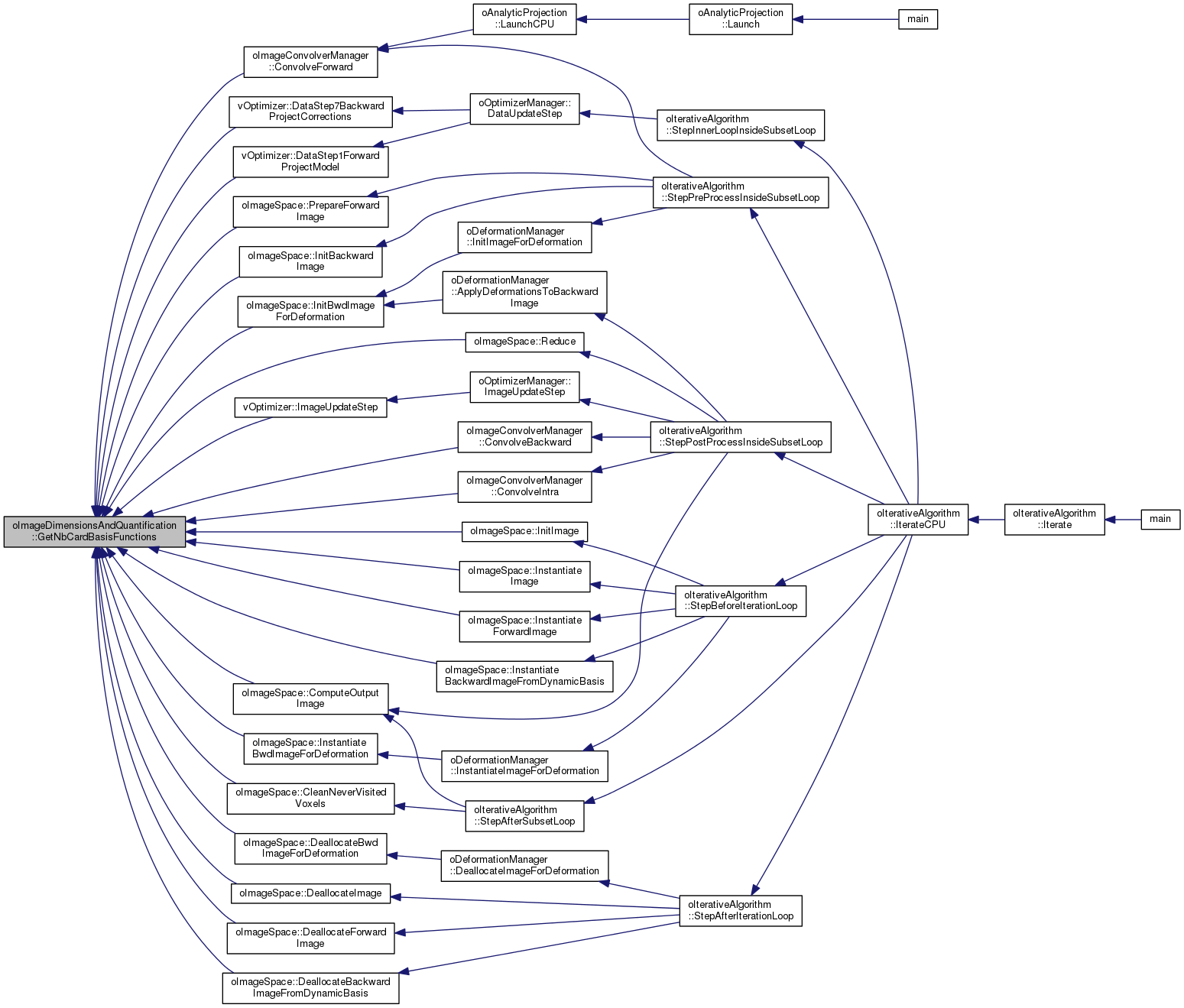

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetNbCardGates ( )

inline

Get the number of cardiac gates.

Returns: m_nbCardGates

Definition at line 525 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::GetNbIPatMotionSubsets ( )

inline

call the eponym function from the oDynamicDataManager object

Returns: the total number of involuntary patient motion triggers

Definition at line 257 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetNbRespBasisFunctions ( )

inline

Get the number of respiratory basis functions.

Returns: m_nbRespBasisFunctions

Definition at line 481 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetNbRespGates ( )

inline

Get the number of respiratory gates.

Returns: m_nbRespGates

Definition at line 474 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetNbSliceOutMask ( )

inline

Get the number of extrem slices that will be masked at each side.

Returns: m_nbSliceOutMask

Definition at line 740 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetNbThreadsForImageComputation ( )

inline

Get the number of threads used for image operations.

Returns: m_nbThreadsForImageComputation

Definition at line 283 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetNbThreadsForProjection ( )

inline

Get the number of threads used for projections.

Returns: m_nbThreadsForProjection

Definition at line 276 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetNbThreadsMax ( )

inline

Get the maximum between the number of threads used for projections and image operations.

Returns: max(m_nbThreadsForProjection,m_nbThreadsForImageComputation)

Definition at line 290 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetNbTimeBasisFunctions ( )

inline

Get the number of time basis functions.

Returns: m_nbTimeBasisFunctions

Definition at line 350 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetNbTimeFrames ( )

inline

Get the number of time frames.

Returns: m_nbTimeFrames

Definition at line 343 of file oImageDimensionsAndQuantification.hh.

public inline INTNB oImageDimensionsAndQuantification::GetNbVoxDiagonal ( )

inline

Get an estimation of the number of voxels along the image diagonal.

Returns: An estimation of the number of voxels along the image diagonal

Definition at line 611 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline INTNB oImageDimensionsAndQuantification::GetNbVoxX ( )

inline

Get the number of voxels along the X axis.

Returns: m_nbVoxX

Definition at line 576 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline INTNB oImageDimensionsAndQuantification::GetNbVoxXY ( )

inline

Get the number of voxels in a slice.

Returns: m_nbVoxXY

Definition at line 597 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline INTNB oImageDimensionsAndQuantification::GetNbVoxXYZ ( )

inline

Get the total number of voxels.

Returns: m_nbVoxXYZ

Definition at line 604 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline INTNB oImageDimensionsAndQuantification::GetNbVoxY ( )

inline

Get the number of voxels along the Y axis.

Returns: m_nbVoxY

Definition at line 583 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline INTNB oImageDimensionsAndQuantification::GetNbVoxZ ( )

inline

Get the number of voxels along the Z axis.

Returns: m_nbVoxZ

Definition at line 590 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetOffsetX ( )

inline

Get the image offset along the X axis, in mm.

Returns: m_offsetX

Definition at line 775 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetOffsetY ( )

inline

Get the image offset along the Y axis, in mm.

Returns: m_offsetY

Definition at line 782 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetOffsetZ ( )

inline

Get the image offset along the Z axis, in mm.

Returns: m_offsetZ

Definition at line 789 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

FLTNB oImageDimensionsAndQuantification::GetQuantificationFactor	(	int	a_bed,
		int	a_frame,
		int	a_respGate,
		int	a_cardGate
	)

Get the quantification factor corresponding to the provided bed, frame, respiratory and cardiac gates.

Parameters

int	a_bed
int	a_frame
int	a_respGate
int	a_cardGate

Definition at line 1044 of file oImageDimensionsAndQuantification.cc.

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetRespBasisCoefficient	(	int	a_respBasisFunction,
		int	a_respGate
	)

inline

Get the respiratory basis coefficients for the provided respiratory gate and basis function.

Parameters

int	a_respBasisFunction
int	a_respGate

Returns: m2p_respBasisFunctions[a_respBasisFunction][a_respGate]

Definition at line 490 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline bool oImageDimensionsAndQuantification::GetRespStaticFlag ( )

inline

Get the respiratory static flag that says if the reconstruction has only one respiratory gate or not.

Returns: m_respStaticFlag

Definition at line 518 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::GetSensNbCardGates ( )

inline

Definition at line 217 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline int oImageDimensionsAndQuantification::GetSensNbRespGates ( )

inline

call the eponym function from the oDynamicDataManager object

Returns: the number of respiratory images for sensitivity

Definition at line 210 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetTimeBasisCoefficient	(	int	a_timeBasisFunction,
		int	a_timeFrame
	)

inline

Get the time basis coefficients for the provided frame and basis function.

Parameters

int	a_timeBasisFunction
int	a_timeFrame

Returns: m2p_timeBasisFunctions[a_timeBasisFunction][a_timeFrame]

Definition at line 359 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline bool oImageDimensionsAndQuantification::GetTimeStaticFlag ( )

inline

Get the time static flag that says if the reconstruction has only one frame or not.

Returns: m_timeStaticFlag

Definition at line 467 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetVoxSizeX ( )

inline

Get the voxel's size along the X axis, in mm.

Returns: m_voxSizeX

Definition at line 641 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetVoxSizeY ( )

inline

Get the voxel's size along the Y axis, in mm.

Returns: m_voxSizeY

Definition at line 648 of file oImageDimensionsAndQuantification.hh.

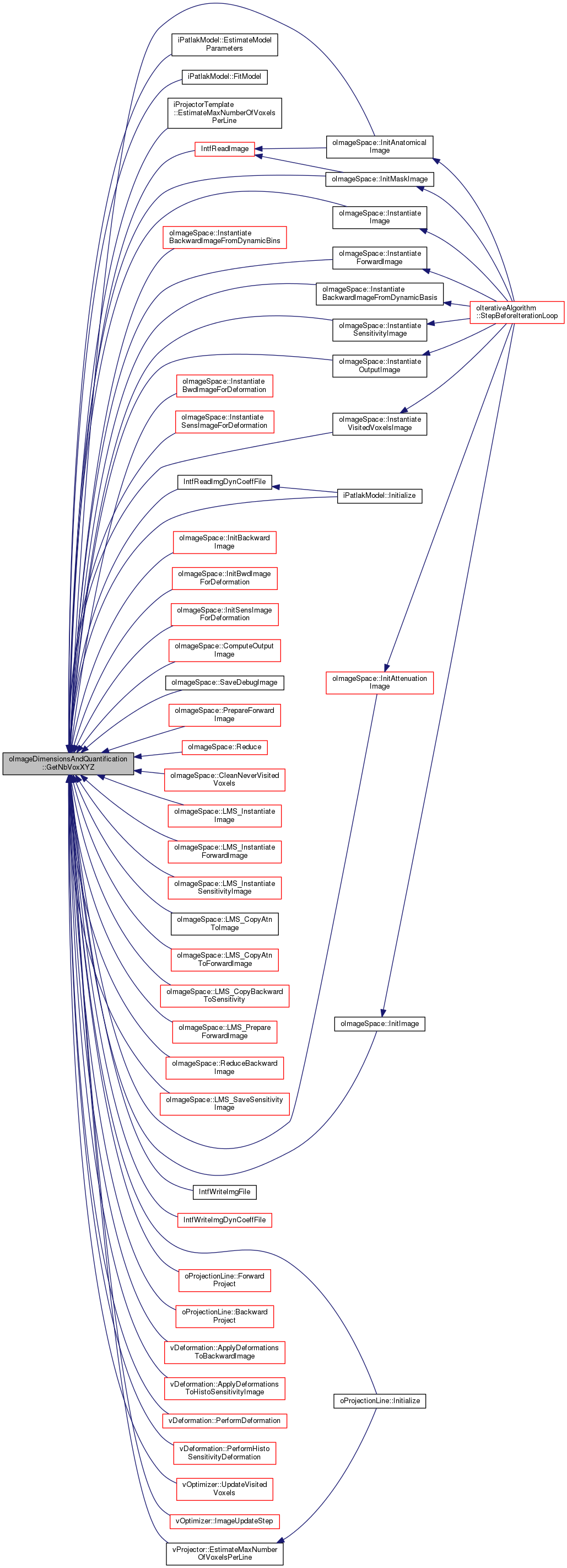

Here is the caller graph for this function:

public inline FLTNB oImageDimensionsAndQuantification::GetVoxSizeZ ( )

inline

Get the voxel's size along the Z axis, in mm.

Returns: m_voxSizeZ

Definition at line 655 of file oImageDimensionsAndQuantification.hh.

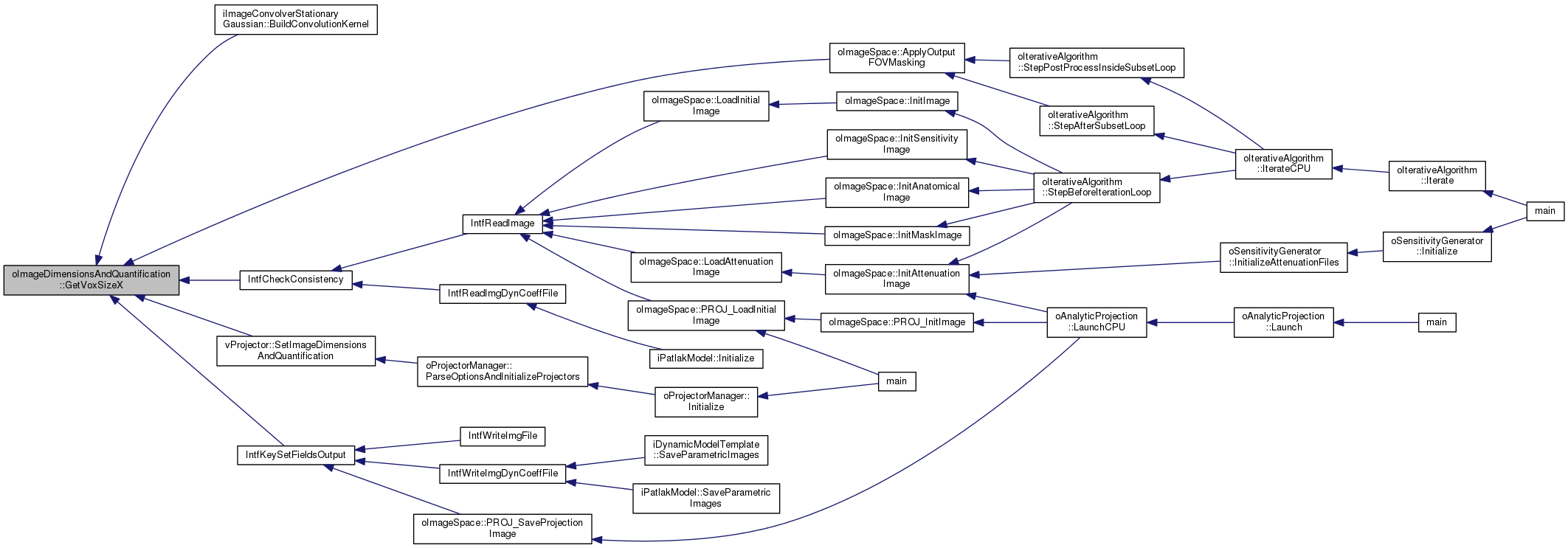

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::InitDynamicData	(	string	a_pathTo4DDataSplittingFile,
		int	a_respMotionCorrectionFlag,
		int	a_cardMotionCorrectionFlag,
		int	a_doubleMotionCorrectionFlag,
		int	a_invMotionCorrectionFlag,
		int	a_nbRespGates,
		int	a_nbCardGates
	)

Call the eponym function from the oDynamicDataManager object in order to initialize its data.

Parameters

a_pathTo4DDataSplittingFile
a_respMotionCorrectionFlag
a_cardMotionCorrectionFlag
a_doubleMotionCorrectionFlag
a_invMotionCorrectionFlag
a_nbRespGates
a_nbCardGates	#

Returns: 0 is success, positive value otherwise

Definition at line 1263 of file oImageDimensionsAndQuantification.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::Initialize ( )

A function used to initialize all that is needed.

This function does not take any parameter and is used to initialize everything that should be initialized. It initializes image dimensions, dynamic basis functions and quantification factors.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 318 of file oImageDimensionsAndQuantification.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::InitializeCardBasisFunctions ( )

private

A function used to initialize the cardiac basis functions.

This function is called by the Initialize() function. If provided, it parses the file containing the cardiac basis functions coefficients.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 713 of file oImageDimensionsAndQuantification.cc.

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::InitializeFramingAndQuantification ( )

private

A function used to initialize the framing and quantification tables.

This function is called by the Initialize() function.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 444 of file oImageDimensionsAndQuantification.cc.

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::InitializeIgnoredCorrections ( )

private

A function used to initialize the ignored corrections.

This function is called by the Initialize() function. It parses the ignored correction string (correction keywords separated by commas) and set the associated boolean members

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 762 of file oImageDimensionsAndQuantification.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::InitializeRespBasisFunctions ( )

private

A function used to initialize the respiratory basis functions.

This function is called by the Initialize() function. If provided, it parses the file containing the respiratory basis functions coefficients.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 663 of file oImageDimensionsAndQuantification.cc.

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::InitializeTimeBasisFunctions ( )

private

A function used to initialize the time basis functions.

This function is called by the Initialize() function. If provided, it parses the file containing the time basis functions coefficients.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 614 of file oImageDimensionsAndQuantification.cc.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::ResetCurrentDynamicIndices ( )

inline

Call the eponym function from the oDynamicDataManager class using the member object.

Definition at line 130 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::SetAcquisitionTime	(	int	a_bed,
		FLTNB	a_timeStartInSec,
		FLTNB	a_durationInSec
	)

Set the acquisition time if not already set by the SetTimeFrames()

Parameters

int	a_bed
FLTNB	a_timeStartInSec
FLTNB	a_durationInSec

This function is called from the vDataFile once the acquisition start and duration are read in the header

Returns: 0 if no problem, another value otherwise

Definition at line 819 of file oImageDimensionsAndQuantification.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::SetCalibrationFactor	(	int	a_bed,
		FLTNB	a_calibrationFactor
	)

Set the calibration factor for the provided bed.

Parameters

int	a_bed
FLTNB	a_calibrationFactor

Apply it to all frames and gates

Returns: 0 if no problem, another value otherwise

Definition at line 896 of file oImageDimensionsAndQuantification.cc.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetCardBasisFunctionsFile ( const string & a_cardBasisFunctionsFile )

inline

Set the file name containing the cardiac basis functions coefficients.

Parameters

const string& a_cardBasisFunctionsFile

Definition at line 562 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetCardMotionFlagOn ( )

inline

Call the eponym function from the oDynamicDataManager class using the member object.

Definition at line 181 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

int oImageDimensionsAndQuantification::SetDynamicSpecificQuantificationFactors ( const string & a_quantificationFile )

Apply specific quantification factors manually provided as an option.

Parameters

const string& a_quantificationFile

It does not set the quantification factors, it applies them (it is an update, not an affectation)

Returns: 0 if no problem, another value otherwise

Definition at line 937 of file oImageDimensionsAndQuantification.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::SetFlipOut ( const string & a_flipOut )

Set the output flip options, the parameter being a string potentially containing the letters x, y and z.

Parameters

const string& a_flipOut

Returns: 0 if no problem, another value if the string is not correctly set

Definition at line 136 of file oImageDimensionsAndQuantification.cc.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetFOVOutMasking	(	FLTNB	a_fovOutPercent,
		INTNB	a_nbSliceOutMask
	)

inline

Set the output FOV masking settings: transaxial unmasked FOV percent and number of extrem slices to removed.

Parameters

FLTNB	a_fovOutPercent
INTNB	a_nbSliceOutMask

Definition at line 726 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetFOVSizeX ( FLTNB a_fovSizeX )

inline

Set the FOV's size along the X axis, in mm.

Parameters

FLTNB a_fovSizeX

Definition at line 704 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetFOVSizeY ( FLTNB a_fovSizeY )

inline

Set the FOV's size along the Y axis, in mm.

Parameters

FLTNB a_fovSizeY

Definition at line 711 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetFOVSizeZ ( FLTNB a_fovSizeZ )

inline

Set the FOV's size along the Z axis, in mm.

Parameters

FLTNB a_fovSizeZ

Definition at line 718 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetFrames ( const string & a_frameList )

inline

Set the frame list (a string that will be parsed by the InitializeFramingAndQuantification function)

Parameters

const string& a_frameList

Definition at line 436 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetIgnoredCorrections ( const string & a_ignoredCorrectionsList )

inline

Set the string specifying the corrections that will be ignored.

Parameters

const string& a_ignoredCorrectionsList

Definition at line 861 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetMPIRankAndSize	(	int	a_mpiRank,
		int	a_mpiSize
	)

inline

Set the MPI rank of the MPI instance, and the MPI size (the number of instances)

Parameters

int	a_mpiRank
int	a_mpiSize

Definition at line 308 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetNbBeds ( int a_nbBeds )

inline

Set the number of bed positions.

Parameters

int a_nbBeds

Definition at line 336 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetNbCardBasisFunctions ( int a_nbCardBasisFunctions )

inline

Set the number of cardiac basis functions.

Parameters

int	a_nbCardBasisFunctions

Definition at line 555 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetNbCardGates ( int a_nbCardGates )

inline

Set the number of cardiac gates.

Parameters

int	a_nbCardGates

Definition at line 548 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetNbRespBasisFunctions ( int a_nbRespBasisFunctions )

inline

Set the number of respiratory basis functions.

Parameters

int	a_nbRespBasisFunctions

Definition at line 504 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetNbRespGates ( int a_nbRespGates )

inline

Set the number of respiratory gates.

Parameters

int	a_nbRespGates

Definition at line 497 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::SetNbThreads ( const string & a_nbThreads )

Set the number of threads.

Parameters

const string& a_nbThreads

The string parameter can be a set of two parameters separated by a comma, the first for the number of threads for projections and the second for the number of threads for image operations. If no comma, then the number of threads is the same for all operations.

Returns: 0 if correctly set, another value otherwise

Definition at line 205 of file oImageDimensionsAndQuantification.cc.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetNbTimeBasisFunctions ( int a_nbTimeBasisFunctions )

inline

Set the number of time basis functions.

Parameters

int	a_nbTimeBasisFunctions

Definition at line 443 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetNbVoxX ( INTNB a_nbVoxX )

inline

Set the number of voxels along the X axis.

Parameters

INTNB a_nbVoxX

Definition at line 620 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetNbVoxY ( INTNB a_nbVoxY )

inline

Set the number of voxels along the Y axis.

Parameters

INTNB a_nbVoxY

Definition at line 627 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetNbVoxZ ( INTNB a_nbVoxZ )

inline

Set the number of voxels along the Z axis.

Parameters

INTNB a_nbVoxZ

Definition at line 634 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetOffsetX ( FLTNB a_offsetX )

inline

Set the image offset along the X axis, in mm.

Parameters

FLTNB a_offsetX

Definition at line 796 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetOffsetY ( FLTNB a_offsetY )

inline

Set the image offset along the Y axis, in mm.

Parameters

FLTNB a_offsetY

Definition at line 803 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetOffsetZ ( FLTNB a_offsetZ )

inline

Set the image offset along the Z axis, in mm.

Parameters

FLTNB a_offsetZ

Definition at line 810 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

int oImageDimensionsAndQuantification::SetPETIsotope	(	int	a_bed,
		const string &	a_isotope
	)

Set the PET isotope for the provided bed.

Parameters

int	a_bed
const	string& a_isotope

Apply decay and branching ratio corrections if the PET isotope is found in the database of the config/ directory

Returns: 0 if no problem, another value otherwise

Definition at line 1081 of file oImageDimensionsAndQuantification.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetPMotionFlagOn ( )

inline

Call the eponym function from the oDynamicDataManager class using the member object.

Definition at line 187 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

public inline void oImageDimensionsAndQuantification::SetRespBasisFunctionsFile ( const string & a_respBasisFunctionsFile )

inline

Set the file name containing the respiratory basis functions coefficients.

Parameters

const string& a_respBasisFunctionsFile

Definition at line 511 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetRespMotionFlagOn ( )

inline

Call the eponym function from the oDynamicDataManager class using the member object.

Definition at line 175 of file oImageDimensionsAndQuantification.hh.

Here is the call graph for this function:

int oImageDimensionsAndQuantification::SetSPECTIsotope	(	int	a_bed,
		const string &	a_isotope
	)

Set the SPECT isotope for the provided bed.

Parameters

int	a_bed
const	string& a_isotope

Apply decay and branching ratio corrections if the SPECT isotope is found in the database of the config/ directory

Returns: 0 if no problem, another value otherwise

Definition at line 1061 of file oImageDimensionsAndQuantification.cc.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetTimeBasisFunctionsFile ( const string & a_timeBasisFunctionsFile )

inline

Set the file name containing the time basis functions coefficients.

Parameters

const string& a_timeBasisFunctionsFile

Definition at line 450 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetVerbose ( int a_verbose )

inline

Set the member m_verboseLevel to the provided value.

Parameters

int	a_verboseLevel

Definition at line 269 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetVoxSizeX ( FLTNB a_voxSizeX )

inline

Set the voxel's size along the X axis, in mm.

Parameters

FLTNB a_voxSizeX

Definition at line 683 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetVoxSizeY ( FLTNB a_voxSizeY )

inline

Set the voxel's size along the Y axis, in mm.

Parameters

FLTNB a_voxSizeY

Definition at line 690 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

public inline void oImageDimensionsAndQuantification::SetVoxSizeZ ( FLTNB a_voxSizeZ )

inline

Set the voxel's size along the Z axis, in mm.

Parameters

FLTNB a_voxSizeZ

Definition at line 697 of file oImageDimensionsAndQuantification.hh.

Here is the caller graph for this function:

Member Data Documentation

FLTNB** oImageDimensionsAndQuantification::m2p_cardBasisFunctions

private

The table of cardiac basis functions coefficients

Definition at line 963 of file oImageDimensionsAndQuantification.hh.

uint32_t** oImageDimensionsAndQuantification::m2p_frameDurationsInMs

private

The table of frame durations, per bed position

Definition at line 938 of file oImageDimensionsAndQuantification.hh.

uint32_t** oImageDimensionsAndQuantification::m2p_frameTimeStartInMs

private

The table of frame time start, per bed position

Definition at line 939 of file oImageDimensionsAndQuantification.hh.

uint32_t** oImageDimensionsAndQuantification::m2p_frameTimeStopInMs

private

The table of frame time stop, per bed position

Definition at line 940 of file oImageDimensionsAndQuantification.hh.

FLTNB** oImageDimensionsAndQuantification::m2p_respBasisFunctions

private

The table of respiratory basis functions coefficients

Definition at line 957 of file oImageDimensionsAndQuantification.hh.

FLTNB** oImageDimensionsAndQuantification::m2p_timeBasisFunctions

private

The table of time basis functions coefficients

Definition at line 937 of file oImageDimensionsAndQuantification.hh.

FLTNB*** oImageDimensionsAndQuantification::m3p_quantificationFactors

private

The table of quantification factors, per bed, per frame, per gate

Definition at line 944 of file oImageDimensionsAndQuantification.hh.

string oImageDimensionsAndQuantification::m_cardBasisFunctionsFile

private

The file containing the cardiac basis coefficients

Definition at line 964 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_cardStaticFlag

private

A boolean saying if only one cardiac gate is being reconstructed

Definition at line 965 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_checked

private

A boolean that says if the function CheckParameters() has been called

Definition at line 989 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_flipOutX

private

A boolean saying if the images must be flipped along the X axis before being saved (default: false)

Definition at line 985 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_flipOutY

private

A boolean saying if the images must be flipped along the Y axis before being saved (default: false)

Definition at line 986 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_flipOutZ

private

A boolean saying if the images must be flipped along the Z axis before being saved (default: false)

Definition at line 987 of file oImageDimensionsAndQuantification.hh.

FLTNB oImageDimensionsAndQuantification::m_fovOutPercent

private

The percentage of the transaxial field-of-view not masked before saving reconstructed images (default: 0. = none)

Definition at line 982 of file oImageDimensionsAndQuantification.hh.

FLTNB oImageDimensionsAndQuantification::m_fovSizeX

private

The size of the field-of-view along the X axis, in mm

Definition at line 975 of file oImageDimensionsAndQuantification.hh.

FLTNB oImageDimensionsAndQuantification::m_fovSizeY

private

The size of the field-of-view along the Y axis, in mm

Definition at line 976 of file oImageDimensionsAndQuantification.hh.

FLTNB oImageDimensionsAndQuantification::m_fovSizeZ

private

The size of the field-of-view along the Z axis, in mm

Definition at line 977 of file oImageDimensionsAndQuantification.hh.

string oImageDimensionsAndQuantification::m_frameList

private

A string containing the list of reconstructed frames

Definition at line 934 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_ignoreAttnCorrectionFlag

private

A boolean saying if the attenuation correction is ignored

Definition at line 946 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_ignoreBratCorrectionFlag

private

A boolean saying if the branching ratio correction is ignored

Definition at line 951 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_ignoreCaliCorrectionFlag

private

A boolean saying if the calibration correction is ignored

Definition at line 953 of file oImageDimensionsAndQuantification.hh.

string oImageDimensionsAndQuantification::m_ignoredCorrectionsList

private

The string containing the list of corrections to be ignored

Definition at line 945 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_ignoreDecaCorrectionFlag

private

A boolean saying if the decay correction is ignored

Definition at line 950 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_ignoreFdurCorrectionFlag

private

A boolean saying if the frame duration correction is ignored

Definition at line 952 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_ignoreNormCorrectionFlag

private

A boolean saying if the normalization correction is ignored

Definition at line 947 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_ignoreRandCorrectionFlag

private

A boolean saying if the random correction is ignored

Definition at line 948 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_ignoreScatCorrectionFlag

private

A boolean saying if the scatter correction is ignored

Definition at line 949 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_initialized

private

A boolean that says if the function Initialize() has been called

Definition at line 991 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_mpiRank

private

The rank of the MPI instance

Definition at line 929 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_mpiSize

private

The size of the MPI process (i.e. the number of instances)

Definition at line 930 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_nbBeds

private

The number of bed positions simultaneously reconstructed

Definition at line 932 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_nbCardBasisFunctions

private

The number of cardiac basis functions

Definition at line 961 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_nbCardGates

private

The number of cardiac gates

Definition at line 962 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_nbRespBasisFunctions

private

The number of respiratory basis functions

Definition at line 955 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_nbRespGates

private

The number of respiratory gates

Definition at line 956 of file oImageDimensionsAndQuantification.hh.

INTNB oImageDimensionsAndQuantification::m_nbSliceOutMask

private

The number of extrem slices to be masked from both sides of the axial FOV before saving reconstruction images (default: 0)

Definition at line 983 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_nbThreadsForImageComputation

private

The number of threads for image operations

Definition at line 927 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_nbThreadsForProjection

private

The number of threads for projections

Definition at line 926 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_nbTimeBasisFunctions

private

The number of time basis functions

Definition at line 935 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_nbTimeFrames

private

The number of time frames

Definition at line 936 of file oImageDimensionsAndQuantification.hh.

INTNB oImageDimensionsAndQuantification::m_nbVoxX

private

The number of voxels along the X axis

Definition at line 967 of file oImageDimensionsAndQuantification.hh.

INTNB oImageDimensionsAndQuantification::m_nbVoxXY

private

The number of voxels in a slice

Definition at line 970 of file oImageDimensionsAndQuantification.hh.

INTNB oImageDimensionsAndQuantification::m_nbVoxXYZ

private

The total number of voxels

Definition at line 971 of file oImageDimensionsAndQuantification.hh.

INTNB oImageDimensionsAndQuantification::m_nbVoxY

private

The number of voxels along the Y axis

Definition at line 968 of file oImageDimensionsAndQuantification.hh.

INTNB oImageDimensionsAndQuantification::m_nbVoxZ

private

The number of voxels along the Z axis

Definition at line 969 of file oImageDimensionsAndQuantification.hh.

FLTNB oImageDimensionsAndQuantification::m_offsetX

private

The image offset along the X axis, in mm (default: 0.)

Definition at line 978 of file oImageDimensionsAndQuantification.hh.

FLTNB oImageDimensionsAndQuantification::m_offsetY

private

The image offset along the Y axis, in mm (default: 0.)

Definition at line 979 of file oImageDimensionsAndQuantification.hh.

FLTNB oImageDimensionsAndQuantification::m_offsetZ

private

The image offset along the Z axis, in mm (default: 0.)

Definition at line 980 of file oImageDimensionsAndQuantification.hh.

string oImageDimensionsAndQuantification::m_respBasisFunctionsFile

private

The file containing the respiratory basis coefficients

Definition at line 958 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_respStaticFlag

private

A boolean saying if only one respiratory gate is being reconstructed

Definition at line 959 of file oImageDimensionsAndQuantification.hh.

string oImageDimensionsAndQuantification::m_timeBasisFunctionsFile

private

The file containing the time basis coefficients

Definition at line 941 of file oImageDimensionsAndQuantification.hh.

bool oImageDimensionsAndQuantification::m_timeStaticFlag

private

A boolean saying if only one frame is being reconstructed

Definition at line 942 of file oImageDimensionsAndQuantification.hh.

int oImageDimensionsAndQuantification::m_verbose

private

The verbose level

Definition at line 993 of file oImageDimensionsAndQuantification.hh.

FLTNB oImageDimensionsAndQuantification::m_voxSizeX

private

The voxel's size along the X axis, in mm

Definition at line 972 of file oImageDimensionsAndQuantification.hh.

FLTNB oImageDimensionsAndQuantification::m_voxSizeY

private

The voxel's size along the Y axis, in mm

Definition at line 973 of file oImageDimensionsAndQuantification.hh.

FLTNB oImageDimensionsAndQuantification::m_voxSizeZ

private

The voxel's size along the Z axis, in mm

Definition at line 974 of file oImageDimensionsAndQuantification.hh.

oDynamicDataManager* oImageDimensionsAndQuantification::mp_DynamicDataManager

private

oDynamicDataManager object related to dynamic raw data management

Definition at line 924 of file oImageDimensionsAndQuantification.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
