This class is designed to be a mother virtual class for Datafile. More...

#include <vDataFile.hh>

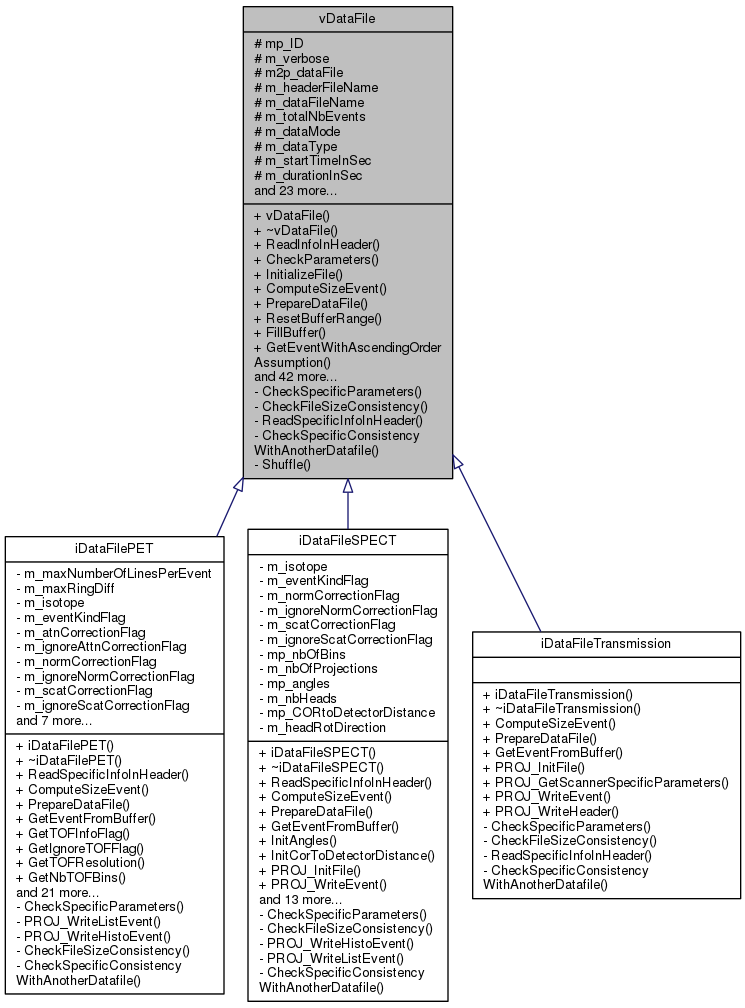

Inheritance diagram for vDataFile:

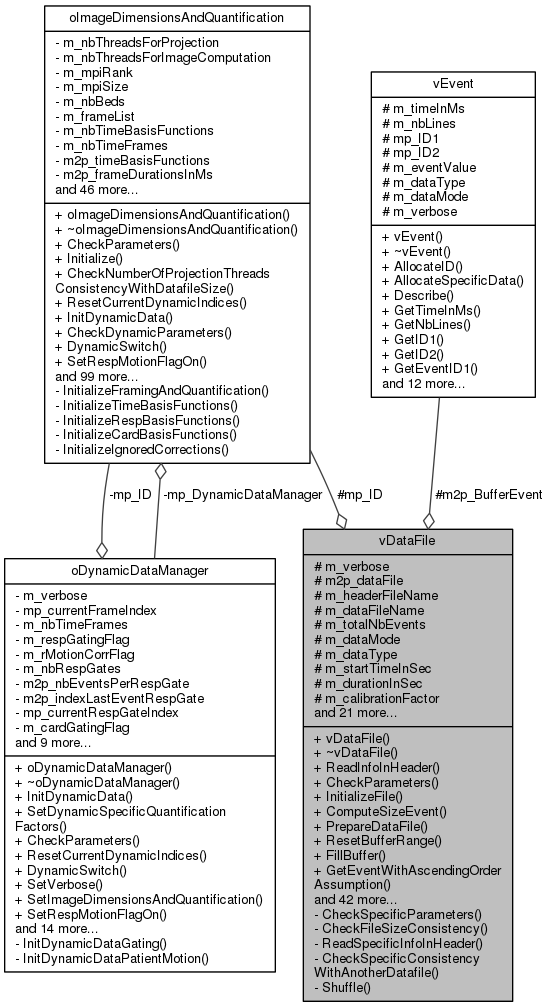

Collaboration diagram for vDataFile:

Public Member Functions
	vDataFile ()
	vDataFile constructor. More...

virtual	~vDataFile ()
	vDataFile destructor. More...

int	ReadInfoInHeader (bool a_affectQuantificationFlag=true)
	Read and check general information from the header datafile Call the ReadSpecificInformationInHeader() function implemented in child classes. More...

int	CheckParameters ()
	Check the initialization of member variables Call the CheckSpecificParameters() function implemented in child classes. More...

int	InitializeFile ()
	Instantiate the fstream objets for input reading and check if the related datafile's existence and consistency. Also init the char* buffers for event read directly from files. More...

virtual int	ComputeSizeEvent ()=0
	This function is implemented in child classes Computation of the size of each event according to the mandatory/optional correction fields. More...

virtual int	PrepareDataFile ()=0
	This function is implemented in child classes Store different kind of information inside arrays (data relative to specific correction as well as basic raw data for the case data is loaded in RAM) Use the flag provided by the user to determine how the data has to be sorted (preloaded or read on the fly) More...

void	ResetBufferRange ()
	Simply set the m_1stIdxArrayEvents and m_lastIdxArrayEvents to -1 only if the percentage load is strictly between 0 and 100. More...

int	FillBuffer (int64_t a_eventIndex)
	Fill 'mp_arrayEvents' from the 'a_eventIndex' position in the data file. The filling process stops after 'm_sizeArrayEvents' new events have been added, or if we reach the last event of the datafile. More...

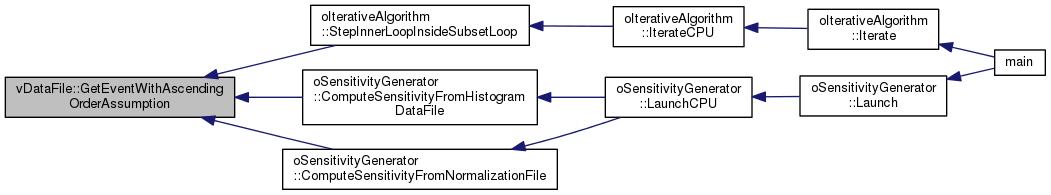

vEvent *	GetEventWithAscendingOrderAssumption (int64_t a_eventIndex, int64_t a_eventIndexLimit, int a_th)
	According to the current part of the datafile loaded in memory, either read from this buffer or directly from datafile. More...

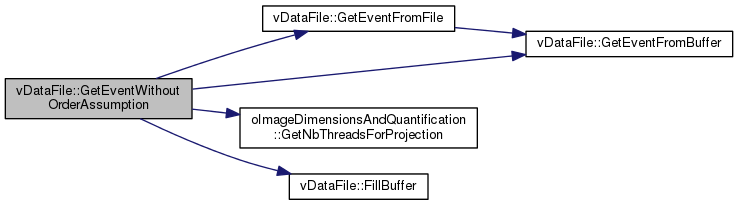

vEvent *	GetEventWithoutOrderAssumption (int64_t a_eventIndex, int a_th)
	According to the current part of the datafile loaded in memory, either read from this buffer or directly from datafile. More...

vEvent *	GetEventFromFile (int64_t a_eventIndex, int a_th)
	Return the a_eventIndex event from the datafile. More...

virtual vEvent *	GetEventFromBuffer (char *ap_buffer, int a_th)=0
	This function is implemented in child classes Read an event from the position pointed by 'ap_buffer', parse the generic or modality-specific information, and store them in the (multithreaded) 'm2p_BufferEvent' object. More...

void	GetEventIndexStartAndStop (int64_t ap_indexStart, int64_t ap_indexStop, int a_subsetNum=0, int a_NbSubsets=1)
	Compute the index start and stop of the events loop with respect to the current subset and MPI size and rank. More...

int	CheckConsistencyWithAnotherBedDatafile (vDataFile *ap_Datafile)
	Check consistency between 'this' and the provided datafile as two bed positions. More...

virtual int	PROJ_InitFile ()=0
	This function is implemented in child classes Initialize the fstream objets for output writing as well as some other variables specific to the Projection script. More...

virtual int	PROJ_GetScannerSpecificParameters ()=0
	This function is implemented in child classes It is used to set several variables of the datafile when using the projection script. Get modality specific parameters from the scanner object, through the scannerManager. More...

virtual int	PROJ_WriteEvent (vEvent *ap_Event, int a_th)=0
	This function is implemented in child classes Write event according to the chosen type of data. More...

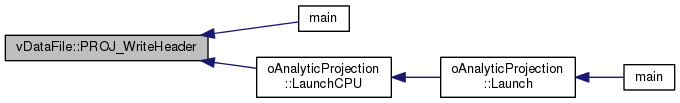

virtual int	PROJ_WriteHeader ()=0
	This function is implemented in child classes. Generate a header file according to the projection and data output informations. More...

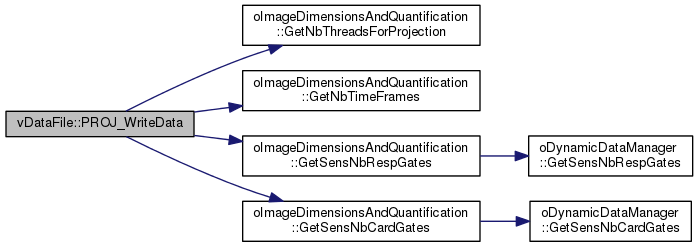

int	PROJ_WriteData ()
	Write/Merge chunk of data in a general data file. More...

int	PROJ_DeleteTmpDatafile ()
	Delete temporary datafile used for multithreaded output writing if needed. More...

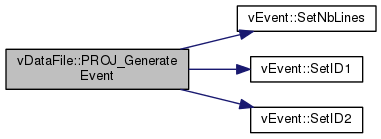

vEvent *	PROJ_GenerateEvent (int idx_elt1, int idx_elt2, int a_th)
	Generate a standard event and set up its ID Used by the projection, list-mode sensitivity generation, and datafile converter scripts. More...

int	GetBedIndex ()

int	GetDataMode ()

int	GetDataType ()

int64_t	GetSize ()

int64_t	GetEventSize ()

string	GetHeaderDataFileName ()

string	GetDataFileName ()

int64_t	GetStartTime ()

int64_t	GetDuration ()

FLTNB	GetCalibrationFactor ()

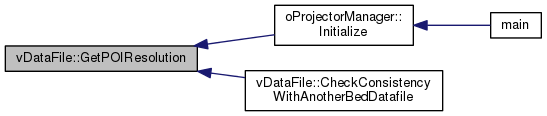

FLTNB *	GetPOIResolution ()

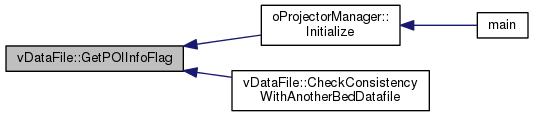

bool	GetPOIInfoFlag ()

bool	GetIgnorePOIFlag ()

virtual int	GetMaxRingDiff ()
	Return an error by default. This function is surcharged by the PET (and CT) scanner daughter class. More...

void	SetDataMode (int a_dataMode)
	set the data mode More...

void	SetDataType (int a_dataType)
	set the data type More...

void	SetBedIndex (int a_bedIndex)
	set the bed index corresponding to this data file More...

void	SetPercentageLoad (int a_percentageLoad)
	Set the percentage of the data file that will be loaded in memory. More...

int	GetPercentageLoad ()
	Get the percentage of the data file that will be loaded in memory. More...

void	SetVerbose (int a_verboseLevel)
	set verbosity More...

int	GetVerbose ()
	Get the verbose level. More...

void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	set the pointer to the oImageDimensionsAndQuantification object More...

void	SetPOIResolution (FLTNB ap_value[3])
	initialize the POI resolution (for list-mode) More...

void	SetIgnorePOIFlag (bool a_ignorePOIFlag)
	Set a boolean that that if we ignore POI information or not. More...

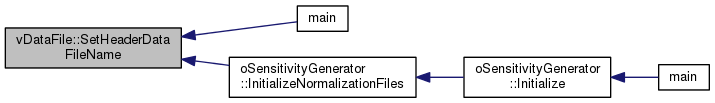

void	SetHeaderDataFileName (const string &a_headerFileName)
	set the data header file name More...

void	SetCalibrationFactor (FLTNB a_value)
	initialize the global calibration factor with a FLTNB value More...

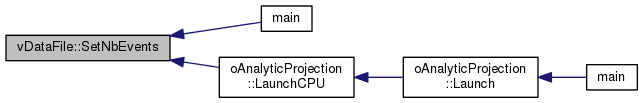

void	SetNbEvents (int64_t a_value)
	initialize the number of events with a int64_t value More...

void	SetStartTime (FLTNB a_value)

void	SetDuration (FLTNB a_value)

string	GetScannerName ()

Protected Attributes
oImageDimensionsAndQuantification *	mp_ID

int	m_verbose

fstream **	m2p_dataFile

string	m_headerFileName

string	m_dataFileName

int64_t	m_totalNbEvents

int	m_dataMode

int	m_dataType

FLTNB	m_startTimeInSec

FLTNB	m_durationInSec

FLTNB	m_calibrationFactor

int	m_bedIndex

int64_t	m_sizeEvent

string	m_scannerName

bool	m_POIInfoFlag

bool	m_ignorePOIFlag

bool	mp_POIDirectionFlag [3]

FLTNB	mp_POIResolution [3]

vEvent **	m2p_BufferEvent

char *	mp_arrayEvents

char **	m2p_bufferEventFromFile

int64_t	m_mpi1stEvent

int64_t	m_mpiLastEvent

int64_t	m_mpiNbEvents

int64_t	m_1stIdxArrayEvents

int64_t	m_lastIdxArrayEvents

int64_t	m_sizeArrayEvents

int	m_percentageLoad

bool	m_requestBufferFilling

bool	m_currentlyFillingBuffer

bool *	mp_currentlyReadingBuffer

bool *	mp_overBufferRange

int64_t *	mp_nbEventsReadFromFile

Private Member Functions
virtual int	CheckSpecificParameters ()=0
	This function is implemented in child classes Check specific parameters of child classes. More...

virtual int	CheckFileSizeConsistency ()=0

virtual int	ReadSpecificInfoInHeader (bool a_affectQuantificationFlag=true)=0
	This function is implemented in child classes Read and check modality-specific information from the header datafile. More...

virtual int	CheckSpecificConsistencyWithAnotherDatafile (vDataFile *ap_Datafile)=0
	Check consistency between 'this' and the provided datafile, for specific characteristics. More...

virtual int	Shuffle (int64_t)

Detailed Description

This class is designed to be a mother virtual class for Datafile.

This class manages the reading of the generic input file (header + data).
It uses some events as buffers to get data informations during run-time.

Definition at line 67 of file vDataFile.hh.

Constructor & Destructor Documentation

vDataFile::vDataFile ( )

vDataFile constructor.

Initialize the member variables to their default values.

Definition at line 26 of file vDataFile.cc.

vDataFile::~vDataFile ( )

virtual

vDataFile destructor.

Definition at line 79 of file vDataFile.cc.

Here is the call graph for this function:

Member Function Documentation

int vDataFile::CheckConsistencyWithAnotherBedDatafile ( vDataFile * ap_Datafile )

Check consistency between 'this' and the provided datafile as two bed positions.

Parameters

vDataFile* ap_Datafile

It checks data type, mode, number of events if histogram, event size, calibration factor, and scanner. For characteristics specific to the modality, it finally calls the pure virtual CheckSpecificConsistyWithAnotherBedDatafile() function implemented by children.

Returns: 0 if the provided datafile is consistent with 'this', another value otherwise

Definition at line 339 of file vDataFile.cc.

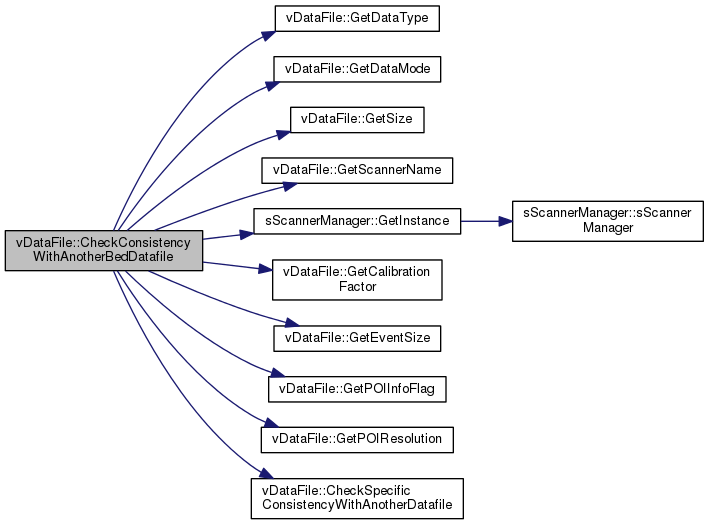

Here is the call graph for this function:

virtual int vDataFile::CheckFileSizeConsistency ( )

privatepure virtual

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

int vDataFile::CheckParameters ( )

Check the initialization of member variables
Call the CheckSpecificParameters() function implemented in child classes.

Returns: 0 if success, and positive value otherwise.

Definition at line 269 of file vDataFile.cc.

Here is the call graph for this function:

vDataFile::CheckSpecificConsistencyWithAnotherDatafile ( vDataFile * ap_Datafile )

privatepure virtual

Check consistency between 'this' and the provided datafile, for specific characteristics.

Parameters

vDataFile* ap_Datafile

Pure virtual function implemented by children. It checks correction flags, etc.

Returns: 0 if the provided datafile is consistent with 'this', another value otherwise

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

int vDataFile::CheckSpecificParameters ( )

privatepure virtual

This function is implemented in child classes
Check specific parameters of child classes.

Returns: 0 if success, and positive value otherwise.

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

vDataFile::ComputeSizeEvent ( )

pure virtual

This function is implemented in child classes
Computation of the size of each event according to the mandatory/optional correction fields.

Returns: 0 is success, positive value otherwise

Implemented in iDataFileSPECT, iDataFilePET, and iDataFileTransmission.

Here is the caller graph for this function:

int vDataFile::FillBuffer ( int64_t a_eventIndex )

Fill 'mp_arrayEvents' from the 'a_eventIndex' position in the data file.
The filling process stops after 'm_sizeArrayEvents' new events have been added, or if we reach the last event of the datafile.

Parameters

a_eventIndex : long int containing a position index in the data file, from which events should be loaded in the buffer

Returns: Positive value if the reading failed, 0 otherwise

Definition at line 513 of file vDataFile.cc.

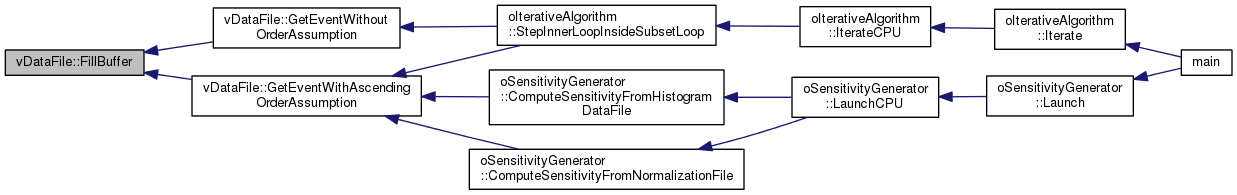

Here is the caller graph for this function:

int vDataFile::GetBedIndex ( )

inline

Returns: its bed index

Definition at line 274 of file vDataFile.hh.

FLTNB vDataFile::GetCalibrationFactor ( )

inline

Returns: calibration factor

Definition at line 327 of file vDataFile.hh.

Here is the caller graph for this function:

string vDataFile::GetDataFileName ( )

inline

Returns: datafile name

Definition at line 309 of file vDataFile.hh.

int vDataFile::GetDataMode ( )

inline

Returns: data mode

Definition at line 280 of file vDataFile.hh.

Here is the caller graph for this function:

int vDataFile::GetDataType ( )

inline

Returns: data type

Definition at line 286 of file vDataFile.hh.

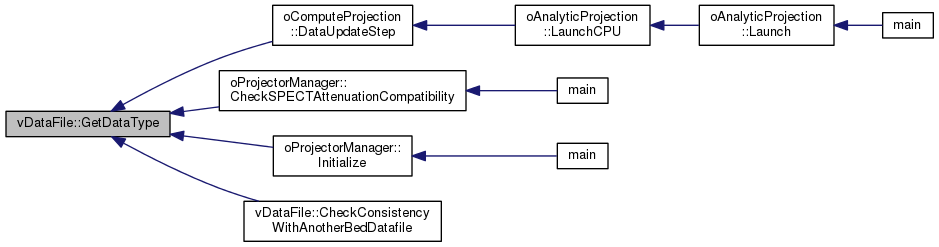

Here is the caller graph for this function:

int64_t vDataFile::GetDuration ( )

inline

Returns: int64_t corresponding to the acquisition duration (s)

Definition at line 321 of file vDataFile.hh.

vDataFile::GetEventFromBuffer	(	char *	ap_buffer,
		int	a_th
	)

pure virtual

This function is implemented in child classes
Read an event from the position pointed by 'ap_buffer', parse the generic or modality-specific information, and store them in the (multithreaded) 'm2p_BufferEvent' object.

Parameters

ap_buffer	: address pointing to the event to recover in the event buffer array
a_th	: index of the thread from which the function was called

Returns: the thread-specific 'm2p_BufferEvent' object containing the modality-specific information for the event

Implemented in iDataFileSPECT, iDataFilePET, and iDataFileTransmission.

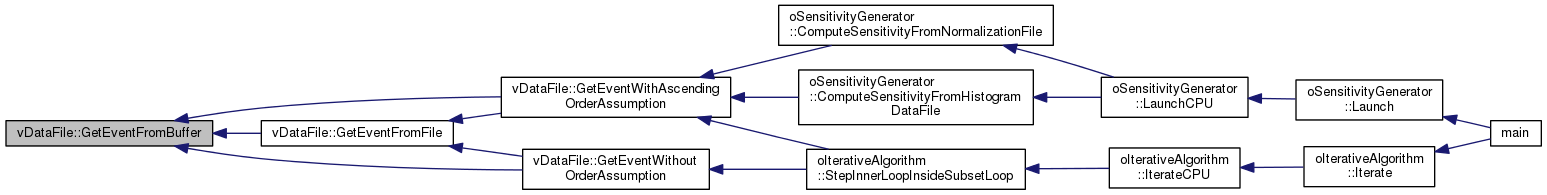

Here is the caller graph for this function:

vEvent * vDataFile::GetEventFromFile	(	int64_t	a_eventIndex,
		int	a_th
	)

Return the a_eventIndex event from the datafile.

Parameters

a_eventIndex	: index of the event to recover
a_th	: index of the thread from which the function was called

Returns: the m2p_BufferEvent element of the the 'a_th' thread, or NULL is something went wrong

Definition at line 849 of file vDataFile.cc.

Here is the call graph for this function:

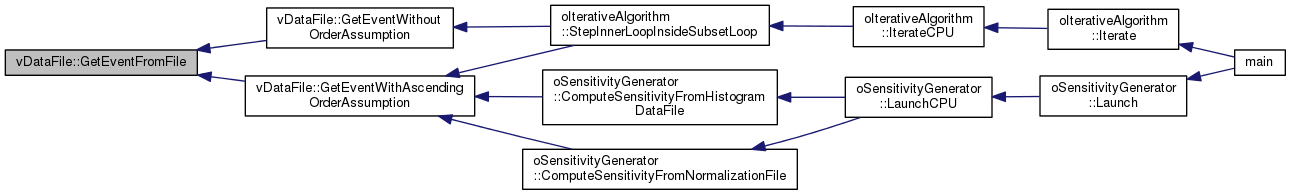

Here is the caller graph for this function:

void vDataFile::GetEventIndexStartAndStop	(	int64_t *	ap_indexStart,
		int64_t *	ap_indexStop,
		int	a_subsetNum = `0`,
		int	a_NbSubsets = `1`
	)

Compute the index start and stop of the events loop with respect to the current subset and MPI size and rank.

Parameters

ap_indexStart	: pointer to recover the index of the first event
ap_indexStop	: pointer to recover the index of the last event
a_subsetNum	: actual subset index of the iteration (0 if no subsets)
a_nbSubsets	: max number of subsets in this iteration (1 if no subsets)

Definition at line 873 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t vDataFile::GetEventSize ( )

inline

Definition at line 298 of file vDataFile.hh.

Here is the caller graph for this function:

vEvent * vDataFile::GetEventWithAscendingOrderAssumption	(	int64_t	a_eventIndex,
		int64_t	a_eventIndexLimit,
		int	a_th
	)

According to the current part of the datafile loaded in memory, either read from this buffer or directly from datafile.

Parameters

a_eventIndex	: index of the event to recover
a_eventIndexLimit	: index over which we consider the thread will soon finish
a_th	: index of the thread from which the function was called

This function can be used only inside a loop on events in the ascending order, because it uses this assumption to increase efficiency. Only the thread 0 manages the buffer, if out-of-range, it waits for all other threads to be 'after' this current buffer range to fill the next part. These parts of datafiles are computed based on the provided m_percentageLoad. The file is loaded into the mp_arrayEvents. See the implementation of this function for more detailed information in the comment sections.

Returns: the m2p_BufferEvent element of the the 'a_th' thread, or NULL if something went wrong

Definition at line 609 of file vDataFile.cc.

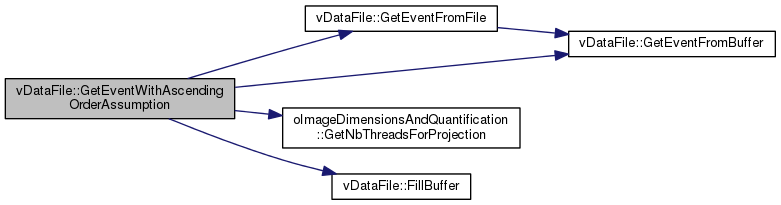

Here is the call graph for this function:

Here is the caller graph for this function:

vEvent * vDataFile::GetEventWithoutOrderAssumption	(	int64_t	a_eventIndex,
		int	a_th
	)

According to the current part of the datafile loaded in memory, either read from this buffer or directly from datafile.

Parameters

a_eventIndex	: index of the event to recover
a_th	: index of the thread from which the function was called

This function can be used inside a loop on events without any assumption on the order. Only the thread 0 manages the buffer, if out-of-range, it requests to fill the buffer and waits for all other threads to stop reading from the buffer. Once done, it fills the buffer, the file being loaded into the mp_arrayEvents. These parts of datafiles are computed based on the provided m_percentageLoad. With this function, it is possible that the thread 0 is ahead of others threads so in an ascending order, these other threads will be late and always read from file. If this function is used inside a loop on events in the ascending order, then please use the GetEventWithAscendingOrderAssumption() function.

Returns: the m2p_BufferEvent element of the the 'a_th' thread, or NULL if something went wrong

Definition at line 734 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

string vDataFile::GetHeaderDataFileName ( )

inline

Returns: headerdatafile name

Definition at line 303 of file vDataFile.hh.

bool vDataFile::GetIgnorePOIFlag ( )

inline

Returns: m_ignorePOIFlag

Definition at line 345 of file vDataFile.hh.

Here is the caller graph for this function:

int vDataFile::GetMaxRingDiff ( )

virtual

Return an error by default.
This function is surcharged by the PET (and CT) scanner daughter class.

Returns: -1 (error) if not surcharged by a daughter class

Reimplemented in iDataFilePET.

Definition at line 906 of file vDataFile.cc.

int vDataFile::GetPercentageLoad ( )

inline

Get the percentage of the data file that will be loaded in memory.

Returns: m_percentageLoad

Definition at line 387 of file vDataFile.hh.

bool vDataFile::GetPOIInfoFlag ( )

inline

Returns: m_POIInfoFlag

Definition at line 339 of file vDataFile.hh.

Here is the caller graph for this function:

FLTNB * vDataFile::GetPOIResolution ( )

inline

Returns: pointer to the array containing POI (position of interaction) resolution

Definition at line 333 of file vDataFile.hh.

Here is the caller graph for this function:

string vDataFile::GetScannerName ( )

inline

Returns: the scanner name

Definition at line 469 of file vDataFile.hh.

Here is the caller graph for this function:

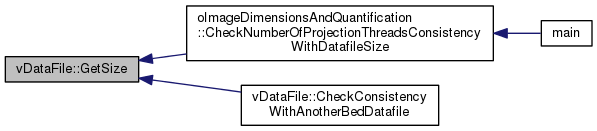

int64_t vDataFile::GetSize ( )

inline

Returns: number of events in the datafile

Definition at line 292 of file vDataFile.hh.

Here is the caller graph for this function:

int64_t vDataFile::GetStartTime ( )

inline

Returns: int64_t corresponding to the acquisition start time (s)

Definition at line 315 of file vDataFile.hh.

int vDataFile::GetVerbose ( )

inline

Get the verbose level.

Returns: m_verbose

Definition at line 401 of file vDataFile.hh.

int vDataFile::InitializeFile ( )

Instantiate the fstream objets for input reading and check if the related datafile's existence and consistency.
Also init the char* buffers for event read directly from files.

Returns: 0 if success, and positive value otherwise.

Definition at line 412 of file vDataFile.cc.

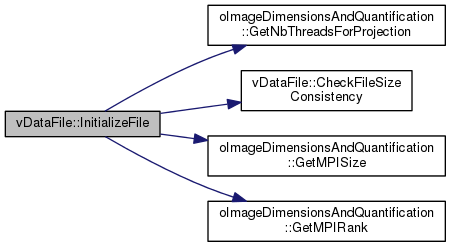

Here is the call graph for this function:

vDataFile::PrepareDataFile ( )

pure virtual

This function is implemented in child classes
Store different kind of information inside arrays (data relative to specific correction as well as basic raw data for the case data is loaded in RAM)
Use the flag provided by the user to determine how the data has to be sorted (preloaded or read on the fly)

Returns: 0 is success, positive value otherwise

Implemented in iDataFileSPECT, iDataFilePET, and iDataFileTransmission.

Here is the caller graph for this function:

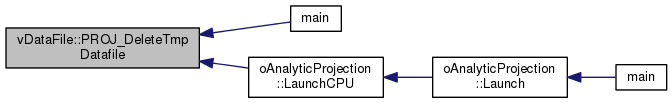

int vDataFile::PROJ_DeleteTmpDatafile ( )

Delete temporary datafile used for multithreaded output writing if needed.

Definition at line 1008 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

vEvent * vDataFile::PROJ_GenerateEvent	(	int	idx_elt1,
		int	idx_elt2,
		int	a_th
	)

Generate a standard event and set up its ID
Used by the projection, list-mode sensitivity generation, and datafile converter scripts.

Parameters

idx_elt1	: first ID of the event
idx_elt2	: second ID of the event
a_th	: index of the thread from which the function was called

Returns: the thread specific m2p_BufferEvent array containing the event

Definition at line 1056 of file vDataFile.cc.

Here is the call graph for this function:

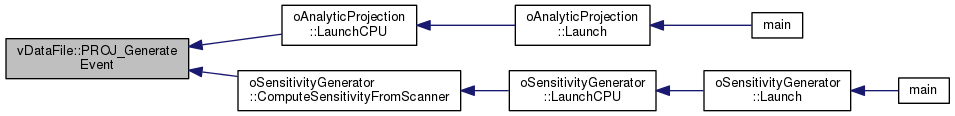

Here is the caller graph for this function:

vDataFile::PROJ_GetScannerSpecificParameters ( )

pure virtual

This function is implemented in child classes
It is used to set several variables of the datafile when using the projection script.
Get modality specific parameters from the scanner object, through the scannerManager.

Returns: 0 if success, positive value otherwise

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

vDataFile::PROJ_InitFile ( )

pure virtual

This function is implemented in child classes
Initialize the fstream objets for output writing as well as some other variables specific to the Projection script.

Returns: 0 if success, and positive value otherwise.

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

int vDataFile::PROJ_WriteData ( )

Write/Merge chunk of data in a general data file.

Definition at line 928 of file vDataFile.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

vDataFile::PROJ_WriteEvent	(	vEvent *	ap_Event,
		int	a_th
	)

pure virtual

This function is implemented in child classes
Write event according to the chosen type of data.

Parameters

ap_Event	: Event to write
a_th	: index of the thread from which the function was called

Returns: 0 if success, and positive value otherwise.

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

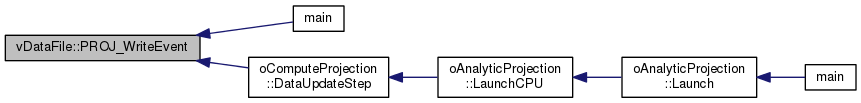

Here is the caller graph for this function:

vDataFile::PROJ_WriteHeader ( )

pure virtual

This function is implemented in child classes.
Generate a header file according to the projection and data output informations.

Returns: 0 if success, and positive value otherwise.

Implemented in iDataFilePET, iDataFileSPECT, and iDataFileTransmission.

Here is the caller graph for this function:

int vDataFile::ReadInfoInHeader ( bool a_affectQuantificationFlag = true )

Read and check general information from the header datafile
Call the ReadSpecificInformationInHeader() function implemented in child classes.

Parameters

bool	a_affectQuantificationFlag = true

If the parameter flag is on, then affect the quantification factors from the oImageDimensionsAndQuantification after reading relevant information

Returns: 0 if success, and positive value otherwise.

Definition at line 134 of file vDataFile.cc.

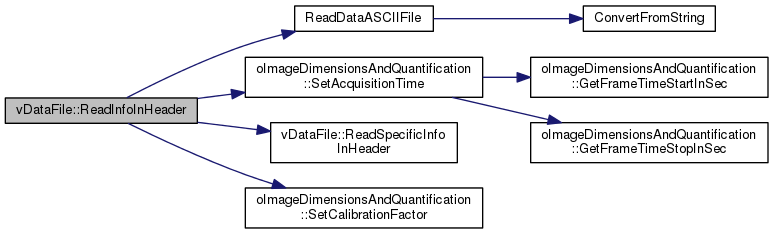

Here is the call graph for this function:

int vDataFile::ReadSpecificInfoInHeader ( bool a_affectQuantificationFlag = true )

privatepure virtual

This function is implemented in child classes
Read and check modality-specific information from the header datafile.

Parameters

bool	a_affectQuantificationFlag = true

If the parameter flag is on, then affect the quantification factors from the oImageDimensionsAndQuantification after reading relevant information

Returns: 0 if success, and positive value otherwise.

Implemented in iDataFileSPECT, iDataFilePET, and iDataFileTransmission.

Here is the caller graph for this function:

void vDataFile::ResetBufferRange ( )

Simply set the m_1stIdxArrayEvents and m_lastIdxArrayEvents to -1 only if the percentage load is strictly between 0 and 100.

The purpose of this function is to be called at before a loop over the datafile so that any thread will have an event index always inside or above the buffer range when the GetEventWithAscendingOrderAssumption() is used to get events.

Definition at line 491 of file vDataFile.cc.

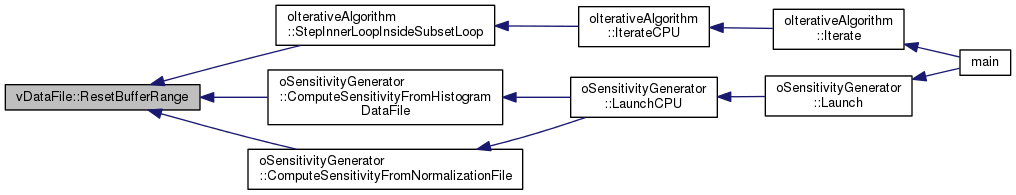

Here is the caller graph for this function:

void vDataFile::SetBedIndex ( int a_bedIndex )

inline

set the bed index corresponding to this data file

Parameters

a_bedIndex

Definition at line 373 of file vDataFile.hh.

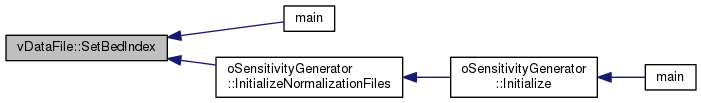

Here is the caller graph for this function:

void vDataFile::SetCalibrationFactor ( FLTNB a_value )

inline

initialize the global calibration factor with a FLTNB value

Parameters

a_value

This function is dedicated to datafile conversion scripts

Definition at line 439 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetDataMode ( int a_dataMode )

inline

set the data mode

Parameters

a_dataMode

Definition at line 359 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetDataType ( int a_dataType )

inline

set the data type

Parameters

a_dataType

Definition at line 366 of file vDataFile.hh.

Here is the caller graph for this function:

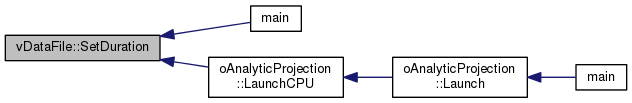

void vDataFile::SetDuration ( FLTNB a_value )

inline

Definition at line 463 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetHeaderDataFileName ( const string & a_headerFileName )

inline

set the data header file name

Parameters

const string& a_headerFileName

This function is dedicated to datafile conversion scripts

Definition at line 431 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetIgnorePOIFlag ( bool a_ignorePOIFlag )

inline

Set a boolean that that if we ignore POI information or not.

Parameters

a_flag

Definition at line 423 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification )

inline

set the pointer to the oImageDimensionsAndQuantification object

Parameters

ap_ImageDimensionsAndQuantification

Definition at line 408 of file vDataFile.hh.

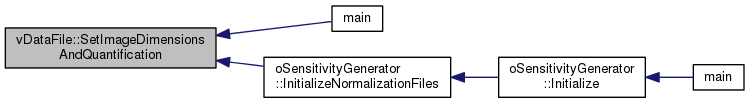

Here is the caller graph for this function:

void vDataFile::SetNbEvents ( int64_t a_value )

inline

initialize the number of events with a int64_t value

Parameters

a_value

This function is dedicated to datafile conversion scripts

Definition at line 447 of file vDataFile.hh.

Here is the caller graph for this function:

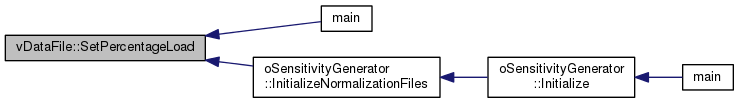

void vDataFile::SetPercentageLoad ( int a_percentageLoad )

inline

Set the percentage of the data file that will be loaded in memory.

Parameters

a_percentageLoad

Definition at line 380 of file vDataFile.hh.

Here is the caller graph for this function:

void vDataFile::SetPOIResolution ( FLTNB ap_value[3] )

inline

initialize the POI resolution (for list-mode)

Parameters

ap_value : vector of 3 elements (x,y,z)

This function is dedicated to datafile conversion scripts

Definition at line 416 of file vDataFile.hh.

void vDataFile::SetStartTime ( FLTNB a_value )

inline

Definition at line 455 of file vDataFile.hh.

Here is the caller graph for this function:

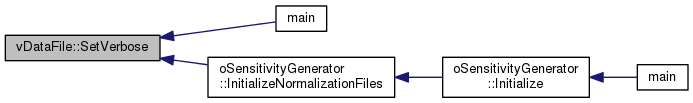

void vDataFile::SetVerbose ( int a_verboseLevel )

inline

set verbosity

Parameters

a_verboseLevel

Definition at line 394 of file vDataFile.hh.

Here is the caller graph for this function:

int vDataFile::Shuffle ( int64_t nb_events_to_load )

privatevirtual

Definition at line 568 of file vDataFile.cc.

Member Data Documentation

vEvent** vDataFile::m2p_BufferEvent

protected

vEvent structure, used to read and transfer the raw data to each part of the algorithm (multithreaded)

Definition at line 538 of file vDataFile.hh.

char** vDataFile::m2p_bufferEventFromFile

protected

Buffer used to recover one event from the datafile (multithreaded)

Definition at line 540 of file vDataFile.hh.

fstream** vDataFile::m2p_dataFile

protected

File associated to the raw data file (multithreaded)

Definition at line 518 of file vDataFile.hh.

int64_t vDataFile::m_1stIdxArrayEvents

protected

Index of the first event contained in the 'mp_arrayEvents' buffer

Definition at line 544 of file vDataFile.hh.

int vDataFile::m_bedIndex

protected

Bed position index corresponding to this data file

Definition at line 527 of file vDataFile.hh.

FLTNB vDataFile::m_calibrationFactor

protected

Calibration factor for the data. Default value =1.0

Definition at line 526 of file vDataFile.hh.

bool vDataFile::m_currentlyFillingBuffer

protected

File buffer is being filled by the first thread

Definition at line 549 of file vDataFile.hh.

string vDataFile::m_dataFileName

protected

String containing the path to the raw datafile

Definition at line 520 of file vDataFile.hh.

int vDataFile::m_dataMode

protected

Flag indicating if the data is List (=0) or Histogram (=1) mode

Definition at line 522 of file vDataFile.hh.

int vDataFile::m_dataType

protected

Flag indicating if the data is PET (=0),SPECT (=1) or TRANSMISSION type (=2)

Definition at line 523 of file vDataFile.hh.

FLTNB vDataFile::m_durationInSec

protected

Duration of the acquisition (s)

Definition at line 525 of file vDataFile.hh.

string vDataFile::m_headerFileName

protected

String containing the path to the header file

Definition at line 519 of file vDataFile.hh.

bool vDataFile::m_ignorePOIFlag

protected

Flag to say if we ignore the POI data if present, or not. Default = false

Definition at line 533 of file vDataFile.hh.

int64_t vDataFile::m_lastIdxArrayEvents

protected

Index of the last event contained in the 'mp_arrayEvents' buffer

Definition at line 545 of file vDataFile.hh.

int64_t vDataFile::m_mpi1stEvent

protected

First index managed by this MPI instance

Definition at line 541 of file vDataFile.hh.

int64_t vDataFile::m_mpiLastEvent

protected

Last index (included) managed by this MPI instance

Definition at line 542 of file vDataFile.hh.

int64_t vDataFile::m_mpiNbEvents

protected

Number of events managed by this MPI instance

Definition at line 543 of file vDataFile.hh.

int vDataFile::m_percentageLoad

protected

Percentage of the data file that is loaded

Definition at line 547 of file vDataFile.hh.

bool vDataFile::m_POIInfoFlag

protected

Flag to say if POI information is included in the datafile for each event

Definition at line 532 of file vDataFile.hh.

bool vDataFile::m_requestBufferFilling

protected

The first thread is requesting and waiting to fill the buffer

Definition at line 548 of file vDataFile.hh.

string vDataFile::m_scannerName

protected

Scanner name

Definition at line 529 of file vDataFile.hh.

int64_t vDataFile::m_sizeArrayEvents

protected

Size of the 'mp_arrayEvents' buffer

Definition at line 546 of file vDataFile.hh.

int64_t vDataFile::m_sizeEvent

protected

Size of an event in the datafile (calculated from mandatory and optional fields)

Definition at line 528 of file vDataFile.hh.

FLTNB vDataFile::m_startTimeInSec

protected

Start time of the acquisition (s)

Definition at line 524 of file vDataFile.hh.

int64_t vDataFile::m_totalNbEvents

protected

Total number of events in the raw data

Definition at line 521 of file vDataFile.hh.

int vDataFile::m_verbose

protected

Verbosity

Definition at line 515 of file vDataFile.hh.

char* vDataFile::mp_arrayEvents

protected

Buffer used to store parts of, or the entire, raw data file. Its size depends of 'm_sizeArrayEvents'

Definition at line 539 of file vDataFile.hh.

bool* vDataFile::mp_currentlyReadingBuffer

protected

One bool per thread (except first thread), saying that the thread is currently reading from the file buffer

Definition at line 550 of file vDataFile.hh.

oImageDimensionsAndQuantification* vDataFile::mp_ID

protected

Pointer to the oImageDimensionsAndQuantification object

Definition at line 514 of file vDataFile.hh.

int64_t* vDataFile::mp_nbEventsReadFromFile

protected

Counters of how many events were read directly from file, one for each thread

Definition at line 552 of file vDataFile.hh.

bool* vDataFile::mp_overBufferRange

protected

One bool per thread (except first thread), saying that the thread is currently under the buffer range or not

Definition at line 551 of file vDataFile.hh.

bool vDataFile::mp_POIDirectionFlag[3]

protected

Flag to say which direction is included in the POI for each event; radial, tangential and axial

Definition at line 534 of file vDataFile.hh.

FLTNB vDataFile::mp_POIResolution[3]

protected

POI resolution (position of interaction) for each direction: radial, tangential and axial

Definition at line 535 of file vDataFile.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
