Singleton class that Instantiate and initialize the scanner object. More...

#include <sScannerManager.hh>

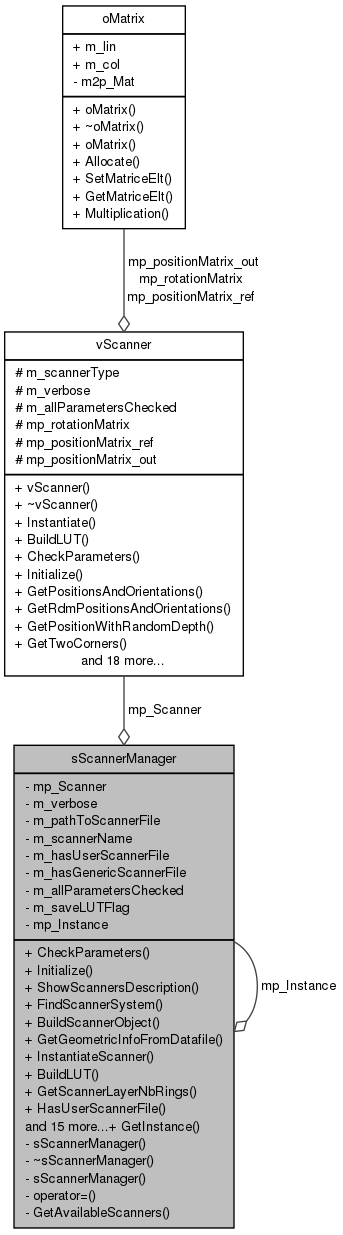

Collaboration diagram for sScannerManager:

Public Member Functions
int	CheckParameters ()
	Check if all parameters have been correctly initialized, and call the CheckParameters function of the scanner object.
int	Initialize ()
	Initialization : .

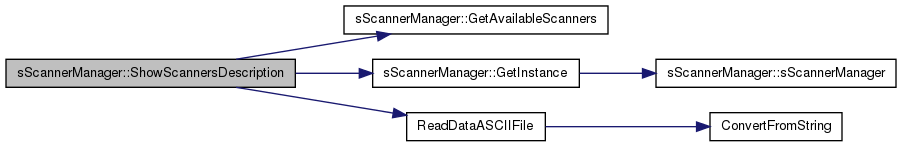

int	ShowScannersDescription ()
	Get the description associated to the different scanners and print all on screen. Walk through the scanner repository and look for the keyword "description" in .geom file and .hscan file.
int	FindScannerSystem (string a_scannerName)
	Look for a file matching with the scanner name in parameter inside the scanner repository.
int	BuildScannerObject ()
	Instantiate the specific scanner object related to the modality, and set verbosity of scanner object.
int	GetGeometricInfoFromDatafile (string a_pathToDataFilename)
	Call the specialized function of the scanner object in order to get geometric informations from the datafile header.
int	InstantiateScanner ()
	Instantiate scanner using the related function in the scanner classes.
int	BuildLUT ()
	Call the eponym function of the scanner class.
int	GetScannerLayerNbRings (int a_layer)
	Ask the number of rings to the scanner object for a specific layer. Returns an error if this information is not available for the scanner type of the object (eg : SPECT systems)
bool	HasUserScannerFile ()
string	GetPathToScannerFile ()
string	GetScannerName ()
int	GetScannerType ()
vScanner *	GetScannerObject ()
int	GetSystemNbElts ()
void	SetVerbose (int a_verboseLevel)
	set verbosity
void	SetSaveLUTFlag (bool a_flag)
	Set to on the flag indicating a LUT generated by a geom file should be written on disk or not.
bool	SaveLUTFlag ()
	Get flag indicating a LUT generated by a geom file should be written on disk or not.
int64_t	PROJ_GetModalityStopValueMainLoop ()
	Get the stop value for the main loop of analytic projection depending on the modality.
int64_t	PROJ_GetModalityStartValueInnerLoop (int64_t a_elt1)
	Get the start value for the inner loop of analytic projection depending on the modality.
int64_t	PROJ_GetCurrentProgression (int64_t a_elt1, int64_t a_elt2, int64_t *ap_nbEltsArray, int a_nbRGates, int a_nbCGates, int a_fr, int a_rg, int a_cg)
	Get numerator value according to the modality to compute percent progression during the analytical projection process.
int64_t	PROJ_GetProgressionFinalValue ()
	Get numerator value according to the modality to compute percent progression during the projection process.
int	GetSPECTSpecificParameters (uint16_t ap_nbOfProjections, uint16_t ap_nbHeads, uint16_t ap_nbOfBins, FLTNB ap_pixSizeXY, FLTNB &ap_angles, FLTNB &ap_CORtoDetectorDistance, int *ap_headRotDirection)
	Transfer geometric information recovered from the datafile to the scanner object.
int	PROJ_GetPETSpecificParameters (int *a_maxRingDiff)
	Transfer addresses to each geometric parameter of the PET scanner objets to the corresponding pointer of the datafile passed as argument.
int	PROJ_SetPETSpecificParameters (int a_maxRingDiff)
	Deliver to the PET scanner object all informations provided from the datafile header.
int	PROJ_SetSPECTSpecificParameters (uint16_t ap_nbOfBins, uint32_t a_nbOfProjections, FLTNB a_firstAngle, FLTNB a_stepAngle, FLTNB ap_projectionAngles, FLTNB a_CORtoDetectorDistance, string a_rotDirection)
	Deliver to the SPECT scanner object all informations provided from the acquisition parameters.
Static Public Member Functions
static sScannerManager *	GetInstance ()
	Instanciate the singleton object and Initialize member variables if not already done, return a pointer to this object otherwise.
Private Member Functions
	sScannerManager ()
	sScannerManager constructor.
	~sScannerManager ()
	sScannerManager destructor.
	sScannerManager (sScannerManager const &)
void	operator= (sScannerManager const &)
int	GetAvailableScanners (vector< string > *ap_scannerNames)
	Gather all the names of the header files (.geom & .hscan) in the repository folder in the vector<string> passed in parameter.
Private Attributes
vScanner *	mp_Scanner
int	m_verbose
string	m_pathToScannerFile
string	m_scannerName
bool	m_hasUserScannerFile
bool	m_hasGenericScannerFile
bool	m_allParametersChecked
bool	m_saveLUTFlag
Static Private Attributes
static sScannerManager *	mp_Instance = NULL

Detailed Description

Singleton class that Instantiate and initialize the scanner object.

This class Instantiate and initialize the scanner object depending on its initilization file (generic .geom file or user LUT).
It holds several informations on the system and can be accessed from every class.

Definition at line 49 of file sScannerManager.hh.

Constructor & Destructor Documentation

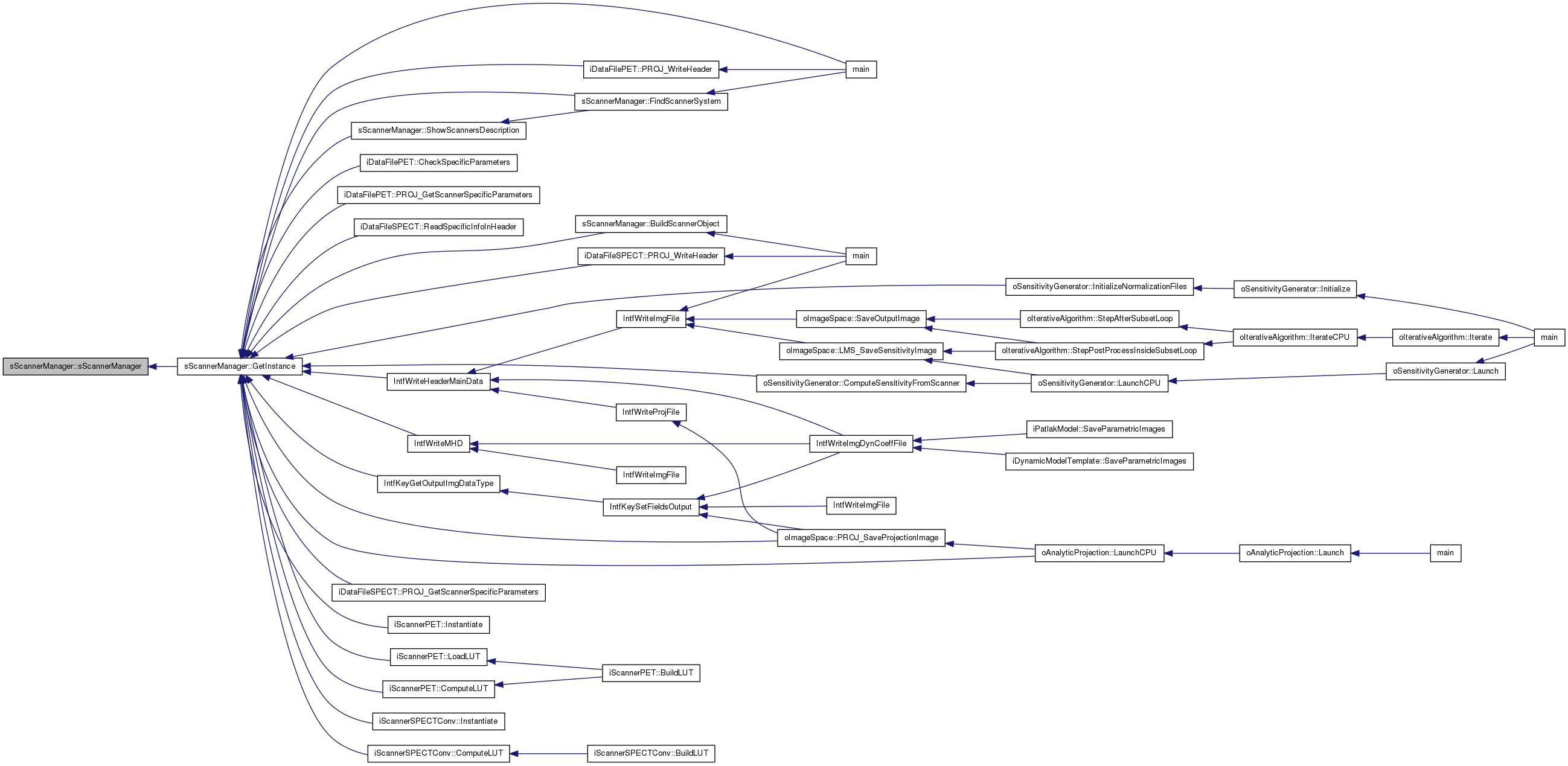

sScannerManager::sScannerManager ( ) [private]

sScannerManager constructor.

It is private at this class is singleton.
It should be instanciated using the GetInstance() function
Initialize the member variables to their default values.

Definition at line 34 of file sScannerManager.cc.

Here is the caller graph for this function:

sScannerManager::~sScannerManager ( ) [private]

sScannerManager destructor.

Definition at line 55 of file sScannerManager.cc.

sScannerManager::sScannerManager ( sScannerManager const & ) [inline, private]

Definition at line 324 of file sScannerManager.hh.

Member Function Documentation

int sScannerManager::BuildLUT ( )

Call the eponym function of the scanner class.

Returns:: 0 if success. Positive value otherwise

Definition at line 420 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::BuildScannerObject ( )

Instantiate the specific scanner object related to the modality, and set verbosity of scanner object.

Returns:: 0 if success. Positive value otherwise

Definition at line 313 of file sScannerManager.cc.

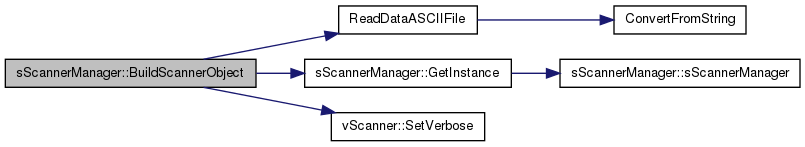

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::CheckParameters ( )

Check if all parameters have been correctly initialized, and call the CheckParameters function of the scanner object.

Returns:: 0 if success. Positive value otherwise

Definition at line 71 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

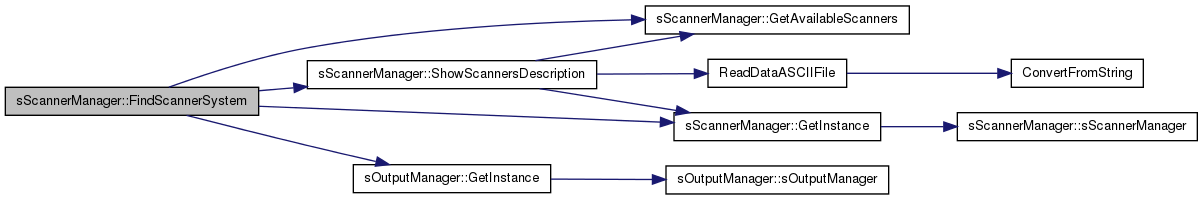

int sScannerManager::FindScannerSystem ( string a_scannerName )

Look for a file matching with the scanner name in parameter inside the scanner repository.

Parameters:

a_scannerName : string containing name of the required scanner

Returns:: 0 if success (scanner found). Positive value otherwise

Definition at line 215 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::GetAvailableScanners ( vector< string > * ap_scannerNames ) [private]

Gather all the names of the header files (.geom & .hscan) in the repository folder in the vector<string> passed in parameter.

Parameters:

ap_scannerNames : vector list of string to recover the available scanner names

Returns:: 0 if sucess, positive value otherwise

Definition at line 325 of file sScannerManager.hh.

Here is the caller graph for this function:

int sScannerManager::GetGeometricInfoFromDatafile ( string a_pathToDataFilename )

Call the specialized function of the scanner object in order to get geometric informations from the datafile header.

Parameters:

a_path : string containing the path to datafile header

Returns:: 0 if success. Positive value otherwise

Definition at line 363 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

static sScannerManager * sScannerManager::GetInstance ( ) [inline, static]

Instanciate the singleton object and Initialize member variables if not already done, return a pointer to this object otherwise.

Returns:: instance of the sScannerManager singleton

Definition at line 60 of file sScannerManager.hh.

Here is the call graph for this function:

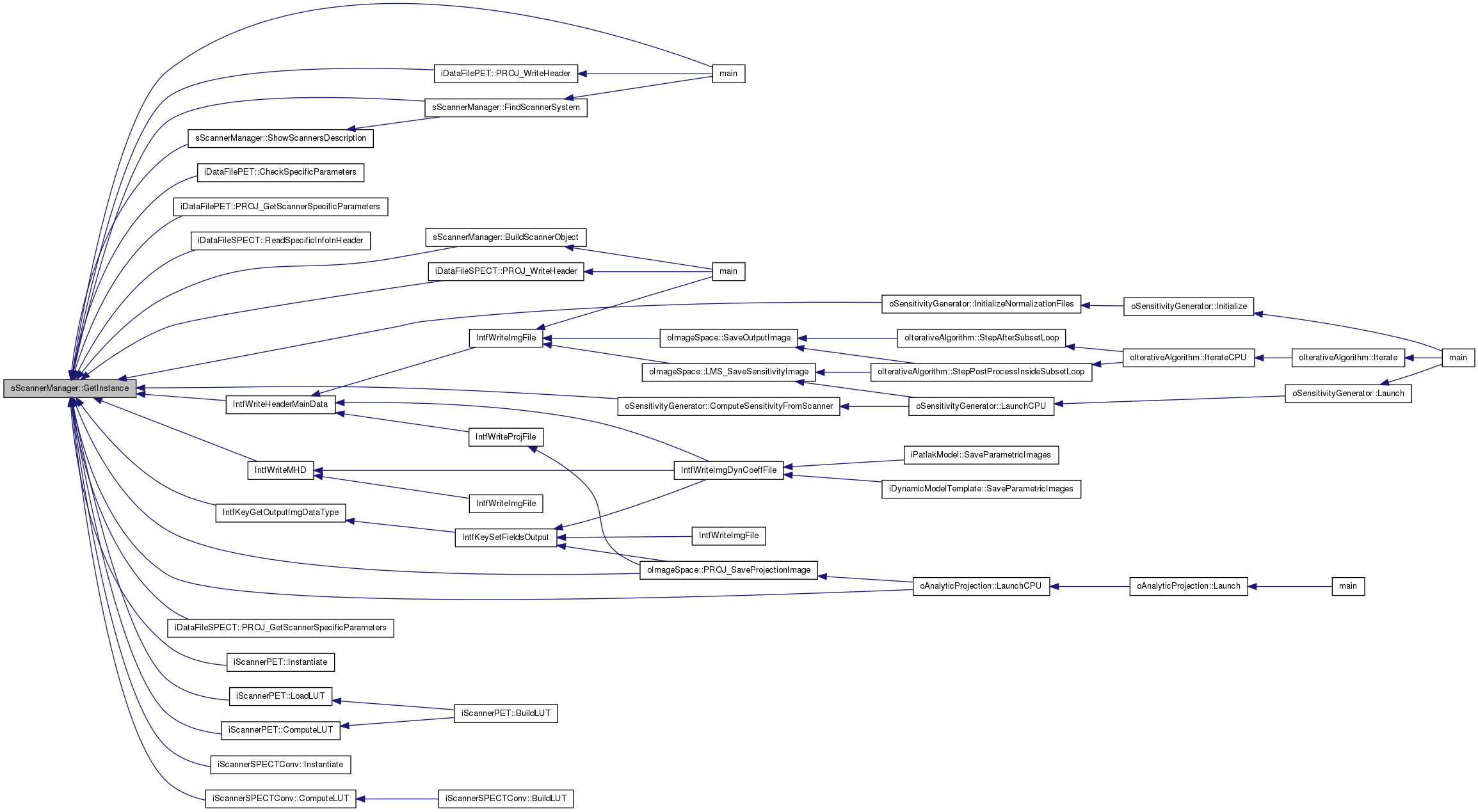

Here is the caller graph for this function:

string sScannerManager::GetPathToScannerFile ( ) [inline]

Returns:: the path to the scanner file

Definition at line 150 of file sScannerManager.hh.

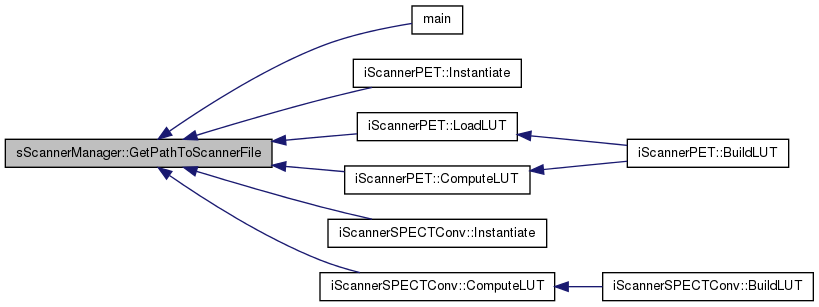

Here is the caller graph for this function:

int sScannerManager::GetScannerLayerNbRings ( int a_layer )

Ask the number of rings to the scanner object for a specific layer.
Returns an error if this information is not available for the scanner type of the object (eg : SPECT systems)

Parameters:

a_layer,: layer index

Returns:: The number of rings in the system if success. NEGATIVE value otherwise

Definition at line 496 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

string sScannerManager::GetScannerName ( ) [inline]

Returns:: the scanner name

Definition at line 156 of file sScannerManager.hh.

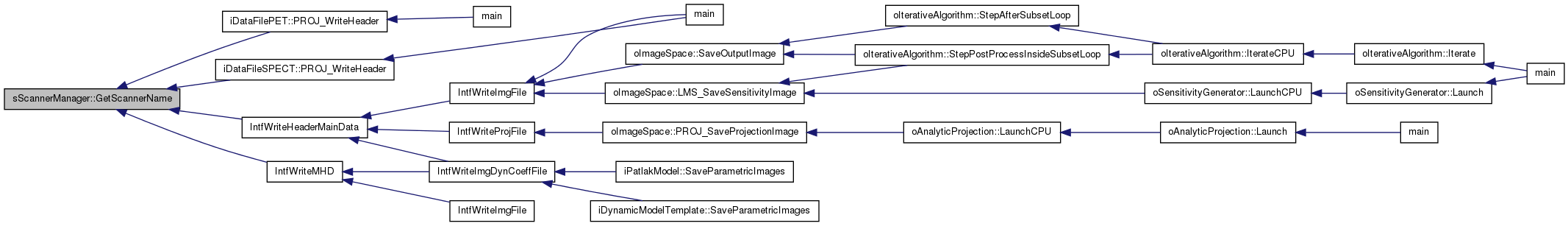

Here is the caller graph for this function:

vScanner * sScannerManager::GetScannerObject ( ) [inline]

Returns:: the vScanner object

Definition at line 169 of file sScannerManager.hh.

Here is the caller graph for this function:

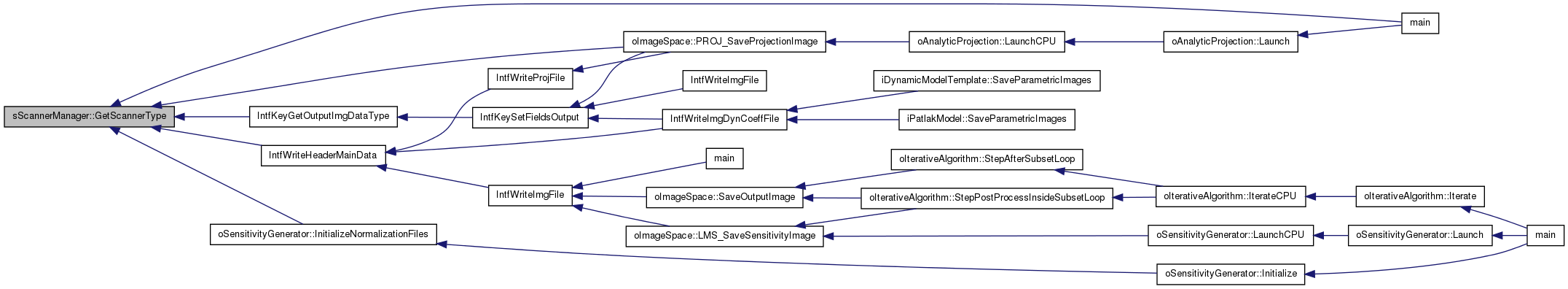

int sScannerManager::GetScannerType ( ) [inline]

Returns:: the scanner type as returned by the scanner object, or SCANNER_UNKNOWN if the scanner object has not been initialized

Definition at line 163 of file sScannerManager.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::GetSPECTSpecificParameters	(	uint16_t *	ap_nbOfProjections,
		uint16_t *	ap_nbHeads,
		uint16_t *	ap_nbOfBins,
		FLTNB *	ap_pixSizeXY,
		FLTNB *&	ap_angles,
		FLTNB *&	ap_CORtoDetectorDistance,
		int *	ap_headRotDirection
	)

Transfer geometric information recovered from the datafile to the scanner object.

Parameters:

ap_nbOfProjections	: number of views/projections
ap_nbHeads	: number of heads in the SPECT system
ap_nbOfBins	: 2 elements array containing transaxial number of bins
ap_pixSizeXY	: 2 elements array containing transaxial/axial pixel sizes
ap_angles	: an array containing angles for each view
ap_CORtoDetectorDistance	: a distance between the center of rotation and the detector
ap_headRotDirection	: head rotation direction

Returns:: 0 if success, positive value otherwise

Definition at line 911 of file sScannerManager.cc.

Here is the call graph for this function:

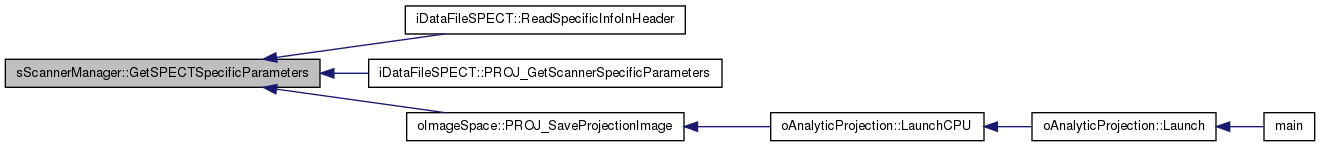

Here is the caller graph for this function:

int sScannerManager::GetSystemNbElts ( ) [inline]

Returns:: the number of elements in the system

Definition at line 175 of file sScannerManager.hh.

Here is the call graph for this function:

bool sScannerManager::HasUserScannerFile ( ) [inline]

Returns:: true if the scanner file is an user LUT, false otherwise (generic file is used)

Definition at line 144 of file sScannerManager.hh.

int sScannerManager::Initialize ( )

Initialization :
.

check if all parameters of the manager have been checked
call the initialization function of the scanner object
Returns:
0 if success. Positive value otherwise

Definition at line 130 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::InstantiateScanner ( )

Instantiate scanner using the related function in the scanner classes.

Returns:: 0 if success. Positive value otherwise

Definition at line 388 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void sScannerManager::operator= ( sScannerManager const & ) [inline, private]

Definition at line 325 of file sScannerManager.hh.

int64_t sScannerManager::PROJ_GetCurrentProgression	(	int64_t	a_elt1,
		int64_t	a_elt2,
		int64_t *	ap_nbEltsArray,
		int	a_nbRGates,
		int	a_nbCGates,
		int	a_fr,
		int	a_rg,
		int	a_cg
	)

Get numerator value according to the modality to compute percent progression during the analytical projection process.

Parameters:

a_elt1	: Current nb of processed #1 crystals (PET), projections (SPECT)
a_elt2	: Current nb of processed #2 crystals (PET), crystals (SPECT)
ap_nbEltsArray	: Total number of elements processed for each #1 crystals (PET/CT systems)
a_nbRGates
a_nbCGates
a_fr
a_rg
a_cg

Returns:: the required progression value if success, negative value otherwise

Definition at line 639 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t sScannerManager::PROJ_GetModalityStartValueInnerLoop ( int64_t a_elt1 )

Get the start value for the inner loop of analytic projection depending on the modality.

Parameters:

a_elt1 : Current nb of processed crystals (PET), projections (SPECT)

Returns:: the required stop value if success, NEGATIVE value otherwise

Definition at line 580 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

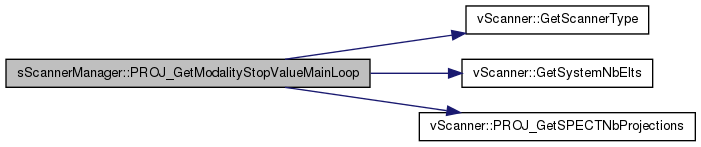

int64_t sScannerManager::PROJ_GetModalityStopValueMainLoop ( )

Get the stop value for the main loop of analytic projection depending on the modality.

Returns:: the required stop value if success, NEGATIVE value otherwise

Definition at line 532 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::PROJ_GetPETSpecificParameters ( int * a_maxRingDiff )

Transfer addresses to each geometric parameter of the PET scanner objets to the corresponding pointer of the datafile passed as argument.

Parameters:

ap_maxRingDiff : max number of axial ring difference

Returns:: 0 if success, positive value otherwise

Definition at line 771 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t sScannerManager::PROJ_GetProgressionFinalValue ( )

Get numerator value according to the modality to compute percent progression during the projection process.

Returns:: the required progression value if success, negative value otherwise

Definition at line 694 of file sScannerManager.cc.

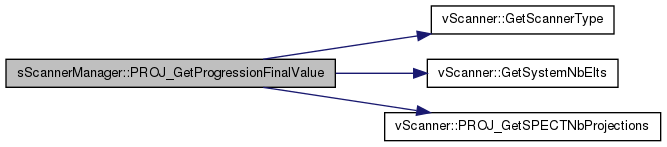

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::PROJ_SetPETSpecificParameters ( int a_maxRingDiff )

Deliver to the PET scanner object all informations provided from the datafile header.

Parameters:

a_maxRingDiff : max number of axial ring difference

Returns:: 0 if success, positive value otherwise

Definition at line 741 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::PROJ_SetSPECTSpecificParameters	(	uint16_t *	ap_nbOfBins,
		uint32_t	a_nbOfProjections,
		FLTNB	a_firstAngle,
		FLTNB	a_stepAngle,
		FLTNB *	ap_projectionAngles,
		FLTNB	a_CORtoDetectorDistance,
		string	a_rotDirection
	)

Deliver to the SPECT scanner object all informations provided from the acquisition parameters.

Parameters:

ap_nbOfBins	: 2 elements array containing transaxial number of bins
a_nbOfProjections	: number of views/projections
a_firstAngle	: angle of the first view
a_lastAngle	: angle of the last view
ap_projectionAngles	: an array containing angles for each view
a_CORtoDetectorDistance	: a distance between the center of rotation and the detector
a_RotDirection	: Rotation direction of the head (clockwise/counter-clockwise)

For analytical projection, this data is provided from the command-line options

Returns:: 0 if success, positive value otherwise

Definition at line 820 of file sScannerManager.cc.

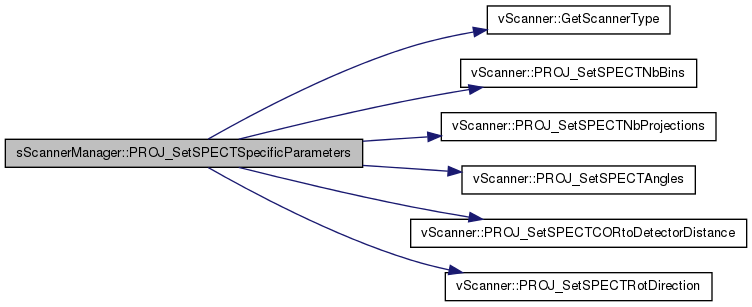

Here is the call graph for this function:

Here is the caller graph for this function:

bool sScannerManager::SaveLUTFlag ( ) [inline]

Get flag indicating a LUT generated by a geom file should be written on disk or not.

Returns:: true if scanner LUT has to be saved, false otherwise

Definition at line 198 of file sScannerManager.hh.

Here is the caller graph for this function:

void sScannerManager::SetSaveLUTFlag ( bool a_flag ) [inline]

Set to on the flag indicating a LUT generated by a geom file should be written on disk or not.

Parameters:

a_flag

Definition at line 190 of file sScannerManager.hh.

Here is the caller graph for this function:

void sScannerManager::SetVerbose ( int a_verboseLevel ) [inline]

set verbosity

Parameters:

a_verboseLevel

Definition at line 182 of file sScannerManager.hh.

Here is the caller graph for this function:

int sScannerManager::ShowScannersDescription ( )

Get the description associated to the different scanners and print all on screen.
Walk through the scanner repository and look for the keyword "description" in .geom file and .hscan file.
