This class is designed to manage the different image processing modules and to apply them. More...

#include <oImageProcessingManager.hh>

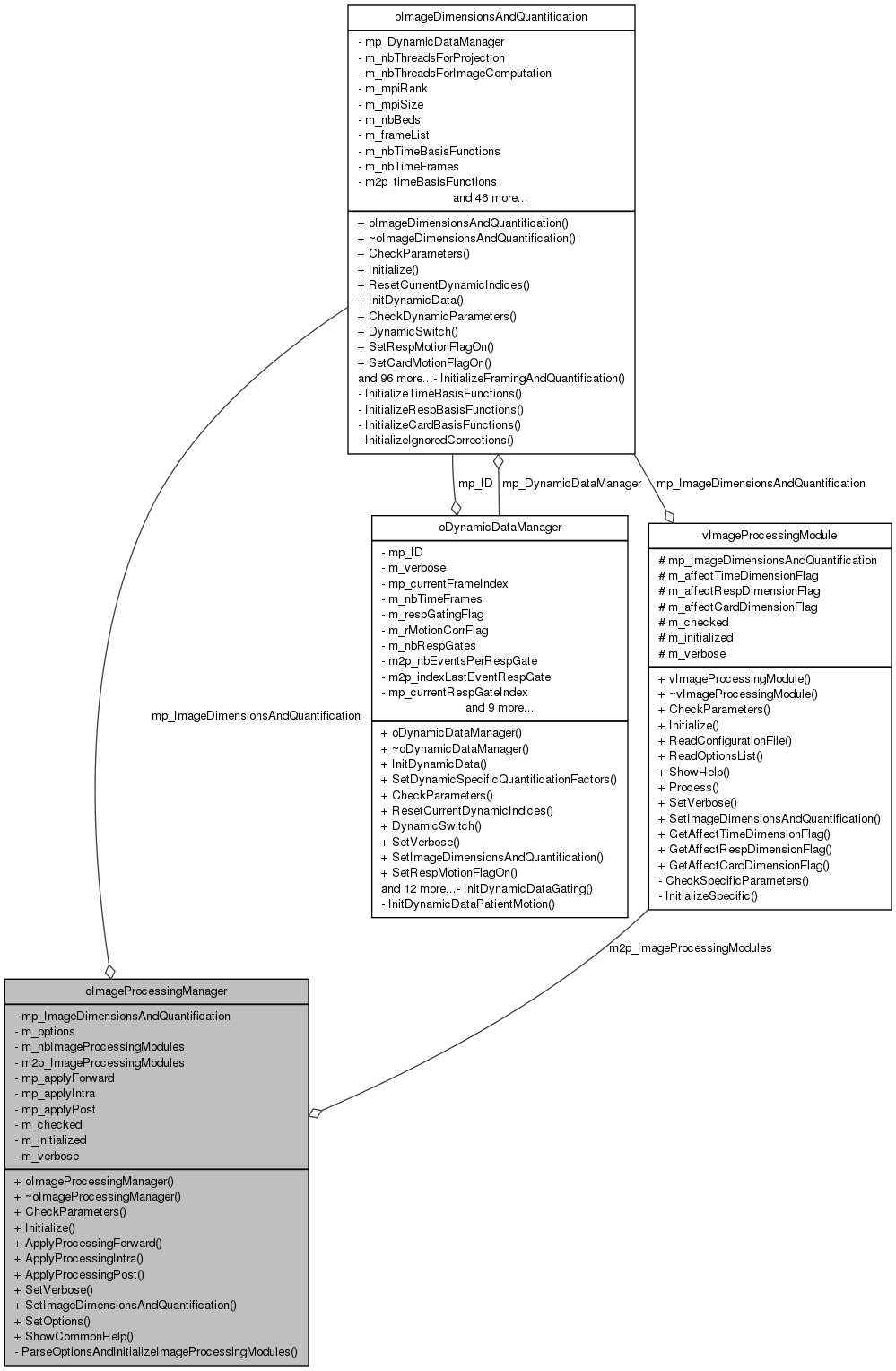

Collaboration diagram for oImageProcessingManager:

Public Member Functions
	oImageProcessingManager ()
	The constructor of oImageProcessingManager.
	~oImageProcessingManager ()
	The destructor of oImageProcessingManager.
int	CheckParameters ()
	A function used to check the parameters settings.
int	Initialize ()
	A function used to initialize the manager and all image processing modules it manages.
int	ApplyProcessingForward (oImageSpace *ap_ImageSpace)
int	ApplyProcessingIntra (oImageSpace *ap_ImageSpace)
int	ApplyProcessingPost (oImageSpace *ap_ImageSpace)
void	SetVerbose (int a_verboseLevel)
	Set the member m_verboseLevel to the provided value.
void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	Set the member mp_ImageDimensionsAndQuantification to the provided value.
void	SetOptions (vector< string > a_options)
	Set the member m_options to the provided value.
Static Public Member Functions
static void	ShowCommonHelp ()
	This function does not take any parameter and is used to display some help about the syntax of the options describing the image processing module that should be used. It is static so that it can be called without any object initialization.
Private Member Functions
int	ParseOptionsAndInitializeImageProcessingModules ()
	A function used to parse options and initialize image processing modules.
Private Attributes
oImageDimensionsAndQuantification *	mp_ImageDimensionsAndQuantification
vector< string >	m_options
int	m_nbImageProcessingModules
vImageProcessingModule **	m2p_ImageProcessingModules
bool *	mp_applyForward
bool *	mp_applyIntra
bool *	mp_applyPost
bool	m_checked
bool	m_initialized
int	m_verbose

Detailed Description

This class is designed to manage the different image processing modules and to apply them.

This manager class is supposed to be created and initialized in the main program. To do so, the following steps must be used: (i) The empty constructor is called which affect all members with default values. (ii) All parameters are set through the use of SetXXX() functions. (iii) The CheckParameters() function is called to check that everything mandatory has been set. (iv) The Initialize() function is called to initialize everything. (v) Now the action functions of the manager can be called to apply the different image processing modules. In a few words, based on supplied options, the manager will create children of the abstract vImageProcessingModule class which are specific image processing modules. As an example, see the iImageProcessingTemplate child class that illustrates how a specific image processing module should be implemented.

Definition at line 32 of file oImageProcessingManager.hh.

Constructor & Destructor Documentation

oImageProcessingManager::oImageProcessingManager ( )

The constructor of oImageProcessingManager.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 26 of file oImageProcessingManager.cc.

oImageProcessingManager::~oImageProcessingManager ( )

The destructor of oImageProcessingManager.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were build by this class.

Definition at line 50 of file oImageProcessingManager.cc.

Member Function Documentation

int oImageProcessingManager::ApplyProcessingForward ( oImageSpace * ap_ImageSpace )

Definition at line 340 of file oImageProcessingManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageProcessingManager::ApplyProcessingIntra ( oImageSpace * ap_ImageSpace )

Definition at line 373 of file oImageProcessingManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageProcessingManager::ApplyProcessingPost ( oImageSpace * ap_ImageSpace )

Definition at line 406 of file oImageProcessingManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageProcessingManager::CheckParameters ( )

A function used to check the parameters settings.

This function does not take any parameter and is used to check that all mandatory members were correctly parameterized.

Returns:: An integer reflecting the check status; 0 if no problem, another value otherwise.

Definition at line 65 of file oImageProcessingManager.cc.

Here is the caller graph for this function:

int oImageProcessingManager::Initialize ( )

A function used to initialize the manager and all image processing modules it manages.

This function does not take any parameter and is used to initialize everything that should be initialized. In a few words, it parses the options, then creates and initializes all image processing modules based on the provided options.

Returns:: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 123 of file oImageProcessingManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageProcessingManager::ParseOptionsAndInitializeImageProcessingModules ( ) [private]

A function used to parse options and initialize image processing modules.

This function first parses the options contained in the member m_options. Each string of the vector describes an image processing module to be used. Based on a specific syntax, the options are parsed to get the name of the processing module, its associated parameters and the steps of application. Based on this, the image processing modules are initialized. This function is private because it is called by the Initialize() function.

Returns:: An integer reflecting the parsing and initialization status; 0 if no problem, another value otherwise.

Definition at line 156 of file oImageProcessingManager.cc.

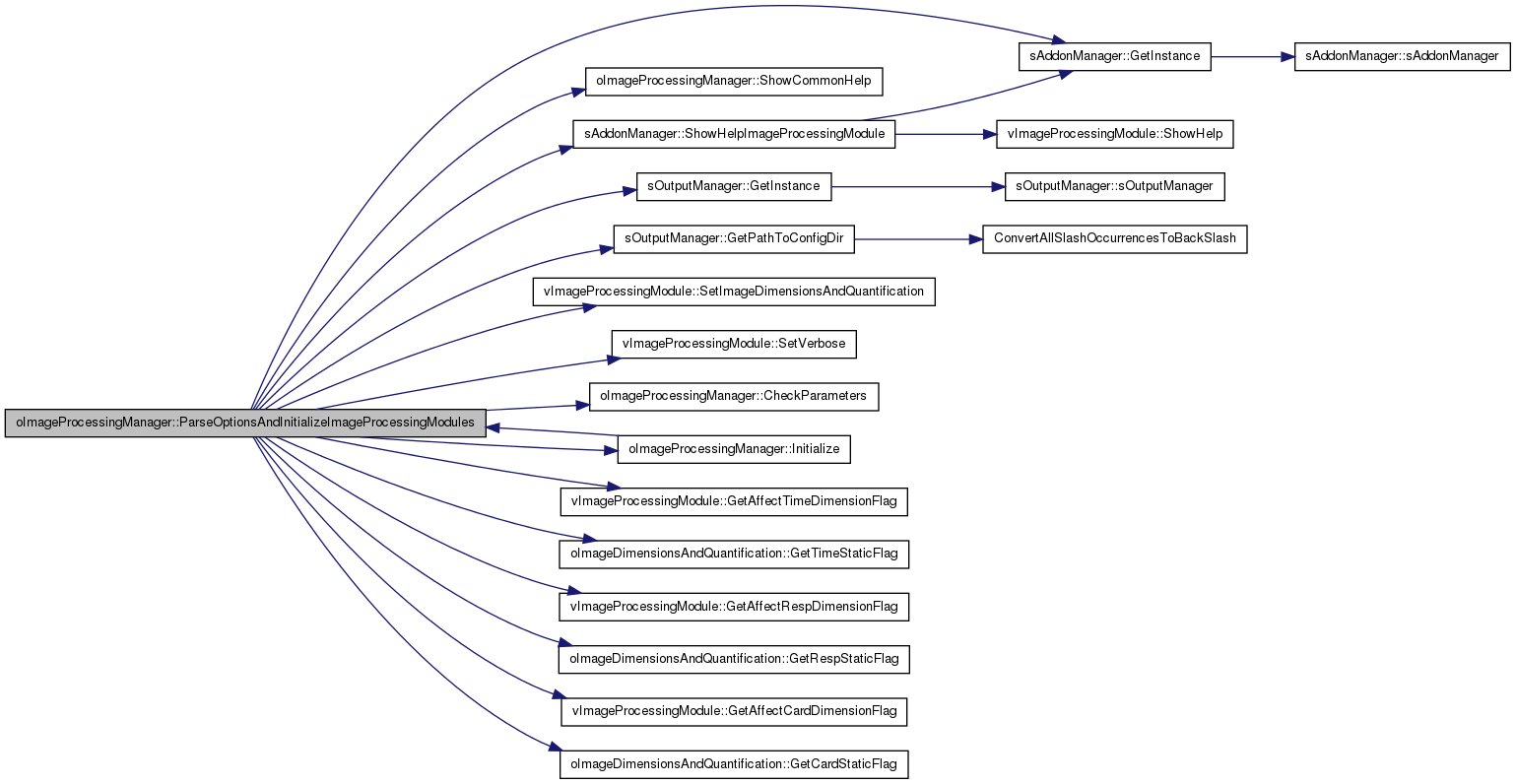

Here is the call graph for this function:

Here is the caller graph for this function:

public inline void oImageProcessingManager::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification * ap_ImageDimensionsAndQuantification ) [inline]

Set the member mp_ImageDimensionsAndQuantification to the provided value.

Parameters:

oImageDimensionsAndQuantification* ap_ImageDimensionsAndQuantification

Definition at line 138 of file oImageProcessingManager.hh.

Here is the caller graph for this function:

public inline void oImageProcessingManager::SetOptions ( vector< string > a_options ) [inline]

Set the member m_options to the provided value.

Parameters:

vector<string> a_options

Definition at line 145 of file oImageProcessingManager.hh.

Here is the caller graph for this function:

public inline void oImageProcessingManager::SetVerbose ( int a_verboseLevel ) [inline]

Set the member m_verboseLevel to the provided value.

Parameters:

int	a_verboseLevel

Definition at line 131 of file oImageProcessingManager.hh.

Here is the caller graph for this function:

void oImageProcessingManager::ShowCommonHelp ( ) [static]

This function does not take any parameter and is used to display some help about the syntax of the options describing the image processing module that should be used. It is static so that it can be called without any object initialization.

Definition at line 90 of file oImageProcessingManager.cc.

Here is the caller graph for this function:
