This class is designed to manage the use of dynamic model in the reconstruction. More...

#include <oDynamicModelManager.hh>

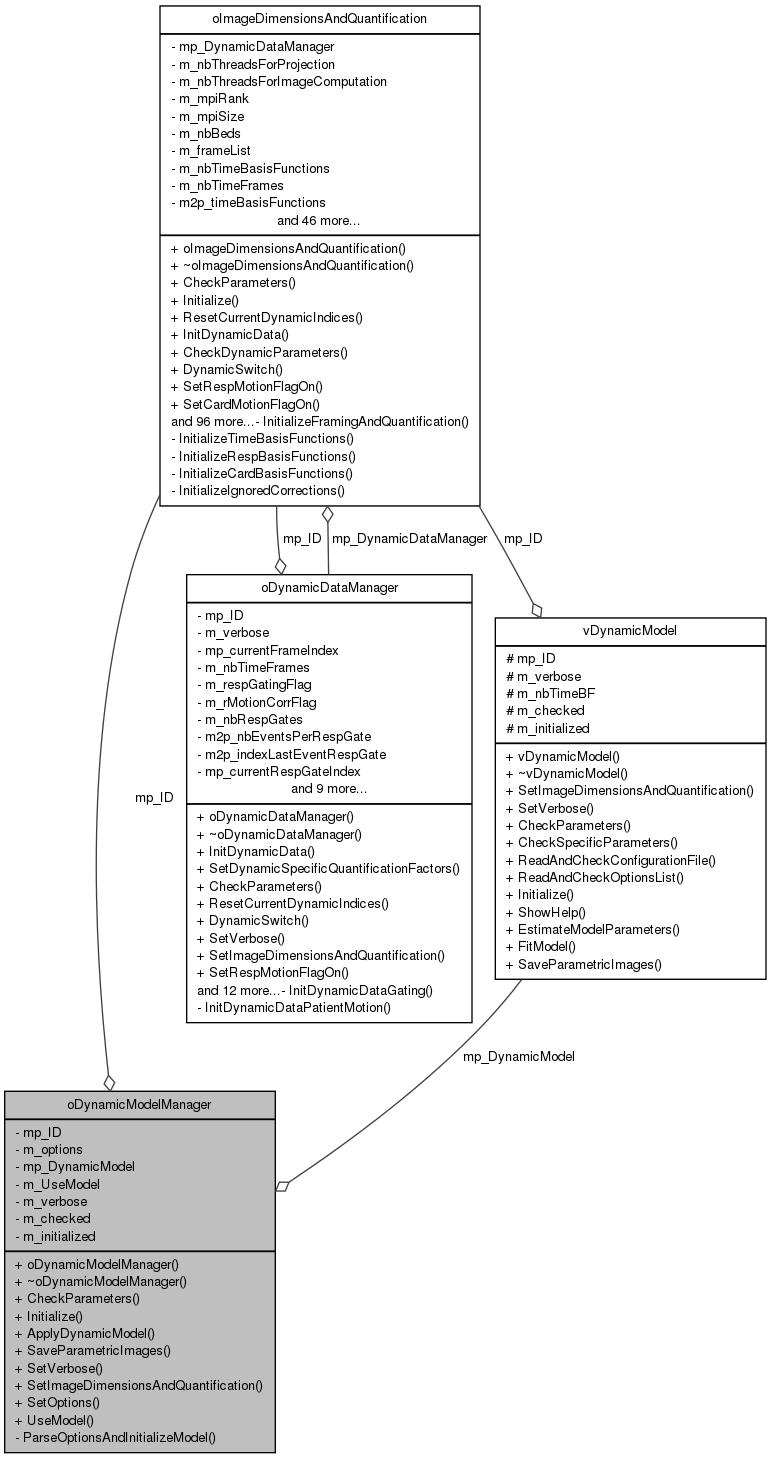

Collaboration diagram for oDynamicModelManager:

Public Member Functions
	oDynamicModelManager ()
	Constructor of oDynamicModelManager. Simply set all data members to default values.
	~oDynamicModelManager ()
	Destructor of oDynamicModelManager. Free memory from all allocated tabs.
int	CheckParameters ()
	This function is used to check parameters after the latter have been all set using Set functions.
int	Initialize ()
	Set the dynamic model flag and instanciate/initialize model objects through the ParseOptionsAndInitializeDeformations() private function.
int	ApplyDynamicModel (oImageSpace *ap_ImageS, int a_ite, int a_sset)
int	SaveParametricImages (int a_ite)
	Call SaveParametricImages() function of the dynamic model object is 'm_UseModel' is on, in order to save any parameter image.
void	SetVerbose (int a_verboseLevel)
	Set the verbose level.
void	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	Set the image dimensions in use.
void	SetOptions (const string &a_options)
	Set the respiratory motion options contained in the provided string.
bool	UseModel ()
	Indicate if the use of a dynamic model is enabled.
Private Member Functions
int	ParseOptionsAndInitializeModel ()
	Parse dynamic model options contained in the previously provided strings. This function is called inside the Initialize() function.
Private Attributes
oImageDimensionsAndQuantification *	mp_ID
string	m_options
vDynamicModel *	mp_DynamicModel
bool	m_UseModel
int	m_verbose
bool	m_checked
bool	m_initialized

Detailed Description

This class is designed to manage the use of dynamic model in the reconstruction.

As each manager class, it is created in the main program, all parameters are then set, checked, and the manager is initialized.
The manager is then used by the algorithm itself, where the function ApplyDynamicModel() is called at the end of the subset loop

Definition at line 28 of file oDynamicModelManager.hh.

Constructor & Destructor Documentation

oDynamicModelManager::oDynamicModelManager ( )

Constructor of oDynamicModelManager. Simply set all data members to default values.

Definition at line 30 of file oDynamicModelManager.cc.

oDynamicModelManager::~oDynamicModelManager ( )

Destructor of oDynamicModelManager. Free memory from all allocated tabs.

Definition at line 55 of file oDynamicModelManager.cc.

Member Function Documentation

int oDynamicModelManager::ApplyDynamicModel	(	oImageSpace *	ap_ImageS,
		int	a_ite,
		int	a_sset
	)

Definition at line 276 of file oDynamicModelManager.cc.

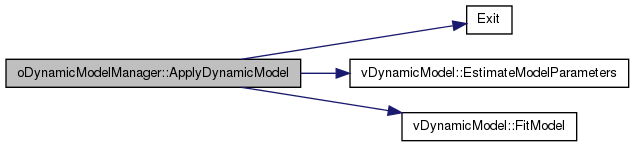

Here is the call graph for this function:

Here is the caller graph for this function:

int oDynamicModelManager::CheckParameters ( )

This function is used to check parameters after the latter have been all set using Set functions.

Returns:: 0 if success, positive value otherwise.

Definition at line 71 of file oDynamicModelManager.cc.

Here is the caller graph for this function:

int oDynamicModelManager::Initialize ( )

Set the dynamic model flag and instanciate/initialize model objects through the ParseOptionsAndInitializeDeformations() private function.

Returns:: 0 if success, positive value otherwise.

Definition at line 105 of file oDynamicModelManager.cc.

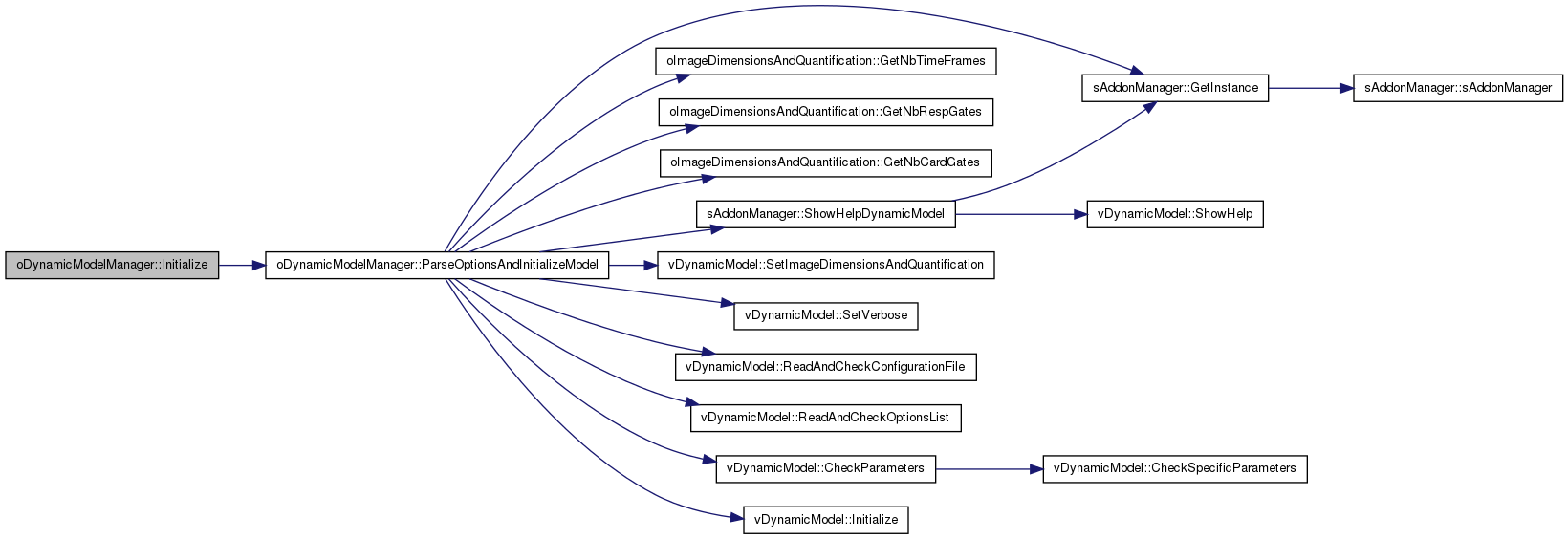

Here is the call graph for this function:

Here is the caller graph for this function:

int oDynamicModelManager::ParseOptionsAndInitializeModel ( ) [private]

Parse dynamic model options contained in the previously provided strings. This function is called inside the Initialize() function.

Manage the options reading and initialize specific vDynamicModel
Options are a string containing first the name of the model, then either a ':' and a configuration file specific to the model

or - as many ',' as needed parameters for this model.
Specific pure virtual functions of the vDynamicModel are used to read parameters and initialize them.
Returns:
0 if success, positive value otherwise

Definition at line 155 of file oDynamicModelManager.cc.

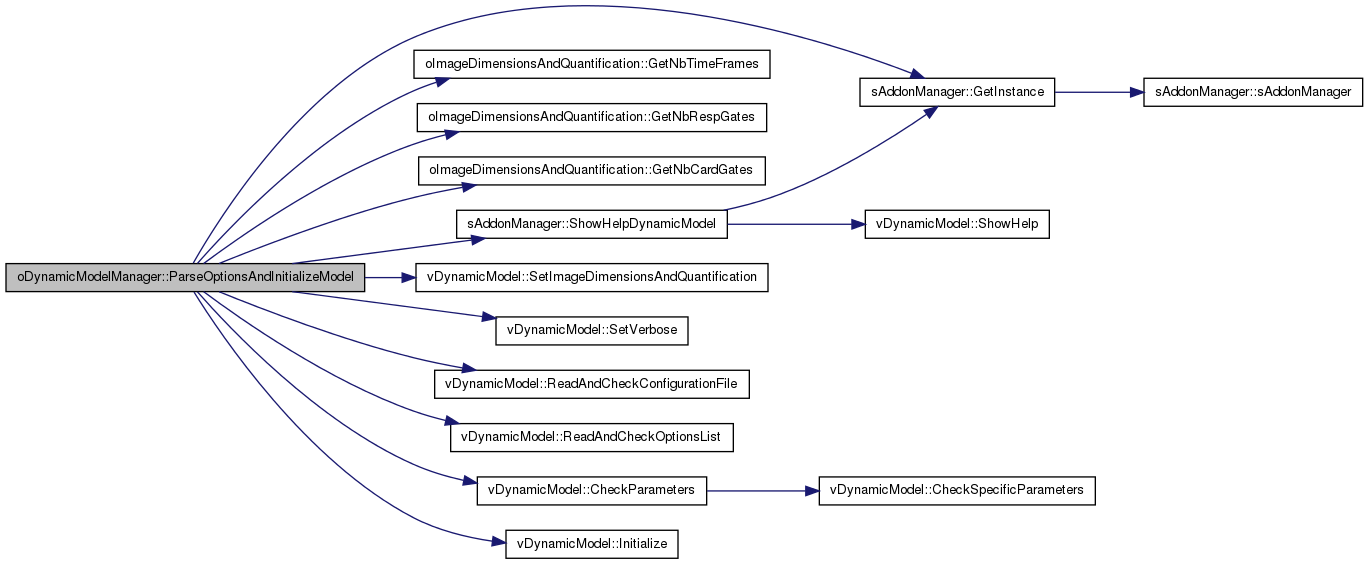

Here is the call graph for this function:
