This class is a child of the vOptimizer class implementing a template squeleton. More...

#include <iOptimizerTemplate.hh>

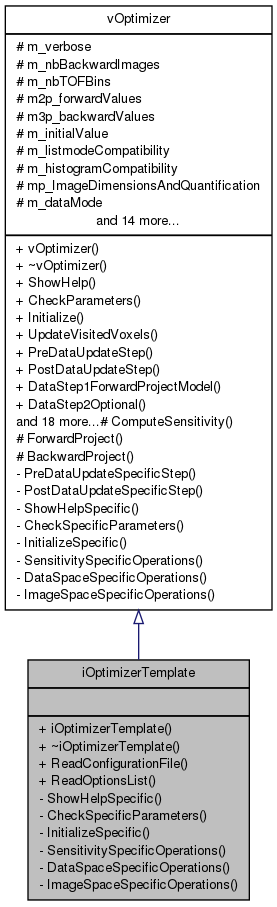

Inheritance diagram for iOptimizerTemplate:

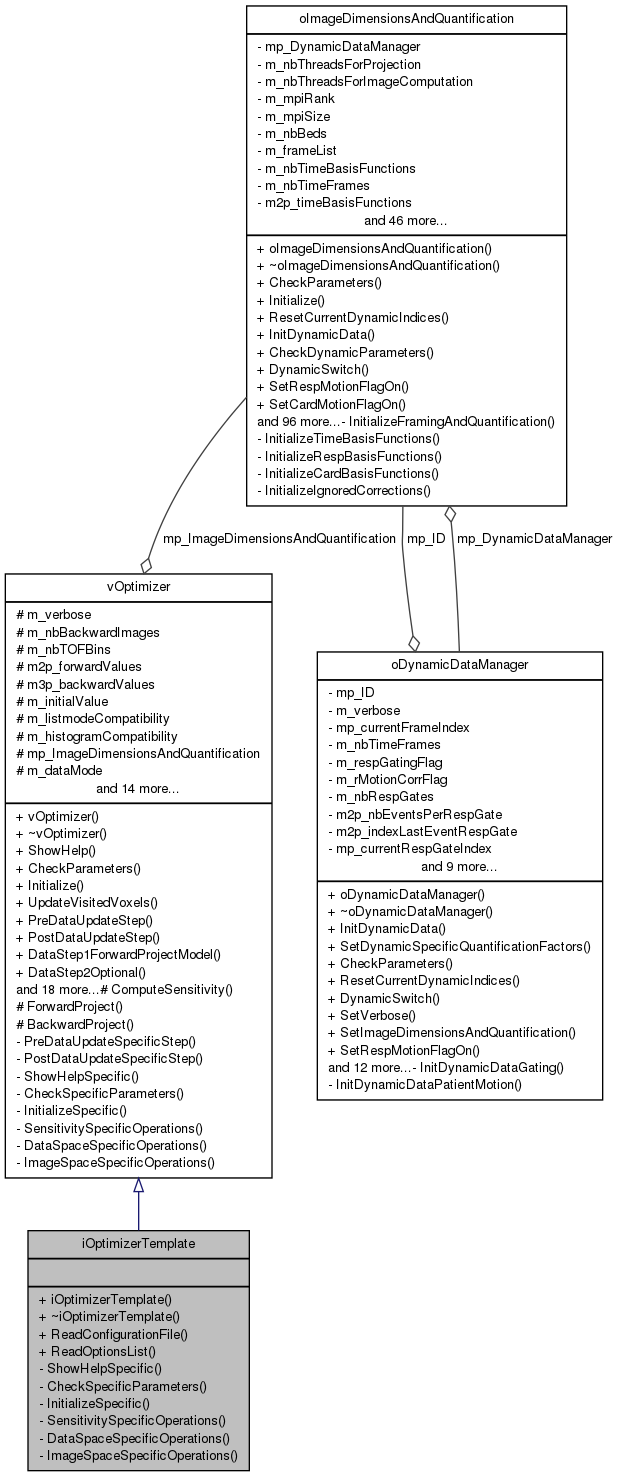

Collaboration diagram for iOptimizerTemplate:

Public Member Functions
	iOptimizerTemplate ()
	The constructor of iOptimizerTemplate.
	~iOptimizerTemplate ()
	The destructor of iOptimizerTemplate.
int	ReadConfigurationFile (const string &a_configurationFile)
	A function used to read options from a configuration file.
int	ReadOptionsList (const string &a_optionsList)
	A function used to read options from a list of options.
Private Member Functions
void	ShowHelpSpecific ()
	A function used to show help about the child optimizer.
int	CheckSpecificParameters ()
	A private function used to check the parameters settings specific to the child optimizer.
int	InitializeSpecific ()
	This function is used to initialize specific stuff to the child optimizer.
int	SensitivitySpecificOperations (FLTNB a_data, FLTNB a_forwardModel, FLTNB ap_weight, FLTNB a_multiplicativeCorrections, FLTNB a_additiveCorrections, FLTNB a_quantificationFactor, oProjectionLine ap_Line)
	This function compute the weight associated to the provided event (for sensitivity computation)
int	DataSpaceSpecificOperations (FLTNB a_data, FLTNB a_forwardModel, FLTNB ap_backwardValues, FLTNB a_multiplicativeCorrections, FLTNB a_additiveCorrections, FLTNB a_quantificationFactor, oProjectionLine ap_Line)
	This function performs the data space operations specific to the optimizer (computes the values to be backprojected)
int	ImageSpaceSpecificOperations (FLTNB a_currentImageValue, FLTNB ap_newImageValue, FLTNB a_sensitivity, FLTNB ap_correctionValues)
	This function perform the image update step specific to the optimizer.

Detailed Description

This class is a child of the vOptimizer class implementing a template squeleton.

This template squeleton provides an example of how to implement a new optimizer

Definition at line 22 of file iOptimizerTemplate.hh.

Constructor & Destructor Documentation

iOptimizerTemplate::iOptimizerTemplate ( )

The constructor of iOptimizerTemplate.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 26 of file iOptimizerTemplate.cc.

iOptimizerTemplate::~iOptimizerTemplate ( )

The destructor of iOptimizerTemplate.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were built by this class.

Definition at line 54 of file iOptimizerTemplate.cc.

Member Function Documentation

int iOptimizerTemplate::CheckSpecificParameters ( ) [private, virtual]

A private function used to check the parameters settings specific to the child optimizer.

This function is used to check that all parameters specific to the optimizer are correctly set within allowed values. It is called by the CheckParameters() function of the mother class. It is the implementation of the pure virtual function inherited from the abstract mother class vOptimizer.

Returns:: An integer reflecting the check status; 0 if no problem, another value otherwise.

Implements vOptimizer.

Definition at line 109 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::DataSpaceSpecificOperations	(	FLTNB	a_data,
		FLTNB	a_forwardModel,
		FLTNB *	ap_backwardValues,
		FLTNB	a_multiplicativeCorrections,
		FLTNB	a_additiveCorrections,
		FLTNB	a_quantificationFactor,
		oProjectionLine *	ap_Line
	)		`[private, virtual]`

This function performs the data space operations specific to the optimizer (computes the values to be backprojected)

Parameters:

FLTNB	a_data
FLTNB	a_forwardModel
FLTNB*	ap_backwardValues
FLTNB	a_multiplicativeCorrections
FLTNB	a_additiveCorrections
FLTNB	a_quantificationFactor
oProjectionLine*	ap_Line

It is the implementation of the pure virtual function from vOptimizer. The results to be backprojected is put at ap_backwardValues location.

Returns:: An integer reflecting the process status; 0 if no problem, another value otherwise.

Implements vOptimizer.

Definition at line 173 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::ImageSpaceSpecificOperations	(	FLTNB	a_currentImageValue,
		FLTNB *	ap_newImageValue,
		FLTNB	a_sensitivity,
		FLTNB *	ap_correctionValues
	)		`[private, virtual]`

This function perform the image update step specific to the optimizer.

Parameters:

FLTNB	a_currentImageValue
FLTNB*	ap_newImageValue
FLTNB	a_sensitivity
FLTNB*	ap_correctionValues

It is the implementation of the pure virtual function from vOptimizer. The new image value is put at the ap_newImageValue location.

Returns:: An integer reflecting the process status; 0 if no problem, another value otherwise.

Implements vOptimizer.

Definition at line 205 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::InitializeSpecific ( ) [private, virtual]

This function is used to initialize specific stuff to the child optimizer.

It is called by the public Initialize() function from the mother.

Returns:: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Implements vOptimizer.

Definition at line 123 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::ReadConfigurationFile ( const string & a_configurationFile ) [virtual]

A function used to read options from a configuration file.

Parameters:

const string& a_configurationFile

This function implements the reading of all options associated to the child optimizer, from a configuration file. It is the implementation of the pure virtual function inherited from the abstract class vOptimizer. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns:: An integer reflecting the reading success; 0 if success, another value otherwise.

Implements vOptimizer.

Definition at line 77 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::ReadOptionsList ( const string & a_optionsList ) [virtual]

A function used to read options from a list of options.

Parameters:

const string& a_configurationFile

This function implements the reading of all options associated to the child optimizer, from a list of options. It is the implementation of the pure virtual function inherited from the abstract class vOptimizer. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns:: An integer reflecting the reading success; 0 if success, another value otherwise.

Implements vOptimizer.

Definition at line 93 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::SensitivitySpecificOperations	(	FLTNB	a_data,
		FLTNB	a_forwardModel,
		FLTNB *	ap_weight,
		FLTNB	a_multiplicativeCorrections,
		FLTNB	a_additiveCorrections,
		FLTNB	a_quantificationFactor,
		oProjectionLine *	ap_Line
	)		`[private, virtual]`

This function compute the weight associated to the provided event (for sensitivity computation)

Parameters:

FLTNB	a_data
FLTNB	a_forwardModel
FLTNB*	ap_weight
FLTNB	a_multiplicativeCorrections
FLTNB	a_additiveCorrections
FLTNB	a_quantificationFactor
oProjectionLine*	ap_Line

It is the implementation of the pure virtual function from vOptimizer. The result is put at ap_weight location.

Returns:: An integer reflecting the process status; 0 if no problem, another value otherwise.

Implements vOptimizer.

Definition at line 140 of file iOptimizerTemplate.cc.

void iOptimizerTemplate::ShowHelpSpecific ( ) [private, virtual]

A function used to show help about the child optimizer.

This function must describe what the module does and how to use it. It describes in details the different parameters of the optimizer, and how to set them through the use of a configuration file or a list of options. It is the implementation of the pure virtual function inherited from the abstract class vOptimizer. It is called by the public ShowHelp() function.

Implements vOptimizer.

Definition at line 64 of file iOptimizerTemplate.cc.

The documentation for this class was generated from the following files:
