Inherit from vEvent. Main SPECT class for the Event objects. More...

#include <iEventSPECT.hh>

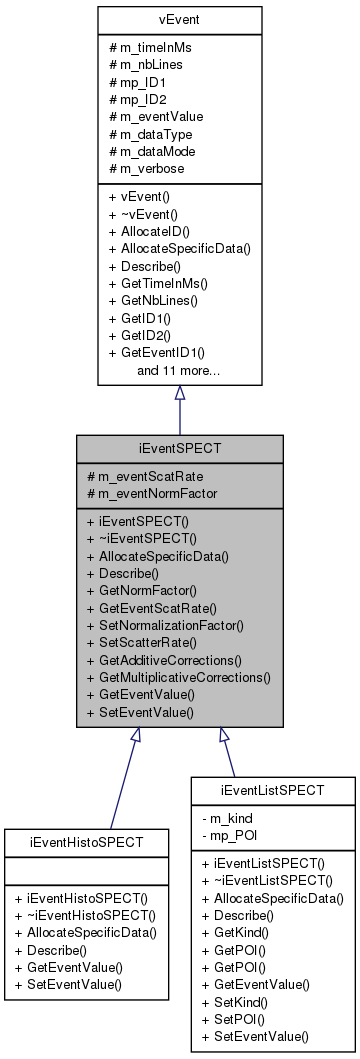

Inheritance diagram for iEventSPECT:

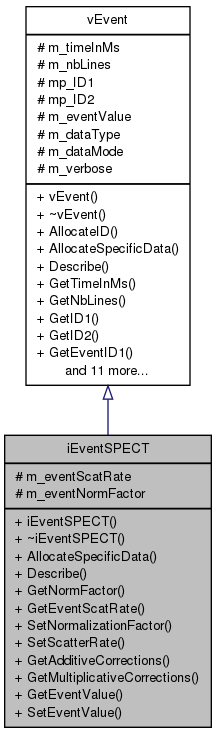

Collaboration diagram for iEventSPECT:

Public Member Functions
	iEventSPECT ()
	iEventSPECT constructor. Initialize the member variables to their default values.
virtual	~iEventSPECT ()
	iEventSPECT destructor.
virtual int	AllocateSpecificData ()=0
	Pure virtual function implemented in the child classes, dedicated to the allocation of specific data in the child classes.
virtual void	Describe ()
	This function can be used to get a description of the event printed out.
FLTNB	GetNormFactor ()
FLTNB	GetEventScatRate ()
void	SetNormalizationFactor (FLTNBDATA a_value)
	Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the normalization term.
void	SetScatterRate (FLTNBDATA a_value)
	Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the scatter correction rate.
FLTNB	GetAdditiveCorrections (int a_bin)
FLTNB	GetMultiplicativeCorrections ()
virtual FLTNB	GetEventValue (int a_bin)=0
	Pure virtual function implemented in the child classes.
virtual void	SetEventValue (int a_bin, FLTNBDATA a_value)=0
	Set the event value, this is a pure virtual function implemented in the child classes.
Protected Attributes
FLTNB	m_eventScatRate
FLTNB	m_eventNormFactor

Detailed Description

Inherit from vEvent. Main SPECT class for the Event objects.

This class is designed to be an abstract class that should not be used on its own; only its children are used.
It manages data and functions common to both class dedicated to histogram and list mode SPECT.

Definition at line 21 of file iEventSPECT.hh.

Constructor & Destructor Documentation

iEventSPECT::iEventSPECT ( )

iEventSPECT constructor. Initialize the member variables to their default values.

Definition at line 32 of file iEventSPECT.cc.

iEventSPECT::~iEventSPECT ( ) [virtual]

iEventSPECT destructor.

Definition at line 48 of file iEventSPECT.cc.

Member Function Documentation

int iEventSPECT::AllocateSpecificData ( ) [pure virtual]

Pure virtual function implemented in the child classes, dedicated to the allocation of specific data in the child classes.

Returns:: 0 is success, positive value otherwise

Implements vEvent.

Implemented in iEventHistoSPECT, and iEventListSPECT.

void iEventSPECT::Describe ( ) [virtual]

This function can be used to get a description of the event printed out.

Implements vEvent.

Reimplemented in iEventHistoSPECT, and iEventListSPECT.

Definition at line 60 of file iEventSPECT.cc.

FLTNB iEventSPECT::GetAdditiveCorrections ( int a_bin ) [inline, virtual]

Parameters:

a	bin (0 if only one line)

Returns:: Just return the scatter rate (the TOF bin parameter is ignored for SPECT)

Implements vEvent.

Definition at line 87 of file iEventSPECT.hh.

FLTNB iEventSPECT::GetEventScatRate ( ) [inline]

Returns:: the correction term for scatters as a rate in 1/s

Definition at line 66 of file iEventSPECT.hh.

Here is the caller graph for this function:

FLTNB iEventSPECT::GetEventValue ( int a_bin ) [pure virtual]

Pure virtual function implemented in the child classes.

Parameters:

a	bin (0 if only one line)

Returns:: the value of the event

Implements vEvent.

Implemented in iEventListSPECT, and iEventHistoSPECT.

FLTNB iEventSPECT::GetMultiplicativeCorrections ( ) [inline, virtual]

Returns:: the product of the multiplicative corrections terms for this event

Implements vEvent.

Definition at line 93 of file iEventSPECT.hh.

FLTNB iEventSPECT::GetNormFactor ( ) [inline]

Returns:: the normalization term

Definition at line 60 of file iEventSPECT.hh.

Here is the caller graph for this function:

void iEventSPECT::SetEventValue	(	int	a_bin,
		FLTNBDATA	a_value
	)		`[pure virtual]`

Set the event value, this is a pure virtual function implemented in the child classes.

Parameters:

a	bin (0 if only one line)
a_value

Implements vEvent.

Implemented in iEventListSPECT, and iEventHistoSPECT.

void iEventSPECT::SetNormalizationFactor ( FLTNBDATA a_value ) [inline]

Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the normalization term.

Parameters:

a	normalization term

Definition at line 73 of file iEventSPECT.hh.

void iEventSPECT::SetScatterRate ( FLTNBDATA a_value ) [inline]

Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the scatter correction rate.

Parameters:

a_value

Definition at line 80 of file iEventSPECT.hh.

Member Data Documentation

FLTNB iEventSPECT::m_eventNormFactor [protected]

Normalization term. Default value =1.0

Definition at line 120 of file iEventSPECT.hh.

FLTNB iEventSPECT::m_eventScatRate [protected]

Correction term for scatter rate (unit: s-1). Default value =0.0

Definition at line 119 of file iEventSPECT.hh.

The documentation for this class was generated from the following files:
