oMatrix Class Reference

Structure designed for basic matrices operations. More...

#include <oMatrix.hh>

Collaboration diagram for oMatrix:

Public Member Functions
	oMatrix ()
	oMatrix constructor. Initialize the member variables to their default values. More...
	~oMatrix ()
	oMatrix destructor. Free memory of the oMatrix object. More...
	oMatrix (uint16_t nl, uint16_t nc)
	oMatrix constructor. Instanciate a matrix structure with the number of lines and colons provided in parameters More...
void	Allocate (uint16_t nl, uint16_t nc)
	Instanciate a Matrix structure with the number of lines and colons provided in parameters. More...
int	SetMatriceElt (uint16_t l, uint16_t c, FLTNBLUT a_val)
	Set the matrix element corresponding to the argument indices with the provided value. More...
FLTNBLUT	GetMatriceElt (uint16_t l, uint16_t c)
int	Multiplication (oMatrix *a_Mtx, oMatrix *a_MtxResult)
	Multiply the member matrix with the matrix provided in 1st parameter Return the result in the matric provided in 2nd parameter. More...

Public Attributes
uint16_t	m_lin
uint16_t	m_col

Private Attributes
FLTNBLUT **	m2p_Mat

Detailed Description

Structure designed for basic matrices operations.

This structure is mostly used in scanner classes, for geometrical rotation purposes

Definition at line 20 of file oMatrix.hh.

Constructor & Destructor Documentation

oMatrix::oMatrix

(

)

oMatrix constructor. Initialize the member variables to their default values.

Definition at line 29 of file oMatrix.cc.

oMatrix::~oMatrix

(

)

oMatrix destructor. Free memory of the oMatrix object.

Definition at line 69 of file oMatrix.cc.

oMatrix::oMatrix	(	uint16_t	nl,
		uint16_t	nc
	)

oMatrix constructor. Instanciate a matrix structure with the number of lines and colons provided in parameters

Parameters

nl	: a number of lines
nc	: a number of colons

Definition at line 49 of file oMatrix.cc.

Member Function Documentation

void oMatrix::Allocate	(	uint16_t	nl,
		uint16_t	nc
	)

Instanciate a Matrix structure with the number of lines and colons provided in parameters.

Parameters

nl	a number of lines
nc	a number of colons

Definition at line 89 of file oMatrix.cc.

FLTNBLUT oMatrix::GetMatriceElt	(	uint16_t	l,
		uint16_t	c
	)

Parameters

l	a line index
c	a colon index

Returns

the matrix element value corresponding to the argument indices provided in arguments.

Definition at line 154 of file oMatrix.cc.

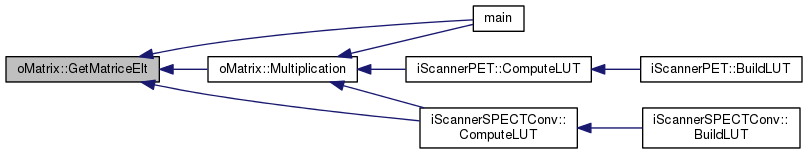

Here is the caller graph for this function:

int oMatrix::Multiplication	(	oMatrix *	a_Mtx,
		oMatrix *	a_MtxResult
	)

Multiply the member matrix with the matrix provided in 1st parameter Return the result in the matric provided in 2nd parameter.

Parameters

ap_Mtx	a line index
ap_MtxResult	a colon index

Returns

0 if success, positive value otherwise

Definition at line 173 of file oMatrix.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oMatrix::SetMatriceElt	(	uint16_t	l,
		uint16_t	c,
		FLTNBLUT	a_val
	)

Set the matrix element corresponding to the argument indices with the provided value.

Parameters

l	a line index
c	a colon index
a_val	: a value to initialize the matrix element with

Returns

0 if success, positive value otherwise

Definition at line 127 of file oMatrix.cc.

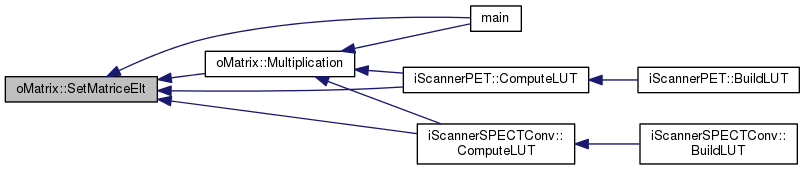

Here is the caller graph for this function:

Member Data Documentation

FLTNBLUT** oMatrix::m2p_Mat

private

2D pointer containing the matrix elements. Default =NULL

Definition at line 87 of file oMatrix.hh.

uint16_t oMatrix::m_col

Number of colons in the matrix. Default =0

Definition at line 85 of file oMatrix.hh.

uint16_t oMatrix::m_lin

Number of lines in the matrix. Default =0

Definition at line 84 of file oMatrix.hh.

---

The documentation for this class was generated from the following files:

• oMatrix.hh
• oMatrix.cc
