oImageProcessingManager Class Reference

This class is designed to manage the different image processing modules and to apply them. More...

#include <oImageProcessingManager.hh>

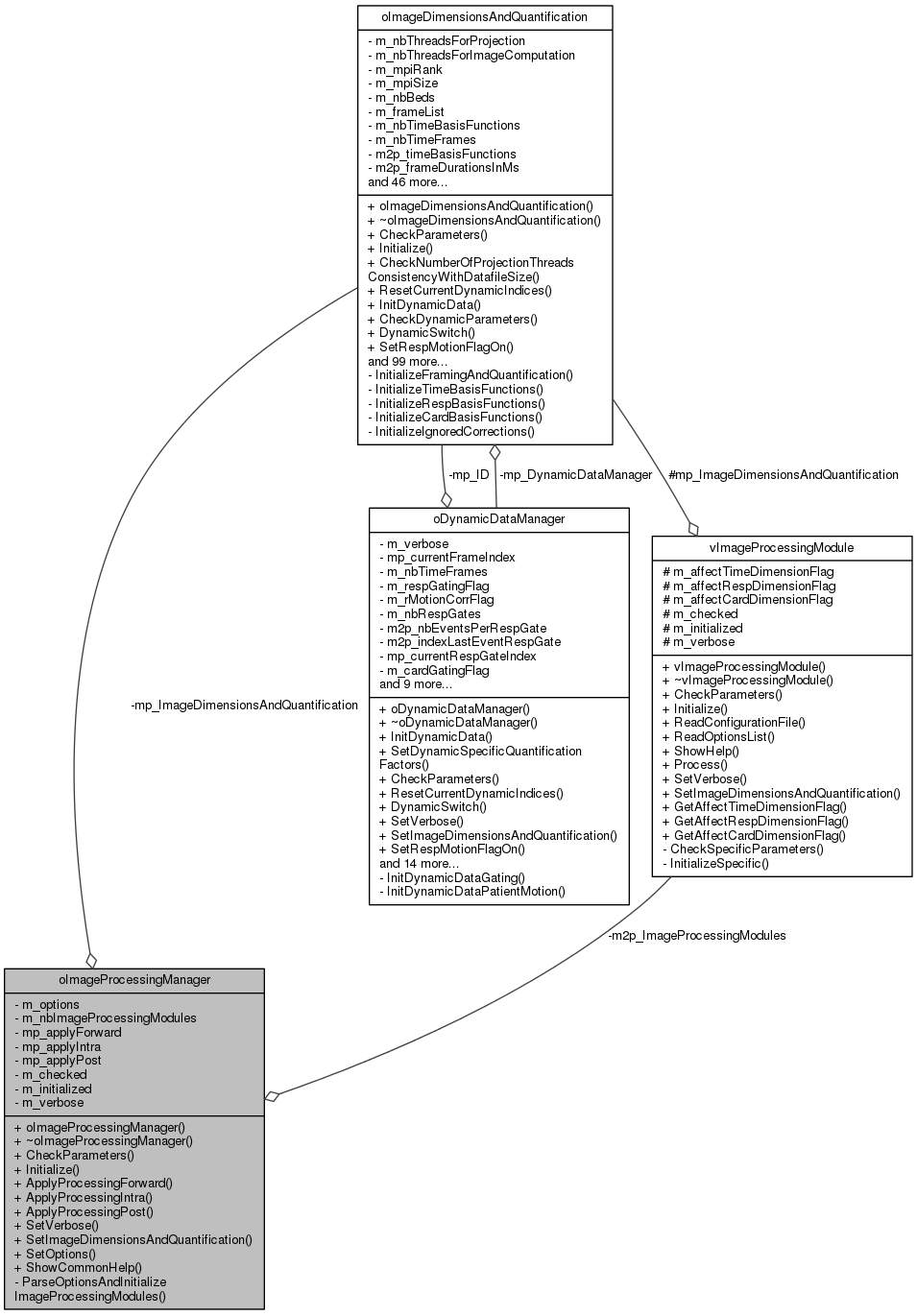

Collaboration diagram for oImageProcessingManager:
Collaboration graph

Public Member Functions

 oImageProcessingManager ()
 The constructor of oImageProcessingManager. More...

 ~oImageProcessingManager ()
 The destructor of oImageProcessingManager. More...

int CheckParameters ()
 A function used to check the parameters settings. More...

int Initialize ()
 A function used to initialize the manager and all image processing modules it manages. More...

int ApplyProcessingForward (oImageSpace *ap_ImageSpace)

int ApplyProcessingIntra (oImageSpace *ap_ImageSpace)

int ApplyProcessingPost (oImageSpace *ap_ImageSpace)

void SetVerbose (int a_verboseLevel)
 Set the member m_verboseLevel to the provided value. More...

void SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
 Set the member mp_ImageDimensionsAndQuantification to the provided value. More...

void SetOptions (vector< string > a_options)
 Set the member m_options to the provided value. More...


Static Public Member Functions

static void ShowCommonHelp ()
 This function does not take any parameter and is used to display some help about the syntax of the options describing the image processing module that should be used. It is static so that it can be called without any object initialization. More...


Private Member Functions

int ParseOptionsAndInitializeImageProcessingModules ()
 A function used to parse options and initialize image processing modules. More...


Private Attributes

oImageDimensionsAndQuantificationmp_ImageDimensionsAndQuantification

vector< string > m_options

int m_nbImageProcessingModules

vImageProcessingModule ** m2p_ImageProcessingModules

bool * mp_applyForward

bool * mp_applyIntra

bool * mp_applyPost

bool m_checked

bool m_initialized

int m_verbose


Detailed Description

This class is designed to manage the different image processing modules and to apply them.

This manager class is supposed to be created and initialized in the main program. To do so, the following steps must be used: (i) The empty constructor is called which affect all members with default values. (ii) All parameters are set through the use of SetXXX() functions. (iii) The CheckParameters() function is called to check that everything mandatory has been set. (iv) The Initialize() function is called to initialize everything. (v) Now the action functions of the manager can be called to apply the different image processing modules. In a few words, based on supplied options, the manager will create children of the abstract vImageProcessingModule class which are specific image processing modules. As an example, see the iImageProcessingTemplate child class that illustrates how a specific image processing module should be implemented.

Definition at line 32 of file oImageProcessingManager.hh.

Constructor & Destructor Documentation

oImageProcessingManager::oImageProcessingManager ( )

The constructor of oImageProcessingManager.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 26 of file oImageProcessingManager.cc.

oImageProcessingManager::~oImageProcessingManager ( )

The destructor of oImageProcessingManager.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were build by this class.

Definition at line 50 of file oImageProcessingManager.cc.

Member Function Documentation

int oImageProcessingManager::ApplyProcessingForward ( oImageSpace ap_ImageSpace)

Definition at line 340 of file oImageProcessingManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageProcessingManager::ApplyProcessingIntra ( oImageSpace ap_ImageSpace)

Definition at line 373 of file oImageProcessingManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageProcessingManager::ApplyProcessingPost ( oImageSpace ap_ImageSpace)

Definition at line 406 of file oImageProcessingManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int oImageProcessingManager::CheckParameters ( )

A function used to check the parameters settings.

This function does not take any parameter and is used to check that all mandatory members were correctly parameterized.

Returns
An integer reflecting the check status; 0 if no problem, another value otherwise.

Definition at line 65 of file oImageProcessingManager.cc.

Here is the caller graph for this function:

int oImageProcessingManager::Initialize ( )

A function used to initialize the manager and all image processing modules it manages.

This function does not take any parameter and is used to initialize everything that should be initialized. In a few words, it parses the options, then creates and initializes all image processing modules based on the provided options.

Returns
An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Definition at line 123 of file oImageProcessingManager.cc.

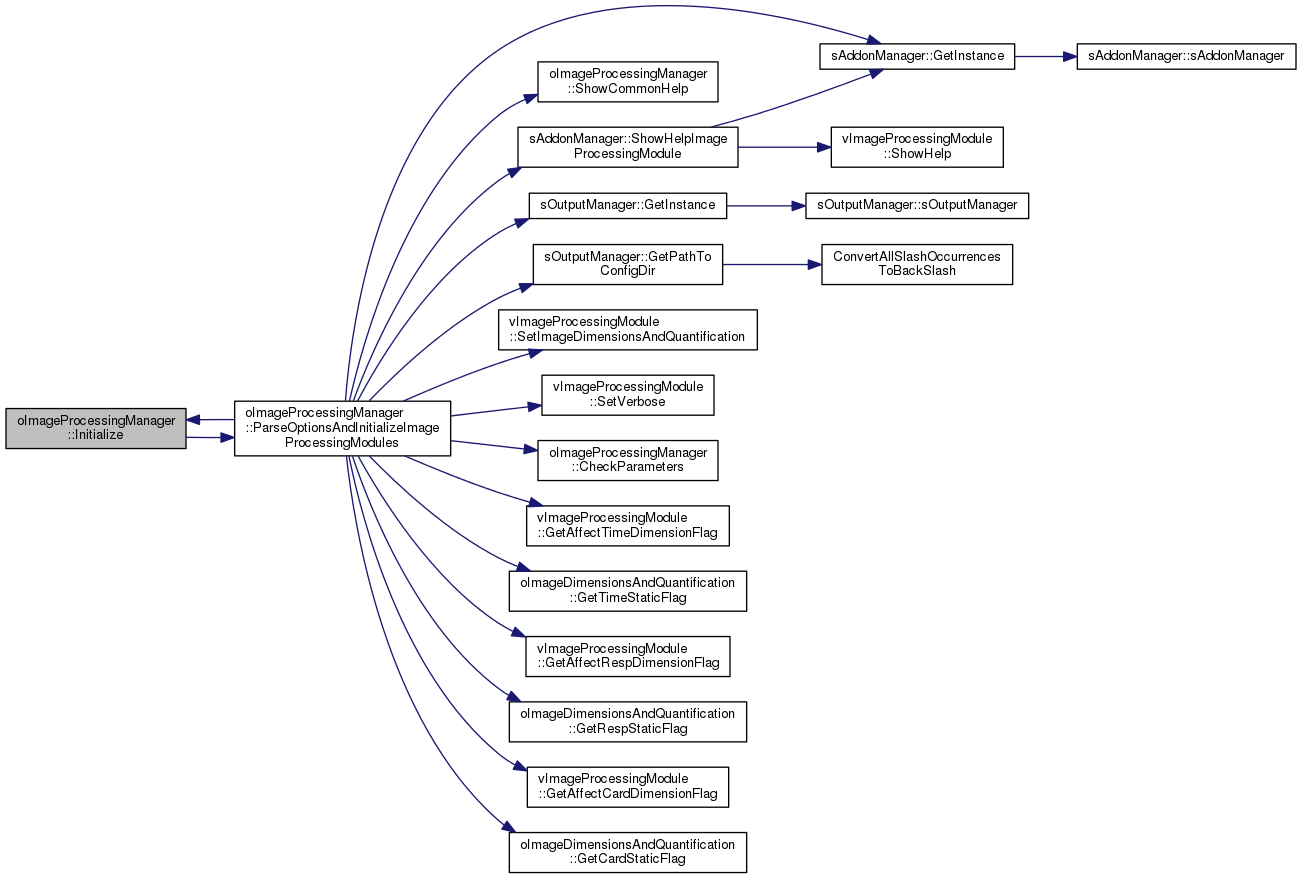

Here is the call graph for this function:

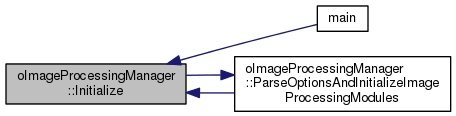

Here is the caller graph for this function:

int oImageProcessingManager::ParseOptionsAndInitializeImageProcessingModules ( )
private

A function used to parse options and initialize image processing modules.

This function first parses the options contained in the member m_options. Each string of the vector describes an image processing module to be used. Based on a specific syntax, the options are parsed to get the name of the processing module, its associated parameters and the steps of application. Based on this, the image processing modules are initialized. This function is private because it is called by the Initialize() function.

Returns
An integer reflecting the parsing and initialization status; 0 if no problem, another value otherwise.

Definition at line 156 of file oImageProcessingManager.cc.

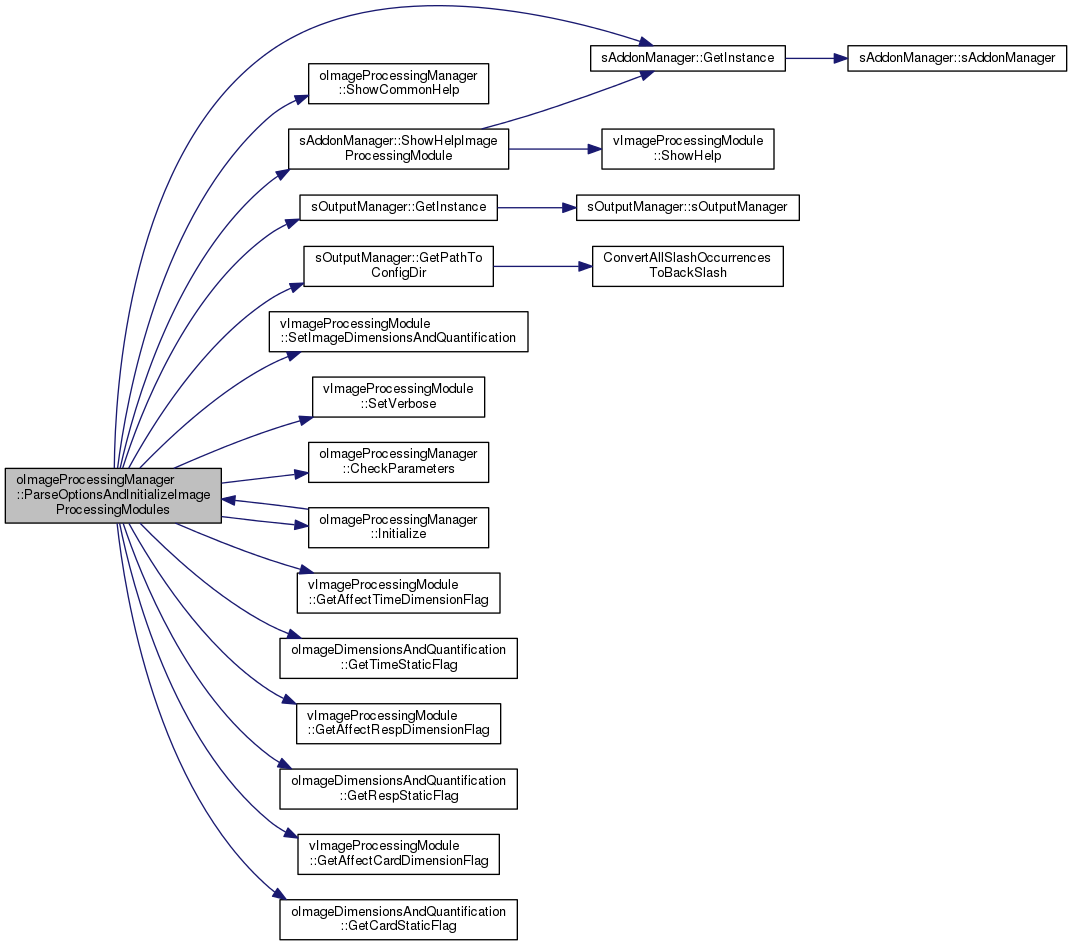

Here is the call graph for this function:

Here is the caller graph for this function:

public inline void oImageProcessingManager::SetImageDimensionsAndQuantification ( oImageDimensionsAndQuantification ap_ImageDimensionsAndQuantification)
inline

Set the member mp_ImageDimensionsAndQuantification to the provided value.

Parameters
oImageDimensionsAndQuantification*ap_ImageDimensionsAndQuantification

Definition at line 138 of file oImageProcessingManager.hh.

Here is the caller graph for this function:

public inline void oImageProcessingManager::SetOptions ( vector< string >  a_options)
inline

Set the member m_options to the provided value.

Parameters
vector<string>a_options

Definition at line 145 of file oImageProcessingManager.hh.

Here is the caller graph for this function:

public inline void oImageProcessingManager::SetVerbose ( int  a_verboseLevel)
inline

Set the member m_verboseLevel to the provided value.

Parameters
inta_verboseLevel

Definition at line 131 of file oImageProcessingManager.hh.

Here is the caller graph for this function:

void oImageProcessingManager::ShowCommonHelp ( )
static

This function does not take any parameter and is used to display some help about the syntax of the options describing the image processing module that should be used. It is static so that it can be called without any object initialization.

Definition at line 90 of file oImageProcessingManager.cc.

Here is the caller graph for this function:

Member Data Documentation

vImageProcessingModule** oImageProcessingManager::m2p_ImageProcessingModules
private

The actual image processing modules (as many as m_nbImageProcessingModules)

Definition at line 175 of file oImageProcessingManager.hh.

bool oImageProcessingManager::m_checked
private

A boolean that says if the function CheckParameters() has been called

Definition at line 179 of file oImageProcessingManager.hh.

bool oImageProcessingManager::m_initialized
private

A boolean that says if the function Initialize() has been called

Definition at line 180 of file oImageProcessingManager.hh.

int oImageProcessingManager::m_nbImageProcessingModules
private

The number of image processing modules managed by this manager

Definition at line 173 of file oImageProcessingManager.hh.

vector<string> oImageProcessingManager::m_options
private

A vector containing strings of options, each string is associated to an image processing module

Definition at line 172 of file oImageProcessingManager.hh.

int oImageProcessingManager::m_verbose
private

The verbose level associated to this class

Definition at line 181 of file oImageProcessingManager.hh.

bool* oImageProcessingManager::mp_applyForward
private

As many booleans as m_nbImageProcessingModules specifying if each module should be apply within the ConvolveForward function

Definition at line 176 of file oImageProcessingManager.hh.

bool* oImageProcessingManager::mp_applyIntra
private

As many booleans as m_nbImageProcessingModules specifying if each module should be apply within the ConvolveIntra function

Definition at line 177 of file oImageProcessingManager.hh.

bool* oImageProcessingManager::mp_applyPost
private

As many booleans as m_nbImageProcessingModules specifying if each module should be apply within the ConvolvePost function

Definition at line 178 of file oImageProcessingManager.hh.

oImageDimensionsAndQuantification* oImageProcessingManager::mp_ImageDimensionsAndQuantification
private

The image dimensions

Definition at line 171 of file oImageProcessingManager.hh.


The documentation for this class was generated from the following files:
