This class is a child of the vProjector class implementing the incremental Siddon ray tracer. More...

#include <iProjectorIncrementalSiddon.hh>

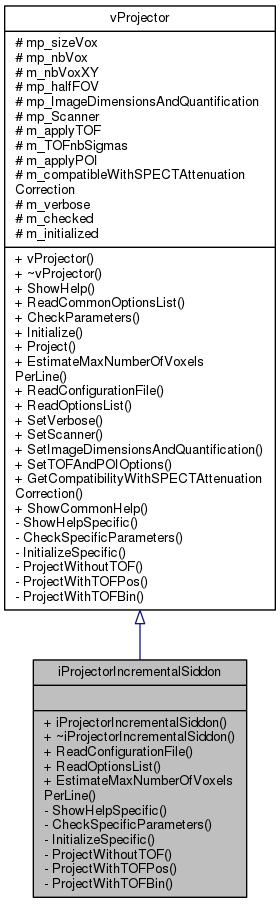

Inheritance diagram for iProjectorIncrementalSiddon:

Collaboration diagram for iProjectorIncrementalSiddon:

Public Member Functions
	iProjectorIncrementalSiddon ()
	The constructor of iProjectorIncrementalSiddon. More...

	~iProjectorIncrementalSiddon ()
	The destructor of iProjectorIncrementalSiddon. More...

int	ReadConfigurationFile (const string &a_configurationFile)
	A function used to read options from a configuration file. More...

int	ReadOptionsList (const string &a_optionsList)
	A function used to read options from a list of options. More...

INTNB	EstimateMaxNumberOfVoxelsPerLine ()
	This function is used to compute and provide an estimate of the maximum number of voxels that could contribute to a projected line. More...

Public Member Functions inherited from vProjector
	vProjector ()
	The constructor of vProjector. More...

virtual	~vProjector ()
	The destructor of vProjector. More...

void	ShowHelp ()
	A function used to show help about the projector. More...

int	ReadCommonOptionsList (const string &a_optionsList)
	This function is used to read options common to all projectors given as a string. More...

int	CheckParameters ()
	A public function used to check the parameters settings. More...

int	Initialize ()
	A public function used to initialize the projector. More...

int	Project (int a_direction, oProjectionLine ap_ProjectionLine, uint32_t ap_index1, uint32_t *ap_index2, int a_nbIndices)
	A function use to computed the projection elements with respect to the provided parameters. More...

void	SetVerbose (int a_verbose)
	Set the verbose level. More...

void	SetScanner (vScanner *ap_Scanner)
	Set the pointer to the scanner in use. More...

int	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	Set the pointer to the image dimensions in use and copy locally some often use variables. More...

int	SetTOFAndPOIOptions (int a_dataType, bool a_ignoreTOF, bool a_ignorePOI)
	Set the TOF use as well as POI and checks compatibility with current data type. More...

bool	GetCompatibilityWithSPECTAttenuationCorrection ()

Private Member Functions
void	ShowHelpSpecific ()
	A function used to show help about the child module. More...

int	CheckSpecificParameters ()
	A private function used to check the parameters settings specific to the child projector. More...

int	InitializeSpecific ()
	This function is used to initialize specific stuff to the child projector. More...

int	ProjectWithoutTOF (int a_direction, oProjectionLine *ap_ProjectionLine)
	A function to project without TOF. More...

int	ProjectWithTOFPos (int a_direction, oProjectionLine *ap_ProjectionLine)
	A function to project with TOF continuous information. More...

int	ProjectWithTOFBin (int a_direction, oProjectionLine *ap_ProjectionLine)
	A function to project with TOF binned information. More...

Additional Inherited Members
Static Public Member Functions inherited from vProjector
static void	ShowCommonHelp ()
	This function is used to print out some help about the use of options common to all projectors. It is static because it is called in main without instantiating an object. More...

Protected Attributes inherited from vProjector
FLTNB	mp_sizeVox [3]

INTNB	mp_nbVox [3]

INTNB	m_nbVoxXY

FLTNB	mp_halfFOV [3]

oImageDimensionsAndQuantification *	mp_ImageDimensionsAndQuantification

vScanner *	mp_Scanner

int	m_applyTOF

FLTNB	m_TOFnbSigmas

bool	m_applyPOI

bool	m_compatibleWithSPECTAttenuationCorrection

int	m_verbose

bool	m_checked

bool	m_initialized

Detailed Description

This class is a child of the vProjector class implementing the incremental Siddon ray tracer.

This class implements the incremental version of the Siddon algorithm which is a fast ray-tracer algorithm calculating the exact length of a line through each voxel it crosses. Reference: F. Jacobs et al, "A fast algorithm to calculate the exact radiological path through a pixel or voxel space", J. Comput. Inf. Technol., vol. 6, pp. 89-94, 1998.

Definition at line 24 of file iProjectorIncrementalSiddon.hh.

Constructor & Destructor Documentation

iProjectorIncrementalSiddon::iProjectorIncrementalSiddon ( )

The constructor of iProjectorIncrementalSiddon.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 26 of file iProjectorIncrementalSiddon.cc.

iProjectorIncrementalSiddon::~iProjectorIncrementalSiddon ( )

The destructor of iProjectorIncrementalSiddon.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were built by this class.

Definition at line 42 of file iProjectorIncrementalSiddon.cc.

Member Function Documentation

int iProjectorIncrementalSiddon::CheckSpecificParameters ( )

privatevirtual

A private function used to check the parameters settings specific to the child projector.

This function is used to check that all parameters specific to the projector are correctly set within allowed values. It is called by the CheckParameters() function of the mother class. It is the implementation of the pure virtual function inherited from the abstract mother class vProjector.

Returns: An integer reflecting the check status; 0 if no problem, another value otherwise.

Implements vProjector.

Definition at line 90 of file iProjectorIncrementalSiddon.cc.

INTNB iProjectorIncrementalSiddon::EstimateMaxNumberOfVoxelsPerLine ( )

virtual

This function is used to compute and provide an estimate of the maximum number of voxels that could contribute to a projected line.

This function is an overloaded implementation of the virtual mother function. It is used to compute and provide an estimate of the maximum number of voxels that could contribute to a projected line.

Returns: The estimate of the maximum number of voxels contributing to a line.

Reimplemented from vProjector.

Definition at line 116 of file iProjectorIncrementalSiddon.cc.

Here is the call graph for this function:

int iProjectorIncrementalSiddon::InitializeSpecific ( )

privatevirtual

This function is used to initialize specific stuff to the child projector.

It is called by the public Initialize() function from the mother.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Implements vProjector.

Definition at line 103 of file iProjectorIncrementalSiddon.cc.

int iProjectorIncrementalSiddon::ProjectWithoutTOF	(	int	a_direction,
		oProjectionLine *	ap_ProjectionLine
	)

privatevirtual

A function to project without TOF.

Parameters

int	a_direction
oProjectionLine*	ap_ProjectionLine

Projects the provided line following the provided direction, without TOF. It fills the provided oProjectionLine. It is an implementation of the pure virtual function from the mother class.

Returns: An integer reflecting the projection status; 0 if no problem, another value otherwise.

Implements vProjector.

Definition at line 134 of file iProjectorIncrementalSiddon.cc.

Here is the call graph for this function:

int iProjectorIncrementalSiddon::ProjectWithTOFBin	(	int	a_direction,
		oProjectionLine *	ap_ProjectionLine
	)

privatevirtual

A function to project with TOF binned information.

Parameters

int	a_direction
oProjectionLine*	ap_ProjectionLine

Projects the provided line following the provided direction, with TOF information describe as a histogram bin. It fills the provided oProjectionLine. It is an implementation of the pure virtual function from the mother class.

Returns: An integer reflecting the projection status; 0 if no problem, another value otherwise.

Implements vProjector.

Definition at line 713 of file iProjectorIncrementalSiddon.cc.

int iProjectorIncrementalSiddon::ProjectWithTOFPos	(	int	a_direction,
		oProjectionLine *	ap_ProjectionLine
	)

privatevirtual

A function to project with TOF continuous information.

Parameters

int	a_direction
oProjectionLine*	ap_ProjectionLine

Projects the provided line following the provided direction, with TOF described as a continuous measurement. It fills the provided oProjectionLine. It is an implementation of the pure virtual function from the mother class.

Returns: An integer reflecting the projection status; 0 if no problem, another value otherwise.

Implements vProjector.

Definition at line 389 of file iProjectorIncrementalSiddon.cc.

Here is the call graph for this function:

int iProjectorIncrementalSiddon::ReadConfigurationFile ( const string & a_configurationFile )

virtual

A function used to read options from a configuration file.

Parameters

const string& a_configurationFile

This function implements the reading of all options associated to the child projector, from a configuration file. It is the implementation of the pure virtual function inherited from the abstract class vProjector. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns: An integer reflecting the reading success; 0 if success, another value otherwise.

Implements vProjector.

Definition at line 51 of file iProjectorIncrementalSiddon.cc.

int iProjectorIncrementalSiddon::ReadOptionsList ( const string & a_optionsList )

virtual

A function used to read options from a list of options.

Parameters

const string& a_configurationFile

This function implements the reading of all options associated to the child projector, from a list of options. It is the implementation of the pure virtual function inherited from the abstract class vProjector. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns: An integer reflecting the reading success; 0 if success, another value otherwise.

Implements vProjector.

Definition at line 64 of file iProjectorIncrementalSiddon.cc.

void iProjectorIncrementalSiddon::ShowHelpSpecific ( )

privatevirtual

A function used to show help about the child module.

This function must describe what the projector does and how to use it. It describes in details the different parameters of the projector, and how to set them through the use of a configuration file or a list of options. It is pure virtual so is implemented by children. It is private because called by the public ShowHelp() function.

Implements vProjector.

Definition at line 77 of file iProjectorIncrementalSiddon.cc.

The documentation for this class was generated from the following files:
