This class is a child of the vProjector class implementing the IRIS projector. More...

#include <iProjectorIRIS.hh>

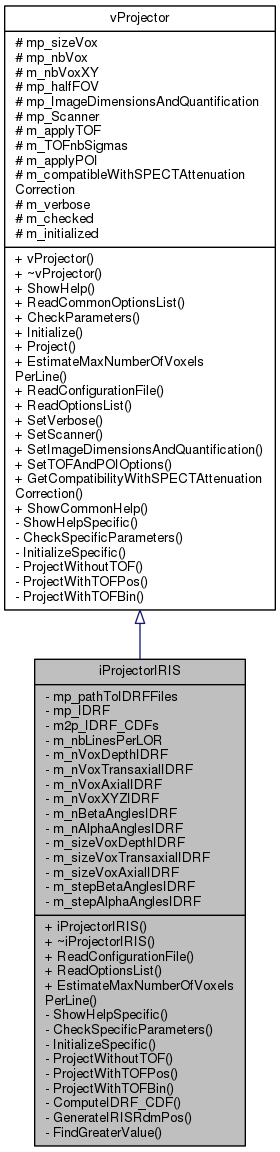

Inheritance diagram for iProjectorIRIS:

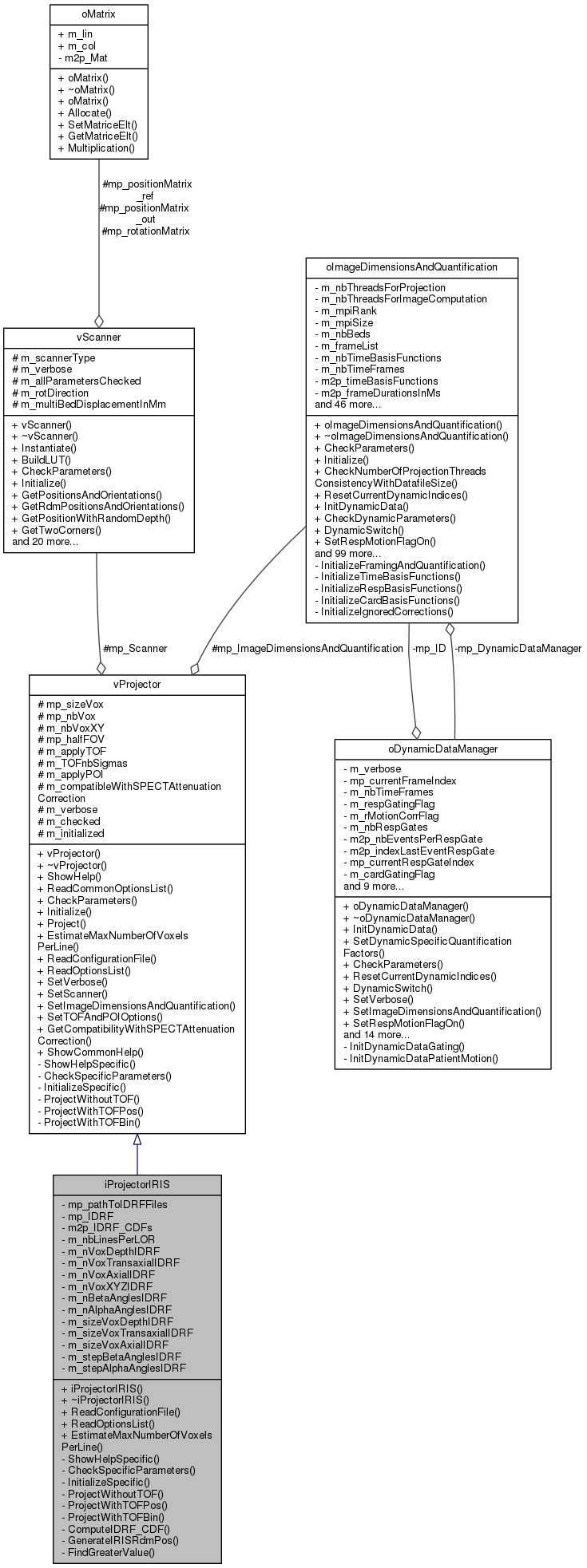

Collaboration diagram for iProjectorIRIS:

Public Member Functions
	iProjectorIRIS ()
	The constructor of iProjectorIRIS. More...

	~iProjectorIRIS ()
	The destructor of iProjectorIRIS. More...

int	ReadConfigurationFile (const string &a_configurationFile)
	A function used to read options from a configuration file. More...

int	ReadOptionsList (const string &a_optionsList)
	A function used to read options from a list of options. More...

INTNB	EstimateMaxNumberOfVoxelsPerLine ()
	This function is used to compute and provide an estimate of the maximum number of voxels that could contribute to a projected line. More...

Public Member Functions inherited from vProjector
	vProjector ()
	The constructor of vProjector. More...

virtual	~vProjector ()
	The destructor of vProjector. More...

void	ShowHelp ()
	A function used to show help about the projector. More...

int	ReadCommonOptionsList (const string &a_optionsList)
	This function is used to read options common to all projectors given as a string. More...

int	CheckParameters ()
	A public function used to check the parameters settings. More...

int	Initialize ()
	A public function used to initialize the projector. More...

int	Project (int a_direction, oProjectionLine ap_ProjectionLine, uint32_t ap_index1, uint32_t *ap_index2, int a_nbIndices)
	A function use to computed the projection elements with respect to the provided parameters. More...

void	SetVerbose (int a_verbose)
	Set the verbose level. More...

void	SetScanner (vScanner *ap_Scanner)
	Set the pointer to the scanner in use. More...

int	SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
	Set the pointer to the image dimensions in use and copy locally some often use variables. More...

int	SetTOFAndPOIOptions (int a_dataType, bool a_ignoreTOF, bool a_ignorePOI)
	Set the TOF use as well as POI and checks compatibility with current data type. More...

bool	GetCompatibilityWithSPECTAttenuationCorrection ()

Private Member Functions
void	ShowHelpSpecific ()
	A function used to show help about the child module. More...

int	CheckSpecificParameters ()
	A private function used to check the parameters settings specific to the child projector. More...

int	InitializeSpecific ()
	This function is used to initialize specific stuff to the child projector. More...

int	ProjectWithoutTOF (int a_direction, oProjectionLine *ap_ProjectionLine)
	A function to project without TOF. More...

int	ProjectWithTOFPos (int a_direction, oProjectionLine *ap_ProjectionLine)
	A function to project with TOF continuous information. More...

int	ProjectWithTOFBin (int a_direction, oProjectionLine *ap_ProjectionLine)
	A function to project with TOF binned information. More...

int	ComputeIDRF_CDF (int a_angleId)
	Compute the IDRFs coefficients (arrange the IDRFs coefficients in ascending orders, and normalize). More...

int	GenerateIRISRdmPos (float ap_generatedPos[3], float a_alpha, float a_beta)
	Generate a random point using the IDRF that correspond to the (alpha, beta) incident angle. More...

int	FindGreaterValue (float *ap_val, float a_key, int a_maxValue, int a_minStart=0, int a_maxStart=0)
	Find in the array ap_val (arranged in ascending order) the index of the first element greater than value key. More...

Private Attributes
string *	mp_pathToIDRFFiles

float *	mp_IDRF

float **	m2p_IDRF_CDFs

int	m_nbLinesPerLOR

int	m_nVoxDepthIDRF

int	m_nVoxTransaxialIDRF

int	m_nVoxAxialIDRF

int	m_nVoxXYZIDRF

int	m_nBetaAnglesIDRF

int	m_nAlphaAnglesIDRF

FLTNB	m_sizeVoxDepthIDRF

FLTNB	m_sizeVoxTransaxialIDRF

FLTNB	m_sizeVoxAxialIDRF

FLTNB	m_stepBetaAnglesIDRF

FLTNB	m_stepAlphaAnglesIDRF

Additional Inherited Members
Static Public Member Functions inherited from vProjector
static void	ShowCommonHelp ()
	This function is used to print out some help about the use of options common to all projectors. It is static because it is called in main without instantiating an object. More...

Protected Attributes inherited from vProjector
FLTNB	mp_sizeVox [3]

INTNB	mp_nbVox [3]

INTNB	m_nbVoxXY

FLTNB	mp_halfFOV [3]

oImageDimensionsAndQuantification *	mp_ImageDimensionsAndQuantification

vScanner *	mp_Scanner

int	m_applyTOF

FLTNB	m_TOFnbSigmas

bool	m_applyPOI

bool	m_compatibleWithSPECTAttenuationCorrection

int	m_verbose

bool	m_checked

bool	m_initialized

Detailed Description

This class is a child of the vProjector class implementing the IRIS projector.

This class implements the IRIS projector which is a multi-ray projector using weights on each ray following a detector response function.

Definition at line 23 of file iProjectorIRIS.hh.

Constructor & Destructor Documentation

iProjectorIRIS::iProjectorIRIS ( )

The constructor of iProjectorIRIS.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 26 of file iProjectorIRIS.cc.

iProjectorIRIS::~iProjectorIRIS ( )

The destructor of iProjectorIRIS.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were built by this class.

Definition at line 55 of file iProjectorIRIS.cc.

Member Function Documentation

int iProjectorIRIS::CheckSpecificParameters ( )

privatevirtual

A private function used to check the parameters settings specific to the child projector.

This function is used to check that all parameters specific to the projector are correctly set within allowed values. It is called by the CheckParameters() function of the mother class. It is the implementation of the pure virtual function inherited from the abstract mother class vProjector.

Returns: An integer reflecting the check status; 0 if no problem, another value otherwise.

Implements vProjector.

Definition at line 185 of file iProjectorIRIS.cc.

int iProjectorIRIS::ComputeIDRF_CDF ( int a_angleId )

private

Compute the IDRFs coefficients (arrange the IDRFs coefficients in ascending orders, and normalize).

Parameters

int a_angleId

Returns: An integer reflecting the exit status; 0 if no problem, another value otherwise.

Definition at line 767 of file iProjectorIRIS.cc.

Here is the caller graph for this function:

INTNB iProjectorIRIS::EstimateMaxNumberOfVoxelsPerLine ( )

virtual

This function is used to compute and provide an estimate of the maximum number of voxels that could contribute to a projected line.

This function is an overloaded implementation of the virtual mother function. It is used to compute and provide an estimate of the maximum number of voxels that could contribute to a projected line.

Returns: The estimate of the maximum number of voxels contributing to a line.

Reimplemented from vProjector.

Definition at line 298 of file iProjectorIRIS.cc.

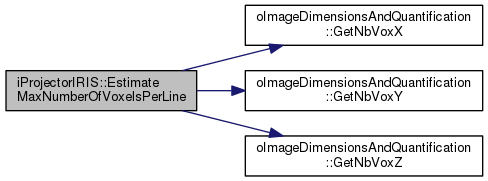

Here is the call graph for this function:

int iProjectorIRIS::FindGreaterValue	(	float *	ap_val,
		float	a_key,
		int	a_maxValue,
		int	a_minStart = `0`,
		int	a_maxStart = `0`
	)

private

Find in the array ap_val (arranged in ascending order) the index of the first element greater than value key.

Parameters

float*	ap_val
float	a_key
int	a_maxValue
int	a_minStart = 0
int	a_maxStart = 0

Returns: An integer reflecting the exit status; 0 if no problem, another value otherwise.

Definition at line 827 of file iProjectorIRIS.cc.

Here is the caller graph for this function:

int iProjectorIRIS::GenerateIRISRdmPos	(	float	ap_generatedPos[3],
		float	a_alpha,
		float	a_beta
	)

private

Generate a random point using the IDRF that correspond to the (alpha, beta) incident angle.

Parameters

float	ap_generatedPos[3]
float	a_alpha
float	a_beta

Returns: An integer reflecting the exit status; 0 if no problem, another value otherwise.

Definition at line 788 of file iProjectorIRIS.cc.

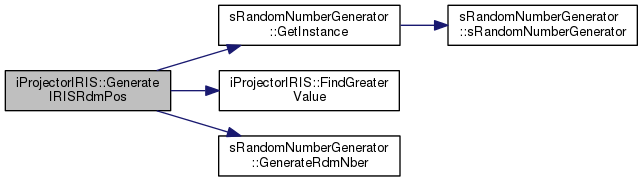

Here is the call graph for this function:

Here is the caller graph for this function:

int iProjectorIRIS::InitializeSpecific ( )

privatevirtual

This function is used to initialize specific stuff to the child projector.

It is called by the public Initialize() function from the mother.

Returns: An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Implements vProjector.

Definition at line 231 of file iProjectorIRIS.cc.

Here is the call graph for this function:

int iProjectorIRIS::ProjectWithoutTOF	(	int	a_direction,
		oProjectionLine *	ap_ProjectionLine
	)

privatevirtual

A function to project without TOF.

Parameters

int	a_direction
oProjectionLine*	ap_ProjectionLine

Projects the provided line following the provided direction, without TOF. It fills the provided oProjectionLine. It is an implementation of the pure virtual function from the mother class.

Returns: An integer reflecting the projection status; 0 if no problem, another value otherwise.

Implements vProjector.

Definition at line 318 of file iProjectorIRIS.cc.

Here is the call graph for this function:

int iProjectorIRIS::ProjectWithTOFBin	(	int	a_direction,
		oProjectionLine *	ap_ProjectionLine
	)

privatevirtual

A function to project with TOF binned information.

Parameters

int	a_direction
oProjectionLine*	ap_ProjectionLine

Projects the provided line following the provided direction, with TOF information describe as a histogram bin. It fills the provided oProjectionLine. It is an implementation of the pure virtual function from the mother class.

Returns: An integer reflecting the projection status; 0 if no problem, another value otherwise.

Implements vProjector.

Definition at line 756 of file iProjectorIRIS.cc.

int iProjectorIRIS::ProjectWithTOFPos	(	int	a_direction,
		oProjectionLine *	ap_ProjectionLine
	)

privatevirtual

A function to project with TOF continuous information.

Parameters

int	a_direction
oProjectionLine*	ap_ProjectionLine

Projects the provided line following the provided direction, with TOF described as a continuous measurement. It fills the provided oProjectionLine. It is an implementation of the pure virtual function from the mother class.

Returns: An integer reflecting the projection status; 0 if no problem, another value otherwise.

Implements vProjector.

Definition at line 745 of file iProjectorIRIS.cc.

int iProjectorIRIS::ReadConfigurationFile ( const string & a_configurationFile )

virtual

A function used to read options from a configuration file.

Parameters

const string& a_configurationFile

This function implements the reading of all options associated to the child projector, from a configuration file. It is the implementation of the pure virtual function inherited from the abstract class vProjector. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns: An integer reflecting the reading success; 0 if success, another value otherwise.

Implements vProjector.

Definition at line 73 of file iProjectorIRIS.cc.

Here is the call graph for this function:

int iProjectorIRIS::ReadOptionsList ( const string & a_optionsList )

virtual

A function used to read options from a list of options.

Parameters

const string& a_configurationFile

This function implements the reading of all options associated to the child projector, from a list of options. It is the implementation of the pure virtual function inherited from the abstract class vProjector. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns: An integer reflecting the reading success; 0 if success, another value otherwise.

Implements vProjector.

Definition at line 142 of file iProjectorIRIS.cc.

void iProjectorIRIS::ShowHelpSpecific ( )

privatevirtual

A function used to show help about the child module.

This function must describe what the projector does and how to use it. It describes in details the different parameters of the projector, and how to set them through the use of a configuration file or a list of options. It is pure virtual so is implemented by children. It is private because called by the public ShowHelp() function.

Implements vProjector.

Definition at line 154 of file iProjectorIRIS.cc.

Member Data Documentation

float** iProjectorIRIS::m2p_IDRF_CDFs

private

List of Coefficient Dectector Response (Aperture) Functions of the Intrinsic Detector Response (Aperture) Functions.

Definition at line 178 of file iProjectorIRIS.hh.

int iProjectorIRIS::m_nAlphaAnglesIDRF

private

number of transaxial angles in the IDRF volumes

Definition at line 185 of file iProjectorIRIS.hh.

int iProjectorIRIS::m_nBetaAnglesIDRF

private

number of axial angles in the IDRF volumes

Definition at line 184 of file iProjectorIRIS.hh.

int iProjectorIRIS::m_nbLinesPerLOR

private

number of lines generated to estimate the CDRF.

Definition at line 179 of file iProjectorIRIS.hh.

int iProjectorIRIS::m_nVoxAxialIDRF

private

number of voxels in the axial direction in the IDRF volumes

Definition at line 182 of file iProjectorIRIS.hh.

int iProjectorIRIS::m_nVoxDepthIDRF

private

number of voxels in the depth direction in the IDRF volumes

Definition at line 180 of file iProjectorIRIS.hh.

int iProjectorIRIS::m_nVoxTransaxialIDRF

private

number of voxels in the transaxial direction in the IDRF volumes

Definition at line 181 of file iProjectorIRIS.hh.

int iProjectorIRIS::m_nVoxXYZIDRF

private

total number of voxels in the IDRF volumes

Definition at line 183 of file iProjectorIRIS.hh.

FLTNB iProjectorIRIS::m_sizeVoxAxialIDRF

private

size of voxels in the axial direction of the IDRF volumes

Definition at line 188 of file iProjectorIRIS.hh.

FLTNB iProjectorIRIS::m_sizeVoxDepthIDRF

private

size of voxels in the depth direction of the IDRF volumes

Definition at line 186 of file iProjectorIRIS.hh.

FLTNB iProjectorIRIS::m_sizeVoxTransaxialIDRF

private

size of voxels in the transaxial direction of the IDRF volumes

Definition at line 187 of file iProjectorIRIS.hh.

FLTNB iProjectorIRIS::m_stepAlphaAnglesIDRF

private

transaxial angular steps in the IDRF volumes

Definition at line 190 of file iProjectorIRIS.hh.

FLTNB iProjectorIRIS::m_stepBetaAnglesIDRF

private

axial angular steps in the IDRF volumes

Definition at line 189 of file iProjectorIRIS.hh.

float* iProjectorIRIS::mp_IDRF

private

Buffer dedicated to the recovery of the Intrinsic Detector Response (Aperture) Functions during the initialization.

Definition at line 177 of file iProjectorIRIS.hh.

string* iProjectorIRIS::mp_pathToIDRFFiles

private

Array of string containing the paths to the IDRF volume files.

Definition at line 176 of file iProjectorIRIS.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
