iOptimizerTemplate Class Reference

This class is a child of the vOptimizer class implementing a template squeleton. More...

#include <iOptimizerTemplate.hh>

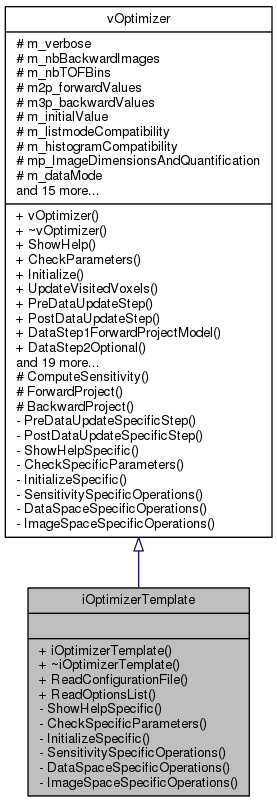

Inheritance diagram for iOptimizerTemplate:
Inheritance graph

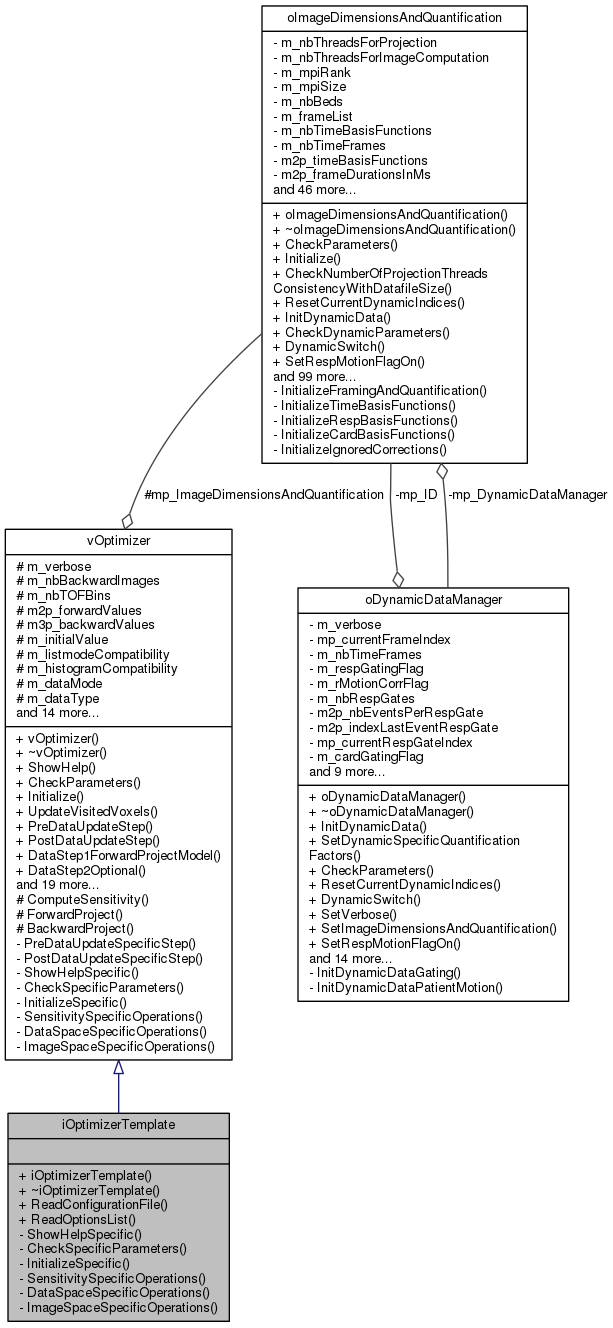

Collaboration diagram for iOptimizerTemplate:
Collaboration graph

Public Member Functions

 iOptimizerTemplate ()
 The constructor of iOptimizerTemplate. More...

 ~iOptimizerTemplate ()
 The destructor of iOptimizerTemplate. More...

int ReadConfigurationFile (const string &a_configurationFile)
 A function used to read options from a configuration file. More...

int ReadOptionsList (const string &a_optionsList)
 A function used to read options from a list of options. More...

- Public Member Functions inherited from vOptimizer
 vOptimizer ()
 The constructor of vOptimizer. More...

virtual ~vOptimizer ()
 The destructor of vOptimizer. More...

void ShowHelp ()
 A function used to show help about the optimizer. More...

int CheckParameters ()
 A public function used to check the parameters settings. More...

int Initialize ()
 A public function used to initialize the optimizer. More...

int UpdateVisitedVoxels (oImageSpace *ap_Image)
 A public function used to update the 'visited' voxels after each subset. More...

int PreDataUpdateStep (int a_iteration, int a_nbIterations, int a_subset, int a_nbSubsets)
 A public function used to do stuff that need to be done at the beginning of a subset (before the data update step; i.e. the loop over all events) More...

int PostDataUpdateStep (int a_iteration, int a_nbIterations, int a_subset, int a_nbSubsets)
 A public function used to do stuff that need to be done at the beginning of a subset (before the data update step; i.e. the loop over all events) More...

virtual int DataStep1ForwardProjectModel (oProjectionLine *ap_Line, oImageSpace *ap_Image, vEvent *ap_Event, int a_bed, int a_timeFrame, int a_respGate, int a_cardGate, int a_thread)
 A public function used to compute the model: forward projection of the provided event. More...

virtual int DataStep2Optional (oProjectionLine *ap_Line, oImageSpace *ap_Image, vEvent *ap_Event, int a_bed, int a_timeFrame, int a_respGate, int a_cardGate, int a_iteration, int a_thread)
 A public function which does nothing but being virtual. More...

virtual int DataStep3BackwardProjectSensitivity (oProjectionLine *ap_Line, oImageSpace *ap_Image, vEvent *ap_Event, int a_bed, int a_timeFrame, int a_respGate, int a_cardGate, int a_thread)
 A public function used to back-project the sensitivity terms for the provided event. More...

virtual int DataStep4Optional (oProjectionLine *ap_Line, oImageSpace *ap_Image, vEvent *ap_Event, int a_bed, int a_timeFrame, int a_respGate, int a_cardGate, int a_iteration, int a_thread)
 A public function which does nothing but being virtual. More...

virtual int DataStep5ComputeCorrections (oProjectionLine *ap_Line, vEvent *ap_Event, int a_bed, int a_timeFrame, int a_respGate, int a_cardGate, int a_thread)
 A public function used to compute the correction terms in the data space, for the provided event. More...

virtual int DataStep6Optional (oProjectionLine *ap_Line, oImageSpace *ap_Image, vEvent *ap_Event, int a_bed, int a_timeFrame, int a_respGate, int a_cardGate, int a_iteration, int a_thread)
 A public function which does nothing but being virtual. More...

virtual int DataStep7BackwardProjectCorrections (oProjectionLine *ap_Line, oImageSpace *ap_Image, vEvent *ap_Event, int a_bed, int a_timeFrame, int a_respGate, int a_cardGate, int a_thread)
 A public function used to back-project the correction terms into the backward correction image. More...

virtual int DataStep8ComputeFOM (oProjectionLine *ap_Line, vEvent *ap_Event, int a_timeFrame, int a_respGate, int a_cardGate, int a_thread)
 A public function used to update the computation of figures-of-merit in the data space. More...

virtual int ImageUpdateStep (oImageSpace *ap_Image, int a_iteration, int a_nbSubsets)
 A public function used to perform the image update step of the optimizer. More...

void SetVerbose (int a_verbose)
 Set the verbose level. More...

void SetImageDimensionsAndQuantification (oImageDimensionsAndQuantification *ap_ImageDimensionsAndQuantification)
 Set the pointer to the image dimensions in use. More...

void SetNbTOFBins (int a_nbTOFBins)
 Set the number of TOF bins in use. More...

void SetDataMode (int a_dataMode)
 Set the data mode in use. More...

void SetDataType (int a_dataType)
 Set the data type in use. More...

void SetAttenuationImage (FLTNB *ap_attenuationImage, int a_thread)
 Set the attenuation image corresponding to the current thread and current event. More...

void SetFOMFlag (bool a_optimizerFOMFlag)
 Set the FOM flag specifying if figures-of-merit will be computed or not. More...

void SetImageStatFlag (bool a_optimizerImageStatFlag)
 Set the image stat flag specifying if basic statistics about image udpate will be computed or not. More...

int GetNbBackwardImages ()
 Get the number of backward images used by the specific optimizer. More...

FLTNB GetInitialValue ()
 Get the initial image value (for initialization) More...


Private Member Functions

void ShowHelpSpecific ()
 A function used to show help about the child optimizer. More...

int CheckSpecificParameters ()
 A private function used to check the parameters settings specific to the child optimizer. More...

int InitializeSpecific ()
 This function is used to initialize specific stuff to the child optimizer. More...

int SensitivitySpecificOperations (FLTNB a_data, FLTNB a_forwardModel, FLTNB *ap_weight, FLTNB a_multiplicativeCorrections, FLTNB a_additiveCorrections, FLTNB a_quantificationFactor, oProjectionLine *ap_Line)
 This function compute the weight associated to the provided event (for sensitivity computation) More...

int DataSpaceSpecificOperations (FLTNB a_data, FLTNB a_forwardModel, FLTNB *ap_backwardValues, FLTNB a_multiplicativeCorrections, FLTNB a_additiveCorrections, FLTNB a_quantificationFactor, oProjectionLine *ap_Line)
 This function performs the data space operations specific to the optimizer (computes the values to be backprojected) More...

int ImageSpaceSpecificOperations (FLTNB a_currentImageValue, FLTNB *ap_newImageValue, FLTNB a_sensitivity, FLTNB *ap_correctionValues)
 This function perform the image update step specific to the optimizer. More...


Additional Inherited Members

- Protected Member Functions inherited from vOptimizer
FLTNB ComputeSensitivity (FLTNB ****a4p_sensitivityImage, int a_timeBasisFunction, int a_respBasisFunction, int a_cardBasisFunction, int a_voxel, int a_nbSubsets)
 A function used to compute the sensitivity of a given voxel and a given set of dynamic basis functions. More...

FLTNB ForwardProject (oProjectionLine *ap_Line, FLTNB *ap_image=NULL)
 A function used to forward project the provided image (or 1 if NULL), based on the provided oProjectionLine. More...

void BackwardProject (oProjectionLine *ap_Line, FLTNB *ap_image, FLTNB a_value)
 A function used to backward project the provided value into the provided image, based on the provided oProjectionLine. More...

- Protected Attributes inherited from vOptimizer
int m_verbose

int m_nbBackwardImages

int m_nbTOFBins

FLTNB ** m2p_forwardValues

FLTNB *** m3p_backwardValues

FLTNB m_initialValue

bool m_listmodeCompatibility

bool m_histogramCompatibility

oImageDimensionsAndQuantificationmp_ImageDimensionsAndQuantification

int m_dataMode

int m_dataType

FLTNB ** m2p_attenuationImage

bool m_optimizerFOMFlag

FLTNB **** m4p_FOMLogLikelihood

FLTNB **** m4p_FOMRMSE

uint64_t **** m4p_FOMNbBins

double **** m4p_FOMNbData

bool m_optimizerImageStatFlag

INTNBmp_imageStatNbVox

FLTNBmp_imageStatMin

FLTNBmp_imageStatMax

double * mp_imageStatMean

double * mp_imageStatVariance

double * mp_correctionStatMean

double * mp_correctionStatVariance


Detailed Description

This class is a child of the vOptimizer class implementing a template squeleton.

This template squeleton provides an example of how to implement a new optimizer

Definition at line 22 of file iOptimizerTemplate.hh.

Constructor & Destructor Documentation

iOptimizerTemplate::iOptimizerTemplate ( )

The constructor of iOptimizerTemplate.

This is the default and unique constructor. It does not take any parameter and its role is only to affect default values to each member of the class.

Definition at line 26 of file iOptimizerTemplate.cc.

iOptimizerTemplate::~iOptimizerTemplate ( )

The destructor of iOptimizerTemplate.

This is the default and unique destructor. It does not take any parameter and its role is only to free or delete all structures that were built by this class.

Definition at line 54 of file iOptimizerTemplate.cc.

Member Function Documentation

int iOptimizerTemplate::CheckSpecificParameters ( )
privatevirtual

A private function used to check the parameters settings specific to the child optimizer.

This function is used to check that all parameters specific to the optimizer are correctly set within allowed values. It is called by the CheckParameters() function of the mother class. It is the implementation of the pure virtual function inherited from the abstract mother class vOptimizer.

Returns
An integer reflecting the check status; 0 if no problem, another value otherwise.

Implements vOptimizer.

Definition at line 109 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::DataSpaceSpecificOperations ( FLTNB  a_data,
FLTNB  a_forwardModel,
FLTNB ap_backwardValues,
FLTNB  a_multiplicativeCorrections,
FLTNB  a_additiveCorrections,
FLTNB  a_quantificationFactor,
oProjectionLine ap_Line
)
privatevirtual

This function performs the data space operations specific to the optimizer (computes the values to be backprojected)

Parameters
FLTNBa_data
FLTNBa_forwardModel
FLTNB*ap_backwardValues
FLTNBa_multiplicativeCorrections
FLTNBa_additiveCorrections
FLTNBa_quantificationFactor
oProjectionLine*ap_Line

It is the implementation of the pure virtual function from vOptimizer. The results to be backprojected is put at ap_backwardValues location.

Returns
An integer reflecting the process status; 0 if no problem, another value otherwise.

Implements vOptimizer.

Definition at line 173 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::ImageSpaceSpecificOperations ( FLTNB  a_currentImageValue,
FLTNB ap_newImageValue,
FLTNB  a_sensitivity,
FLTNB ap_correctionValues
)
privatevirtual

This function perform the image update step specific to the optimizer.

Parameters
FLTNBa_currentImageValue
FLTNB*ap_newImageValue
FLTNBa_sensitivity
FLTNB*ap_correctionValues

It is the implementation of the pure virtual function from vOptimizer. The new image value is put at the ap_newImageValue location.

Returns
An integer reflecting the process status; 0 if no problem, another value otherwise.

Implements vOptimizer.

Definition at line 205 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::InitializeSpecific ( )
privatevirtual

This function is used to initialize specific stuff to the child optimizer.

It is called by the public Initialize() function from the mother.

Returns
An integer reflecting the initialization status; 0 if no problem, another value otherwise.

Implements vOptimizer.

Definition at line 123 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::ReadConfigurationFile ( const string &  a_configurationFile)
virtual

A function used to read options from a configuration file.

Parameters
conststring& a_configurationFile

This function implements the reading of all options associated to the child optimizer, from a configuration file. It is the implementation of the pure virtual function inherited from the abstract class vOptimizer. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns
An integer reflecting the reading success; 0 if success, another value otherwise.

Implements vOptimizer.

Definition at line 77 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::ReadOptionsList ( const string &  a_optionsList)
virtual

A function used to read options from a list of options.

Parameters
conststring& a_configurationFile

This function implements the reading of all options associated to the child optimizer, from a list of options. It is the implementation of the pure virtual function inherited from the abstract class vOptimizer. It checks the reading status but not the options values that will be checked by the CheckSpecificParameters() function.

Returns
An integer reflecting the reading success; 0 if success, another value otherwise.

Implements vOptimizer.

Definition at line 93 of file iOptimizerTemplate.cc.

int iOptimizerTemplate::SensitivitySpecificOperations ( FLTNB  a_data,
FLTNB  a_forwardModel,
FLTNB ap_weight,
FLTNB  a_multiplicativeCorrections,
FLTNB  a_additiveCorrections,
FLTNB  a_quantificationFactor,
oProjectionLine ap_Line
)
privatevirtual

This function compute the weight associated to the provided event (for sensitivity computation)

Parameters
FLTNBa_data
FLTNBa_forwardModel
FLTNB*ap_weight
FLTNBa_multiplicativeCorrections
FLTNBa_additiveCorrections
FLTNBa_quantificationFactor
oProjectionLine*ap_Line

It is the implementation of the pure virtual function from vOptimizer. The result is put at ap_weight location.

Returns
An integer reflecting the process status; 0 if no problem, another value otherwise.

Implements vOptimizer.

Definition at line 140 of file iOptimizerTemplate.cc.

void iOptimizerTemplate::ShowHelpSpecific ( )
privatevirtual

A function used to show help about the child optimizer.

This function must describe what the module does and how to use it. It describes in details the different parameters of the optimizer, and how to set them through the use of a configuration file or a list of options. It is the implementation of the pure virtual function inherited from the abstract class vOptimizer. It is called by the public ShowHelp() function.

Implements vOptimizer.

Definition at line 64 of file iOptimizerTemplate.cc.


The documentation for this class was generated from the following files:
