Singleton class that manages output writing on disk (images, sinograms, etc).
It also manages logging and printing on screen. More...

#include <sOutputManager.hh>

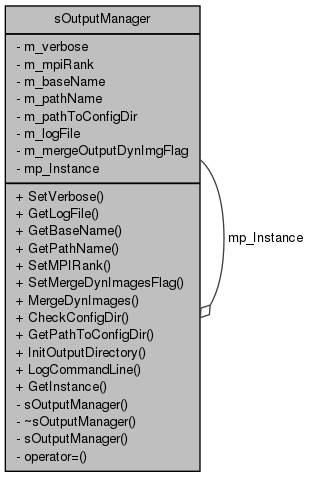

Collaboration diagram for sOutputManager:

[legend]

List of all members.

Public Member Functions
void	SetVerbose (int a_verbose)
	set verbosity
ofstream &	GetLogFile ()
const string &	GetBaseName ()
const string &	GetPathName ()
void	SetMPIRank (int a_mpiRank)
	Initialize the machine index for MPI.
void	SetMergeDynImagesFlag (bool a_flag)
	Set to on the flag indicating that a dynamic serie of 3D images should be written on disk in one file instead of one file for each 3D image associated with a metaheader, or not.
bool	MergeDynImages ()
	Indicate if a dynamic serie of 3D images should be merged in one file (true) or written on disk as one file for each 3D image, associated with an Interfile metaheader.
int	CheckConfigDir (const string &a_path)
	Set the path to the CASTOR config directory from the given path if not empty or through the existence of the environment variable CASTOR_CONFIG.
const string &	GetPathToConfigDir ()
	Return the path to the CASTOR config directory.
int	InitOutputDirectory (const string &a_pathFout, const string &a_pathDout)
	Create the output directory if any, extract the base name and create the log file.
int	LogCommandLine (int argc, char **argv)
	Write log file header with the provided command line options and different informations.
Static Public Member Functions
static sOutputManager *	GetInstance ()
	Instanciate the singleton object and Initialize member variables if not already done, return a pointer to this object otherwise.
Private Member Functions
	sOutputManager ()
	sOutputManager constructor.
	~sOutputManager ()
	sOutputManager destructor.
	sOutputManager (sOutputManager const &)
void	operator= (sOutputManager const &)
Private Attributes
int	m_verbose
int	m_mpiRank
string	m_baseName
string	m_pathName
string	m_pathToConfigDir
ofstream	m_logFile
bool	m_mergeOutputDynImgFlag
Static Private Attributes
static sOutputManager *	mp_Instance = NULL

Detailed Description

Singleton class that manages output writing on disk (images, sinograms, etc).
It also manages logging and printing on screen.

Definition at line 112 of file sOutputManager.hh.

Constructor & Destructor Documentation

sOutputManager::sOutputManager ( ) [private]

sOutputManager constructor.

It is private at this class is singleton. It should be instanciated using the GetInstance() function Initialize the member variables to their default values.

Definition at line 56 of file sOutputManager.cc.

Here is the caller graph for this function:

sOutputManager::~sOutputManager ( ) [private]

sOutputManager destructor.

Definition at line 80 of file sOutputManager.cc.

sOutputManager::sOutputManager ( sOutputManager const & ) [inline, private]

Definition at line 237 of file sOutputManager.hh.

Member Function Documentation

int sOutputManager::CheckConfigDir ( const string & a_path )

Set the path to the CASTOR config directory from the given path if not empty or through the existence of the environment variable CASTOR_CONFIG.

Parameters:

a_path

Returns:: 0 if success, positive value otherwise

Definition at line 100 of file sOutputManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

const string & sOutputManager::GetBaseName ( ) [inline]

Returns:: the string containing the output image base name

Definition at line 150 of file sOutputManager.hh.

Here is the caller graph for this function:

static sOutputManager * sOutputManager::GetInstance ( ) [inline, static]

Instanciate the singleton object and Initialize member variables if not already done, return a pointer to this object otherwise.

Returns:: instance of the sOutputManager singleton

Definition at line 123 of file sOutputManager.hh.

Here is the call graph for this function:

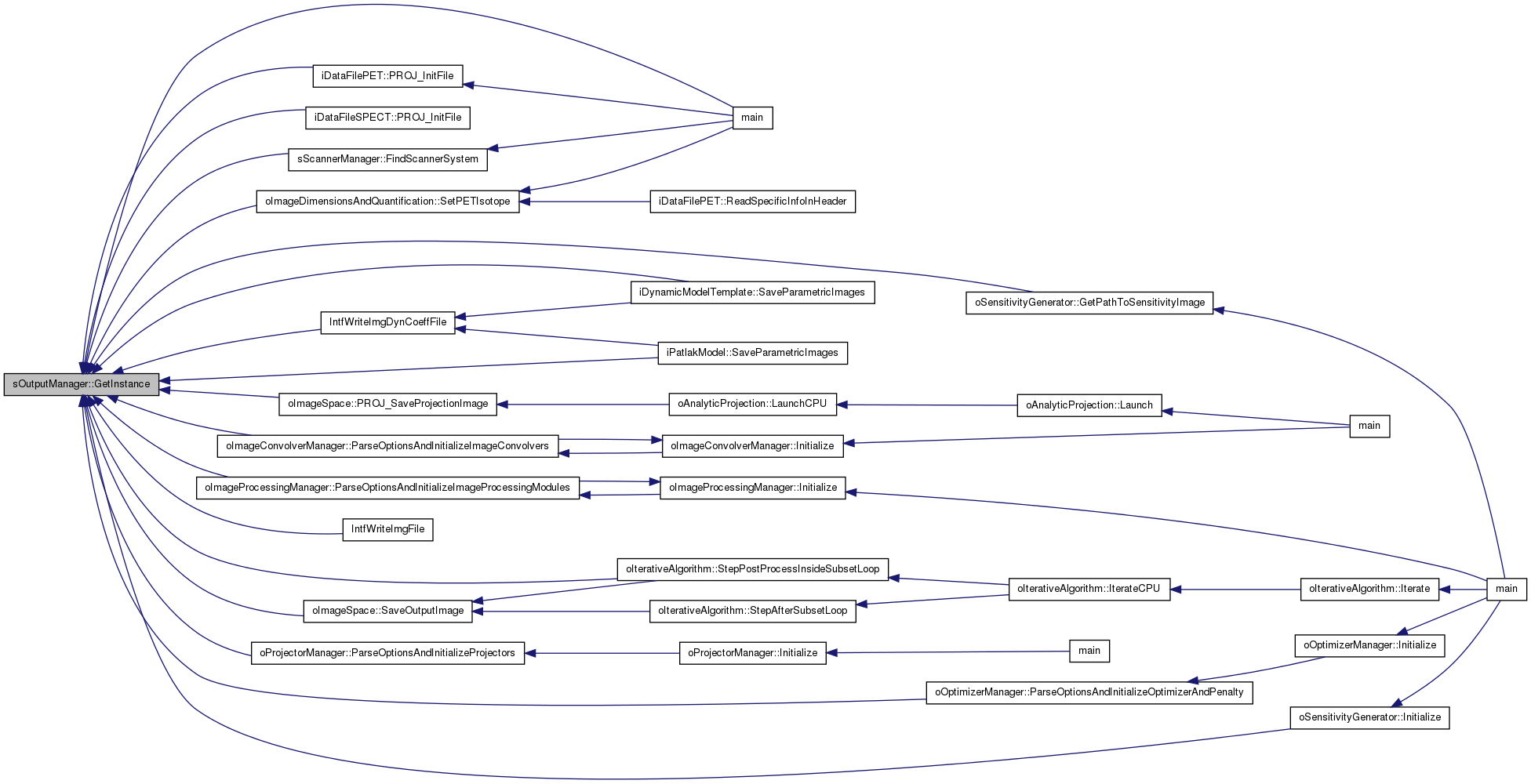

Here is the caller graph for this function:

ofstream & sOutputManager::GetLogFile ( ) [inline]

Returns:: the ofstream object for the log file

Definition at line 144 of file sOutputManager.hh.

const string & sOutputManager::GetPathName ( ) [inline]

Returns:: the string containing the path to the output directory

Definition at line 156 of file sOutputManager.hh.

Here is the caller graph for this function:

const string & sOutputManager::GetPathToConfigDir ( )

Return the path to the CASTOR config directory.

Just return the path if it has already been initialized Otherwise, the function recovers the path from environnement variables If any error, the working directory is returned instead

Returns:: astring containing path to the CASToR configuration directory

Definition at line 160 of file sOutputManager.cc.

Here is the call graph for this function:

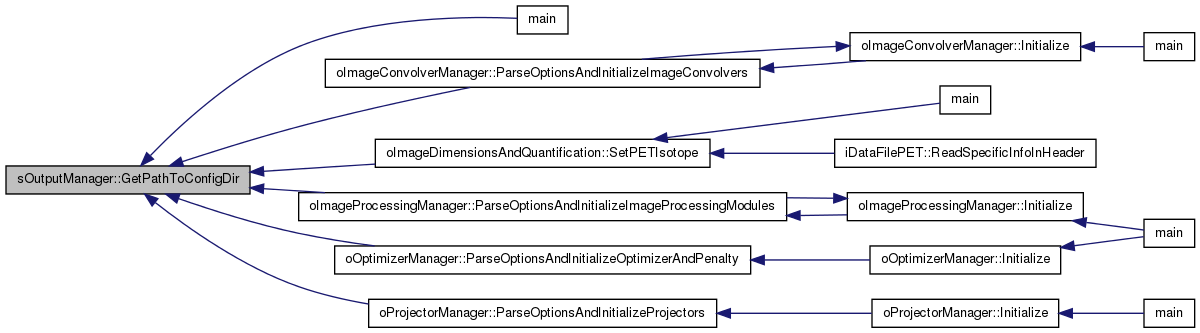

Here is the caller graph for this function:

int sOutputManager::InitOutputDirectory	(	const string &	a_pathFout,
		const string &	a_pathDout
	)

Create the output directory if any, extract the base name and create the log file.

Parameters:

a_pathFout	: path to an output file as provided by the user
a_pathDout	: path to an output directory as provided by the user

Returns:: 0 if success, and positive value otherwise.

Definition at line 217 of file sOutputManager.cc.

Here is the caller graph for this function:

int sOutputManager::LogCommandLine	(	int	argc,
		char **	argv
	)

Write log file header with the provided command line options and different informations.

Parameters:

argc
argv

Returns:: 0 if success, positive value otherwise.

Definition at line 339 of file sOutputManager.cc.

Here is the caller graph for this function:

bool sOutputManager::MergeDynImages ( ) [inline]

Indicate if a dynamic serie of 3D images should be merged in one file (true) or written on disk as one file for each 3D image, associated with an Interfile metaheader.

Returns:: true if images should be merged in one file, false otherwise.

Definition at line 180 of file sOutputManager.hh.

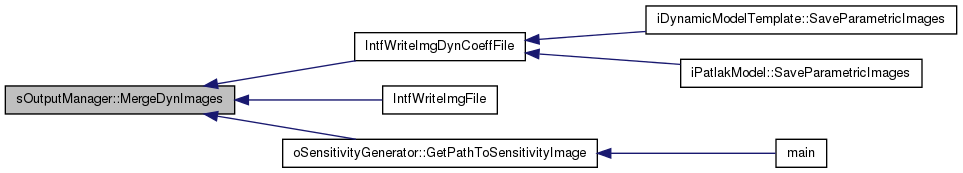

Here is the caller graph for this function:

void sOutputManager::operator= ( sOutputManager const & ) [inline, private]

Definition at line 238 of file sOutputManager.hh.

void sOutputManager::SetMergeDynImagesFlag ( bool a_flag ) [inline]

Set to on the flag indicating that a dynamic serie of 3D images should be written on disk in one file instead of one file for each 3D image associated with a metaheader, or not.

Parameters:

a_flag

Definition at line 172 of file sOutputManager.hh.

Here is the caller graph for this function:

void sOutputManager::SetMPIRank ( int a_mpiRank ) [inline]

Initialize the machine index for MPI.

Parameters:

a_mpiRank

Definition at line 163 of file sOutputManager.hh.

Here is the caller graph for this function:

void sOutputManager::SetVerbose ( int a_verbose ) [inline]

set verbosity

Parameters:

a_verbose

Definition at line 138 of file sOutputManager.hh.

Here is the caller graph for this function:

Member Data Documentation

string sOutputManager::m_baseName [private]

String containing the image base name

Definition at line 247 of file sOutputManager.hh.

ofstream sOutputManager::m_logFile [private]

File object for the output log file

Definition at line 250 of file sOutputManager.hh.

bool sOutputManager::m_mergeOutputDynImgFlag [private]

Flag indicating if dynamic image should be written on disk as one file (true), or a serie of 3D image associated with a metaheader (false). Default: false

Definition at line 251 of file sOutputManager.hh.

int sOutputManager::m_mpiRank [private]

Machine index for MPI

Definition at line 246 of file sOutputManager.hh.

string sOutputManager::m_pathName [private]

String containing the path to the output directory

Definition at line 248 of file sOutputManager.hh.

string sOutputManager::m_pathToConfigDir [private]

String containing the path to the CASToR configuration directory

Definition at line 249 of file sOutputManager.hh.

int sOutputManager::m_verbose [private]

Verbosity
