Inherit from iEventCT. Class for CT histogram mode events. More...

#include <iEventHistoCT.hh>

Inheritance diagram for iEventHistoCT:

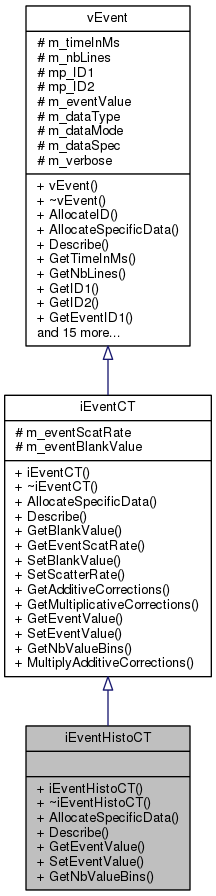

Collaboration diagram for iEventHistoCT:

Public Member Functions
	iEventHistoCT ()
	iEventHistoCT constructor. Initialize the member variables to their default values. More...

	~iEventHistoCT ()
	iEventHistoCT destructor. More...

int	AllocateSpecificData ()
	Function allowing the allocation of specific data. Return 0 by default for iEventHistoCT. More...

void	Describe ()
	This function can be used to get a description of the event printed out. More...

FLTNB	GetEventValue (int a_bin)

void	SetEventValue (int a_bin, FLTNBDATA a_value)
	Cast the FLTNBDATA value passed in parameters in FLTNB, and use it to set the event value (a_bin is dedicated to PET and ignored for CT) More...

INTNB	GetNbValueBins ()
	Get the number of event value bins. More...

Public Member Functions inherited from iEventCT
	iEventCT ()
	iEventCT constructor. Initialize the member variables to their default values. More...

virtual	~iEventCT ()
	iEventCT destructor. More...

FLTNB	GetBlankValue ()

FLTNB	GetEventScatRate ()

void	SetBlankValue (FLTNBDATA a_value)
	Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the blank value. More...

void	SetScatterRate (FLTNBDATA a_value)
	Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the scatter correction rate. More...

FLTNB	GetAdditiveCorrections (int a_bin)

FLTNB	GetMultiplicativeCorrections ()

void	MultiplyAdditiveCorrections (FLTNB a_factor)
	Divide additive corrections by the provided factor (scatters) More...

Public Member Functions inherited from vEvent
	vEvent ()
	vEvent constructor. Initialize the member variables to their default values. More...

virtual	~vEvent ()
	vEvent destructor More...

int	AllocateID ()
	Instantiate the mp_ID1 and mp_ID2 indices arrays. More...

uint32_t	GetTimeInMs ()

uint16_t	GetNbLines ()

uint32_t	GetID1 (int a_line)

uint32_t	GetID2 (int a_line)

uint32_t *	GetEventID1 ()

uint32_t *	GetEventID2 ()

int	GetDataType ()

int	GetDataMode ()

void	SetTimeInMs (uint32_t a_value)
	Set the timestamp of the Event. More...

void	SetNbLines (uint16_t a_value)
	Set the number of lines of the Event. More...

void	SetID1 (int a_line, uint32_t a_value)
	Set the indice associated with the line index for the 1st ID of the Event. More...

void	SetID2 (int a_line, uint32_t a_value)
	Set the indice associated with the line index for the 2nd ID of the Event. More...

void	SetVerbose (int a_verbose)
	Set verbosity. More...

Additional Inherited Members
Protected Attributes inherited from iEventCT
FLTNB	m_eventScatRate

FLTNB	m_eventBlankValue

Protected Attributes inherited from vEvent
uint32_t	m_timeInMs

uint16_t	m_nbLines

uint32_t *	mp_ID1

uint32_t *	mp_ID2

FLTNB	m_eventValue

int	m_dataType

int	m_dataMode

int	m_dataSpec

int	m_verbose

Detailed Description

Inherit from iEventCT. Class for CT histogram mode events.

It manages data and functions specific to histo mode CT.

Definition at line 41 of file iEventHistoCT.hh.

Constructor & Destructor Documentation

iEventHistoCT::iEventHistoCT ( )

iEventHistoCT constructor. Initialize the member variables to their default values.

Definition at line 40 of file iEventHistoCT.cc.

iEventHistoCT::~iEventHistoCT ( )

iEventHistoCT destructor.

Definition at line 52 of file iEventHistoCT.cc.

Member Function Documentation

int iEventHistoCT::AllocateSpecificData ( )

inlinevirtual

Function allowing the allocation of specific data. Return 0 by default for iEventHistoCT.

Returns: 0 is success, positive value otherwise

Implements iEventCT.

Definition at line 64 of file iEventHistoCT.hh.

void iEventHistoCT::Describe ( )

virtual

This function can be used to get a description of the event printed out.

Reimplemented from iEventCT.

Definition at line 59 of file iEventHistoCT.cc.

FLTNB iEventHistoCT::GetEventValue ( int a_bin )

inlinevirtual

Parameters

a_bin (0 if noTOF)

Returns: the event value (a_bin is dedicated to PET and ignored for CT)

Implements iEventCT.

Definition at line 80 of file iEventHistoCT.hh.

Here is the caller graph for this function:

INTNB iEventHistoCT::GetNbValueBins ( )

inlinevirtual

Get the number of event value bins.

Returns: the number of value bins

Implements iEventCT.

Definition at line 95 of file iEventHistoCT.hh.

void iEventHistoCT::SetEventValue	(	int	a_bin,
		FLTNBDATA	a_value
	)

inlinevirtual

Cast the FLTNBDATA value passed in parameters in FLTNB, and use it to set the event value (a_bin is dedicated to PET and ignored for CT)

Parameters

a_bin	(0 if noTOF)
a_value

Implements iEventCT.

Definition at line 88 of file iEventHistoCT.hh.

The documentation for this class was generated from the following files:
