Singleton class that Instantiate and initialize the scanner object. More...

#include <sScannerManager.hh>

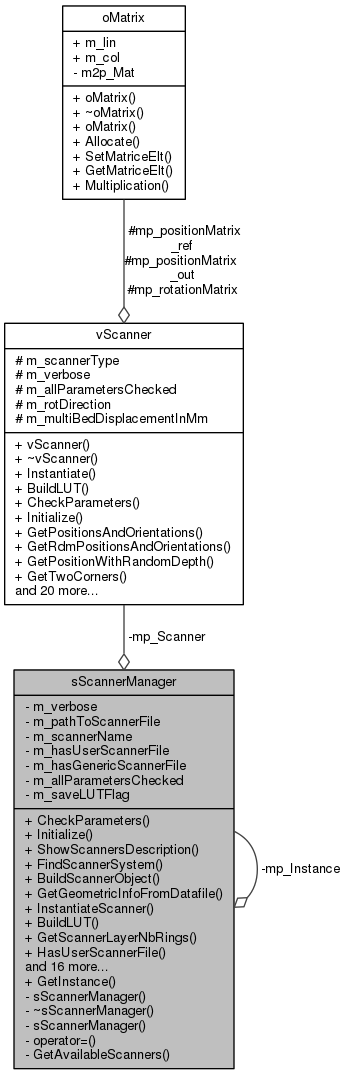

Collaboration diagram for sScannerManager:

Public Member Functions
int	CheckParameters ()
	Check if all parameters have been correctly initialized, and call the CheckParameters function of the scanner object. More...

int	Initialize ()
	Initialization : . More...

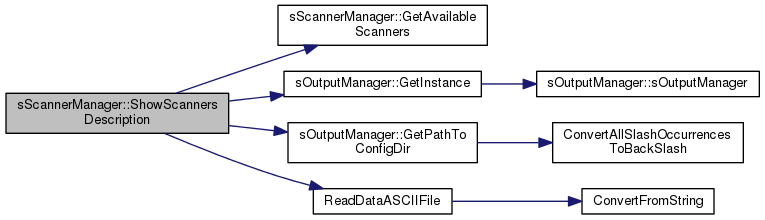

int	ShowScannersDescription ()
	Get the description associated to the different scanners and print all on screen. Walk through the scanner repository and look for the keyword "description" in .geom file and .hscan file. More...

int	FindScannerSystem (string a_scannerName)
	Look for a file matching with the scanner name in parameter inside the scanner repository. More...

int	BuildScannerObject ()
	Instantiate the specific scanner object related to the modality, and set verbosity of scanner object. More...

int	GetGeometricInfoFromDatafile (string a_pathToDataFilename)
	Call the specialized function of the scanner object in order to get geometric informations from the datafile header. More...

int	InstantiateScanner ()
	Instantiate scanner using the related function in the scanner classes. More...

int	BuildLUT ()
	Call the eponym function of the scanner class. More...

int	GetScannerLayerNbRings (int a_layer)
	Ask the number of rings to the scanner object for a specific layer. Returns an error if this information is not available for the scanner type of the object (eg : SPECT systems) More...

bool	HasUserScannerFile ()

string	GetPathToScannerFile ()

string	GetScannerName ()

int	GetScannerType ()

vScanner *	GetScannerObject ()

int	GetSystemNbElts ()

void	SetVerbose (int a_verboseLevel)
	set verbosity More...

void	SetSaveLUTFlag (bool a_flag)
	Set to on the flag indicating a LUT generated by a geom file should be written on disk or not. More...

bool	SaveLUTFlag ()
	Get flag indicating a LUT generated by a geom file should be written on disk or not. More...

int64_t	PROJ_GetModalityStopValueMainLoop ()
	Get the stop value for the main loop of analytic projection depending on the modality. More...

int64_t	PROJ_GetModalityStartValueInnerLoop (int64_t a_elt1)
	Get the start value for the inner loop of analytic projection depending on the modality. More...

int64_t	PROJ_GetCurrentProgression (int64_t a_elt1, int64_t a_elt2, int64_t *ap_nbEltsArray, int a_nbRGates, int a_nbCGates, int a_fr, int a_rg, int a_cg)
	Get numerator value according to the modality to compute percent progression during the analytical projection process. More...

int64_t	PROJ_GetProgressionFinalValue ()
	Get numerator value according to the modality to compute percent progression during the projection process. More...

int	GetSPECTSpecificParameters (uint16_t ap_nbOfProjections, uint16_t ap_nbHeads, uint16_t ap_nbOfBins, FLTNB ap_pixSizeXY, FLTNB &ap_angles, FLTNB &ap_CORtoDetectorDistance, int *ap_headRotDirection)
	Transfer geometric information recovered from the datafile to the scanner object. More...

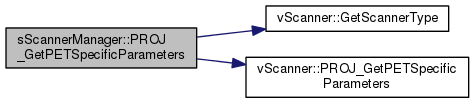

int	PROJ_GetPETSpecificParameters (int *a_maxRingDiff)
	Transfer addresses to each geometric parameter of the PET scanner objets to the corresponding pointer of the datafile passed as argument. More...

int	PROJ_SetPETSpecificParameters (int a_maxRingDiff)
	Deliver to the PET scanner object all informations provided from the datafile header. More...

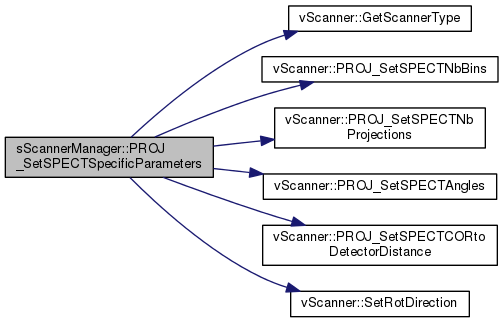

int	PROJ_SetSPECTSpecificParameters (uint16_t ap_nbOfBins, uint32_t a_nbOfProjections, FLTNB a_firstAngle, FLTNB a_stepAngle, FLTNB ap_projectionAngles, FLTNB a_CORtoDetectorDistance, string a_rotDirection)
	Deliver to the SPECT scanner object all informations provided from the acquisition parameters. More...

Static Public Member Functions
static sScannerManager *	GetInstance ()
	Instanciate the singleton object and Initialize member variables if not already done, return a pointer to this object otherwise. More...

Private Member Functions
	sScannerManager ()
	sScannerManager constructor. More...

	~sScannerManager ()
	sScannerManager destructor. More...

	sScannerManager (sScannerManager const &)

void	operator= (sScannerManager const &)

int	GetAvailableScanners (vector< string > *ap_scannerNames)
	Gather all the names of the header files (.geom & .hscan) in the repository folder in the vector<string> passed in parameter. More...

Private Attributes
vScanner *	mp_Scanner

int	m_verbose

string	m_pathToScannerFile

string	m_scannerName

bool	m_hasUserScannerFile

bool	m_hasGenericScannerFile

bool	m_allParametersChecked

bool	m_saveLUTFlag

Static Private Attributes
static sScannerManager *	mp_Instance = NULL

Detailed Description

Singleton class that Instantiate and initialize the scanner object.

This class Instantiate and initialize the scanner object depending on its initilization file (generic .geom file or user LUT).
It holds several informations on the system and can be accessed from every class.

Definition at line 51 of file sScannerManager.hh.

Constructor & Destructor Documentation

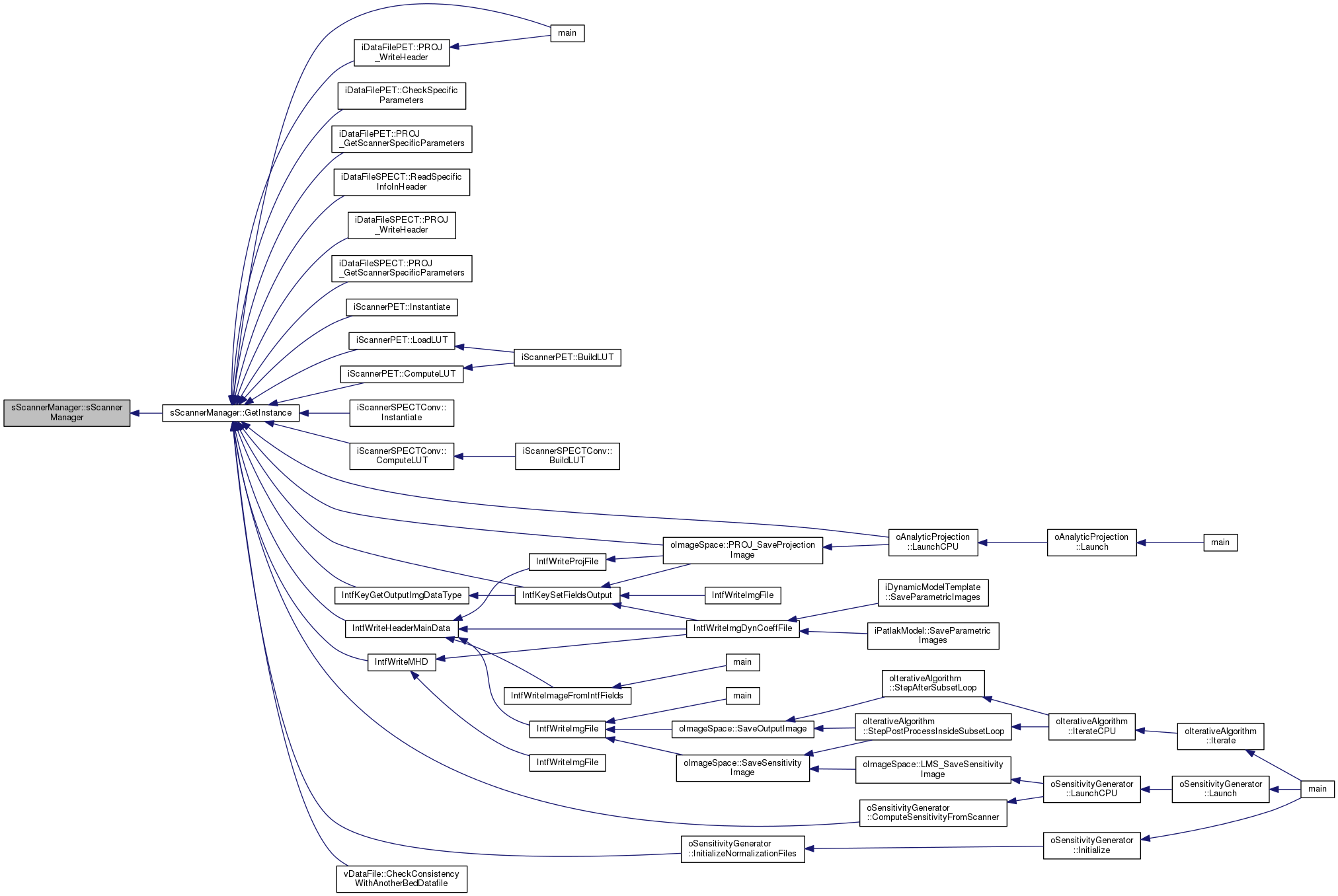

sScannerManager::sScannerManager ( )

private

sScannerManager constructor.

It is private at this class is singleton.
It should be instanciated using the GetInstance() function
Initialize the member variables to their default values.

Definition at line 34 of file sScannerManager.cc.

Here is the caller graph for this function:

sScannerManager::~sScannerManager ( )

private

sScannerManager destructor.

Definition at line 53 of file sScannerManager.cc.

sScannerManager::sScannerManager ( sScannerManager const & )

inlineprivate

Definition at line 326 of file sScannerManager.hh.

Member Function Documentation

int sScannerManager::BuildLUT ( )

Call the eponym function of the scanner class.

Returns: 0 if success. Positive value otherwise

Definition at line 404 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

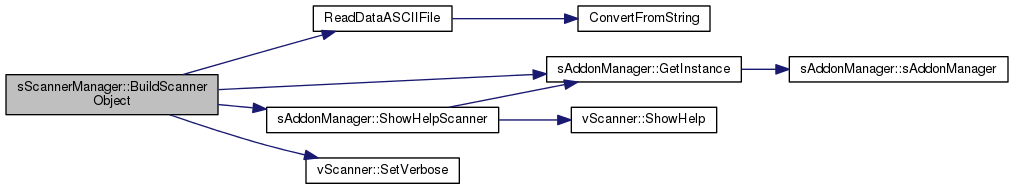

int sScannerManager::BuildScannerObject ( )

Instantiate the specific scanner object related to the modality, and set verbosity of scanner object.

Definition at line 293 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::CheckParameters ( )

Check if all parameters have been correctly initialized, and call the CheckParameters function of the scanner object.

Returns: 0 if success. Positive value otherwise

Definition at line 67 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

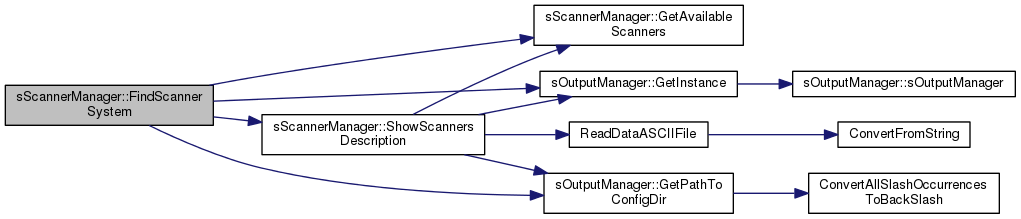

int sScannerManager::FindScannerSystem ( string a_scannerName )

Look for a file matching with the scanner name in parameter inside the scanner repository.

Parameters

a_scannerName : string containing name of the required scanner

Returns: 0 if success (scanner found). Positive value otherwise

Definition at line 204 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::GetAvailableScanners ( vector< string > * ap_scannerNames )

private

Gather all the names of the header files (.geom & .hscan) in the repository folder in the vector<string> passed in parameter.

Parameters

ap_scannerNames : vector list of string to recover the available scanner names

Returns: 0 if sucess, positive value otherwise

Definition at line 327 of file sScannerManager.hh.

Here is the caller graph for this function:

int sScannerManager::GetGeometricInfoFromDatafile ( string a_pathToDataFilename )

Call the specialized function of the scanner object in order to get geometric informations from the datafile header.

Parameters

a_path : string containing the path to datafile header

Returns: 0 if success. Positive value otherwise

Definition at line 342 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

static sScannerManager * sScannerManager::GetInstance ( )

inlinestatic

Instanciate the singleton object and Initialize member variables if not already done, return a pointer to this object otherwise.

Returns: instance of the sScannerManager singleton

Definition at line 62 of file sScannerManager.hh.

Here is the call graph for this function:

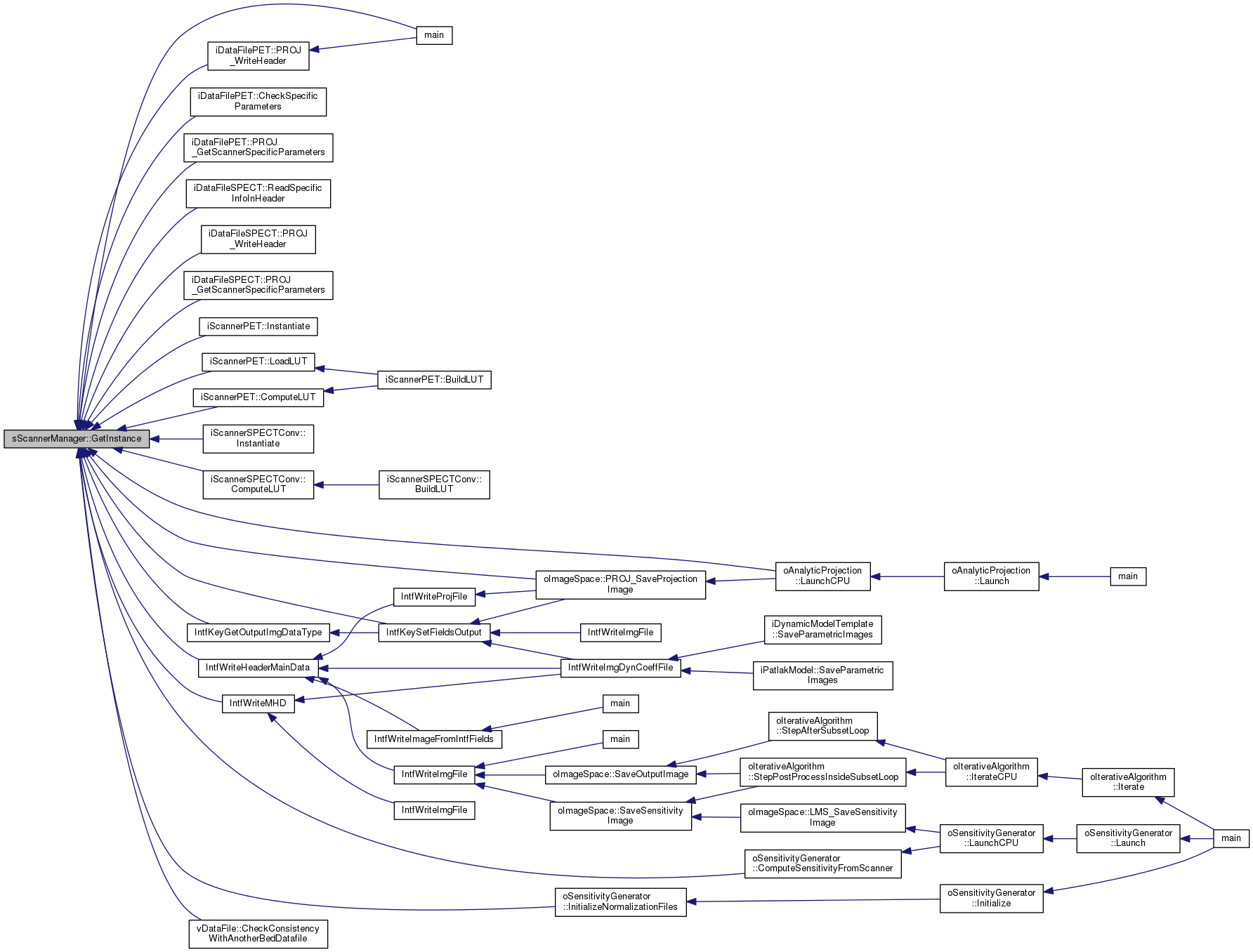

Here is the caller graph for this function:

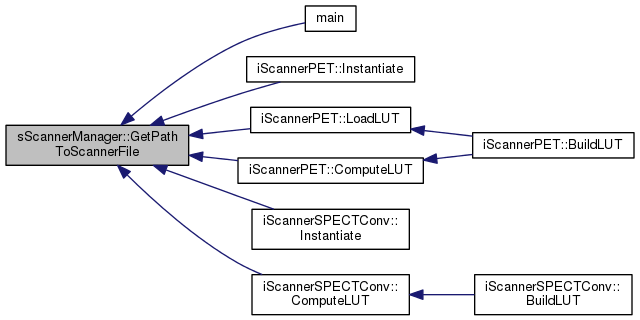

string sScannerManager::GetPathToScannerFile ( )

inline

Returns: the path to the scanner file

Definition at line 152 of file sScannerManager.hh.

Here is the caller graph for this function:

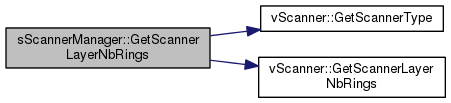

int sScannerManager::GetScannerLayerNbRings ( int a_layer )

Ask the number of rings to the scanner object for a specific layer.
Returns an error if this information is not available for the scanner type of the object (eg : SPECT systems)

Parameters

a_layer layer index

Returns: The number of rings in the system if success. NEGATIVE value otherwise

Definition at line 485 of file sScannerManager.cc.

Here is the call graph for this function:

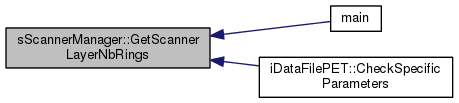

Here is the caller graph for this function:

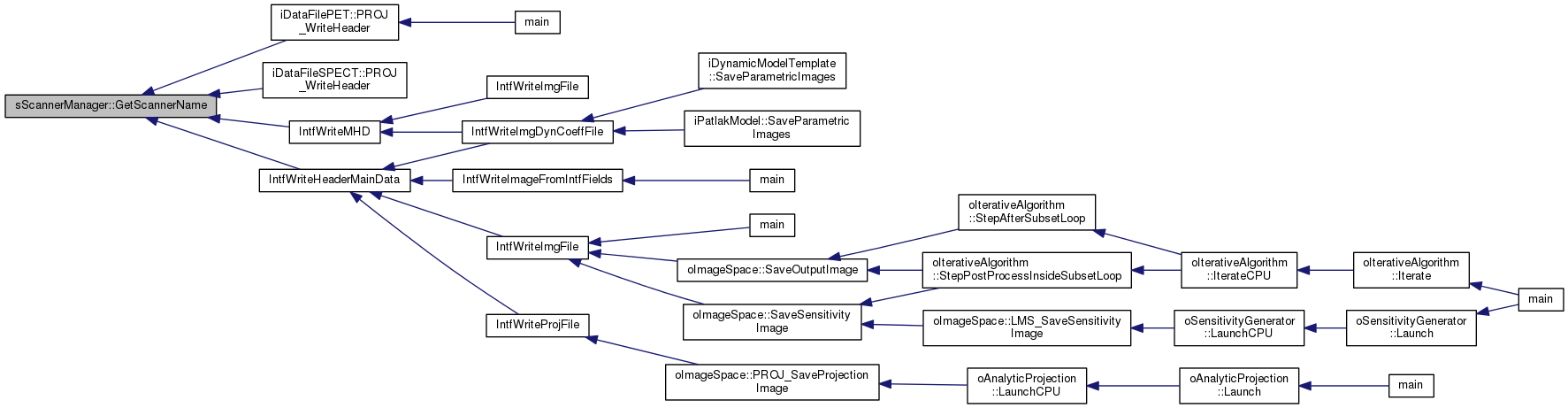

string sScannerManager::GetScannerName ( )

inline

Returns: the scanner name

Definition at line 158 of file sScannerManager.hh.

Here is the caller graph for this function:

vScanner * sScannerManager::GetScannerObject ( )

inline

Returns: the vScanner object

Definition at line 171 of file sScannerManager.hh.

Here is the caller graph for this function:

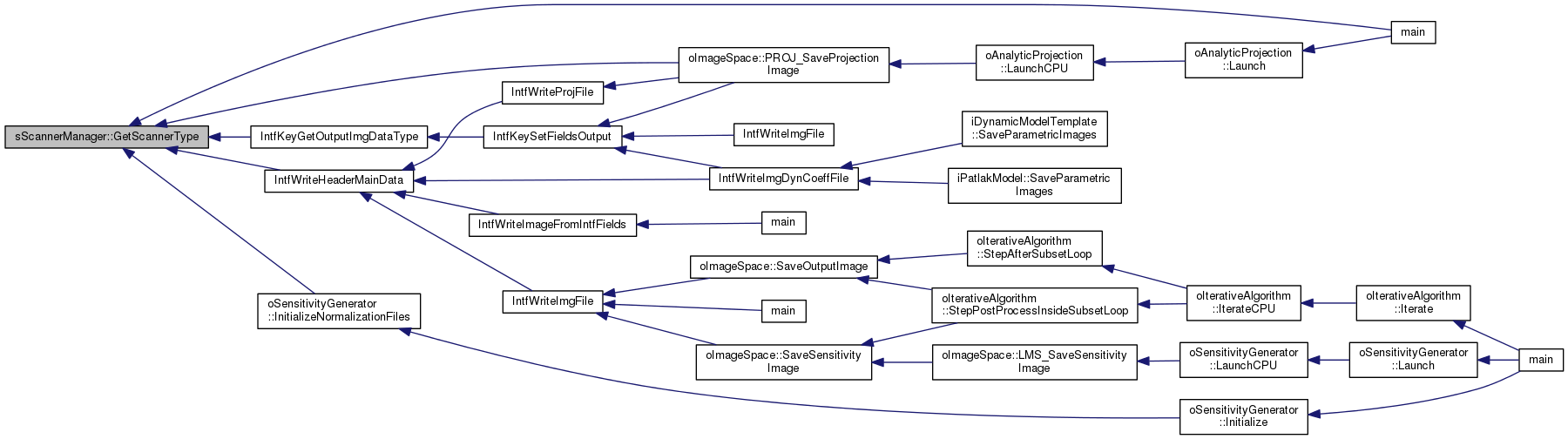

int sScannerManager::GetScannerType ( )

inline

Returns: the scanner type as returned by the scanner object, or SCANNER_UNKNOWN if the scanner object has not been initialized

Definition at line 165 of file sScannerManager.hh.

Here is the call graph for this function:

Here is the caller graph for this function:

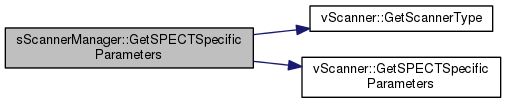

int sScannerManager::GetSPECTSpecificParameters	(	uint16_t *	ap_nbOfProjections,
		uint16_t *	ap_nbHeads,
		uint16_t *	ap_nbOfBins,
		FLTNB *	ap_pixSizeXY,
		FLTNB *&	ap_angles,
		FLTNB *&	ap_CORtoDetectorDistance,
		int *	ap_headRotDirection
	)

Transfer geometric information recovered from the datafile to the scanner object.

Parameters

ap_nbOfProjections	: number of views/projections
ap_nbHeads	: number of heads in the SPECT system
ap_nbOfBins	: 2 elements array containing transaxial number of bins
ap_pixSizeXY	: 2 elements array containing transaxial/axial pixel sizes
ap_angles	: an array containing angles for each view
ap_CORtoDetectorDistance	: a distance between the center of rotation and the detector
ap_headRotDirection	: head rotation direction

Returns: 0 if success, positive value otherwise

Definition at line 528 of file sScannerManager.cc.

Here is the call graph for this function:

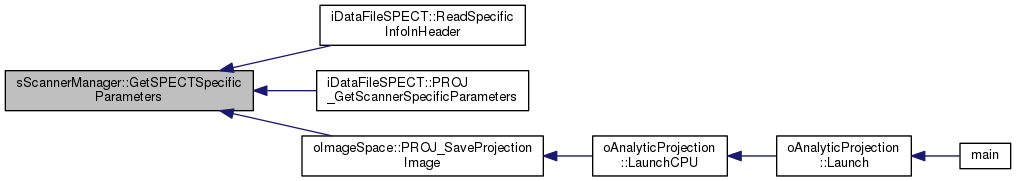

Here is the caller graph for this function:

int sScannerManager::GetSystemNbElts ( )

inline

Returns: the number of elements in the system

Definition at line 177 of file sScannerManager.hh.

Here is the call graph for this function:

bool sScannerManager::HasUserScannerFile ( )

inline

Returns: true if the scanner file is an user LUT, false otherwise (generic file is used)

Definition at line 146 of file sScannerManager.hh.

int sScannerManager::Initialize ( )

Initialization :
.

check if all parameters of the manager have been checked
call the initialization function of the scanner object
Returns
0 if success. Positive value otherwise

Definition at line 119 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::InstantiateScanner ( )

Instantiate scanner using the related function in the scanner classes.

Definition at line 370 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void sScannerManager::operator= ( sScannerManager const & )

inlineprivate

Definition at line 327 of file sScannerManager.hh.

int64_t sScannerManager::PROJ_GetCurrentProgression	(	int64_t	a_elt1,
		int64_t	a_elt2,
		int64_t *	ap_nbEltsArray,
		int	a_nbRGates,
		int	a_nbCGates,
		int	a_fr,
		int	a_rg,
		int	a_cg
	)

Get numerator value according to the modality to compute percent progression during the analytical projection process.

Parameters

a_elt1	: Current nb of processed #1 crystals (PET), projections (SPECT)
a_elt2	: Current nb of processed #2 crystals (PET), crystals (SPECT)
ap_nbEltsArray	: Total number of elements processed for each #1 crystals (PET/CT systems)
a_nbRGates
a_nbCGates
a_fr
a_rg
a_cg

Returns: the required progression value if success, negative value otherwise

Definition at line 672 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t sScannerManager::PROJ_GetModalityStartValueInnerLoop ( int64_t a_elt1 )

Get the start value for the inner loop of analytic projection depending on the modality.

Parameters

a_elt1 : Current nb of processed crystals (PET), projections (SPECT)

Returns: the required stop value if success, NEGATIVE value otherwise

Definition at line 617 of file sScannerManager.cc.

Here is the call graph for this function:

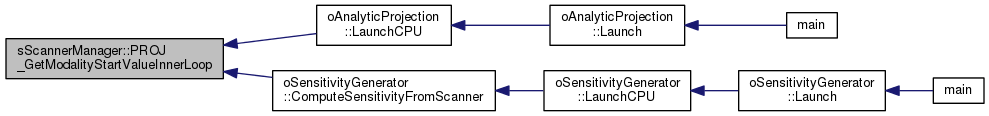

Here is the caller graph for this function:

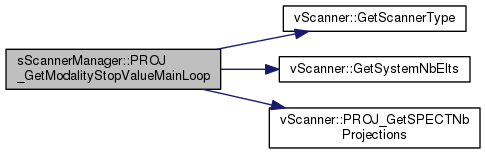

int64_t sScannerManager::PROJ_GetModalityStopValueMainLoop ( )

Get the stop value for the main loop of analytic projection depending on the modality.

Returns: the required stop value if success, NEGATIVE value otherwise

Definition at line 569 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::PROJ_GetPETSpecificParameters ( int * a_maxRingDiff )

Transfer addresses to each geometric parameter of the PET scanner objets to the corresponding pointer of the datafile passed as argument.

Parameters

ap_maxRingDiff : max number of axial ring difference

Returns: 0 if success, positive value otherwise

Definition at line 798 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t sScannerManager::PROJ_GetProgressionFinalValue ( )

Get numerator value according to the modality to compute percent progression during the projection process.

Returns: the required progression value if success, negative value otherwise

Definition at line 723 of file sScannerManager.cc.

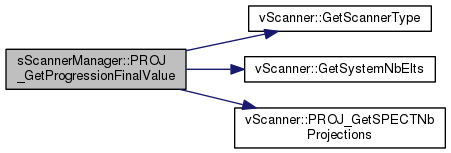

Here is the call graph for this function:

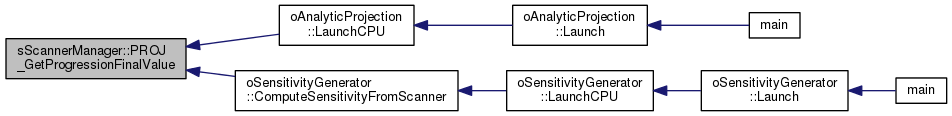

Here is the caller graph for this function:

int sScannerManager::PROJ_SetPETSpecificParameters ( int a_maxRingDiff )

Deliver to the PET scanner object all informations provided from the datafile header.

Parameters

a_maxRingDiff : max number of axial ring difference

Returns: 0 if success, positive value otherwise

Definition at line 768 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int sScannerManager::PROJ_SetSPECTSpecificParameters	(	uint16_t *	ap_nbOfBins,
		uint32_t	a_nbOfProjections,
		FLTNB	a_firstAngle,
		FLTNB	a_stepAngle,
		FLTNB *	ap_projectionAngles,
		FLTNB	a_CORtoDetectorDistance,
		string	a_rotDirection
	)

Deliver to the SPECT scanner object all informations provided from the acquisition parameters.

Parameters

ap_nbOfBins	: 2 elements array containing transaxial number of bins
a_nbOfProjections	: number of views/projections
a_firstAngle	: angle of the first view
a_lastAngle	: angle of the last view
ap_projectionAngles	: an array containing angles for each view
a_CORtoDetectorDistance	: a distance between the center of rotation and the detector
a_RotDirection	: Rotation direction of the head (clockwise/counter-clockwise)

For analytical projection, this data is provided from the command-line options

Returns: 0 if success, positive value otherwise

Definition at line 847 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

bool sScannerManager::SaveLUTFlag ( )

inline

Get flag indicating a LUT generated by a geom file should be written on disk or not.

Returns: true if scanner LUT has to be saved, false otherwise

Definition at line 200 of file sScannerManager.hh.

Here is the caller graph for this function:

void sScannerManager::SetSaveLUTFlag ( bool a_flag )

inline

Set to on the flag indicating a LUT generated by a geom file should be written on disk or not.

Parameters

a_flag

Definition at line 192 of file sScannerManager.hh.

Here is the caller graph for this function:

void sScannerManager::SetVerbose ( int a_verboseLevel )

inline

set verbosity

Parameters

a_verboseLevel

Definition at line 184 of file sScannerManager.hh.

Here is the caller graph for this function:

int sScannerManager::ShowScannersDescription ( )

Get the description associated to the different scanners and print all on screen.
Walk through the scanner repository and look for the keyword "description" in .geom file and .hscan file.

Returns: 0 if success, positive value otherwise

Definition at line 151 of file sScannerManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

bool sScannerManager::m_allParametersChecked

private

Boolean indicating if all variables of the class have been checked

Definition at line 348 of file sScannerManager.hh.

bool sScannerManager::m_hasGenericScannerFile

private

Boolean indicating if the scanner geometry if defined by a generic file

Definition at line 347 of file sScannerManager.hh.

bool sScannerManager::m_hasUserScannerFile

private

Boolean indicating if the scanner geometry if defined by a user LUT

Definition at line 346 of file sScannerManager.hh.

string sScannerManager::m_pathToScannerFile

private

String containing the path to the scanner file

Definition at line 344 of file sScannerManager.hh.

bool sScannerManager::m_saveLUTFlag

private

Flag indicating a LUT generated by a geom file should be written on disk or not.

Definition at line 349 of file sScannerManager.hh.

string sScannerManager::m_scannerName

private

String containing the scanner name

Definition at line 345 of file sScannerManager.hh.

int sScannerManager::m_verbose

private

Verbosity

Definition at line 343 of file sScannerManager.hh.

sScannerManager * sScannerManager::mp_Instance = NULL

staticprivate

Pointer to the instance of this class

Definition at line 341 of file sScannerManager.hh.

vScanner* sScannerManager::mp_Scanner

private

Pointer to the Scanner object

Definition at line 342 of file sScannerManager.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
