Singleton class that manages output writing on disk (images, sinograms, etc).
It also manages logging and printing on screen. More...

#include <sOutputManager.hh>

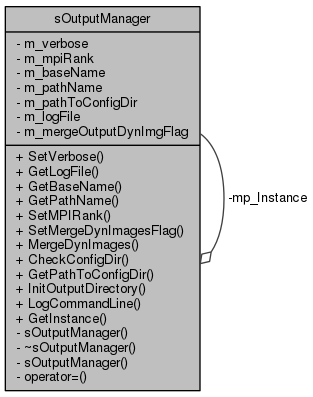

Collaboration diagram for sOutputManager:

Public Member Functions
void	SetVerbose (int a_verbose)
	set verbosity More...

ofstream &	GetLogFile ()

const string &	GetBaseName ()

const string &	GetPathName ()

void	SetMPIRank (int a_mpiRank)
	Initialize the machine index for MPI. More...

void	SetMergeDynImagesFlag (bool a_flag)
	Set to on the flag indicating that a dynamic serie of 3D images should be written on disk in one file instead of one file for each 3D image associated with a metaheader, or not. More...

bool	MergeDynImages ()
	Indicate if a dynamic serie of 3D images should be merged in one file (true) or written on disk as one file for each 3D image, associated with an Interfile metaheader. More...

int	CheckConfigDir (const string &a_path)
	Set the path to the CASTOR config directory from the given path if not empty or through the existence of the environment variable CASTOR_CONFIG. More...

const string &	GetPathToConfigDir ()
	Return the path to the CASTOR config directory. More...

int	InitOutputDirectory (const string &a_pathFout, const string &a_pathDout)
	Create the output directory if any, extract the base name and create the log file. More...

int	LogCommandLine (int argc, char **argv)
	Write log file header with the provided command line options and different informations. More...

Static Public Member Functions
static sOutputManager *	GetInstance ()
	Instanciate the singleton object and Initialize member variables if not already done, return a pointer to this object otherwise. More...

Private Member Functions
	sOutputManager ()
	sOutputManager constructor. More...

	~sOutputManager ()
	sOutputManager destructor. More...

	sOutputManager (sOutputManager const &)

void	operator= (sOutputManager const &)

Private Attributes
int	m_verbose

int	m_mpiRank

string	m_baseName

string	m_pathName

string	m_pathToConfigDir

ofstream	m_logFile

bool	m_mergeOutputDynImgFlag

Static Private Attributes
static sOutputManager *	mp_Instance = NULL

Detailed Description

Singleton class that manages output writing on disk (images, sinograms, etc).
It also manages logging and printing on screen.

Definition at line 171 of file sOutputManager.hh.

Constructor & Destructor Documentation

sOutputManager::sOutputManager ( )

private

sOutputManager constructor.

It is private at this class is singleton. It should be instanciated using the GetInstance() function Initialize the member variables to their default values.

Definition at line 56 of file sOutputManager.cc.

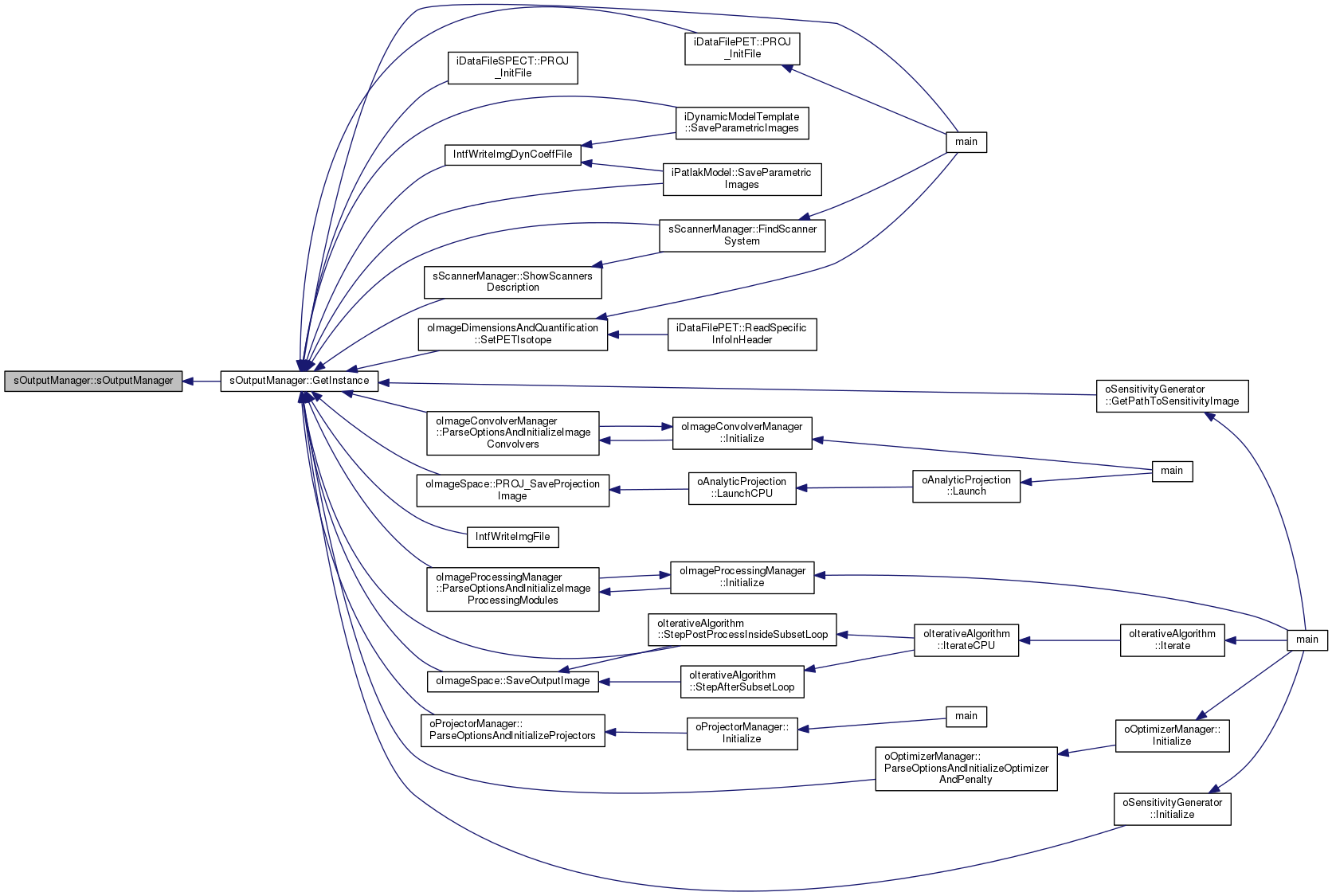

Here is the caller graph for this function:

sOutputManager::~sOutputManager ( )

private

sOutputManager destructor.

Definition at line 80 of file sOutputManager.cc.

sOutputManager::sOutputManager ( sOutputManager const & )

inlineprivate

Definition at line 296 of file sOutputManager.hh.

Member Function Documentation

int sOutputManager::CheckConfigDir ( const string & a_path )

Set the path to the CASTOR config directory from the given path if not empty or through the existence of the environment variable CASTOR_CONFIG.

Parameters

a_path

Returns: 0 if success, positive value otherwise

Definition at line 100 of file sOutputManager.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

const string & sOutputManager::GetBaseName ( )

inline

Returns: the string containing the output image base name

Definition at line 209 of file sOutputManager.hh.

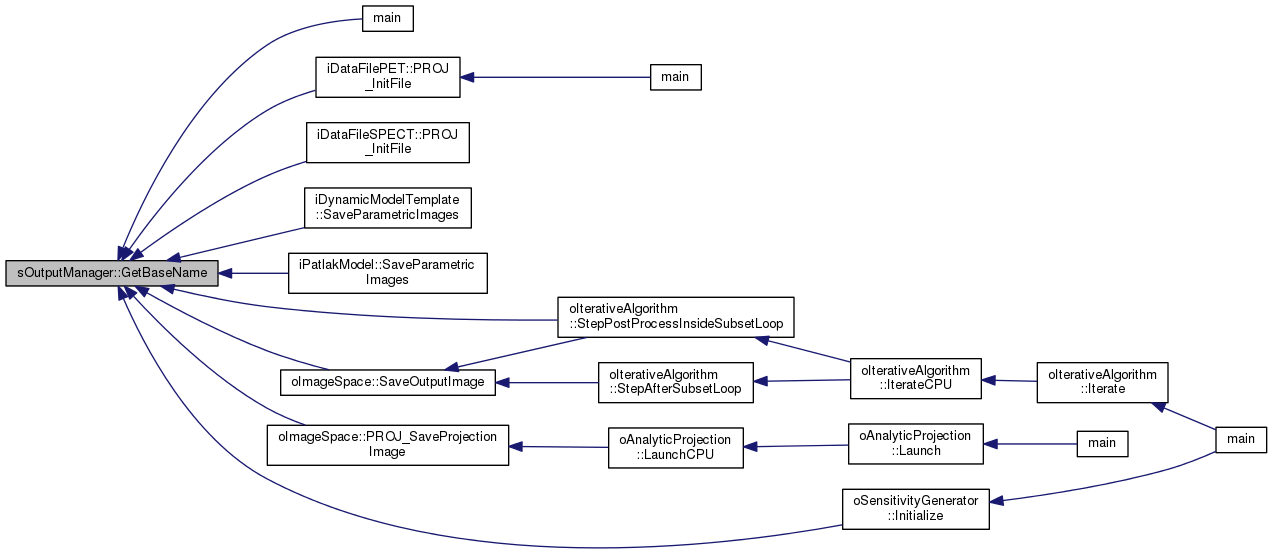

Here is the caller graph for this function:

static sOutputManager * sOutputManager::GetInstance ( )

inlinestatic

Instanciate the singleton object and Initialize member variables if not already done, return a pointer to this object otherwise.

Returns: instance of the sOutputManager singleton

Definition at line 182 of file sOutputManager.hh.

Here is the call graph for this function:

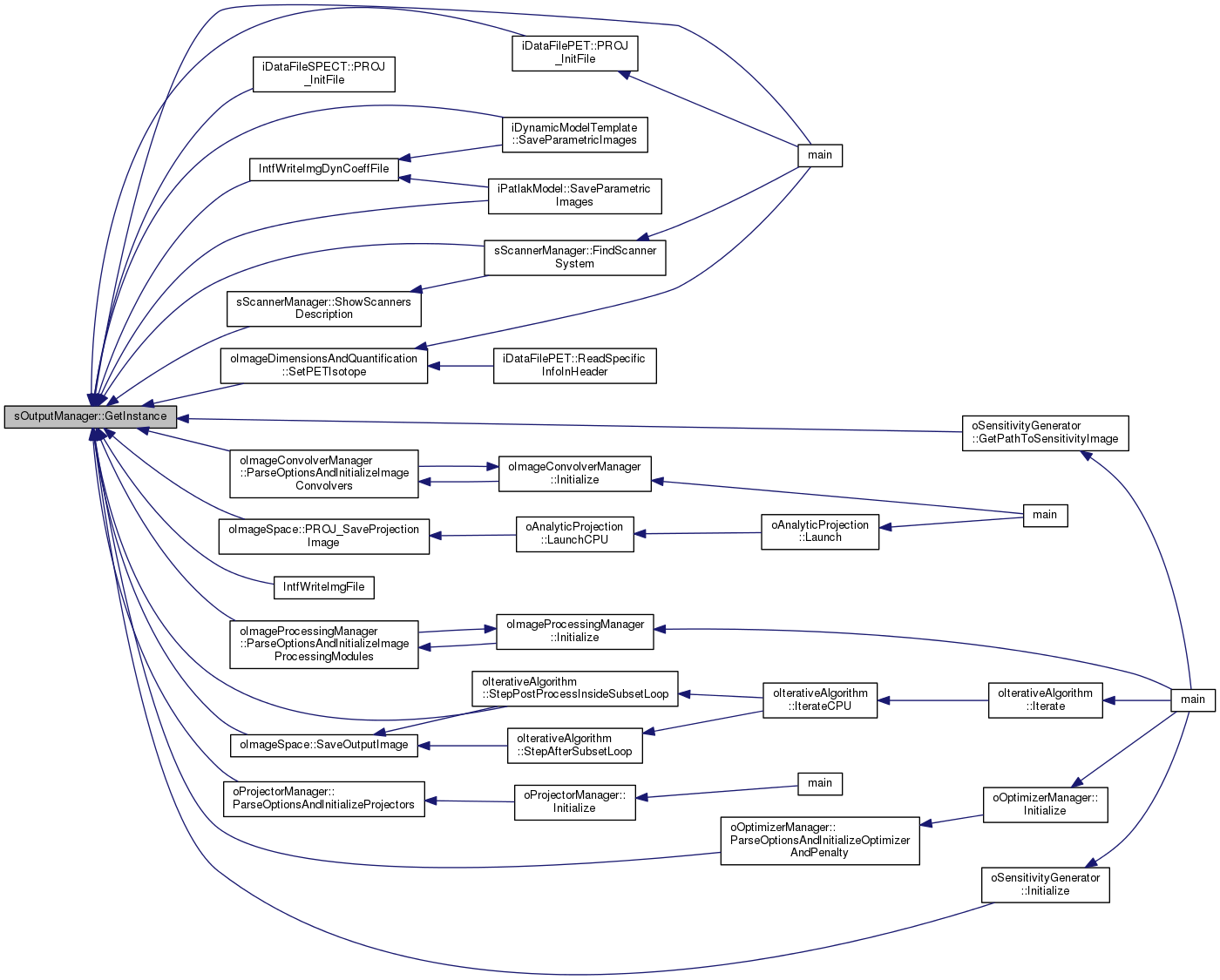

Here is the caller graph for this function:

ofstream & sOutputManager::GetLogFile ( )

inline

Returns: the ofstream object for the log file

Definition at line 203 of file sOutputManager.hh.

const string & sOutputManager::GetPathName ( )

inline

Returns: the string containing the path to the output directory

Definition at line 215 of file sOutputManager.hh.

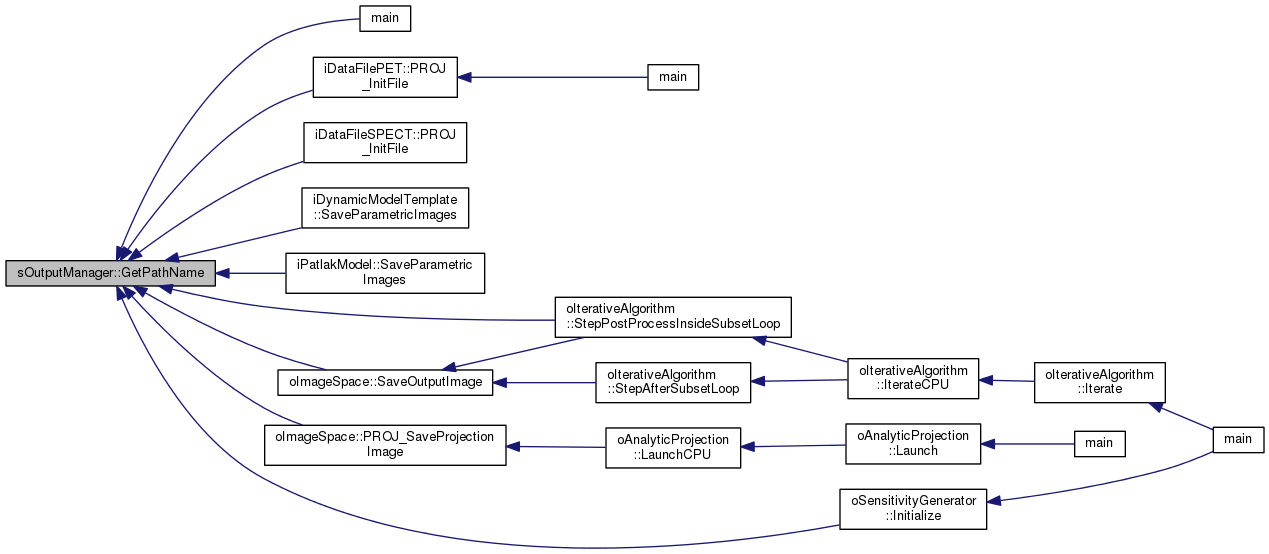

Here is the caller graph for this function:

const string & sOutputManager::GetPathToConfigDir ( )

Return the path to the CASTOR config directory.

Just return the path if it has already been initialized Otherwise, the function recovers the path from environnement variables If any error, the working directory is returned instead

Returns: astring containing path to the CASToR configuration directory

Definition at line 154 of file sOutputManager.cc.

Here is the call graph for this function:

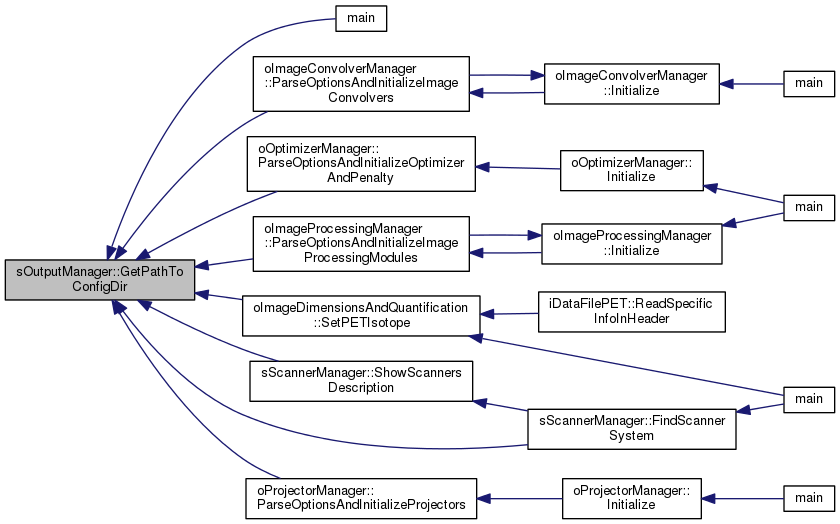

Here is the caller graph for this function:

int sOutputManager::InitOutputDirectory	(	const string &	a_pathFout,
		const string &	a_pathDout
	)

Create the output directory if any, extract the base name and create the log file.

Parameters

a_pathFout	: path to an output file as provided by the user
a_pathDout	: path to an output directory as provided by the user

Returns: 0 if success, and positive value otherwise.

Definition at line 209 of file sOutputManager.cc.

Here is the caller graph for this function:

int sOutputManager::LogCommandLine	(	int	argc,
		char **	argv
	)

Write log file header with the provided command line options and different informations.

Parameters

argc
argv

Returns: 0 if success, positive value otherwise.

Definition at line 327 of file sOutputManager.cc.

Here is the caller graph for this function:

bool sOutputManager::MergeDynImages ( )

inline

Indicate if a dynamic serie of 3D images should be merged in one file (true) or written on disk as one file for each 3D image, associated with an Interfile metaheader.

Returns: true if images should be merged in one file, false otherwise.

Definition at line 239 of file sOutputManager.hh.

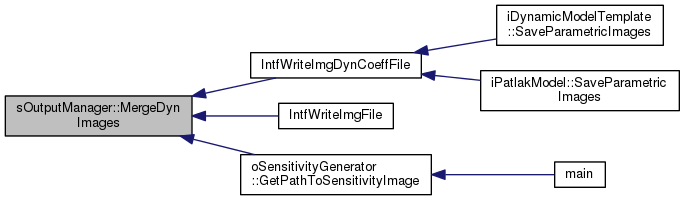

Here is the caller graph for this function:

void sOutputManager::operator= ( sOutputManager const & )

inlineprivate

Definition at line 297 of file sOutputManager.hh.

void sOutputManager::SetMergeDynImagesFlag ( bool a_flag )

inline

Set to on the flag indicating that a dynamic serie of 3D images should be written on disk in one file instead of one file for each 3D image associated with a metaheader, or not.

Parameters

a_flag

Definition at line 231 of file sOutputManager.hh.

Here is the caller graph for this function:

void sOutputManager::SetMPIRank ( int a_mpiRank )

inline

Initialize the machine index for MPI.

Parameters

a_mpiRank

Definition at line 222 of file sOutputManager.hh.

Here is the caller graph for this function:

void sOutputManager::SetVerbose ( int a_verbose )

inline

set verbosity

Parameters

a_verbose

Definition at line 197 of file sOutputManager.hh.

Here is the caller graph for this function:

Member Data Documentation

string sOutputManager::m_baseName

private

String containing the image base name

Definition at line 306 of file sOutputManager.hh.

ofstream sOutputManager::m_logFile

private

File object for the output log file

Definition at line 309 of file sOutputManager.hh.

bool sOutputManager::m_mergeOutputDynImgFlag

private

Flag indicating if dynamic image should be written on disk as one file (true), or a serie of 3D image associated with a metaheader (false). Default: false

Definition at line 310 of file sOutputManager.hh.

int sOutputManager::m_mpiRank

private

Machine index for MPI

Definition at line 305 of file sOutputManager.hh.

string sOutputManager::m_pathName

private

String containing the path to the output directory

Definition at line 307 of file sOutputManager.hh.

string sOutputManager::m_pathToConfigDir

private

String containing the path to the CASToR configuration directory

Definition at line 308 of file sOutputManager.hh.

int sOutputManager::m_verbose

private

Verbosity

Definition at line 304 of file sOutputManager.hh.

sOutputManager * sOutputManager::mp_Instance = NULL

staticprivate

Pointer to this singleton object

Definition at line 297 of file sOutputManager.hh.

The documentation for this class was generated from the following files:
