Inherit from iEventPET. Class for PET list-mode events. More...

#include <iEventListPET.hh>

Inheritance diagram for iEventListPET:

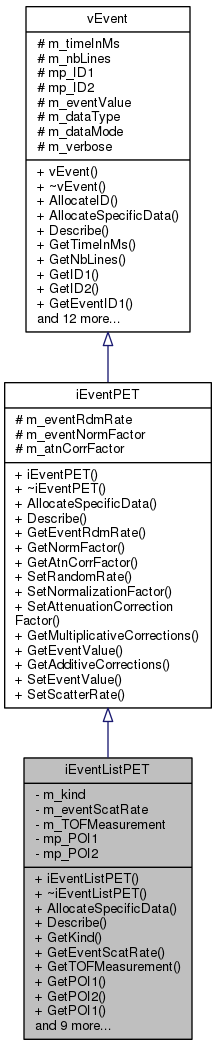

Collaboration diagram for iEventListPET:

Public Member Functions
	iEventListPET ()
	iEventListPET constructor. Initialize the member variables to their default values. More...

	~iEventListPET ()
	iEventListPET destructor. More...

int	AllocateSpecificData ()
	Function allowing the allocation of specific data. Return 0 by default for iEventListPET. More...

void	Describe ()
	This function can be used to get a description of the event printed out. More...

uint8_t	GetKind ()

FLTNB	GetEventScatRate (int a_bin)

FLTNB	GetTOFMeasurement ()

FLTNB *	GetPOI1 ()

FLTNB *	GetPOI2 ()

FLTNB	GetPOI1 (uint8_t axis)

FLTNB	GetPOI2 (uint8_t axis)

FLTNB	GetEventValue (int a_bin)

void	SetKind (uint8_t a_value)
	Set the kind of coincidence. More...

void	SetScatterRate (int a_bin, FLTNBDATA a_value)
	Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the scatter correction rate in 1/s (a_bin is dedicated to histogram mode, and ignored for list-mode) More...

void	SetTOFMeasurement (FLTNB a_value)
	Initialize the TOFmeasurement with a value passed in parameters. More...

void	SetPOI1 (int a_axis, FLTNBDATA a_value)
	Initialize the POI of the crystal #1 with a value for the specific axis. More...

void	SetPOI2 (int a_axis, FLTNBDATA a_value)
	Initialize the POI of the crystal #2 with a value for the specific axis. More...

void	SetEventValue (int a_bin, FLTNBDATA a_value)
	Throw a warning (depending of verbosity) as the event value of a list-mode Event should be equal to 1 and not modified ? More...

FLTNB	GetAdditiveCorrections (int a_bin)

Public Member Functions inherited from iEventPET
	iEventPET ()
	iEventPET constructor. Initialize the member variables to their default values. More...

virtual	~iEventPET ()
	iEventPET destructor More...

FLTNB	GetEventRdmRate ()

FLTNB	GetNormFactor ()

FLTNB	GetAtnCorrFactor ()

void	SetRandomRate (FLTNBDATA a_value)
	Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the random correction term. More...

void	SetNormalizationFactor (FLTNBDATA a_value)
	Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the normalization term. More...

void	SetAttenuationCorrectionFactor (FLTNBDATA a_value)
	Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the attenuation correction term. More...

FLTNB	GetMultiplicativeCorrections ()

Public Member Functions inherited from vEvent
	vEvent ()
	vEvent constructor. Initialize the member variables to their default values. More...

virtual	~vEvent ()
	vEvent destructor More...

int	AllocateID ()
	Instantiate the mp_ID1 and mp_ID2 indices arrays. More...

uint32_t	GetTimeInMs ()

uint16_t	GetNbLines ()

uint32_t	GetID1 (int a_line)

uint32_t	GetID2 (int a_line)

uint32_t *	GetEventID1 ()

uint32_t *	GetEventID2 ()

int	GetDataType ()

int	GetDataMode ()

void	SetTimeInMs (uint32_t a_value)
	Set the timestamp of the Event. More...

void	SetNbLines (uint16_t a_value)
	Set the number of lines of the Event. More...

void	SetID1 (int a_line, uint32_t a_value)
	Set the indice associated with the line index for the 1st ID of the Event. More...

void	SetID2 (int a_line, uint32_t a_value)
	Set the indice associated with the line index for the 2nd ID of the Event. More...

void	SetVerbose (int a_verbose)
	Set verbosity. More...

Private Attributes
uint8_t	m_kind

FLTNB	m_eventScatRate

FLTNB	m_TOFMeasurement

FLTNB	mp_POI1 [3]

FLTNB	mp_POI2 [3]

Additional Inherited Members
Protected Attributes inherited from iEventPET
FLTNB	m_eventRdmRate

FLTNB	m_eventNormFactor

FLTNB	m_atnCorrFactor

Protected Attributes inherited from vEvent
uint32_t	m_timeInMs

uint16_t	m_nbLines

uint32_t *	mp_ID1

uint32_t *	mp_ID2

FLTNB	m_eventValue

int	m_dataType

int	m_dataMode

int	m_verbose

Detailed Description

Inherit from iEventPET. Class for PET list-mode events.

It manages data and functions specific to list mode PET.

Definition at line 40 of file iEventListPET.hh.

Constructor & Destructor Documentation

iEventListPET::iEventListPET ( )

iEventListPET constructor. Initialize the member variables to their default values.

Definition at line 34 of file iEventListPET.cc.

iEventListPET::~iEventListPET ( )

iEventListPET destructor.

Definition at line 61 of file iEventListPET.cc.

Member Function Documentation

int iEventListPET::AllocateSpecificData ( )

inlinevirtual

Function allowing the allocation of specific data. Return 0 by default for iEventListPET.

Returns: 0 is success, positive value otherwise

Implements iEventPET.

Definition at line 64 of file iEventListPET.hh.

void iEventListPET::Describe ( )

virtual

This function can be used to get a description of the event printed out.

Reimplemented from iEventPET.

Definition at line 91 of file iEventListPET.cc.

FLTNB iEventListPET::GetAdditiveCorrections ( int a_bin )

inlinevirtual

Parameters

a	bin (0 if noTOF)

Returns: The sum of additive correction terms (the TOF bin parameter is ignored for list-mode PET)

Implements iEventPET.

Definition at line 178 of file iEventListPET.hh.

FLTNB iEventListPET::GetEventScatRate ( int a_bin )

inline

Parameters

a_bin (0 if noTOF)

Returns: the scatter correction rate in 1/s for this list-mode event (a_bin is dedicated to histogram mode, and ignored for list-mode)

Definition at line 86 of file iEventListPET.hh.

Here is the caller graph for this function:

FLTNB iEventListPET::GetEventValue ( int a_bin )

inlinevirtual

Parameters

a	bin (0 if noTOF)

Returns: 1 as default for a list-mode Event (a_bin is dedicated to histogram mode, and ignored for list-mode)

Implements iEventPET.

Definition at line 125 of file iEventListPET.hh.

uint8_t iEventListPET::GetKind ( )

inline

Returns: the kind of coincidence

Definition at line 79 of file iEventListPET.hh.

Here is the caller graph for this function:

FLTNB iEventListPET::GetPOI1 ( )

inline

Returns: the pointer containing the 3 indices for the Point Of Interaction of the 1st crystal

Parameters

axis

Returns: the Point of interaction of the 1st crystal along the axis specified in parameter

Definition at line 98 of file iEventListPET.hh.

Here is the caller graph for this function:

FLTNB iEventListPET::GetPOI1 ( uint8_t axis )

inline

Definition at line 111 of file iEventListPET.hh.

FLTNB iEventListPET::GetPOI2 ( )

inline

Returns: the pointer containing the 3 indices for the Point Of Interaction of the 2nd crystal

Parameters

axis

Returns: the Point of interaction of the 2nd crystal along the axis specified in parameter

Definition at line 104 of file iEventListPET.hh.

Here is the caller graph for this function:

FLTNB iEventListPET::GetPOI2 ( uint8_t axis )

inline

Definition at line 118 of file iEventListPET.hh.

uint32_t iEventListPET::GetTOFMeasurement ( )

inline

Returns: the TOF measurement value

Definition at line 92 of file iEventListPET.hh.

Here is the caller graph for this function:

void iEventListPET::SetEventValue	(	int	a_bin,
		FLTNBDATA	a_value
	)

virtual

Throw a warning (depending of verbosity) as the event value of a list-mode Event should be equal to 1 and not modified ?

Parameters

a_bin	(0 if noTOF)
a_value

Implements iEventPET.

Definition at line 77 of file iEventListPET.cc.

void iEventListPET::SetKind ( uint8_t a_value )

inline

Set the kind of coincidence.

Parameters

a_value

Definition at line 132 of file iEventListPET.hh.

void iEventListPET::SetPOI1	(	int	a_axis,
		FLTNBDATA	a_value
	)

inline

Initialize the POI of the crystal #1 with a value for the specific axis.

Parameters

a_axis
a_value

Definition at line 156 of file iEventListPET.hh.

void iEventListPET::SetPOI2	(	int	a_axis,
		FLTNBDATA	a_value
	)

inline

Initialize the POI of the crystal #2 with a value for the specific axis.

Parameters

a_axis
a_value

Definition at line 164 of file iEventListPET.hh.

void iEventListPET::SetScatterRate	(	int	a_bin,
		FLTNBDATA	a_value
	)

inlinevirtual

Cast the FLTNBDATA value passed as parameter in FLTNB, and set it to the scatter correction rate in 1/s (a_bin is dedicated to histogram mode, and ignored for list-mode)

Parameters

a	bin (no use for list-mode)
a_value

Implements iEventPET.

Definition at line 141 of file iEventListPET.hh.

void iEventListPET::SetTOFMeasurement ( FLTNB a_value )

inline

Initialize the TOFmeasurement with a value passed in parameters.

Parameters

a_value

Definition at line 148 of file iEventListPET.hh.

Member Data Documentation

FLTNB iEventListPET::m_eventScatRate

private

Correction term for scatter rate (unit: s-1). Default value =0.0

Definition at line 191 of file iEventListPET.hh.

uint8_t iEventListPET::m_kind

private

Coincidence type : unknown (=0), true(=1), single scat(=2), multiple scat(=3), random(=4)) Default value =KIND_UNKNOWN

Definition at line 190 of file iEventListPET.hh.

FLTNB iEventListPET::m_TOFMeasurement

private

TOF time in ps, corresponding to the difference in arrival time between the two photons. Default value =0.0

Definition at line 192 of file iEventListPET.hh.

FLTNB iEventListPET::mp_POI1[3]

private

Position of interaction in the crystal #1 along each axis (mm). Default value =0.0;0.0;-1.0

Definition at line 193 of file iEventListPET.hh.

FLTNB iEventListPET::mp_POI2[3]

private

Position of interaction in the crystal #2 along each axis (mm). Default value =0.0;0.0;-1.0

Definition at line 194 of file iEventListPET.hh.

The documentation for this class was generated from the following files:
